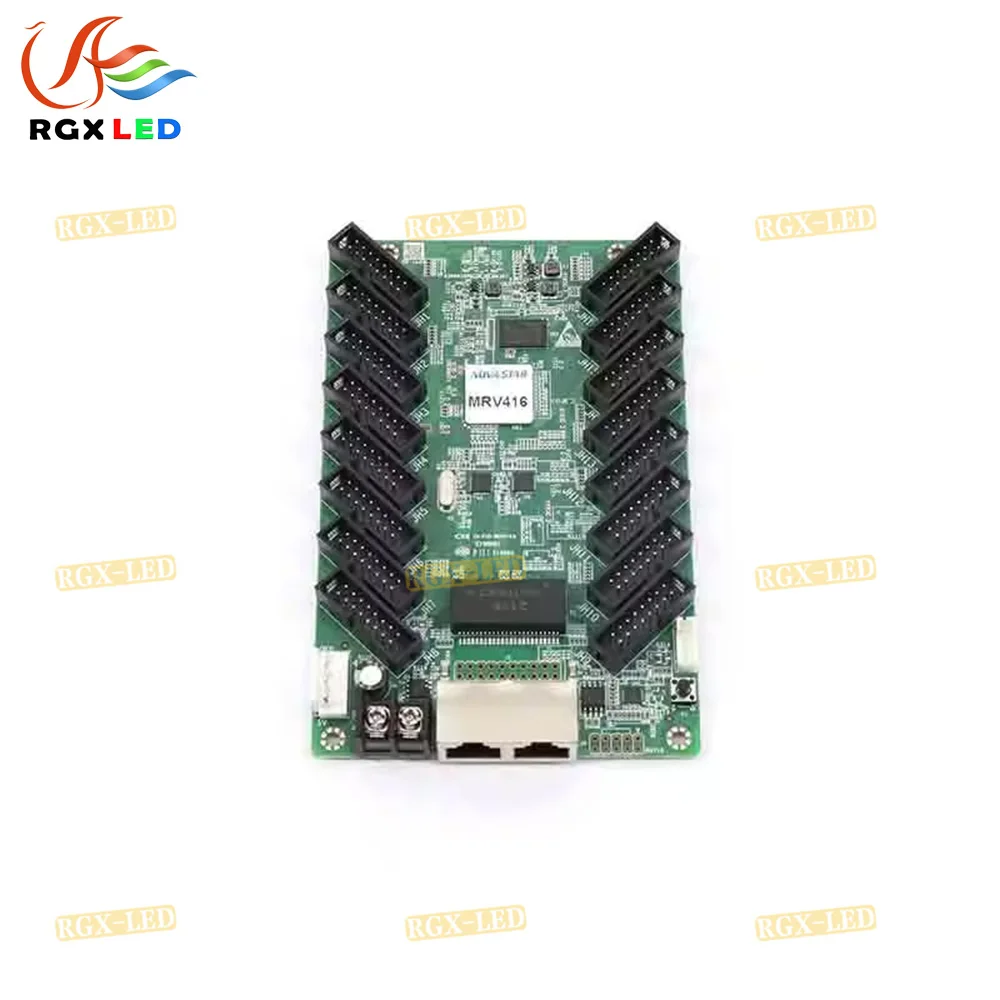

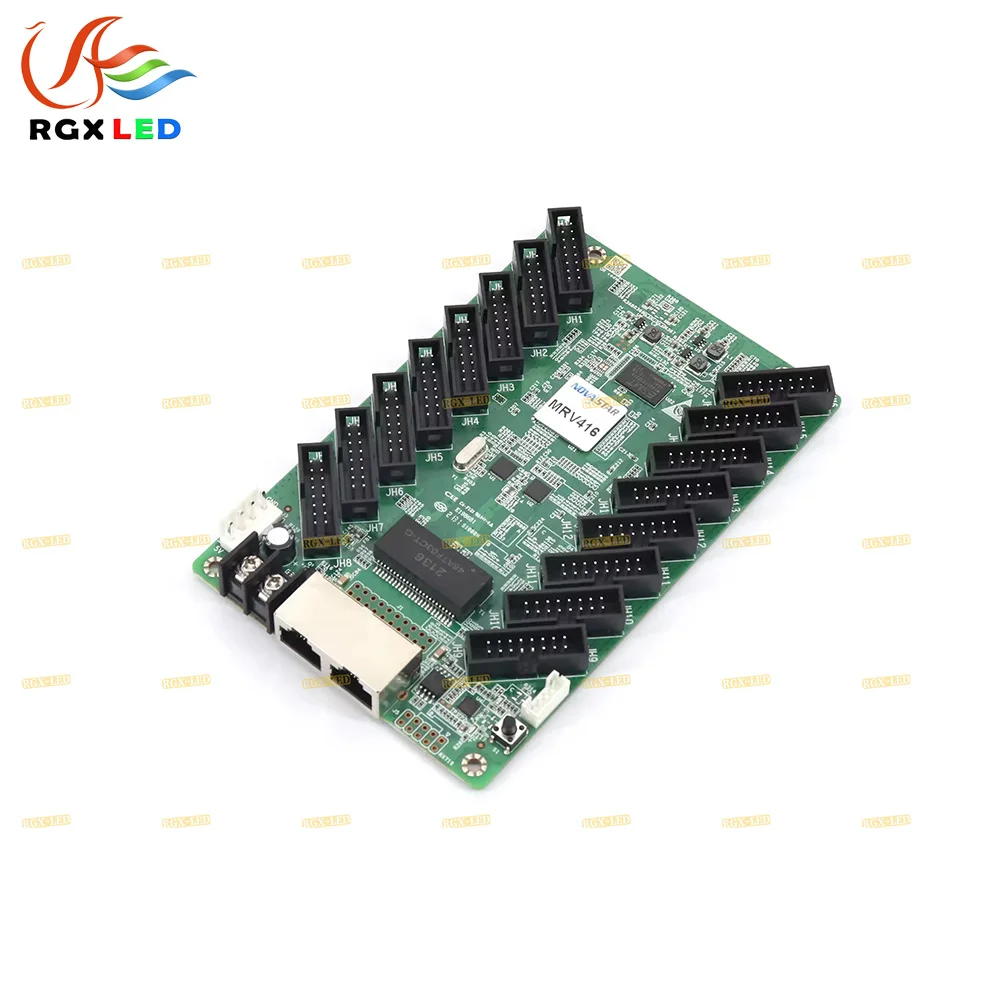

Full Color LED Video Display Receiving Card Novastar MRV416

classification：Novastar series Product -> Novastar MRV series

market price：$0.00

Local price：$0.00

material：MRV416

color：RGB

Release date：2025-8-29 10:25:6

This is the Novastar MRV416 full-color LED video display receiving card, a core driving component of full-color LED display systems. Its core function is to receive and efficiently process front-end control signals, then drive the full-color LED screen to accurately present delicate, high-fidelity videos and images.

It features strong pixel loading capacity and supports multiple full-color signal formats, adapting to the needs of full-color LED screens of different scales. Equipped with functions such as pixel-level brightness and chroma calibration, and high grayscale processing, it optimizes the color consistency and detail performance of full-color images, ensuring true and vivid colors.

With a hardware design that prioritizes stability, it is compatible with Novastar''s supporting control software for easy debugging and management. Widely used in scenarios like commercial full-color advertising screens, stage rental full-color screens, and full-color displays in large venues, it provides support for the stable and high-quality output of full-color LED videos.

Hotline：86 13699777670

Share to：QQ Zone Sina micro-blog Tencent micro-blog WeChat

Best-selling

P3.91 LED Display
classification：STAGE ALL KINDS LE..
P1.875 LED Display
classification：Small Pixel..
RGX P3 Rental Indoor LE...
classification：LED Display module..
RGX Indoor Mirror/Post ...
classification：COMMERCIAL DISPLAY..

Shenzhen RGX Electronics Co., Ltd.
Contact:ledrgx
Phone: 0755-23714515
Mobile: +86 18038069578
Whatsapp/wechat: +86 180 380 69578
Skype: levin-led
Q Q: 1006759127

After sale service: ledrgx@163.com

description

introduction to products

Novastar-MRV416

The MRV416 is a cost-effective receiving card. For PWM driver IC, the maximum on-load resolution of single card is 512×384@60Hz; For general driver ics, the maximum on-load resolution of a single card is 384×384@60Hz. Support brightness correction, 3D, RGB independent Gamma adjustment, fast light and dark line adjustment and other functions, improve the screen display effect, improve user experience.

MRV416 uses 16 standard HUB75E interfaces for communication, has high stability, and supports up to 32 sets of RGB parallel data, which is suitable for the construction of a variety of field environments.

product feature
Improve display	Brightness correction: the brightness of each light point is corrected to effectively eliminate the brightness difference, so that the brightness of the whole screen is consistent. Fast light and dark line adjustment: Adjust the light and dark lines caused by module splicing and box splicing to improve the visual obtrude caused by bright and dark lines 3D: Output 3D images with the controller that supports 3D functions RGB IndependentGamma adjustment: With the controller that supports RGB independent Gamma adjustment and NovaLCT (V5.2.0 and above), adjust "red Gamma", "green Gamma" and "blue Gamma" respectively. Effectively control the display low gray uneven, white balance drift and other issues, so that the picture is more real. The screen is rotated in a multiple of 90° (0°/90°/180°/270°)
Improve maintainability	Correction factor: The correction factor is quickly uploaded to the receiving card to improve efficiency. Mapping 1.0: Displays the controller number, receiver card number, and network port information on a container to clearly obtain the location and cabling mode of the receiver card. Temperature and voltage monitoring: real-time monitoring of the receiving card's own temperature and voltage without other peripherals. Box body fluid display: display the temperature, voltage, single run time and total run time of the receiving card through the box LCD module. Error code detection: Detects the communication quality of the receiving card network port and records the number of error packets to help eliminate network communication risks. Read back of the same program: read back the same program of the receiving card and save it to the local. Configuration parameter read back: Read back the configuration parameters of the receiving card and save them to the local PC.
Improve reliability	Loop backup: The receiver card is connected to the controller in a loop through the active and standby lines. When a fault occurs somewhere in the line, the screen body can still be displayed normally. Dual program backup: Two copies of the firmware program are saved at the factory of the receiving card to prevent the receiving card deadlock problem from abnormal updating process.

Product Paramenters

MRV416 Product specification parameter

Maximum Resolution	PWM IC: 512×384 pixels Common IC: 384×384 pixels
Electrical Parameters	input voltage\Rated current	DC 3.8 V to 5.5 V 0.5 A
	Rated power consumption	2.5 W
Operating Environment	Temperature	–20°C to +70°C
	Humidity	10% RH to 90% RH, non-condensing
Storage Environment	Temperature	–25°C to +125°C
	Humidit	0% RH to 95% RH, non-condensing
Physical Specifications	Dimensions	145.7 mm × 91.5 mm × 18.4 mm
	Net weight	100.9 g Note: It is the weight of a single receiving card only.
	Gross weight	13.78 kg Note: It is the total weight of the product, printed materials and packing materials packed according to the packing specifications
Packing Information	Packing specifications	An antistatic bag and anti-collision foam are provided for each receiving card. Each packing box contains 100 receiving cards.
	Packing box dimensions	650.0 mm × 500.0 mm × 200.0 mm
Certifications	RoHS, EMC Class A Note: If the product does not have the relevant certifications required by the countries or regions where it is to be sold, please apply for the certifications yourself or contact NovaStar to apply for them

Application scenario

Novastar-MRV416 products can be widely used in the field of LED commercial display, such as lamp pole screen, chain store screen, advertising machine, mirror screen, retail store screen, door screen, car Loading screen, no PC screen, etc.

Classification	Description
Market type	Advertising media: To be used for advertising and informationpromotion including bar screen and advertising machine. Digital signage: To be used for signage display in retail storesincluding retail store screens and door head screens. Commercial display: To display commercial information ofhotel, cinema and shopping mall, such as chain store screens.

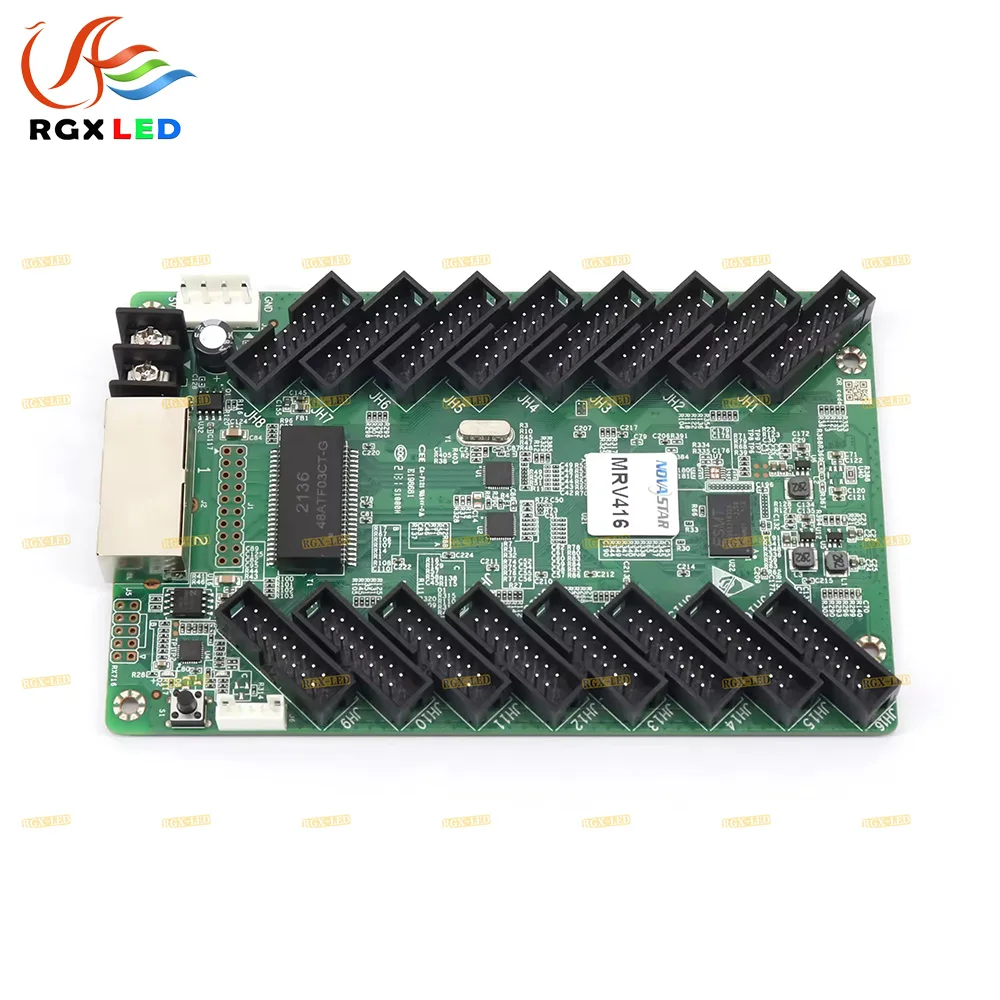

Picture display

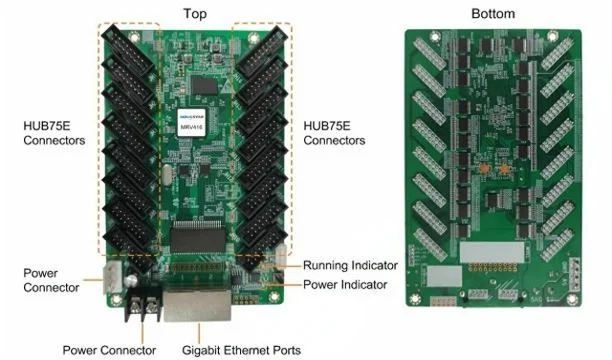

Product use

Indicator	Color	Status	Description
Running indicator	Green	Flashing once every 1s	The receiving card is functioning normally. Ethernet cable connection is normal, and video source input is available.
		Flashing once every 3s	Ethernet cable connection is abnormal.
		Flashing 3 times every 0.5s	Ethernet cable connection is normal, but no video source input is available.
		Flashing once every 0.2s	The receiving card failed to load the program in the application area and is now using the backup program
		Flashing 8 times every 0.5s	A redundancy switchover occurred on the Ethernet port and the loop backup has taken effect
Power indicator	Red	Always on	The power input is normal.

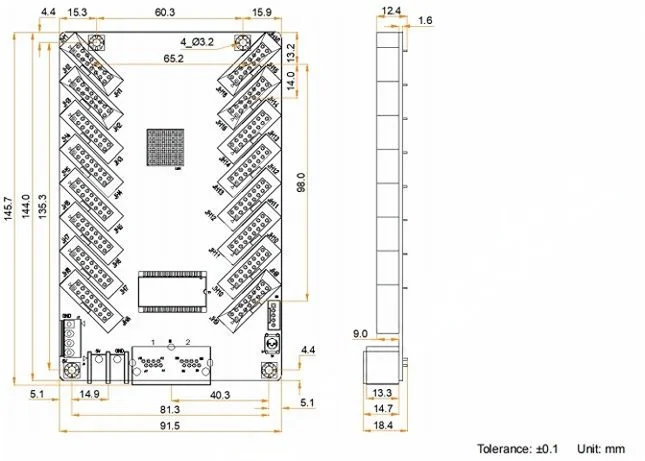

size

The board thickness is not greater than 2.0 mm, and the total thickness (board thickness + thickness of components

on the top and bottom sides) is not greater than 19.0 mm. Ground connection (GND) is enabled for mounting holes.

Packing&Shipping

We adopt the order - pick - delivery integration principle, that is, buy and send, customers place orders directly after the factory hair, so that products are protected.

In terms of packaging, we use air cases and cartons as one main packing body
