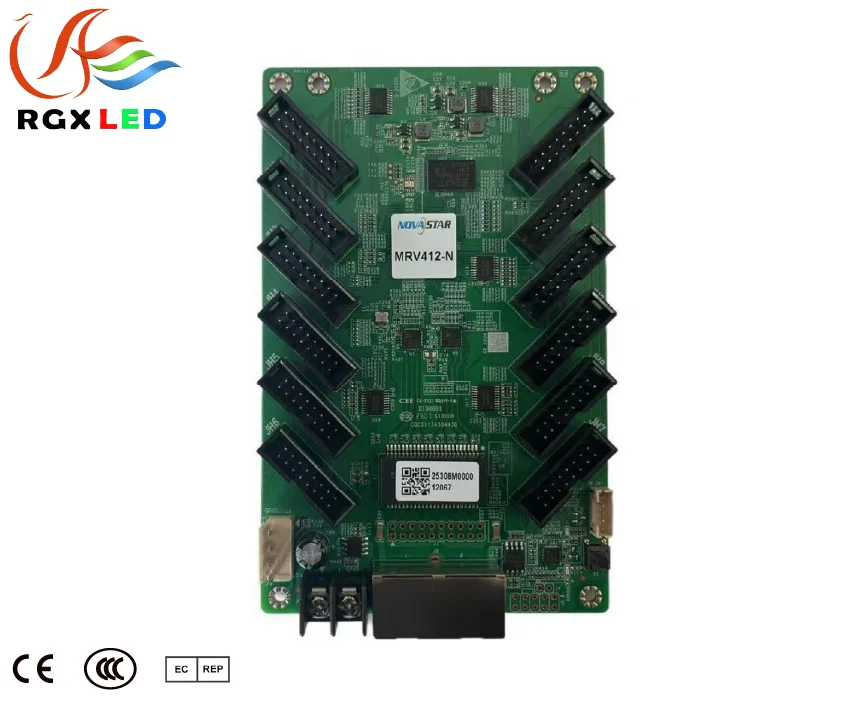

product feature











Improvements to Display Effect



Color Management
Support standard (Rec.709 / DCI-P3 / Rec.2020) and custom color gamuts, enabling more
precise colors on the screen.
18bit+
Improve the LED display grayscale by 4 times to avoid grayscale loss due to low brightness
and allow for a smoother image.
Pixel Level Brightness and Chroma Calibration
Work with NovaStar's high-precision calibration system to calibrate the brightness and
chroma of each pixel, effectively eliminating differences and enabling high consistency for
both brightness and chroma.
Quick Adjustment of Dark or Bright Lines
The different brightness of seams caused by splicing of modules or cabinets can be
corrected to improve the visual experience. The correction is easy and takes effect
immediately.
Multi-batch Adjustment
Adjust the brightness of cabinets or modules to minimize display discrepancies caused by
variations in production batches.
Low Latency
Low Latency can be enabled or disabled as required, default is disabled. When enabled, the
latency of video source on the receiving card end can be reduced to 1 frame (only when
using modules with driver IC with built-in RAM).
3D
Work with the controller that supports 3D function to enable 3D output.
Individual Gamma Adjustment for RGB
Working with NovaLCT and the controller that supports this function, the receiving card
supports individual adjustment to red gamma, green gamma and blue gamma, which can
effectively control image non-uniformity at low grayscale conditions and white balance
offset, allowing for a more realistic image.
90° Image Rotation The display image can be rotated in multiples of 90° (0°/90°/180°/270°).













Improve maintainability

 Mapping 1.1
The cabinets can display the controller number, receiving card number, and Ethernet port
information, allowing users to easily obtain the locations and connection topology of
receiving cards. Settings of a Stored Image in the Receiving Card
The image displayed during startup, or displayed when the Ethernet cable is disconnected or
there is no video signal can be customized. Temperature and Voltage Monitoring
The receiving card temperature and voltage can be monitored without using external
devices. Cabinet LCD
The LCD module of the cabinet can display the temperature, voltage, single run time and
total run time of the receiving card. Bit Error Detection
Real-time monitoring of the communication of the Ethernet port on the receiving card which
helps users troubleshoot network communication problems.
Firmware Program Readback
The receiving card firmware program can be read back and saved to the local computer.
 Configuration Parameter Readback
The receiving card configuration parameters can be read back and saved to the local
computer.









Improve reliability

Loop Backup
The receiving card and controller form a loop via the primary and backup line connections.
When a fault occurs at a location of the lines, the screen can still display the image normally.
Dual Backup of Configuration Parameters
The receiving card configuration parameters are stored in the application area and factory
area of the receiving card at the same time. Users usually use the configuration parameters

in the application area. If necessary, users can restore the configuration parameters in the
factory area to the application area.
Dual Program Backup
Two copies of firmware program are stored in the receiving card at the factory to avoid the
problem that the receiving card may get stuck abnormally during program update.

Maximum Resolution

512×512@60Hz (PWM driver IC, 8-bit video source）
512×384@60Hz (common driver IC, 8-bit video source）



Electrical Parameters

input voltage\Rated current

DC 3.8 V to 5.5 V

0.5 A

Rated power consumption

2.5 W

Operating Environment

Temperature

–20°C to +70°C

Humidity

10% RH to 90% RH, non-condensing



Storage Environment

Temperature

–40°C to +85°C

Humidit

0% RH to 95% RH, non-condensing

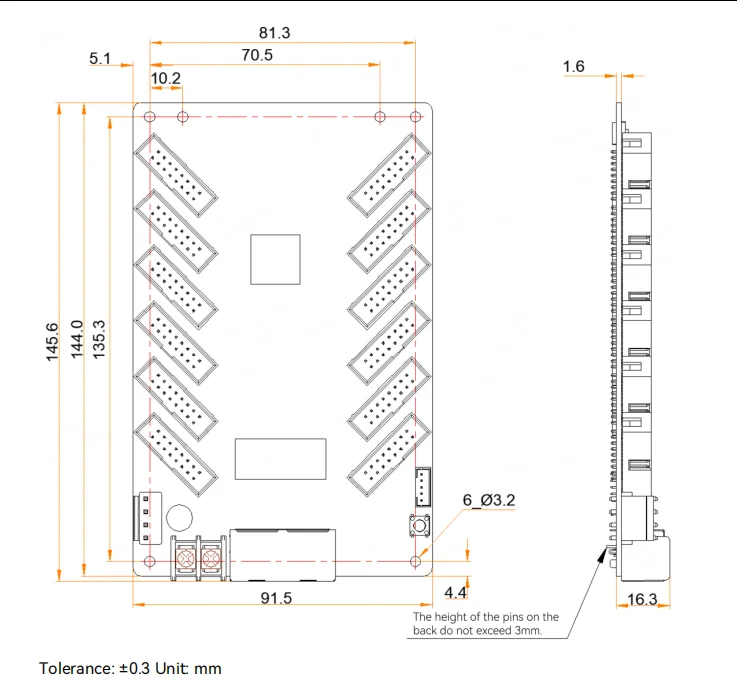

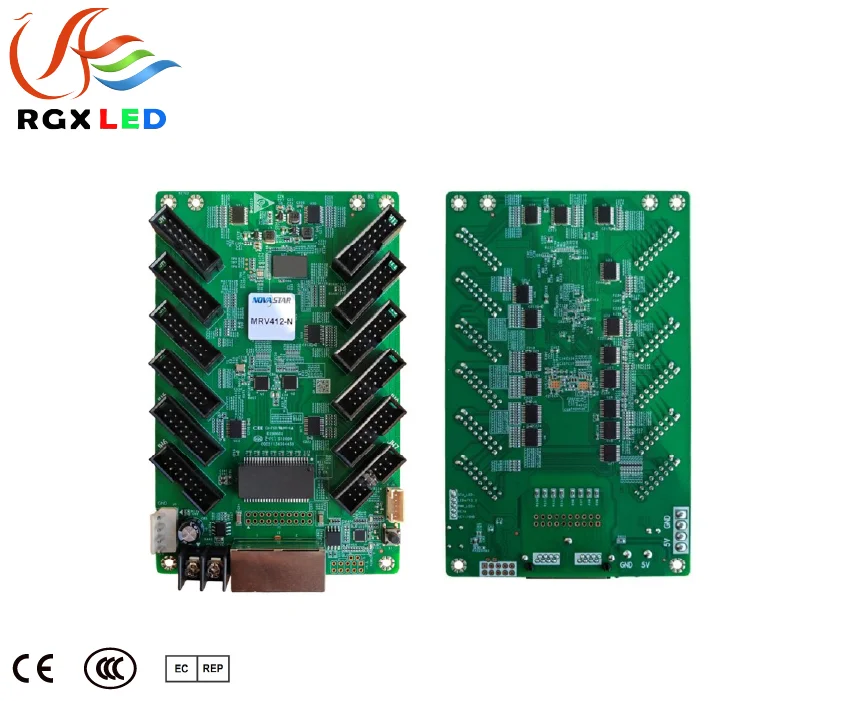

Physical Specifications

Dimensions

145.7 mm × 91.5 mm × 18.3 mm

Net weight

96.0 g

Note: It is the weight of a single receiving card only.





Packing Information

Packing

specifications

Each receiving card is packaged in a blister
pack. Each packing box contains 100 receiving cards.

Packing box dimensions

625.0mm×180.0mm×470.0mm

Classification

Description







Market type



Advertising media: To be used for advertising and informationpromotion including bar screen and advertising machine.

Digital signage: To be used for signage display in retail storesincluding retail store screens and door head screens.

Commercial display: To display commercial information ofhotel, cinema and shopping mall, such as chain store screens.

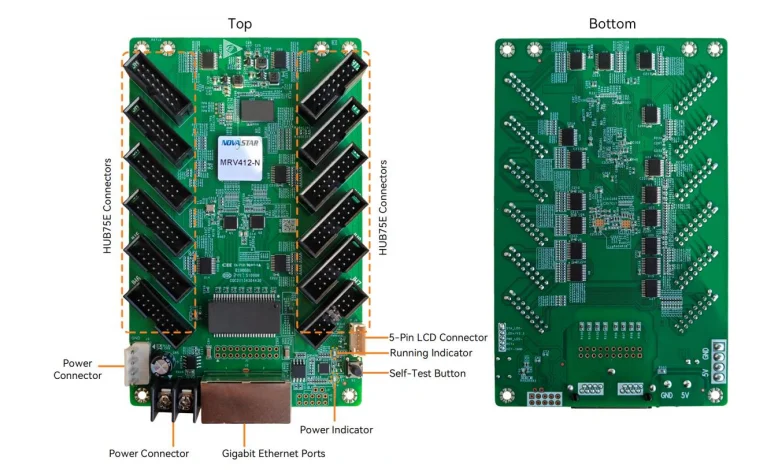

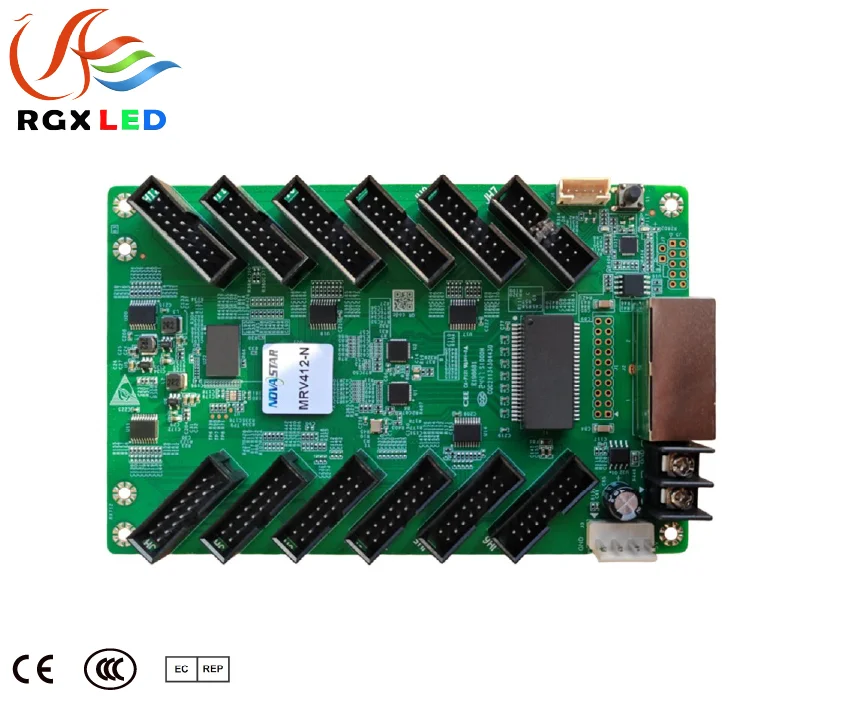

Name

Description

HUB75E Connectors

Connect to the module

Power Connector

Connect to the input power. Either of the connectors can be chosen.

Gigabit Ethernet Ports

Connect to the sending card, and cascade other receiving cards.
Each connector can be used as input or output.



Self-Test Button

Set the test pattern.
After the Ethernet cable is disconnected, press the button twice,
and the test pattern will be displayed on the screen. Press the
button again to switch the pattern.

5-Pin LCD Connector

Connect to the LCD

Indicator

Color

Status

Description









Running

indicator











Green

Flashing once every 1s

The receiving card is functioning normally.
Ethernet cable connection is normal, and
video source input is available.

Flashing once every 3s

Ethernet cable connection is abnormal.

Flashing 3 times every 0.5s

Ethernet cable connection is normal, but
video source input is unavailable.

Flashing once every 0.2s

The receiving card failed to load the
program in the application area and is now
using the backup program.

Flashing 8 times every 0.5s

A redundancy switchover occurred on the
Ethernet port and the loop backup has
taken effect.

Power

indicator

Always on

The power supply is normal.
