product feature











Improve display



Brightness correction: the brightness of each light point is corrected to effectively eliminate the brightness difference, so that

the brightness of the whole screen is consistent.

Fast light and dark line adjustment: Adjust the light and dark lines caused by module splicing and box splicing to improve the visual obtrude caused by bright and dark lines

3D: Output 3D images with the controller that supports 3D functions

RGB IndependentGamma adjustment: With the controller that supports RGB independent Gamma adjustment and NovaLCT (V5.2.0 and above), adjust "red Gamma", "green Gamma" and "blue Gamma" respectively. Effectively control the display low gray uneven, white balance drift and other issues, so that the picture is more real.

The screen is rotated in a multiple of 90° (0°/90°/180°/270°)













Improve maintainability

Correction factor: The correction factor is quickly uploaded to the receiving card to improve efficiency.

Mapping 1.0: Displays the controller number, receiver card number, and network port information on a container to clearly obtain the location and cabling mode of the receiver card.

Temperature and voltage monitoring: real-time monitoring of the receiving card's own temperature and voltage without other peripherals. Box body fluid display: display the temperature, voltage, single run time and total run time of the receiving card through the box LCD module.

Error code detection: Detects the communication quality of the receiving card network port and records the number of error packets to help eliminate network communication risks.

Read back of the same program: read back the same program of the receiving card and save it to the local.

Configuration parameter read back: Read back the configuration parameters of the receiving card and save them to the local PC.

Improve reliability

Loop backup: The receiver card is connected to the controller in a loop through the active and standby lines. When a fault occurs somewhere in the line, the screen body can still be displayed normally.

Dual program backup: Two copies of the firmware program are saved at the factory of the receiving card to prevent the receiving card deadlock problem from abnormal updating process.

Configure parameter dual backup:The receiving card configuration parameters are stored in both the application area and the working area of the receiving card The factory district. The user usually operates the configuration parameters of the application area The configuration parameters of the factory area can be restored to the application area.

Maximum Resolution

256×256@60Hz (PWM driver ICs)



Electrical Parameters

input voltage\Rated current

DC 3.8 V to 5.5 V

0.5 A

Rated power consumption

2.5 W

Operating Environment

Temperature

–20°C to +70°C

Humidity

10% RH to 90% RH, non-condensing



Storage Environment

Temperature

–25°C to +125°C

Humidit

0% RH to 95% RH, non-condensing



Physical Specifications

Dimensions

95.5mm×109.1mm×18.5mm

Net weight

71.7g
Note: It is the weight of a single receiving card only.



Packing Information

Packing specifications

Each receiving card is packaged in a blister pack.
Each packing box contains 100 receiving cards.

Packing box dimensions

625.0 mm × 180.0 mm × 470.0 mm

Classification

Description







Market type



Advertising media: To be used for advertising and informationpromotion including bar screen and advertising machine.

Digital signage: To be used for signage display in retail storesincluding retail store screens and door head screens.

Commercial display: To display commercial information ofhotel, cinema and shopping mall, such as chain store screens.

Name

Description

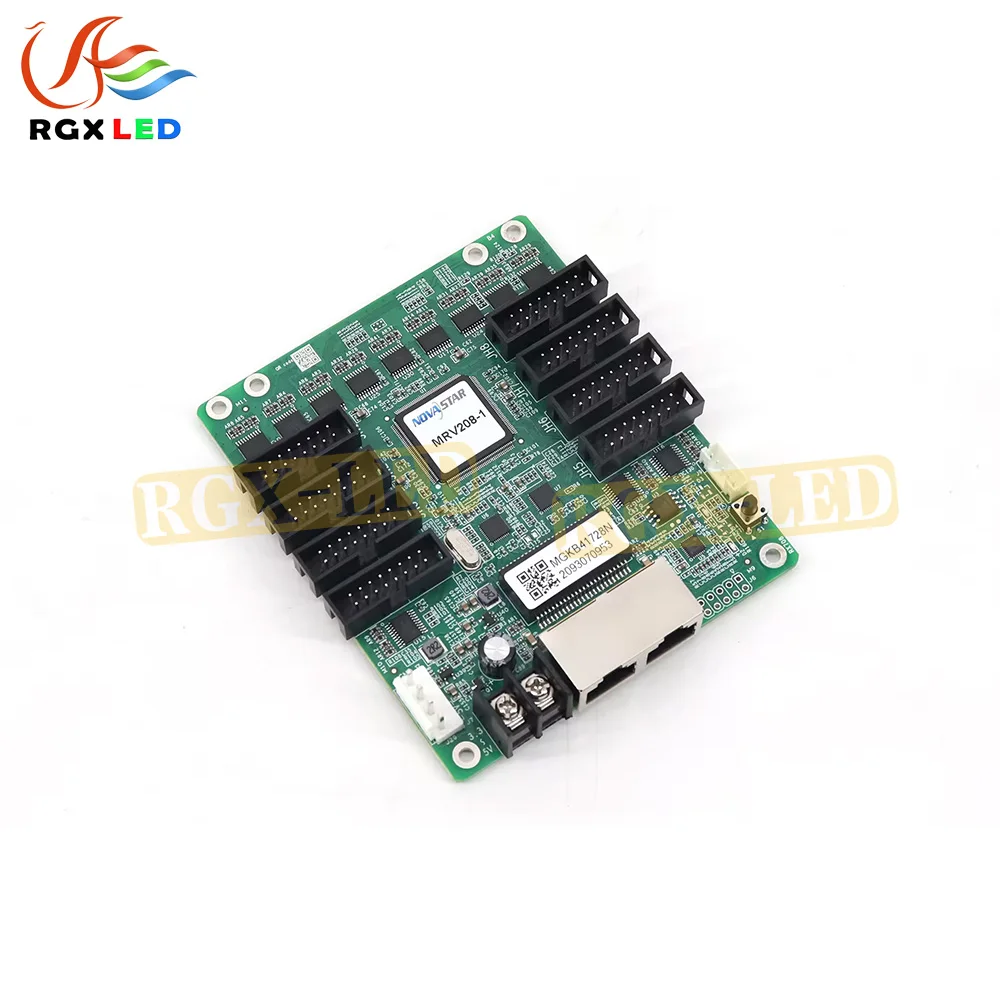

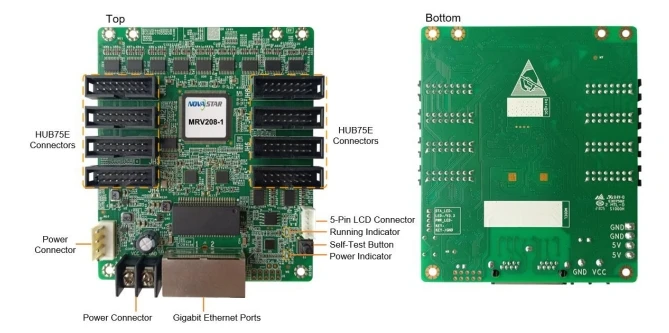

HUB75E Connectors

Connect to the module

Power Connector

Connect to the input power. Either of the connectors can be chosen.

Gigabit Ethernet Ports

Connect to the sending card, and cascade other receiving cards. Each connector can
be used as input or output.



Self-Test Button

Set the test pattern.
After the Ethernet cable is disconnected, press the button twice, and the test pattern
will be displayed on the screen. Press the button again to switch the pattern.

5-Pin LCD Connector

Connect to the LCD

Indicator

Color

Status

Description









Running

indicator











Green

Flashing once every 1s

The receiving card is functioning normally. Ethernet cable

connection is normal, and video source input is available.

Flashing once every 3s

Ethernet cable connection is abnormal.

Flashing 3 times every 0.5s

Ethernet cable connection is normal, but no video source

input is available.

Flashing once every 0.2s

The receiving card failed to load the program in the

application area and is now using the backup program

Flashing 8 times every 0.5s

A redundancy switchover occurred on the Ethernet port

and the loop backup has taken effect

Power

indicator

Always on

The power supply is normal.
