LED Display Multimedia Player Novastar Taurus TB40price-Shenzhen RGXLED Electronics Co., Ltd.

Your location：Home>>Product>>Novastar series Product>>Novastar TB series

name：

LED Display Multimedia Player Novastar Taurus TB40

classification：Novastar series Product -> Novastar TB series

market price：$0.00

Local price：$0.00

material：TB40

color：RGB

Release date：2025-8-29 10:25:21

This is the TB40 LED display multimedia player from Novastar''s Taurus Series. Its core function is to provide multimedia content playback and signal output support for LED screens. It is compatible with a variety of mainstream audio, video, image, and text formats, enabling flexible operations such as scheduled playback and split-screen display. At the same time, it can stably process content and transmit it to LED screens, ensuring smooth image presentation.

The product balances ease of use and reliability, and is suitable for various LED display scenarios including advertising media, commercial exhibitions, and information release. It can meet the content playback needs of LED screens of different scales, providing an efficient content solution for LED display systems.

Hotline：86 13699777670

Share to：QQ Zone Sina micro-blog Tencent micro-blog WeChat

Best-selling

P3.91 LED Display
classification：STAGE ALL KINDS LE..
P1.875 LED Display
classification：Small Pixel..
RGX P3 Rental Indoor LE...
classification：LED Display module..
RGX Indoor Mirror/Post ...
classification：COMMERCIAL DISPLAY..

Shenzhen RGX Electronics Co., Ltd.
Contact:ledrgx
Phone: 0755-23714515
Mobile: +86 18038069578
Whatsapp/wechat: +86 180 380 69578
Skype: levin-led
Q Q: 1006759127

After sale service: ledrgx@163.com

description

introduction to products

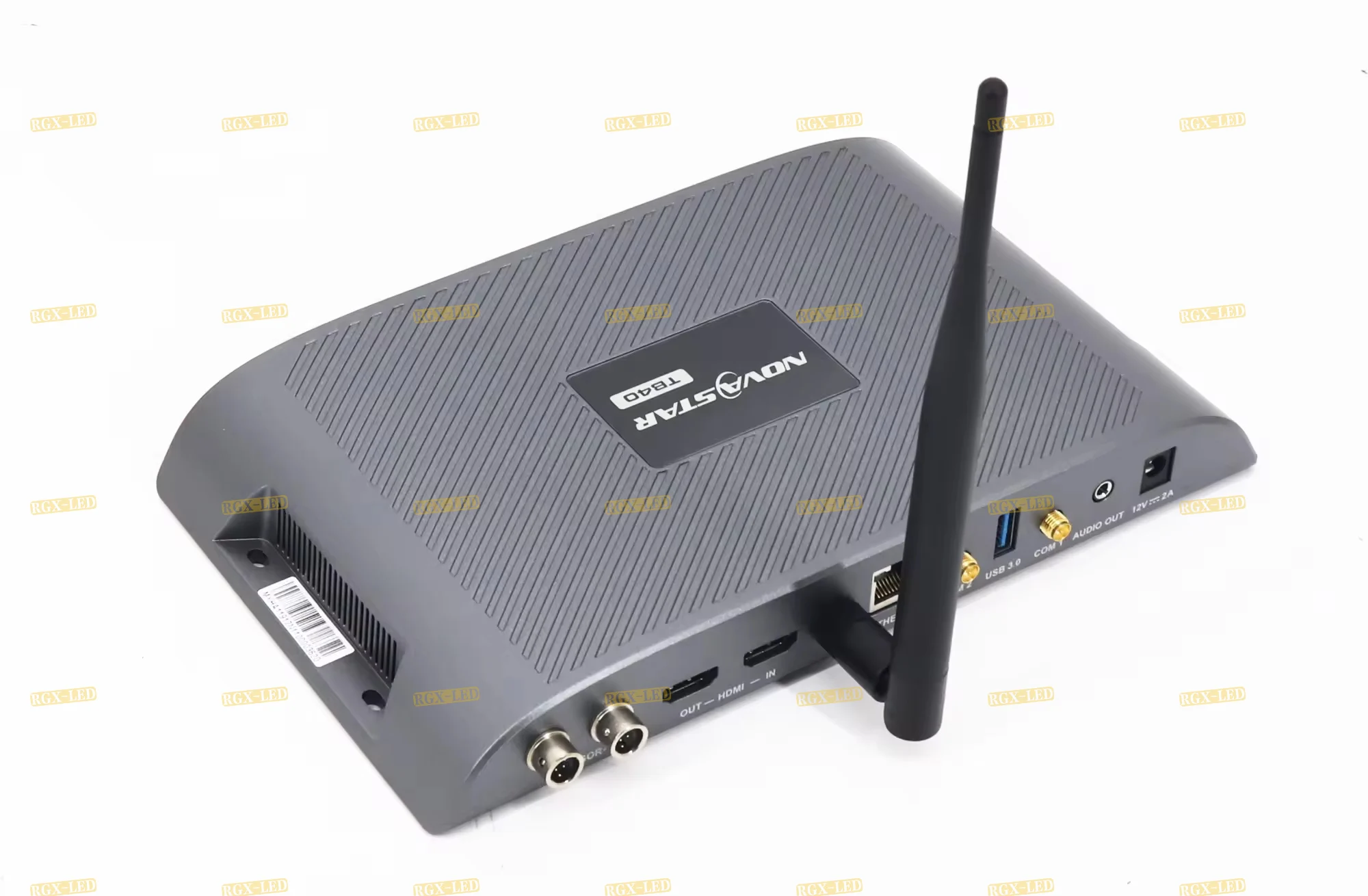

Novastar-TB40

TB40 is a new generation of multimedia player launched by Nova Nebula for LED full-color display. It integrates playback and transmission functions, and can release programs and control the display through a variety of user terminals such as PC, mobile phone, Pad, and supports access to cloud publishing and cloud monitoring platforms, which can easily achieve cross-regional cluster management of the display. TB40 supports multi-screen playback synchronization mechanism, synchronous asynchronous dual mode, to meet various playback requirements. With the characteristics of safety and stability, easy to use, intelligent control and so on, TB40 can be widely used in LED commercial display and smart city field, such as fixed installation screen, light pole screen, chain store screen, advertising machine, retail store screen, door screen, shelf screen, etc.

Product Paramenters

TB40 Product specification parameter

Electrical Parameters	input voltage	100 V–240 V AC
	Rated power consumption	18 W
memory space	random access memory	1GB
	store-in	32GB,
Operating Environment	Temperature	-20℃～+60℃
	Humidity	0%RH～80%RH， non-condensing
Storage Environment	Temperature	-40℃～+80℃
	Humidit	0%RH～80%RH， non-condensing
packaging information	Dimensions	385.0 mm × 280.0 mm × 75.0 mm
	mountings	1 x WiFi omnidirectional antenna 1x power adapter 1 x Quick Guide 1 x Packing list
Physical Specifications	Dimensions	238.8mm×140.5mm×32.0mm
	Net weight	430.0g
	gross weight	860.8g Note: It is the total weight of the product, accessories and packing materials packed according to the packing specifications.
level of protection	IP20 Please prevent the product from water intrusion and do not wet or wash the product.
system software	Android 11.0 operating system software Android terminal application software FPGA program Note: Third-party applications are not supported.

The entire Novastar Taurus-TB series uses professional-grade integrated calibration to restore the display to its original beauty

Novastar TB series Product function comparison

Product name	TB1-4G	TB2-4G	TB30	TB40	TB50	TB60
Maximum load	650,000 points	650,000 points	650,000 points	1.3 million points	1.3 million points	2.3 million points
Ultimate width height	Maximum width 1920, maximum 1080	Maximum width 1920, maximum 1080	Maximum width 4096, maximum 4096	Maximum width4096, maximum 4096	Maximum width 4096, maximum 4096	Maximum width 4096, maximum 4096
CPU	The main frequency is 1.2GHz	The main frequency is 1.2GHz	Quad-core A55, main frequency 1.8GHz	Quad-core A55, main frequency 1.8GHz	Quad-core A55, main frequency 1.8GHz	Quad-core A55, main frequency 1.8GHz
store	1GB+32GB	1GB+32GB	1GB+32GB	1GB+32GB	1GB+32GB	1GB+32GB
Storage expansion	Usb flash drive, maximum 128G	Usb flash drive, maximum 128G	Usb flash drive, maximum 128G	Usb flash drive, maximum 128G	Usb flash drive, maximum 128G	Usb flash drive, maximum 128G
Video decoding capability	1080P	1080P	4K	4K	4K	4K
Operating system	Android 5.1	Android 5.1	Android 11.0	Android 11.0	Android 11.0	Android 11.0
Number of video Windows	One 1080P or two 720P or four 360P	One 1080P or two 720P or four 360P	Two 4K or six 1080P or 10 720P or 20 360P	Two 4K or six 1080P or 10 720P or 20 360P	Two 4K or six 1080P or 10 720P or 20 360P	Two 4K or six 1080P or 10 720P or 20 360P
Play on multiple screens simultaneously	√	√	√	√	√	√
Synchronous asynchronous switching	×	√	×	√	√	√
HDMI splicing playback	×	×	×	√(1080P, Max. 8 grades)	√(1080P, Max. 8 grades)	√(1080P, Max. 8 grades)
Sensor access	0	0	0	0	0	0
Audio output	√	√	√	√	√	√
U disk local playback	√(USB2.0)	√(USB2.0)	√(USB3.0)	√(USB3.0)	√(USB3.0)	√(USB3.0)
Wired network	One hundred Megabyte	One hundred Megabyte	Dry omen	Dry omen	Dry omen	Dry omen
WiFi network	2.4GHZ，AP&STA软切换	2.4GHZ，AP&STA软切换	2.4GHZ，AP&STA软切换	2.4GHZ，AP&STA软切换	2.4GHZ，AP&STA软切换	2.4GHZ，AP&STA软切换
Screen wizard (Cloud /PC/mobile)	√	√	√	√	√	√
Naked card products	√(T1-4G)	TB2/TB2-4G（optional）	√(T30)	×	√(T50)	×

Application scenario

Taurus TB 40 series products can be widely used in the field of LED commercial display, such as lamp pole screen, chain store screen, advertising machine, mirror screen, retail store screen, door screen, car Loading screen, no PC screen, etc.

The following figure shows the text and picture

Classification	Description
Market type	Advertising media: To be used for advertising and informationpromotion including bar screen and advertising machine. Digital signage: To be used for signage display in retail storesincluding retail store screens and door head screens. Commercial display: To display commercial information ofhotel, cinema and shopping mall, such as chain store screens.
Networkingmode	Independent screen: Use a PC or the client software of amobile phone to enable single-point connection andmanagement of a screen. Cluster screen: Use the cluster solution developed by NovaStarto realize centralized management and monitor of multiplescreens.
Connectiontype	Wired connection: A PC connects to Taurus through theEthernet cable or LAN. Wi-Fi connection: PC, Pad and mobile phone can connect toTaunus through Wi-Fi, which can be enabled in the casewithout PC in conjunction with ViPlex software.

Picture display

Product use

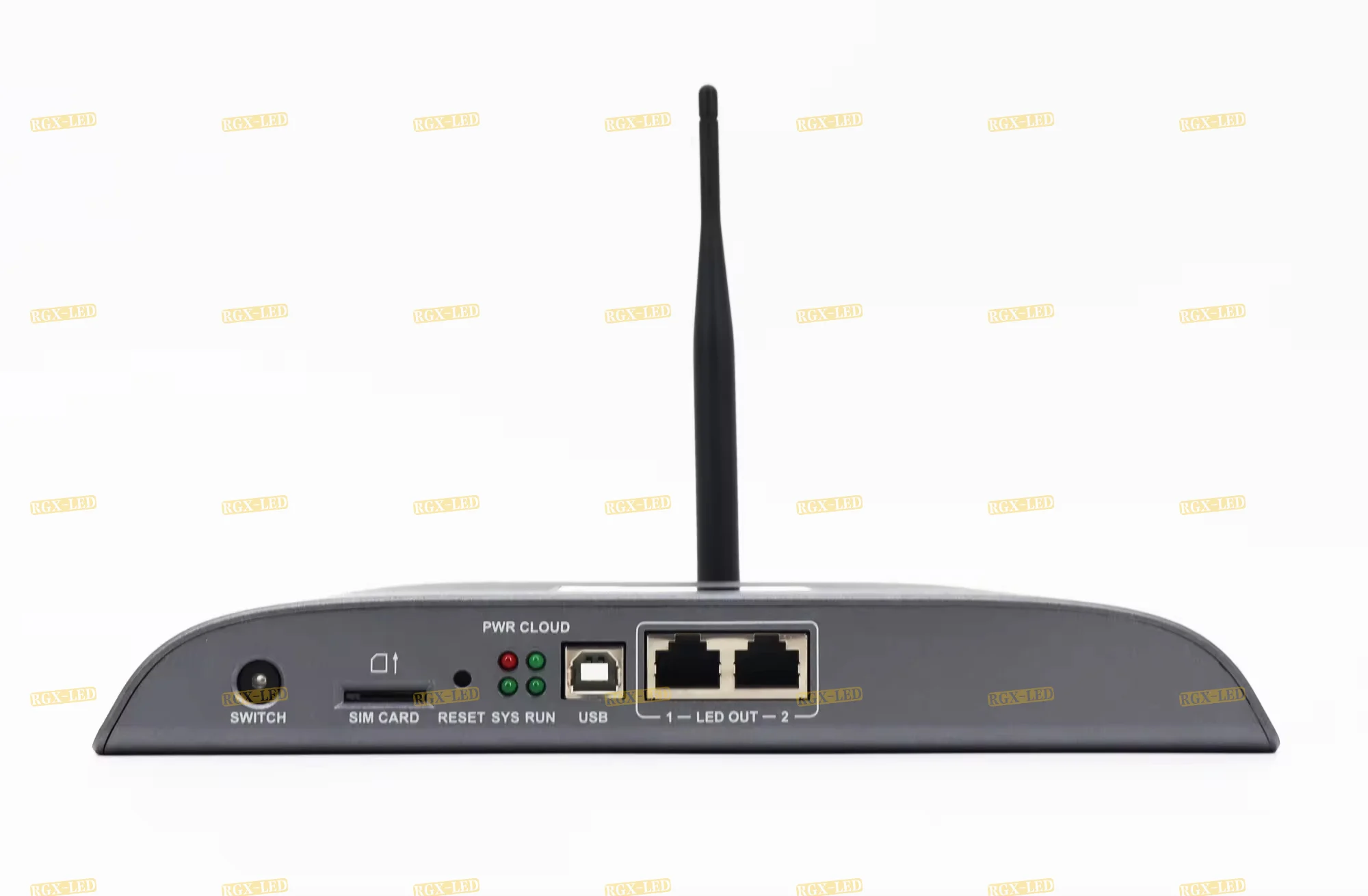

name	Description
SWITCH	Synchronous and asynchronous mode switch key. Steady on: indicates the synchronization mode. Off: The mode is asynchronous.
SIM CARD	SIM card slot, supporting anti-reverse insertion.
USB	USB (Type B) interface connects the host computer to the device directly for program release and display control.
LED OUT	Gigabit Ethernet outputs
RESET	To restore factory defaults, press and hold for 5 seconds.
COM	Radio antenna access hole. (reserved)

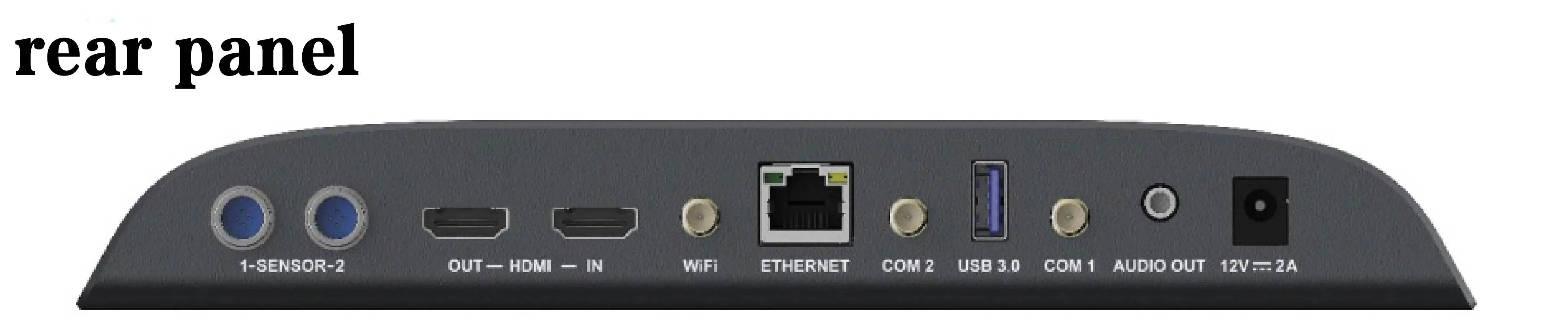

Name	Description
SENSOR	Sensor port connects to the brightness sensor or temperature and humidity sensor.
WiFi	WiFi antenna interface, WiFi AP and WiFi STA can be switched.
USB3.0	SB 3.0 (Type A) interface, support USB program playback and USB firmware upgrade. The file system supports Ext4 and FAT32, but not exFAT and FAT16.
ETHERNET	Gigabit network port, directly connect the host computer to the device, or connect the device to the local area network or the public network for program release and display control.
COM 2	GPS antenna connector
AUDIO OUT	Audio output connector OMTP headphones can be connected.
12V-2A	Power input connector
COM 1	4G antenna connector
ON/OFF	Power switch
HDMI	HDMI 1.4 port. OUT: indicates the output port, which supports the HDMI Loop. IN: input port. In synchronous mode, input the HDMI video source. For synchronous mode, the user can enable full screen scaling to make the screen play according to the size of the display. Synchronous mode full screen scaling requirements: 64 pixels ≤ Video source width ≤2048 pixels. zooms out, not zooms in.
