Novastar Taurus TB10 Plus LED Screen Controller Dual Asynchronous Synchronous Multimedia Player withprice-Shenzhen RGXLED Electronics Co., Ltd.

Your location：Home>>Product>>Novastar series Product>>Novastar TB series

name：

Novastar Taurus TB10 Plus LED Screen Controller Dual Asynchronous Synchronous Multimedia Player with

classification：Novastar series Product -> Novastar TB series

market price：$0.00

Local price：$0.00

material：TB10PLUS

color：RGB

Release date：2025-8-29 10:25:48

This is the Novastar Taurus TB10 Plus, an LED screen controller that integrates dual asynchronous and synchronous modes, along with multimedia player capabilities and combined playback & sending functions. Its core role is to flexibly handle LED screen content management: it supports both asynchronous (offline) playback of pre-stored media and synchronous (real-time) display of external signals, while seamlessly transmitting processed content to LED screens.

It accommodates various mainstream audio, video, image, and text formats, enables set playback for scheduled content delivery, and balances ease of operation with stable performance. Suitable for advertising, commercial displays, and information release scenarios, it meets the diverse control and playback needs of small-to-medium LED screens.

Hotline：86 13699777670

Share to：QQ Zone Sina micro-blog Tencent micro-blog WeChat

Best-selling

P3.91 LED Display
classification：STAGE ALL KINDS LE..
P1.875 LED Display
classification：Small Pixel..
RGX P3 Rental Indoor LE...
classification：LED Display module..
RGX Indoor Mirror/Post ...
classification：COMMERCIAL DISPLAY..

Shenzhen RGX Electronics Co., Ltd.
Contact:ledrgx
Phone: 0755-23714515
Mobile: +86 18038069578
Whatsapp/wechat: +86 180 380 69578
Skype: levin-led
Q Q: 1006759127

After sale service: ledrgx@163.com

description

introduction to products

Novastar-TB10 plus

The TB10 Plus is a new generation of multimedia player created by

NovaStar for full-color LED

displays. This multimedia player integrates

playback and sending capabilities, allowing users to

publish content and control LED displays with a computer, mobile phone, or tablet. Working

with our superior cloud-based publishing and monitoring platforms, the TB10 Plus enables

users to manage LED displays from an Internet-connected device anywhere, anytime.

The TB10 Plus can play content from a USB drive,

satisfying various playback demands. Multiple

protection measures such as terminal

authentication and player verification are taken to keep

the playback secure.

Thanks to its reliability, ease of use, and intelligent control,

the TB10 Plus becomes a winning

choice for commercial

LED displays and smart city applications such as fixed displays, lamp

post displays, chain store displays, advertisement players, retail store displays, door head

displays, shelf displays, and much more.

Product Paramenters

TB10plus Product specification parameter

Electrical Parameters	input voltage	DC 5 V to 12 V
	Maximum power	15 W
Storage Capacity	RAM	2 GB
	Internal storage	32GB,
Operating Environment	Temperature	–20ºC to +60ºC
	Humidity	5% RH to 85% RH, non-condensing
Storage Environment	Temperature	–40°C to +80°C
	Humidit	5% RH to 95% RH, non-condensing
Physical Specifications	Dimensions	141.2 mm × 120.0 mm × 33.5 mm
	Net weight Gross weight	Net weight:465.6 g Gross weight:771.2 g
Packing Information	Dimensions	333.0 mm × 196.0 mm × 70.0 mm
	Accessories	1x Wi-Fi omnidirectional antenna 1x Power adapter 2x Racks 4x Phillips countersunk head screws 1x Quick Start Guide 1x Certificate of Approval

IP Rating	IP20 Please prevent the product from water intrusion and do not wet or wash the product.
System Software	Android 10.0 operating system software Android terminal application software FPGA program

The entire Novastar Taurus-TB series uses professional-grade integrated calibration to restore the display to its original beauty

Novastar TB series Product function comparison

Product name	TB10 plus	TB20 plus
Maximum load	650,000 points	650,000 points
Ultimate width height	The widest is 2048, the highest is also 2048. The ultra-long screen has a widest dimension of 8192 and the highest is 2048.	The widest is 20448, the highest is 2048. The ultra-long screen is the widest 8192 and the highest 2048.
CPU	Quad-core A53 with a clock speed of 1.4 GHz	Quad-core A53 with a clock speed of 1.4 GHz
store	2GB+32GB	2GB+32GB
Storage expansion	Usb flash drive, maximum 128G	Usb flash drive, maximum 128G
Video decoding capability	4K@60Hz	4K@60Hz
Operating system	Android 10.0	Android 10.0
Number of video Windows	1 4K or 3 1080P or 8 720P or 16 480P or 20 360P	1 4K or 3 1080P or 8 720P or 16 480P or 20 360P
Play on multiple screens simultaneously	√	√
Synchronous asynchronous switching	×	√
HDMI splicing playback	×	×
Sensor access	Optional	Optional
Audio output	√	√
U disk local playback	√(USB2.0)	√(USB2.0)
Wired network	One hundred Megabyte	One hundred Megabyte
WiFi network	2.4GHz AP & STA dual-mode operation	2.4GHz AP & STA dual-mode operation
4G network	Optional	Optional
5G network	×	×
Product Certification	√	√
Screen Spirit (Cloud/PC/Mobile)	√	√
Doctor/Pan Pan / Pan Boss	√	√
Nova SDK Agreement	√	√
Bare card product	×	×

Application scenario

Taurus TB 10 plus series products can be widely used in the field of LED commercial display, such as lamp pole screen, chain store screen, advertising machine, mirror screen, retail store screen, door screen, car Loading screen, no PC screen, etc.

The following figure shows the text and picture

Classification	Description
Market type	Advertising media: To be used for advertising and informationpromotion including bar screen and advertising machine. Digital signage: To be used for signage display in retail storesincluding retail store screens and door head screens. Commercial display: To display commercial information ofhotel, cinema and shopping mall, such as chain store screens.
Networkingmode	Independent screen: Use a PC or the client software of amobile phone to enable single-point connection andmanagement of a screen. Cluster screen: Use the cluster solution developed by NovaStarto realize centralized management and monitor of multiplescreens.
Connectiontype	Wired connection: A PC connects to Taurus through theEthernet cable or LAN. Wi-Fi connection: PC, Pad and mobile phone can connect toTaunus through Wi-Fi, which can be enabled in the casewithout PC in conjunction with ViPlex software.

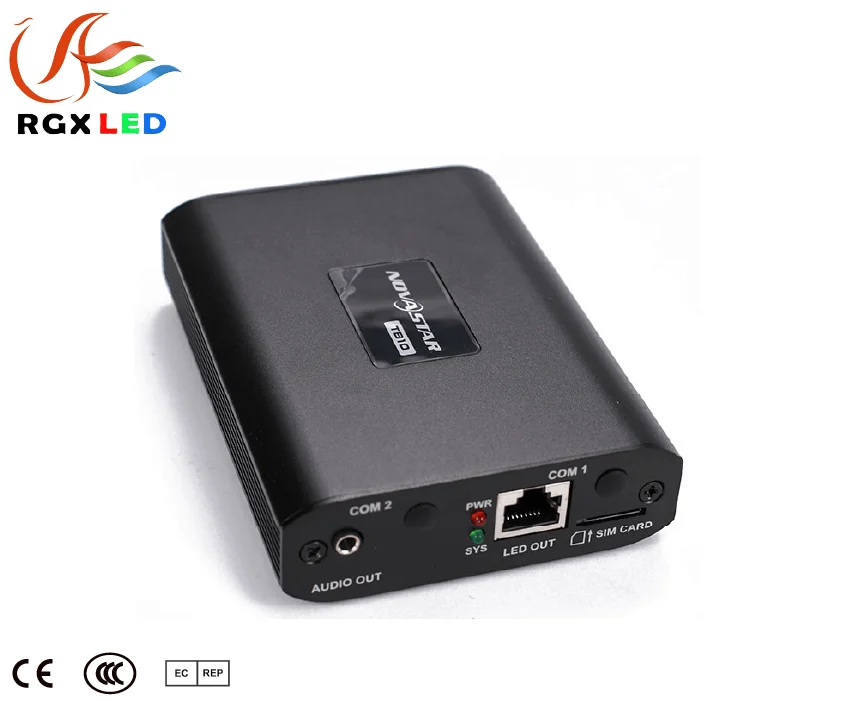

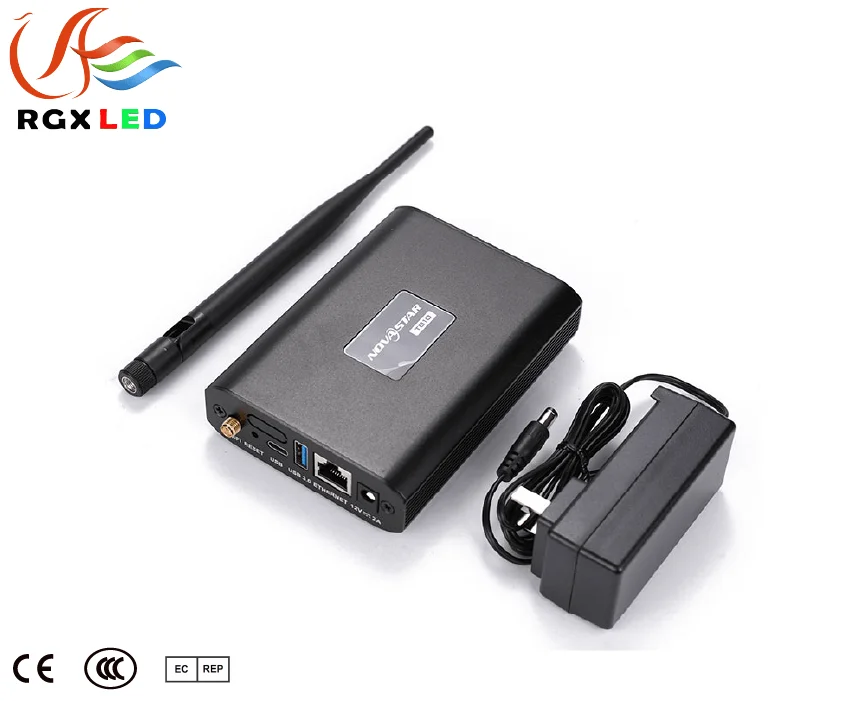

Picture display

Product use

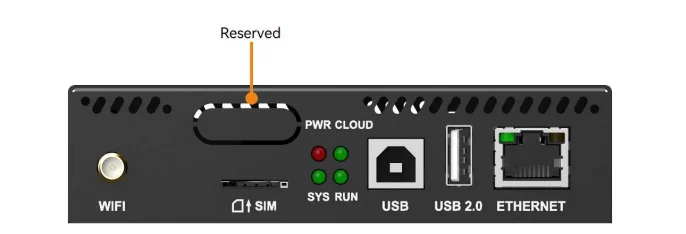

Front Panel

name	Description
WIF	Wi-Fi antenna connector (2.4GHz Wi-Fi supported)
Reserved	Sensor connector Connects to a light sensor or temperature and humidity sensor.
SIM	SIM card slot Capable of preventing users from inserting a SIM card in the wrong orientation.
USB	USB (Type B) port Connects to the control computer for content publishing and screen control.
USB 2.0	USB 2.0 (Type A) port Allows for USB playback, firmware upgrade and storage expansion (up to 128 GB). Ext4 and FAT32 file systems are supported, with FAT32 allowing a maximum file size of 4 GB. exFAT and FAT16 are not supported.
ETHERNET	Fast Ethernet port Standard RJ45 connector (with built-in LEDs) connecting to the control computer or connecting to a LAN or public network for content publishing and screen control.

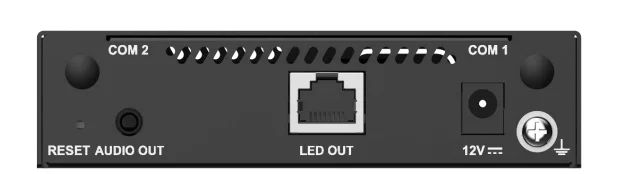

Rear Panel

Name	Description
COM 2	GPS antenna connector
RESET	Factory reset button Press and hold this button for 5s to reset the product to its factory settings.
AUDIO OUT	3.5mm audio output connector Note: 3-pole audio connectors are supported.
12V	Power input connector
LED OUT	Gigabit Ethernet output Standard RJ45 connector (with no built-in LEDs)
COM 1	4G antenna connector
