Popular Media Player for LED Display Novastar TB50 Taurus

classification：Novastar series Product -> Novastar TB series

market price：$0.00

Local price：$0.00

material：TB50

color：RGB

Release date：2025-8-29 10:25:9

This is the Novastar TB50, a popular media player from the Taurus Series specifically designed for LED displays. Its core function is to provide stable multimedia content playback for LED screens, supporting various mainstream audio, video, image, and text formats. It enables flexible operations such as scheduled playback and split-screen display, while balancing ease of use and playback reliability.

Suitable for common LED display scenarios like advertising media, commercial exhibitions, and information release, it can meet the content presentation needs of LED screens of different scales. With its high adaptability and stable performance, it has become a popular choice in the market.

Hotline：86 13699777670

Share to：QQ Zone Sina micro-blog Tencent micro-blog WeChat

Best-selling

P3.91 LED Display
classification：STAGE ALL KINDS LE..
P1.875 LED Display
classification：Small Pixel..
RGX P3 Rental Indoor LE...
classification：LED Display module..
RGX Indoor Mirror/Post ...
classification：COMMERCIAL DISPLAY..

Shenzhen RGX Electronics Co., Ltd.
Contact:ledrgx
Phone: 0755-23714515
Mobile: +86 18038069578
Whatsapp/wechat: +86 180 380 69578
Skype: levin-led
Q Q: 1006759127

After sale service: ledrgx@163.com

description

introduction to products

Novastar-TB50

The TB50 is a new generation of multimedia player created by NovaStar for full-color LED displays. This multimedia player
integrates playback and sending capabilities, allowing users to publish content and control LED displays with a computer, mobile phone, or tablet. Working with our superior cloud-based publishing and monitoring platforms, the TB50 enables users to manage LED displays from an Internet-connected device anywhere, anytime.

Support for multi-screen synchronous playback and synchronous and asynchronous modes makes this multimedia player a perfect fitfor a wide range of applications.

Thanks to its reliability, ease of use, and intelligent control, the TB50 becomes a winning choice for commercial LED displays and smart city applications such as fixed displays, lamp-post displays, chain store displays, advertisement players, retail store displays, door head displays, shelf displays, and much more

Product Paramenters

TB50 Product specification parameter

Electrical Parameters	input voltage	100-240V~, 50/60Hz, 0.6A
	Rated power consumption	18 W
memory space	random access memory	1GB
	store-in	32GB,
Operating Environment	Temperature	-20℃～+60℃
	Humidity	0%RH～80%RH， non-condensing
Storage Environment	Temperature	-40℃～+80℃
	Humidit	0%RH～80%RH， non-condensing
Physical Specifications	Dimensions	274.3 mm × 139.0 mm × 40.0 mm
	Net weight	1234.0 g
	Gross weigh	1653.6 g Note: It is the total weight of the product, accessories and packing materials packed according to the packing specifications.
Packing Information	Dimensions	385.0 mm × 280.0 mm × 75.0 mm
	Accessories	1x Wi-Fi omnidirectional antenna 1x AC power cord 1x Quick Start Guide 1x Packing list

IP Rating	IP20 Please prevent the product from water intrusion and do not wet or wash the product.
System Software	Android 11.0 operating system software Android terminal application software FPGA program Note: Third-party applications are not supported.

The entire Novastar Taurus-TB series uses professional-grade integrated calibration to restore the display to its original beauty

Novastar TB series Product function comparison

Product name	TB1-4G	TB2-4G	TB30	TB40	TB50	TB60
Maximum load	650,000 points	650,000 points	650,000 points	1.3 million points	1.3 million points	2.3 million points
Ultimate width height	Maximum width 1920, maximum 1080	Maximum width 1920, maximum 1080	Maximum width 4096, maximum 4096	Maximum width4096, maximum 4096	Maximum width 4096, maximum 4096	Maximum width 4096, maximum 4096
CPU	The main frequency is 1.2GHz	The main frequency is 1.2GHz	Quad-core A55, main frequency 1.8GHz	Quad-core A55, main frequency 1.8GHz	Quad-core A55, main frequency 1.8GHz	Quad-core A55, main frequency 1.8GHz
store	1GB+32GB	1GB+32GB	1GB+32GB	1GB+32GB	1GB+32GB	1GB+32GB
Storage expansion	Usb flash drive, maximum 128G	Usb flash drive, maximum 128G	Usb flash drive, maximum 128G	Usb flash drive, maximum 128G	Usb flash drive, maximum 128G	Usb flash drive, maximum 128G
Video decoding capability	1080P	1080P	4K	4K	4K	4K
Operating system	Android 5.1	Android 5.1	Android 11.0	Android 11.0	Android 11.0	Android 11.0
Number of video Windows	One 1080P or two 720P or four 360P	One 1080P or two 720P or four 360P	Two 4K or six 1080P or 10 720P or 20 360P	Two 4K or six 1080P or 10 720P or 20 360P	Two 4K or six 1080P or 10 720P or 20 360P	Two 4K or six 1080P or 10 720P or 20 360P
Play on multiple screens simultaneously	√	√	√	√	√	√
Synchronous asynchronous switching	×	√	×	√	√	√
HDMI splicing playback	×	×	×	√(1080P, Max. 8 grades)	√(1080P, Max. 8 grades)	√(1080P, Max. 8 grades)
Sensor access	0	0	0	0	0	0
Audio output	√	√	√	√	√	√
U disk local playback	√(USB2.0)	√(USB2.0)	√(USB3.0)	√(USB3.0)	√(USB3.0)	√(USB3.0)
Wired network	One hundred Megabyte	One hundred Megabyte	Dry omen	Dry omen	Dry omen	Dry omen
WiFi network	2.4GHZ，AP&STA软切换	2.4GHZ，AP&STA软切换	2.4GHZ，AP&STA软切换	2.4GHZ，AP&STA软切换	2.4GHZ，AP&STA软切换	2.4GHZ，AP&STA软切换
Screen wizard (Cloud /PC/mobile)	√	√	√	√	√	√
Naked card products	√(T1-4G)	TB2/TB2-4G（optional）	√(T30)	×	√(T50)	×

Application scenario

Taurus TB 50 series products can be widely used in the field of LED commercial display, such as lamp pole screen, chain store screen, advertising machine, mirror screen, retail store screen, door screen, car Loading screen, no PC screen, etc.

The following figure shows the text and picture

Classification	Description
Market type	Advertising media: To be used for advertising and informationpromotion including bar screen and advertising machine. Digital signage: To be used for signage display in retail storesincluding retail store screens and door head screens. Commercial display: To display commercial information ofhotel, cinema and shopping mall, such as chain store screens.
Networkingmode	Independent screen: Use a PC or the client software of amobile phone to enable single-point connection andmanagement of a screen. Cluster screen: Use the cluster solution developed by NovaStarto realize centralized management and monitor of multiplescreens.
Connectiontype	Wired connection: A PC connects to Taurus through theEthernet cable or LAN. Wi-Fi connection: PC, Pad and mobile phone can connect toTaunus through Wi-Fi, which can be enabled in the casewithout PC in conjunction with ViPlex software.

Picture display

Product use

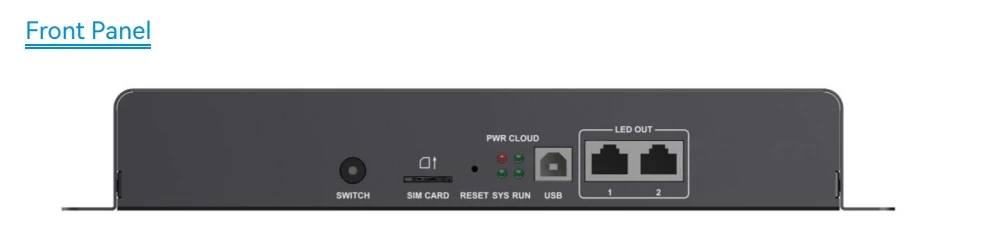

name	Description
SWITCH	Switches between synchronous and asynchronous modes. Staying on: Synchronous mode Off: Asynchronous mode
SIM CARD	SIM card slot Capable of preventing users from inserting a SIM card in the wrong orientation.
USB	USB (Type B) port Connects to the control computer for content publishing and screen control.
LED OUT	Gigabit Ethernet outputs
RESET	Factory reset button Press and hold this button for 5 seconds to reset the product to its factory settings

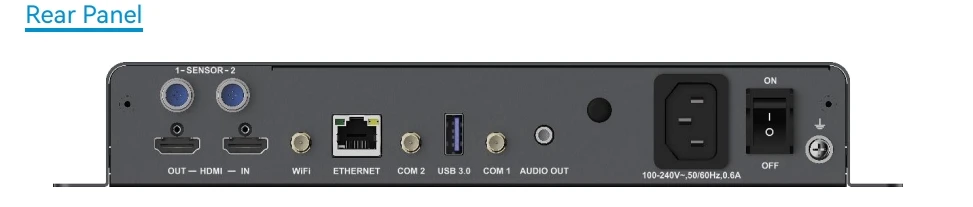

Name	Description
SENSOR	Sensor connectors Connect to brightness sensors or temperature and humidity sensors.
WiFi	Wi-Fi antenna connector (2.4 GHz Wi-Fi supported) Support for switching between Wi-Fi AP and Wi-Fi Sta
USB3.0	USB 3.0 (Type A) port Allows for USB playback, firmware upgrade and storage expansion. The Ext4 and FAT32 file systems are supported. The maximum size of a single file supported by FAT32 is 4 GB. The exFAT and FAT16 file systems are not supported.
ETHERNET	Gigabit Ethernet port Connects to the control computer, a LAN or public network for content publishing and screen control.
COM 2	GPS antenna connector
AUDIO OUT	Audio output connector OMTP headphones can be connected.
100-240V~, 50/60Hz, 0.6A	Power input connector
COM 1	4G antenna connector
ON/OFF	Power switch
HDMI	1x HDMI 1.3 OUT Support for HDMI loop Maximum output resolution: The pixel clock cannot exceed 153 MHz. Maximum output:1920×1200@60Hz HDCP 1.4 compliant No support for interlaced signal output In asynchronous mode, output resolutions support 400×4096@60Hz and 480×4096@60Hz. Support for custom resolutions: − Custom pixel width range: 512~4096 (512×512@60Hz~4096×560@60Hz) − Custom pixel height range: 512~3680 (512×512@60Hz~512×3680@60Hz)
	1x HDMI 1.3 IN Maximum input resolution: The pixel clock cannot exceed 153 MHz. Maximum input: 1920×1200@60Hz HDCP 1.4 compliant No support for interlaced signal input Support for custom resolutions: Custom pixel width range: 512~4096 (512×512@60Hz~4096×560@60Hz) Custom pixel height range: 512~3680 (512×512@60Hz~512×3680@60Hz) Note: The resolution of HDMI IN can be customized by changing the preset EDID, so the external source must support custom resolutions. In synchronous mode, HDMI is used for video input and users can enable fullscreen scaling to make the image to fit the screen automatically. Requirements for full-screen scaling in synchronous mode: − 512 pixels ≤ video source width ≤ 2048 pixels − 512 pixels ≤ video source height ≤ 2048 pixels − Maximum resolution: 1920×1080 − The image can only be scaled down and cannot be scaled up. Note: The pixel width and height of the video source must be greater than or equal to the pixel width and height of the screen, respectively.
