LED HD Multimedia Player Sending Box NovastarTB30price-Shenzhen RGXLED Electronics Co., Ltd.

Your location：Home>>Product>>Novastar series Product>>Novastar TB series

name：

LED HD Multimedia Player Sending Box NovastarTB30

classification：Novastar series Product -> Novastar TB series

market price：$0.00

Local price：$0.00

material：TB30

color：RGB

Release date：2025-8-29 10:25:7

This is the Novastar TB30, a device that combines the functions of an LED HD multimedia player and a sending box. Its core role is to read and process HD audio and video, images, and other multimedia content, while stably transmitting the processed signals to the LED screen to achieve high-definition image output.

It supports a variety of mainstream media formats and features easy operation. Suitable for LED display scenarios such as advertising and commercial exhibitions, it provides integrated "playback + signal transmission" support for small-to-medium-sized LED screens, ensuring smooth and clear image presentation.

Hotline：86 13699777670

Share to：QQ Zone Sina micro-blog Tencent micro-blog WeChat

Best-selling

P3.91 LED Display
classification：STAGE ALL KINDS LE..
P1.875 LED Display
classification：Small Pixel..
RGX P3 Rental Indoor LE...
classification：LED Display module..
RGX Indoor Mirror/Post ...
classification：COMMERCIAL DISPLAY..

Shenzhen RGX Electronics Co., Ltd.
Contact:ledrgx
Phone: 0755-23714515
Mobile: +86 18038069578
Whatsapp/wechat: +86 180 380 69578
Skype: levin-led
Q Q: 1006759127

After sale service: ledrgx@163.com

description

introduction to products

Novastar-TB30

The TB30 is a new generation of multimedia player created by NovaStar for full-color LED displays. This multimedia player integrates playback and sending capabilities, allowing users to publish content and control LED displays with a computer, mobile phone, or tablet. Working with our superior cloud-based publishing and monitoring platforms, the TB30 enables users to manage LED displays from an Internet-connected device anywhere, anytime.

Product Paramenters

TB30 Product specification parameter

Electrical Parameters	input voltage	100-240V~, 50/60Hz, 0.6A
	Rated power consumption	18 W
memory space	random access memory	1GB
	store-in	32GB,
Operating Environment	Temperature	-20℃～+60℃
	Humidity	0%RH～80%RH， non-condensing
Storage Environment	Temperature	-40℃～+80℃
	Humidit	0%RH～80%RH， non-condensing
packaging information	Dimensions	385.0 mm × 280.0 mm × 75.0 mm
	mountings	1 x WiFi omnidirectional antenna 1x AC power cord 1 x Quick Guide 1 x Packing list
Physical Specifications	Dimensions	274.3 mm × 139.0 mm × 40.0 mm
	Net weight	1228.9 g
	gross weight	1648.5 g Note: It is the total weight of the product, accessories and packing materials packed according to the packing specifications.
level of protection	IP20 Please prevent the product from water intrusion and do not wet or wash the product.
system software	Android 11.0 operating system software Android terminal application software FPGA program Note: Third-party applications are not supported.

The entire Novastar Taurus-TB series uses professional-grade integrated calibration to restore the display to its original beauty

Novastar TB series Product function comparison

Product name	TB1-4G	TB2-4G	TB30	TB40	TB50	TB60
Maximum load	650,000 points	650,000 points	650,000 points	1.3 million points	1.3 million points	2.3 million points
Ultimate width height	Maximum width 1920, maximum 1080	Maximum width 1920, maximum 1080	Maximum width 4096, maximum 4096	Maximum width4096, maximum 4096	Maximum width 4096, maximum 4096	Maximum width 4096, maximum 4096
CPU	The main frequency is 1.2GHz	The main frequency is 1.2GHz	Quad-core A55, main frequency 1.8GHz	Quad-core A55, main frequency 1.8GHz	Quad-core A55, main frequency 1.8GHz	Quad-core A55, main frequency 1.8GHz
store	1GB+32GB	1GB+32GB	1GB+32GB	1GB+32GB	1GB+32GB	1GB+32GB
Storage expansion	Usb flash drive, maximum 128G	Usb flash drive, maximum 128G	Usb flash drive, maximum 128G	Usb flash drive, maximum 128G	Usb flash drive, maximum 128G	Usb flash drive, maximum 128G
Video decoding capability	1080P	1080P	4K	4K	4K	4K
Operating system	Android 5.1	Android 5.1	Android 11.0	Android 11.0	Android 11.0	Android 11.0
Number of video Windows	One 1080P or two 720P or four 360P	One 1080P or two 720P or four 360P	Two 4K or six 1080P or 10 720P or 20 360P	Two 4K or six 1080P or 10 720P or 20 360P	Two 4K or six 1080P or 10 720P or 20 360P	Two 4K or six 1080P or 10 720P or 20 360P
Play on multiple screens simultaneously	√	√	√	√	√	√
Synchronous asynchronous switching	×	√	×	√	√	√
HDMI splicing playback	×	×	×	√(1080P, Max. 8 grades)	√(1080P, Max. 8 grades)	√(1080P, Max. 8 grades)
Sensor access	0	0	0	0	0	0
Audio output	√	√	√	√	√	√
U disk local playback	√(USB2.0)	√(USB2.0)	√(USB3.0)	√(USB3.0)	√(USB3.0)	√(USB3.0)
Wired network	One hundred Megabyte	One hundred Megabyte	Dry omen	Dry omen	Dry omen	Dry omen
WiFi network	2.4GHZ，AP&STA软切换	2.4GHZ，AP&STA软切换	2.4GHZ，AP&STA软切换	2.4GHZ，AP&STA软切换	2.4GHZ，AP&STA软切换	2.4GHZ，AP&STA软切换
Screen wizard (Cloud /PC/mobile)	√	√	√	√	√	√
Naked card products	√(T1-4G)	TB2/TB2-4G（optional）	√(T30)	×	√(T50)	×

Application scenario

Taurus TB 30 series products can be widely used in the field of LED commercial display, such as lamp pole screen, chain store screen, advertising machine, mirror screen, retail store screen, door screen, car Loading screen, no PC screen, etc.

The following figure shows the text and picture

Classification	Description
Market type	Advertising media: To be used for advertising and informationpromotion including bar screen and advertising machine. Digital signage: To be used for signage display in retail storesincluding retail store screens and door head screens. Commercial display: To display commercial information ofhotel, cinema and shopping mall, such as chain store screens.
Networkingmode	Independent screen: Use a PC or the client software of amobile phone to enable single-point connection andmanagement of a screen. Cluster screen: Use the cluster solution developed by NovaStarto realize centralized management and monitor of multiplescreens.
Connectiontype	Wired connection: A PC connects to Taurus through theEthernet cable or LAN. Wi-Fi connection: PC, Pad and mobile phone can connect toTaunus through Wi-Fi, which can be enabled in the casewithout PC in conjunction with ViPlex software.

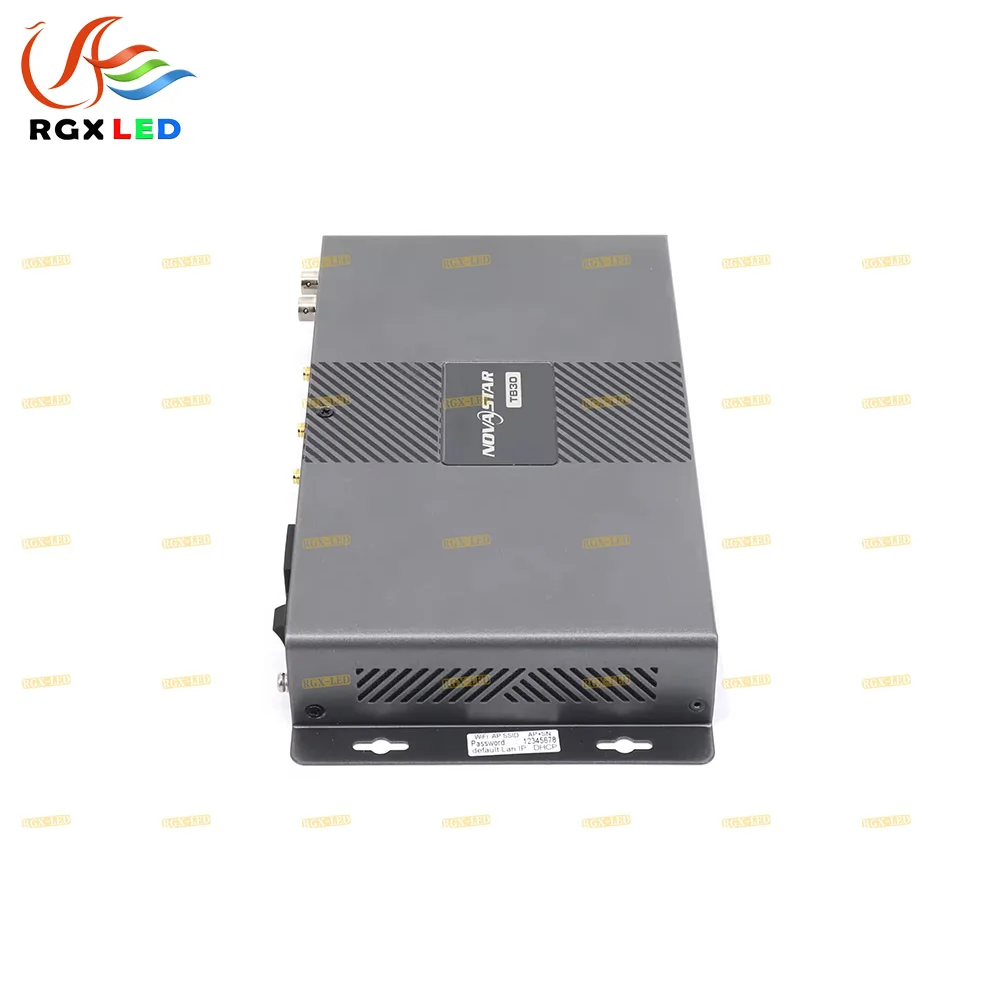

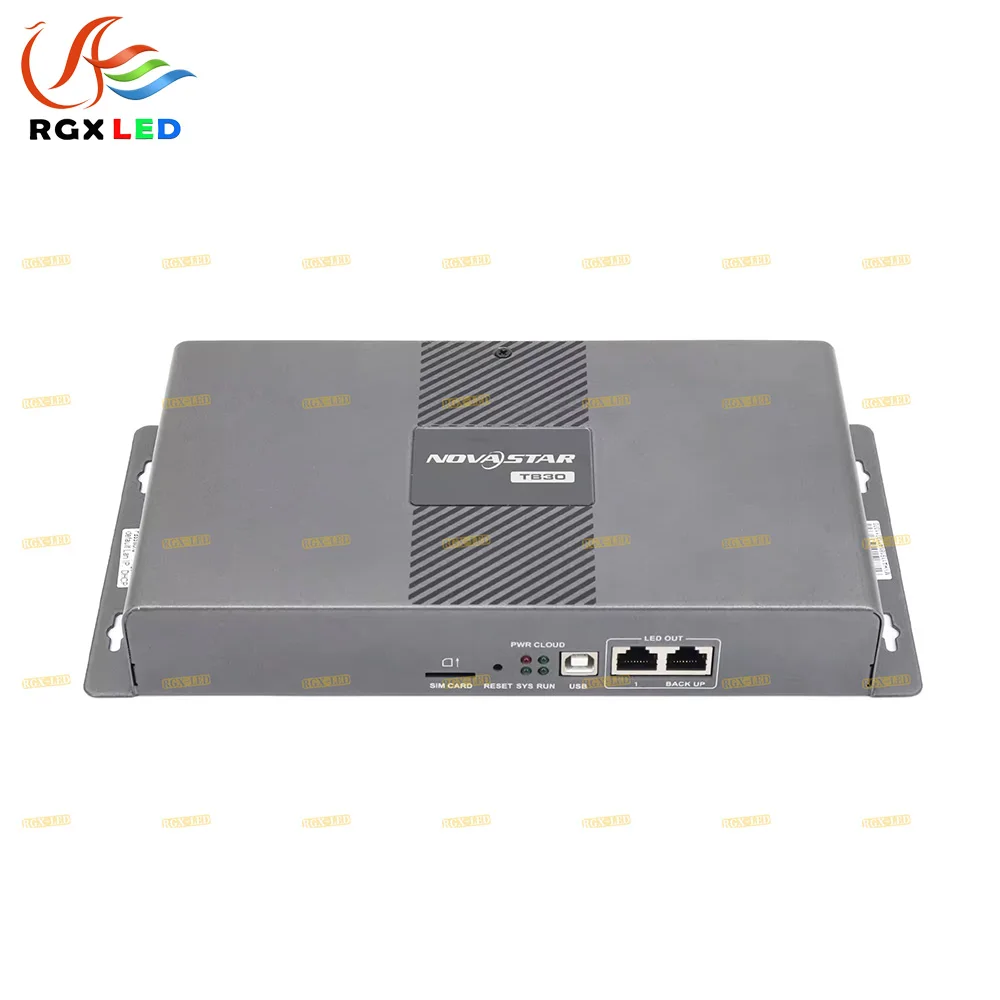

Picture display

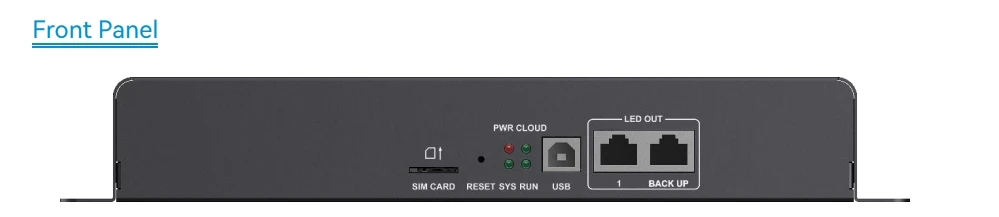

Product use

name	Description
SIM CARD	SIM card slot Capable of preventing users from inserting a SIM card in the wrong orientation.
RESET	Factory reset button Press and hold this button for 5 seconds to reset the product to its factory settings.
USB	USB (Type B) port Connects to the control computer for content publishing and screen control
LED OUT	Gigabit Ethernet outputs

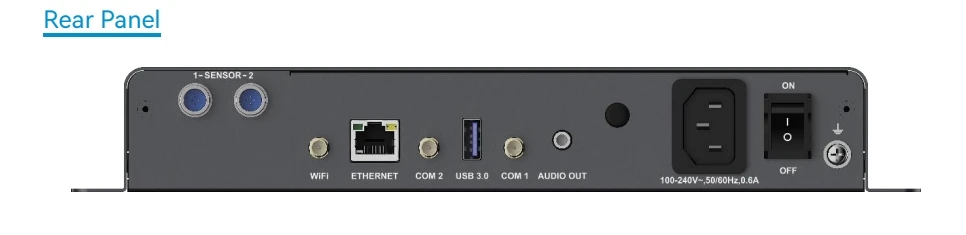

Name	Description
SENSOR	Sensor connectors Connect to brightness sensors or temperature and humidity sensors.
WiFi	Wi-Fi antenna connector (2.4 GHz Wi-Fi supported) Support for switching between Wi-Fi AP and Wi-Fi Sta
USB3.0	USB 3.0 (Type A) port Allows for USB playback, firmware upgrade and storage expansion. The Ext4 and FAT32 file systems are supported. The maximum size of a single file supported by FAT32 is 4 GB. The exFAT and FAT16 file systems are not supported.
ETHERNET	Gigabit Ethernet port Connects to the control computer, a LAN or public network for content publishing and screen control
COM 2	GPS antenna connector
AUDIO OUT	Audio output connector OMTP headphones can be connected.
100-240V~, 50/60Hz, 0.6A	Power input connector
COM 1	4G antenna connector
ON/OFF	Power switch
