This is the TB20 Plus multimedia player from Novastar''s Taurus Series, specifically designed for LED displays and recognized as a high-demand product. Its core function is to provide stable multimedia content playback and control for LED screens, supporting various formats of audio, video, images, and text files, while enabling flexible operations such as scheduled playback and split-screen display.

It balances ease of use and stability, suitable for various LED display scenarios including advertising media, commercial exhibitions, and information release. It can meet the needs of high-frequency and high-reliability playback, offering an efficient solution for content presentation on LED screens.

Hotline：86 13699777670

Share to：QQ Zone Sina micro-blog Tencent micro-blog WeChat

Best-selling

P3.91 LED Display
classification：STAGE ALL KINDS LE..
P1.875 LED Display
classification：Small Pixel..
RGX P3 Rental Indoor LE...
classification：LED Display module..
RGX Indoor Mirror/Post ...
classification：COMMERCIAL DISPLAY..

Shenzhen RGX Electronics Co., Ltd.
Contact:ledrgx
Phone: 0755-23714515
Mobile: +86 18038069578
Whatsapp/wechat: +86 180 380 69578
Skype: levin-led
Q Q: 1006759127

After sale service: ledrgx@163.com

description

introduction to products

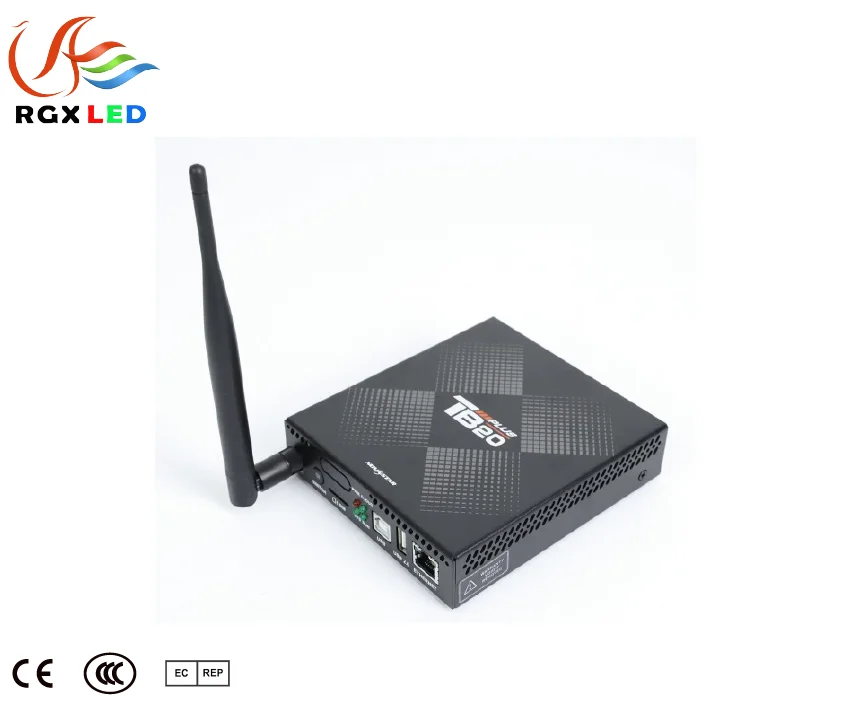

Novastar-TB20 plus

The TB20 Plus is a new generation of multimedia player designed for full-color LED displays. This multimedia

player integrates playback and sending capabilities, allowing users to publish content and control LED displays

with a computer, mobile phone, or tablet. Working with the superior cloud-based publishing and monitoring

platforms, the TB20 Plus enables users to manage LED displays from an Internet-connected device anywhere,

anytime.

The TB20 Plus supports synchronous and asynchronous modes and can play content from a USB drive, satisfying

various playback demands. Multiple protection measures such as terminal authentication and player verification

are taken to keep the playback secure.

Thanks to its reliability, ease of use, and intelligent control, the TB20 Plus becomes a winning choice for

commercial LED displays and smart city applications such as fixed displays, lamp-post displays, chain store

displays, advertisement players, retail store displays, door head displays, shelf displays, and much more.

Product Paramenters

TB20plus Product specification parameter

Electrical Parameters	input voltage	DC 5 V to 12 V
	Maximum power	15 W
Storage Capacity	RAM	2 GB
	Internal storage	32GB,
Operating Environment	Temperature	–40°C to +80°C
	Humidity	5% RH to 95% RH, non-condensing
Storage Environment	Temperature	–20°C to +60°C
	Humidit	5% RH to 85% RH, non-condensing
Physical Specifications	Dimensions	141.2 mm × 120.0 mm × 33.5 mm
	Net weight Gross weight	Net weight:470.3 g Gross weight:776.1 g
Packing Information	Dimensions	333.0 mm × 196.0 mm × 70.0 mm
	Accessories	1x Wi-Fi omnidirectional antenna 1x Power adapter 2x Racks 4x Phillips countersunk head screws 1x Quick Start Guide 1x Certificate of Approval

IP Rating	IP20 Please prevent the product from water intrusion and do not wet or wash the product.
System Software	Android 10.0 operating system software Android terminal application software FPGA program

The entire Novastar Taurus-TB series uses professional-grade integrated calibration to restore the display to its original beauty

Novastar TB series Product function comparison

Product name	TB10 plus	TB20 plus
Maximum load	650,000 points	650,000 points
Ultimate width height	The widest is 2048, the highest is also 2048. The ultra-long screen has a widest dimension of 8192 and the highest is 2048.	The widest is 20448, the highest is 2048. The ultra-long screen is the widest 8192 and the highest 2048.
CPU	Quad-core A53 with a clock speed of 1.4 GHz	Quad-core A53 with a clock speed of 1.4 GHz
store	2GB+32GB	2GB+32GB
Storage expansion	Usb flash drive, maximum 128G	Usb flash drive, maximum 128G
Video decoding capability	4K@60Hz	4K@60Hz
Operating system	Android 10.0	Android 10.0
Number of video Windows	1 4K or 3 1080P or 8 720P or 16 480P or 20 360P	1 4K or 3 1080P or 8 720P or 16 480P or 20 360P
Play on multiple screens simultaneously	√	√
Synchronous asynchronous switching	×	√
HDMI splicing playback	×	×
Sensor access	Optional	Optional
Audio output	√	√
U disk local playback	√(USB2.0)	√(USB2.0)
Wired network	One hundred Megabyte	One hundred Megabyte
WiFi network	2.4GHz AP & STA dual-mode operation	2.4GHz AP & STA dual-mode operation
4G network	Optional	Optional
5G network	×	×
Product Certification	√	√
Screen Spirit (Cloud/PC/Mobile)	√	√
Doctor/Pan Pan / Pan Boss	√	√
Nova SDK Agreement	√	√
Bare card product	×	×

Application scenario

Taurus TB 20 plus series products can be widely used in the field of LED commercial display, such as lamp pole screen, chain store screen, advertising machine, mirror screen, retail store screen, door screen, car Loading screen, no PC screen, etc.

The following figure shows the text and picture

Classification	Description
Market type	Advertising media: To be used for advertising and informationpromotion including bar screen and advertising machine. Digital signage: To be used for signage display in retail storesincluding retail store screens and door head screens. Commercial display: To display commercial information ofhotel, cinema and shopping mall, such as chain store screens.
Networkingmode	Independent screen: Use a PC or the client software of amobile phone to enable single-point connection andmanagement of a screen. Cluster screen: Use the cluster solution developed by NovaStarto realize centralized management and monitor of multiplescreens.
Connectiontype	Wired connection: A PC connects to Taurus through theEthernet cable or LAN. Wi-Fi connection: PC, Pad and mobile phone can connect toTaunus through Wi-Fi, which can be enabled in the casewithout PC in conjunction with ViPlex software.

Picture display

Product use

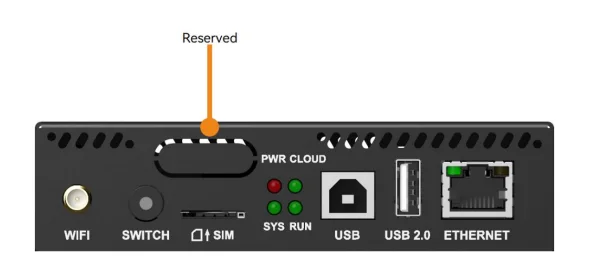

Front Panel

name	Description
WIF	Wi-Fi antenna connector (2.4GHz Wi-Fi supported)
Reserved	Sensor connector Connects to a light sensor or temperature and humidity sensor.
SIM	SIM card slot Capable of preventing users from inserting a SIM card in the wrong orientation
USB	USB (Type B) port Connects to the control computer for content publishing and screen control.
USB 2.0	USB 2.0 (Type A) port Allows for USB playback, firmware upgrade and storage expansion (up to 128 GB). Ext4 and FAT32 file systems are supported, with FAT32 allowing a maximum file size of 4 GB. exFAT and FAT16 are not supported.
ETHERNET	Fast Ethernet port Standard RJ45 connector (with built-in LEDs) connecting to the control computer or connecting to a LAN or public network for content publishing and screen control

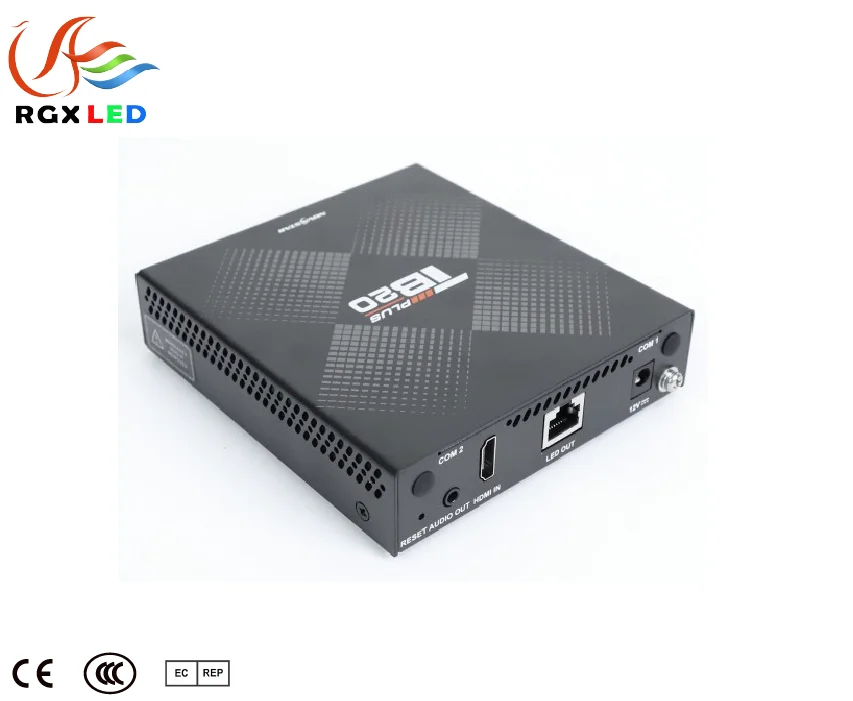

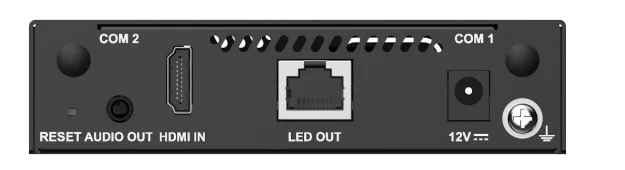

Rear Panel

Name	Description
COM 2	GPS antenna connector
RESET	Factory reset button Press and hold this button for 5s to reset the product to its factory settings.
HDMI IN	1x HDMI 1.3 input connector Maximum input resolution: The pixel clock cannot exceed 164 MHz. Maximum input: 2048×1024@60Hz HDCP 1.4 compliant, backwards compatible with HDCP 1.3 No support for interlaced signal input Support for custom resolutions: − Custom width range: 64~2048 pixels (64×64@60Hz~2048×1024@60Hz) − Custom height range: 64~2048 pixels (64×64@60Hz~1024×2048@60Hz) Note: The resolution of HDMI IN can be customized by changing the preset EDID, so the external source must support custom resolutions. In synchronous mode, HDMI is used as the video source and users can enable full-screen scaling to make the image fit the screen automatically. Requirements for full-screen scaling in synchronous mode: − 64 pixels ≤ video source width ≤ 2048 pixels − 64 pixels ≤ video source height ≤ 2048 pixels − Maximum resolution: 2048×1024@60Hz − Images can only be scaled down and cannot be scaled up. Note: The pixel width and height of the video source must be greater than or equal to the pixel width and height of the screen, respectively.
AUDIO OUT	3.5mm audio output connector Note: 3-pole audio connectors are supported.
12V	Power input connector
LED OUT	Gigabit Ethernet output Standard RJ45 connector (with no built-in LEDs)
COM 1	4G antenna connector
