The Colorlight X12 is a professional-grade control system and video processing equipment designed for LED display engineering applications. It integrates core capabilities of signal processing and system control, supporting multiple high-definition signal inputs (such as HDMI, DP, etc.). It enables seamless switching, precise cropping and scaling of multi-source signals to ensure high-quality画面 output. Meanwhile, its control system features stable compatibility, adapting to various LED display modules and receiver cards, and supports partition management and remote control of large-scale screens. It provides efficient and reliable integrated technical support for engineering scenarios like large commercial displays, stage backdrops, and venue large screens.

Hotline：86 13699777670

Share to：QQ Zone Sina micro-blog Tencent micro-blog WeChat

Best-selling

P3.91 LED Display
classification：STAGE ALL KINDS LE..
P1.875 LED Display
classification：Small Pixel..
RGX P3 Rental Indoor LE...
classification：LED Display module..
RGX Indoor Mirror/Post ...
classification：COMMERCIAL DISPLAY..

Shenzhen RGX Electronics Co., Ltd.
Contact:ledrgx
Phone: 0755-23714515
Mobile: +86 18038069578
Whatsapp/wechat: +86 180 380 69578
Skype: levin-led
Q Q: 1006759127

After sale service: ledrgx@163.com

description

introduction to products

colorlight-X12

X12,a professional control system and video processing device designed for LED display engineering applications. lt has DVl and HDMl connectors, and supportsseamless switching between multiple signals, broadcast quality scaling and multi-window display. The controller boasts 12 Gigabit Ethernet ports. A single unit featuresa loading capacity of 7.8 milion pixels, with 8192 pixels in maximum width or 4096 pixels in maximum height. Meanwhile, the X12 is equipped with abundant practical functions that enable flexible screen control and high-quality image display, which gives it an edge in the LED display engineering application field.

Features
Input:1x DVl, 3x HDMI1.4. Input resolution: up to 1920x1200@60Hz, supporting customized setting. Output: 12x Gigabit Ethernet ports, supporting Ethernet port backup or sender backup. Loading capacity: 7.8 million pixels, up to 8192 pixels in width or 4096 pixels in height. Switching, cropping, splicing and scaling of video sources. Display of up to 3 windows, of which the location and size can be freely adjusted HDCP1.4 compliant. Dual USB2.0 for high-speed configuration, used for debugging or cascading Support RS232 protocol Brightness, color temperature, contrast, hue and saturation adjustment. Better gray at low brightness

Compare the same series of products

colorlight X series LED video processor comparison

name	X20	X16E	X12	X7/X6
Control area	13 megapixels	10.48 million pixels	7.2 million pixels	5.2 million pixels/X7 3.9 million pixels/X6
Maximum resolution	1xDP1.2, 1xHDMI2.0 2xHDMI1.4. 2xDVI,	1xDP1.2, 1xHDMI2.0 2xHDMI1.4. 2xDVI,	3xHDMI1.4 1xDVI	1xSDl 1xHDMI1.4. 2xDVI
Output resolution	4096*2160@ 60hz	4096*2160@ 60hz	1920*1200@60 hz	1920*1200@60 hz
Control mode	20 x 1G network port 2 x 10G optical port	16 x 1G network port	12 x 1G network port	8 x 1G network port/X7 6 x 1G network port/X6
HDCP	1.4	1.4	1.4	1.4
Video processing	tailor Zoom picture-in-picture Toggle	tailor Zoom picture-in-picture Toggle	tailor Zoom picture-in-picture Toggle	tailor Zoom picture-in-picture Toggle
Number of Windows	6	6	3	3
Window control	√	√	√	√
serial port control	√	√	√	√
USB port control	√	√	√	√
LAN control	√	√	×	×
Audio parsing	√	√	√	√
Loop backup	√	√	√	√
Precise color management	√	√	√	√

Product Paramenters

X12 Product specification parameter

Model	X12
Size	2U
Electrical Specifications	Input Voltage	AC100~240V,50/60Hz
	Power Consumption	30W
Operating Environment	Temperature	-30°C~60°C/-22°F~140°F
	Humidity	0%RH~80%RH,non-condensing
Storage Environment	Temperature	-40°C~80°C/-40°F~176°F
	Humidity	0%RH~90%RH,non-condensing
Device Specifications	Dimensions	WxHxL/482.6x88.0x369.2mm3/19"x3.5"x14.5
	Net Weight	4.6kg/10.1lbs
PackingSpecifications	Dimensions	WxHxL/525.0x150.0x455.0mm3/20.7"x5.9"x1
	Net Weight	1.6kg/3.53lbs

Application scenario

colorlight-X12 products can be widely used in the field of LED commercial display, such as lamp pole screen, chain store screen, advertising machine, mirror screen, retail store screen, door screen, car Loading screen, no PC screen, etc.

Classification	Description
Market type	Advertising media: To be used for advertising and informationpromotion including bar screen and advertising machine. Digital signage: To be used for signage display in retail storesincluding retail store screens and door head screens. Commercial display: To display commercial information ofhotel, cinema and shopping mall, such as chain store screens.

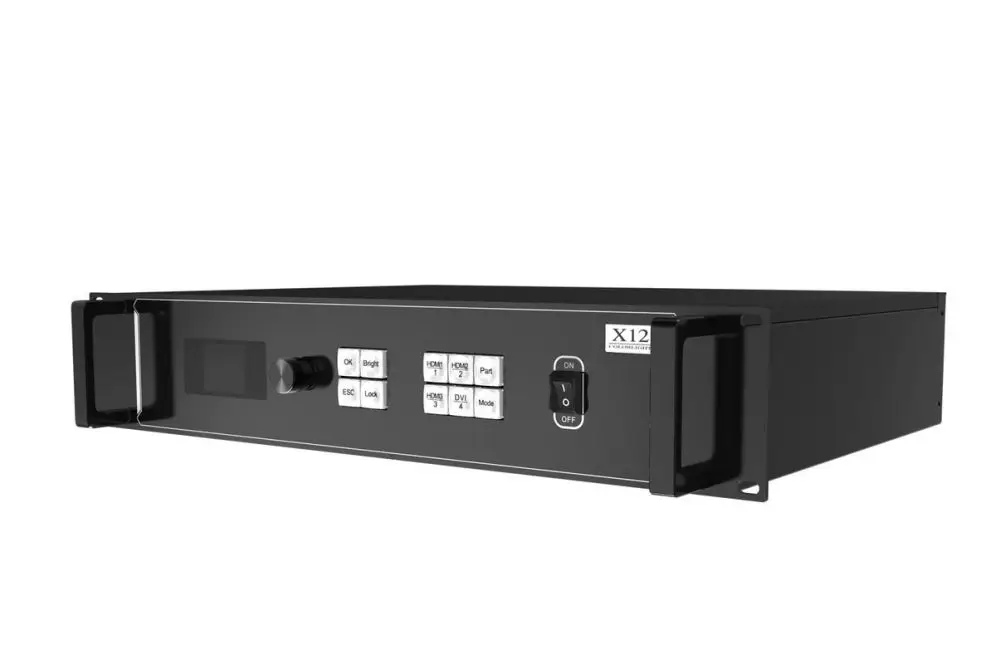

Picture display

Product use

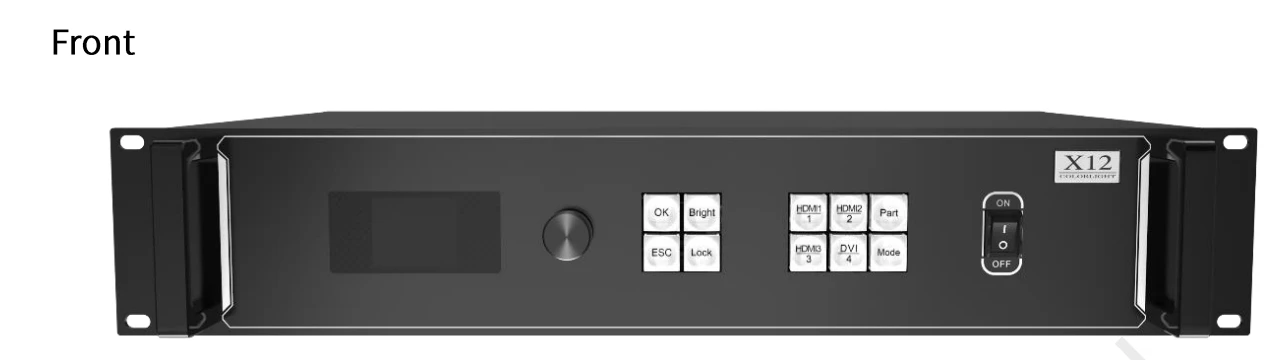

ltem	Function
LCD	Display the operation menu and system information.
Knob	Turn the knob to select an item or adjust the parameter. press the knob to confirm your selection or adjustment.
Function Keys	OK: Enter. Bright: Brightness adjustment. ESC: Exit the current menu or operation. Lock: Lock all the keys of the front panel. Part: Cropping Mode: Mode selection. 1~4: Preset scene quick selection keys.
Video Signal Selection Keys	HDMI1/HDMI2/HDM13/ DV:Video source selection keys.
Power Switch	Switch on or off the power supply.

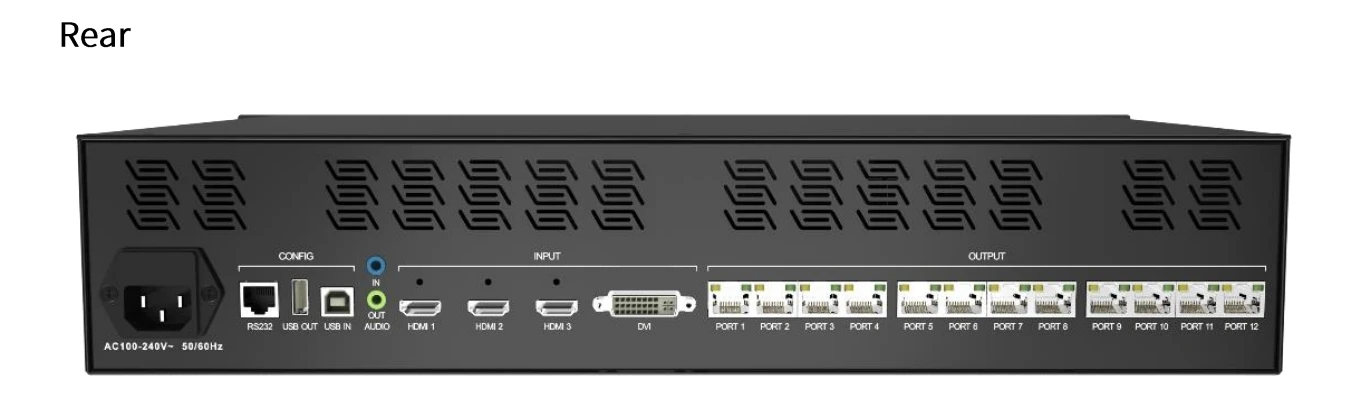

Input
HDMI1~3		3xHDMl inputs, support audio input. HDMl1.4 specification, input resolution up to 1920x1200@60Hz.
DVI		1xDVl input. DVl specification, input resolution up to 1920x1200@60Hz.
Output
Port1-12		RJ45,12x1 Gigabit Ethernet outputs. Single channel maximum capacity of 0.65 million pixels. X12 maximum capacity of7.8 million pixels
Control
RS232		RJ11(6P6C)*, connect to the third party device.
USB OUT		USB input, connect to the PC for debugging.
USB IN		USB output, as cascading output.
Audio
AUDIO IN		Audio input, for inputting audio signals from the computer or otherdevices
AUDIO OUT		Audio output, for outputting audio signals to the speaker(Support processing and outputting the audio signals of HDMl)
Power Supply
AC 100~240V		AC 100~240V, built-in fuse
