The LED Display Video Controller Colorlight X2s Supports Seamless Switching of Multiple Signals

classification：LED Display Video Processor -> Colorlight

market price：$0.00

Local price：$0.00

material：

color：RGB

Release date：2025-8-29 10:25:22

Colorlight X2s is a professional LED display video controller, with **seamless switching of multiple signals** as its core advantage—this function avoids screen jitter or blackouts during signal source switching, ensuring smooth and uninterrupted visual presentation. It specializes in processing and driving LED display signals, flexibly adapting to multi-source input scenarios (such as connecting computers, media players, or cameras). Suitable for indoor commercial displays like retail advertising screens, office information boards, and small-scale event screens, it delivers stable and high-quality visual performance for scenarios requiring frequent signal switching.

Hotline：86 13699777670

Share to：QQ Zone Sina micro-blog Tencent micro-blog WeChat

Best-selling

P3.91 LED Display
classification：STAGE ALL KINDS LE..
P1.875 LED Display
classification：Small Pixel..
RGX P3 Rental Indoor LE...
classification：LED Display module..
RGX Indoor Mirror/Post ...
classification：COMMERCIAL DISPLAY..

Shenzhen RGX Electronics Co., Ltd.
Contact:ledrgx
Phone: 0755-23714515
Mobile: +86 18038069578
Whatsapp/wechat: +86 180 380 69578
Skype: levin-led
Q Q: 1006759127

After sale service: ledrgx@163.com

description

introduction to products

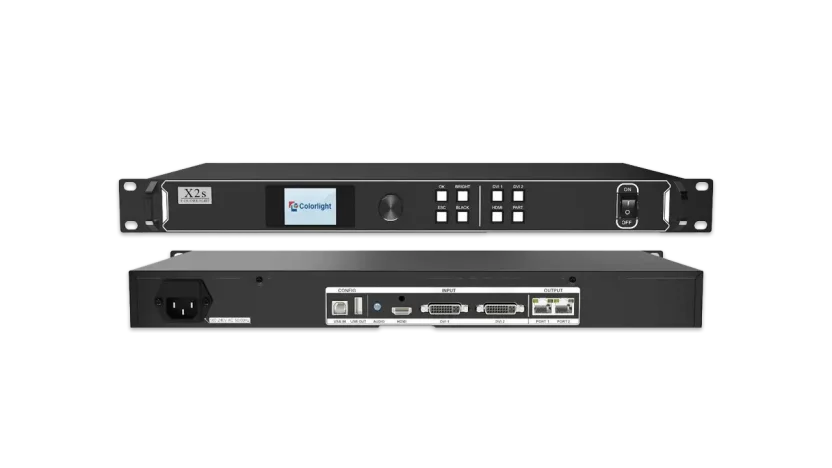

colorlight-X2s

X2s is a professional LED video controller with powerful video signal reception and processing capabilities, and can receive high-definition digital signals up to 1920x1200 pixels. X2s supports HDMI and DVI high-definition digital interfaces, seamless switching between multiple signals, and supports arbitrary scaling and cropping of video sources. The X2s has two gigabit network port outputs and can support LED displays up to 4096 pixels wide or up to 2560 pixels wide. At the same time, the X2s has a rich set of practical features, providing flexible screen control and high-quality image display, perfect for small LED displays.

Features
1x HDMl and 2x DVl signal inputs, maximum load capacity 2.60 millionpixels, maximum width: 4096 pixels, maximum height: 2560 pixels. 2x Gigabit Ethernet outputs,input resolutions up to 1920x1200@60Hz support customized resolutions. Single device or dual devices redundant backup. Arbitrary switching, cropping and scaling of video source. Screen deviation. Adapt to a multi-functional card to achieve audio output. HDCP. Brightness and color temperature adjustment. Supportimproved gray-scale at low brightness. USB port for control and cascading.Up to 64 devices can be cascaded atmost.

Compare the same series of products

colorlight X2s

name	X4S	X2S
Control area	2.6 million pixels	1.3 million pixels
Maximum resolution	1xHDMI1.4. 2xDVI,	1xHDMI1.4. 2xDVI,
Output resolution	1920*1200@ 60hz	1920*1200@ 60hz
Control mode	4 x 1G network port	2 x 1G network port
HDCP	1.4	1.4
Video processing	Crop Zoom picture in picture toggle	Crop zoom switch
Number of Windows	3	1
serial port control	√	√
USB port control	×	×
LAN control	√	√
Audio parsing	√	√
Loop backup	√	√
Precise color management	√	√

Product Paramenters

X2s Product specification parameter

Model	X2s
Size	1U
Electrical Specifications	Input Voltage	AC100~240V,50/60Hz
	Power Consumption	10W
Operating Environment	Temperature	-20°C~60°C /-4°F~140°F
	Humidity	0%RH~80%RH,non-condensing
Storage Environment	Temperature	-30°C~80°C /-22°F~176°F
	Humidity	0%RH~90%RH, non-condensing
Device Specifications	Dimensions	WxHxD/482.6mm(19")x44.0mm(1.7")x262mm(10.3")
	Net Weight	2kg/4.4lbs
Packing Specifications	Dimensions	WxHxD/523.0mm(20.6")x95mm(3.7")x 340mm(13.4"
	Net Weight	0.7kg/1.54lbs

Application scenario

colorlight-X2s products can be widely used in the field of LED commercial display, such as lamp pole screen, chain store screen, advertising machine, mirror screen, retail store screen, door screen, car Loading screen, no PC screen, etc.

Classification	Description
Market type	Advertising media: To be used for advertising and informationpromotion including bar screen and advertising machine. Digital signage: To be used for signage display in retail storesincluding retail store screens and door head screens. Commercial display: To display commercial information ofhotel, cinema and shopping mall, such as chain store screens.

Picture display

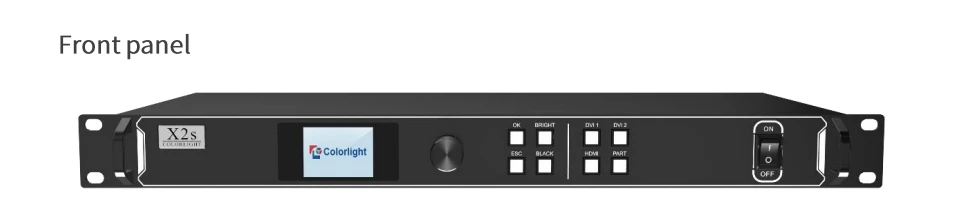

Product use

Name		Function
LCD		Display the operation menu and system information.
Knob		Turning knob to select or adjust.
Function Keys		OK: Enter key. ESC: Escape current operation or selection. BRIGHT: Brightness option. BLACK: Blank screen. PART:Crops screen.
Selection Keys		DVI 1/DV 2/HDMl: Video source selection.
On/0ff		Power on/off.

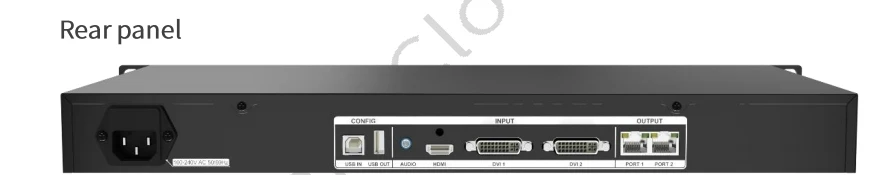

input
DVI	2x DVl inputs.
HDMI	HDMl1.4 input.
AUDIO	Audio input. For use with a multifunctional card (Optional).
Output
Port 1-4	RJ45,2 Gigabit Ethernet outputs.
Control
USB IN	USB input, which connects with PC to configure parameters.
USB OUT	USB output, cascading with the next controller.
Power
MAINS INPUT	AC 100~240V, built-in fuse.

Packing&Shipping

We adopt the order - pick - delivery integration principle, that is, buy and send, customers place orders directly after the factory hair, so that products are protected.

In terms of packaging, we use air cases and cartons as one main packing body
