Supported Infrared Remote Control LED Display Video Controller Colorlight X4m Display Controller

classification：LED Display Video Processor -> Colorlight

market price：$0.00

Local price：$0.00

material：

color：RGB

Release date：2025-8-29 10:25:55

Colorlight X4m is a professional LED display video controller that offers a host of advanced features. It has a maximum input resolution of 1920×1080@60Hz and supports five-channel signal input, including 2×HDMI 1.4, 1×DVI, 1×VGA, and 1×CVBS, enabling seamless connection to various video sources. The device can handle up to 2.6 million pixels, with a maximum width of 3840 pixels or a height of 2000 pixels, and features 4 gigabit ethernet port outputs for efficient data transfer.

Notably, it **supports infrared remote control**, allowing for convenient operation of the OSD menu. This comes in handy for quickly adjusting settings without direct access to the controller. It also supports U-disk playback, enabling the display of pictures and videos stored on a USB drive via its U-DISK interface. Additionally, it has 1 channel each of independent audio input and output, and supports HDMI and U-disk audio analysis output. With functions like arbitrary switching, cropping, and scaling of video signals, plus precise color management and grayscale control, Colorlight X4m is an ideal choice for small to medium-sized LED display setups in scenarios such as retail stores, offices, and small event venues.

Hotline：86 13699777670

Share to：QQ Zone Sina micro-blog Tencent micro-blog WeChat

Best-selling

P3.91 LED Display
classification：STAGE ALL KINDS LE..
P1.875 LED Display
classification：Small Pixel..
RGX P3 Rental Indoor LE...
classification：LED Display module..
RGX Indoor Mirror/Post ...
classification：COMMERCIAL DISPLAY..

Shenzhen RGX Electronics Co., Ltd.
Contact:ledrgx
Phone: 0755-23714515
Mobile: +86 18038069578
Whatsapp/wechat: +86 180 380 69578
Skype: levin-led
Q Q: 1006759127

After sale service: ledrgx@163.com

description

introduction to products

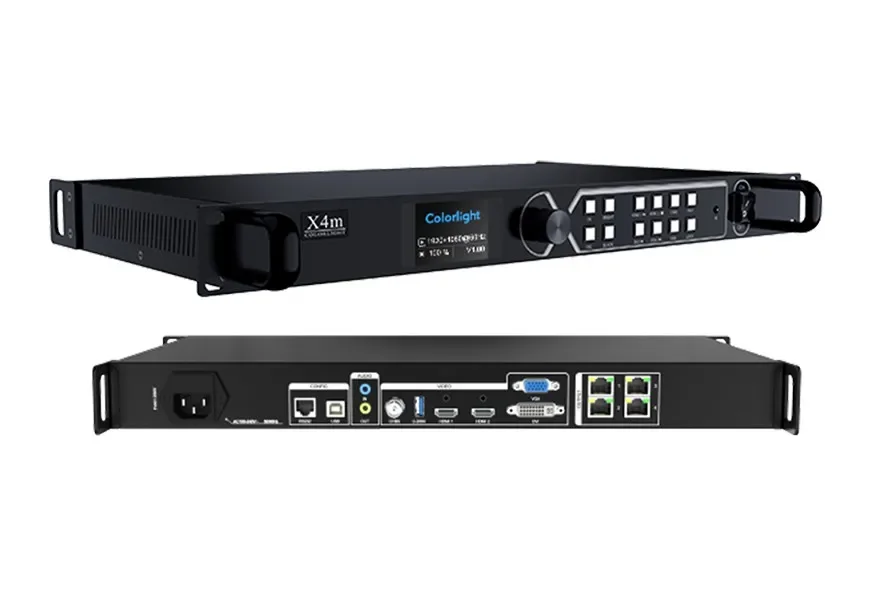

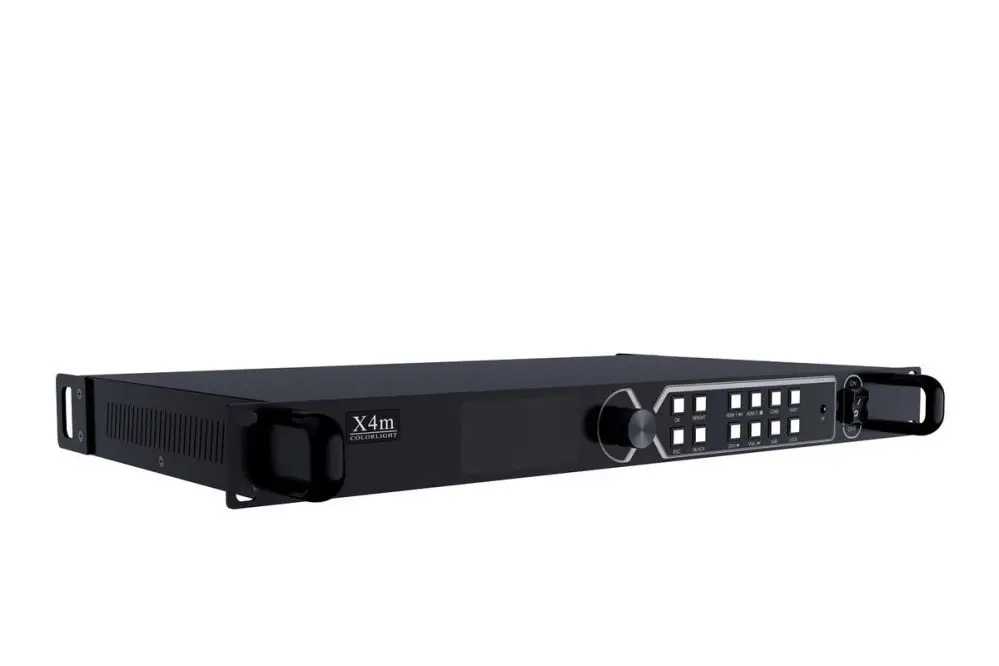

colorlight-X4m

X4m is a professional LED display control device with powerful video signal source andprocessing capabilities. lt can handle up to 1920x1080 HD digital signals, supportsvarious types of HD digital interfaces, and supports arbitrary zooming and clipping ofvideo sources. in addition, the X4m supports USB flash drive content playback.X4m has 4 gigabit network port outputs and can support maximum 3840 pixelsinwidthand maximum 2000 pixels in height At the same time, X4m has a series of practicalfunctions, providing flexible screen control and high-quality image display, which canbe perfectly applied to small LED display.

Input
Inputresolution: max 1920x1080@60Hz.
Signal sources: 2xHDMI1.4,1xDV,1xVGA,1xCVBS
U-diskinterface: 1xUSB.
Output	Loading capacity: 2.6 million pixels. Maximum width is 3840 pixels or maximum height is 2000 pixels 4 Gigabit Ethernet output ports. Supports Ethernet port redundancy
Audio	Input:1x3.5mm. Output: 1x3.5mm, support HDMl and DP audio outputs.
Function	Supports switching, clipping and zooming. Supports screen offset. Supports screen adjustment: contrast, saturation, chroma, brightness compensationand sharpness adiustment. Supports convert Limit Range to Full Range input color space. Supports send and read back screen correction factor, advanced stitching. Supports HDCP1.4. Supports Precise Color Management. Supports Better Gray Level at Low Brightness, can effectively maintain the completedisplay of grey scale under low brightness. 16 scene presets. Play back pictures and videos from U-disk. OSD for U-disk playback and screen adjustment (Remote controller optional)
Control	USB port for control or cascading. RS232 protocol control. Infrared remote control(optional).

Compare the same series of products

colorlight X series LED video processor comparison

name	X40m	X20m	X4m	X2m
Control area	26.21 million pixels	13 megapixels	2.6 million pixels	1.3 million pixels
Ultimate width height	The widest is 16384, the highest is 8192	The widest is 16384, the highest is 8192	Maximum width 3840, maximum 2000	Maximum width 3840, maximum 2000
Maximum resolution	1xDP1.2, 1xHDMI2.0 2xHDMI1.4. 2xDVI, USBx1	1xDP1.2, 1xHDMI2.0 2xHDMI1.4. 2xDVI, USBx1	1xDVI 2xHDMI1.4. 1xVGA USBx1 1xCVBS	1xDVI 2xHDMI1.4. 1xVGA USBx1 1xCVBS
Signal output	4096*2160@60hz	4096*2160@60hz	1920*1080@60hz	1920*1080@60hz
Control mode	40x1G Ethernet/4x10G Fiber	20x1G Ethernet/2x10G Fiber	4x1G Net interface	2x1G Net interface
Video processing	PIP, Cropping, Scaling, Splicing	PIP, Cropping, Scaling, Splicing	Cropping, Scaling,	Cropping, Scaling,
Number of Windows	6	6	1	1
Prefabricated scene	128	128	16	16
Usb flash drive playback	√	√	√	√
Audio parsing	√	√	√	√
Loop backup	√	√	×	×

Product Paramenters

X4M Product specification parameter

Dimensions (WxHxD)
Host	482.6mm(19.0")x 44.0mm (1.7")x 292.0mm(11.5").
Package	523.0mm(20.6")x95.0mm(3.7")x 340.0mm(13.4")
Weight
Net weight	3.13kg (6.90lbs)
Total weight	4.16kg (9.17lbs)
Electricalspecification
Input power	AC100-240V，50/60Hz
Power rating	10W
Work condition
Temperature	-20°C~65°C(-4°F~149°F)
Humidity	0%RH-80%RH,no condensation
Storage environment
Temperature	-30“C~80C(-22°F~176°F)
Humidity	0%RH~90%RH,no condensation
Storage condition
LEDVISION	V8.5 or above
iSet	V6.0 or above.
LEDUpgrade	V3.9 or above.
Certification
CCC,CE, CE-RED,FCC,FCC-ID. *ifthe product does not havethe relevantcertifications required bythe countries orregions where it is to be soldplease contact Colorlightto confirmoraddressthe problem, 0therwise,the customer shall be responsibleforthe legal risks caused orColorlight has theright to claim compensation

Application scenario

colorlight-X4m products can be widely used in the field of LED commercial display, such as lamp pole screen, chain store screen, advertising machine, mirror screen, retail store screen, door screen, car Loading screen, no PC screen, etc.

Classification	Description
Market type	Advertising media: To be used for advertising and informationpromotion including bar screen and advertising machine. Digital signage: To be used for signage display in retail storesincluding retail store screens and door head screens. Commercial display: To display commercial information ofhotel, cinema and shopping mall, such as chain store screens.

Picture display

Product use

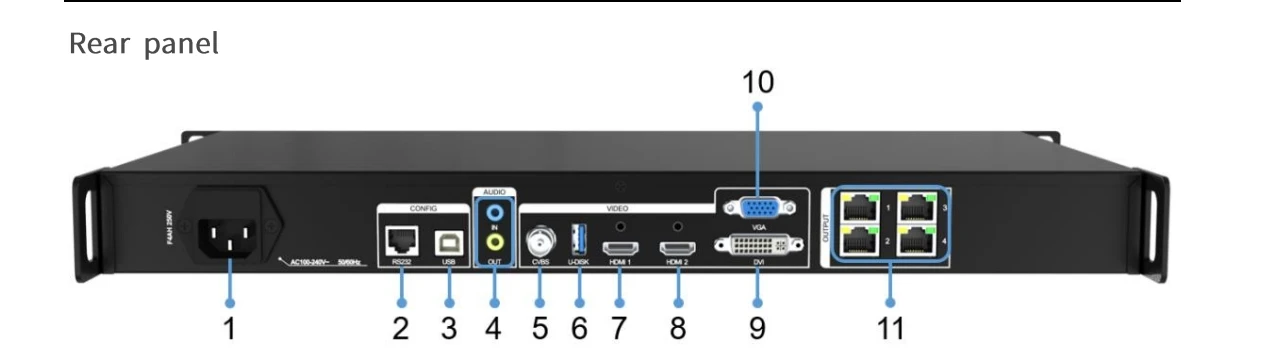

Power supply
1	Power Socket	AC100-240V~,50/60Hz,Connect to Ac power supply.
Control
2	RS232	RJ11 (6P6C) interface *, used to connect the central control.
3	USB	USB2.0 Type B interface,connect to PC for configuration.
Audio
4	AUDIO IN	Interface type: 3.5mm, Receive audio signals from computer or other equipment.
	AUDIO OUT	Interface type: 3.5mm, Support HDMl, DP audio decoding and output audio signals to devices such as active speakers
input
5	CVBS	PAL/NTSC video input
6	U-DISK	USB flash drive interface. USB flash drive format supported: NTFS, FAT32, FAT16.。 lmage file formats: jpeg, PNG, webp, BMP. Video codec: MPEG1/2,MPEG4, Sorenson H.263, H.263, H.264(AVC1),H.265(HEVC),RV30/40, Divx,Xvid. Audio codec: MPEGl/2 Layer l, MPEG1/2 Layer l, MPEG1/2 Layer Ill, AACLC, VORBIS, PCM, and FLAC. Video resolution: maximum 1920x1080@60Hz.
7	HDMI 1	1xHDMI1.4 input. Maximum resolution:1920x1080@60HZ Support EDID1.4. Support HDCP1.4. Support audio input.
8	HDMI2	1xHDMl1.4 input. Maximum resolution:1920x1080@60Hz. Support EDID1.4. Support HDCP1.4. Support audio input.
9	DVI	Maximum resolution:1920x1080@60Hz Support EDID1.4. Support HDCP1.4.
10	VGA	Maximum resolution:1920x1080@60Hz.
Output
11	PORT 1-4	4 Gigabit Ethernet ports. One network port load capacity: 655360 pixels. PORT 1-4 Total load capacity is 2.6 million pixels, maximum width is 3840 pixels and maximum height is 2000 pixels. It is highly recommended that the cable (CAT5E) length should not exceed 100m. Support redundant backup.
