LED Display Processor and Professional Master Processor Colorlight X8E

classification：LED Display Video Processor -> Colorlight

market price：$0.00

Local price：$0.00

material：

color：RGB

Release date：2025-8-29 10:25:3

Colorlight X8E is a powerful professional master controller and LED display processor. It supports multi-signal input, including 4K video signals via 1×DP 1.2 and 1×HDMI 2.0 interfaces, as well as 2K video signals via 2×HDMI 1.4 and 2×DVI interfaces. It enables seamless switching between multiple signal channels, with a maximum input resolution of up to 4096×2160@60Hz and also supports custom resolution settings.

In terms of output, it is equipped with 8 Gigabit Ethernet ports, boasting a maximum single-device load capacity of 5.24 million pixels. The maximum load width can reach 16,384 pixels, and the maximum load height up to 8,192 pixels.

Meanwhile, it comes with a wealth of practical functions: it allows arbitrary switching, cropping, splicing and scaling of video signals; supports 6-screen display with freely adjustable positions and sizes; features a precise color management system for adjusting the display gamut; adopts video synchronous phase-locking technology; has independent audio input and output, supporting audio analysis and output for HDMI and DP; and supports LAN port control, mobile APP control, RS232 serial protocol control, as well as HDCP protocol-based high-bandwidth digital content protection. Additionally, it enables brightness and color temperature adjustment, providing a comprehensive, flexible and high-quality solution for LED display needs in various scenarios.

Hotline：86 13699777670

Share to：QQ Zone Sina micro-blog Tencent micro-blog WeChat

Best-selling

P3.91 LED Display
classification：STAGE ALL KINDS LE..
P1.875 LED Display
classification：Small Pixel..
RGX P3 Rental Indoor LE...
classification：LED Display module..
RGX Indoor Mirror/Post ...
classification：COMMERCIAL DISPLAY..

Shenzhen RGX Electronics Co., Ltd.
Contact:ledrgx
Phone: 0755-23714515
Mobile: +86 18038069578
Whatsapp/wechat: +86 180 380 69578
Skype: levin-led
Q Q: 1006759127

After sale service: ledrgx@163.com

description

introduction to products

colorlight-X8E

X8E is a professional master with powerful video signal input and processing capabilities. It not only supports 4K video signal input of DP1.2 and HDMI2.0 interface, but also supports 2K video signal input of HDMI1.4 and DVI interface, and supports seamless switching between multiple signals. The single machine supports a maximum load of 5.24 million pixels, with a maximum load width of 16384 pixels and a maximum height of 8192 pixels. The X8E supports eight Gigabit network ports, which can greatly meet the needs of different customers. At the same time, the X8E has a wide range of practical functions, providing flexible screen control and high-quality image display.

Features
1 channel DP 1.2, 1 channel HDMI2.0 input 2 HDMI1.4 and 2 DV inputs The maximum load is 5.24 million pixels, the maximum width is 16,384 pixels, or the maximum is 8192 pixels The maximum input resolution is 4096x2160@60Hz. Custom resolution is supported Eight Gigabit network port outputs Arbitrarily switch, crop, splice and scale the video signal 6 Screen display, position, size can be freely adjusted Precise color management, adjust the display color gamut Video synchronous phase locking technology Independent audio input/output HDMI and DP audio parsing output LAN port control Mobile APP control RS232 serial port protocol control HDCP protocol high bandwidth digital content protection technology Brightness and color temperature adjustment

Product Paramenters

X8E Product specification parameter

Model number		X8E
Chassis specification		2U standard chassis
Working environment	Power source	AC100~240V，50~60Hz
Working environment	power	50W
Working environment	temperature	-20°C~70°C/-4°F~158°F
Working environment	humidness	0%RH to 80%RH, no condensation
Storage environment	temperature	-30°C~80°C/-22°F~176°F
Storage environment	humidness	0%RH to 90%RH, no condensation
Equipment specification	dimension	WxHxL / 482.6 mmx88.0 mmx414.1 mm / 19 "x3.5 x16.3" "
Equipment specification	Net weight	4.8 Kg / 10.58 LBS
Packing specification	dimension	WxHxL/ 525.0mmx150.0mmx495.0mm /20.7"x5.9"x19.5'
Packing specification	Net weight	1.8 kg / 3.971 bs

Application scenario

colorlight-X8E products can be widely used in the field of LED commercial display, such as lamp pole screen, chain store screen, advertising machine, mirror screen, retail store screen, door screen, car Loading screen, no PC screen, etc.

Classification	Description
Market type	Advertising media: To be used for advertising and informationpromotion including bar screen and advertising machine. Digital signage: To be used for signage display in retail storesincluding retail store screens and door head screens. Commercial display: To display commercial information ofhotel, cinema and shopping mall, such as chain store screens.

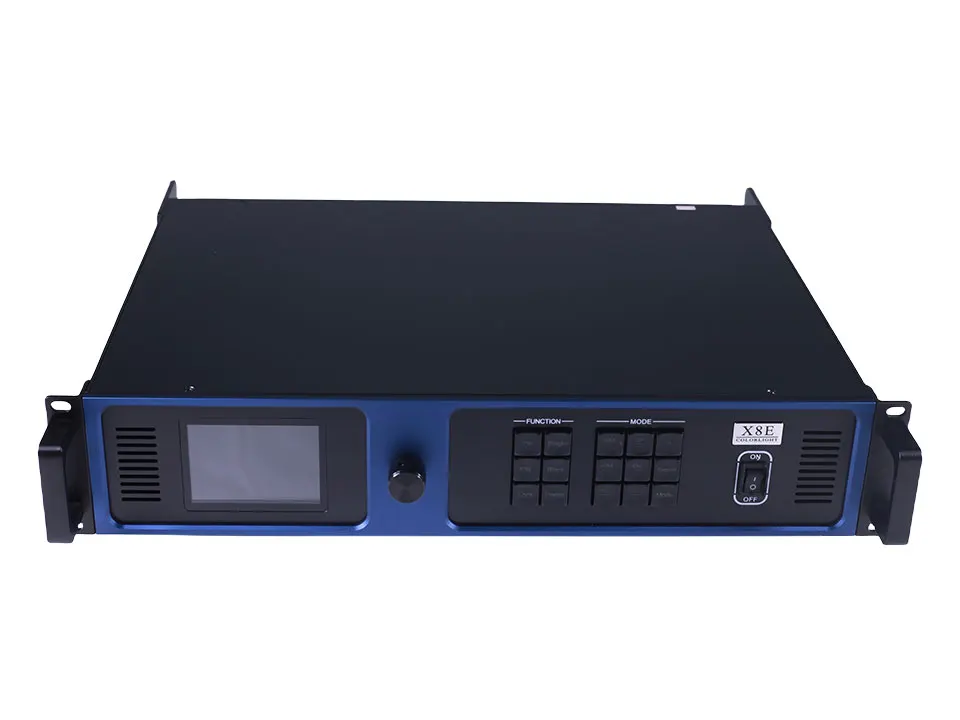

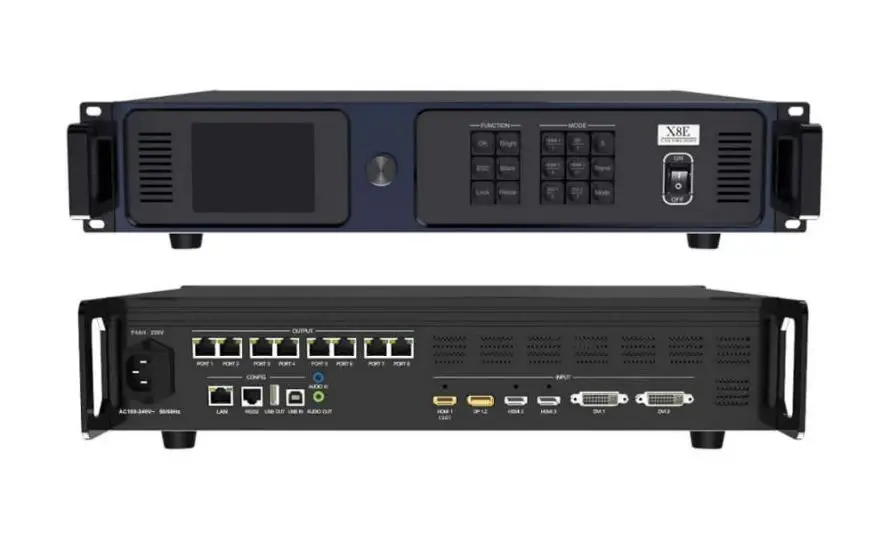

Picture display

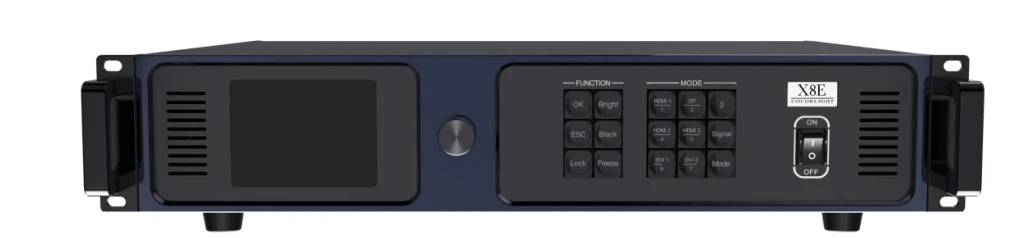

Product use

name	Feature
Liquid crystal display	The operation menu and system information are displayed
knob	Rotate to select or adjust, press to confirm
Function shortcut key (FUNCTION)	OK: Confirm key Bright: brightness adjustment ESC: exit key Black: Screen is black. Lock: locks the front panel. Freeze: The screen is frozen
MODE shortcut key (MODE)	HDMTI/DP / 3 / HDMI2 / HDMI3 / DVI1 / DVI2 single image Mode set the video input source, the scene when the choice to do the number keys Signal: check the Signal Mode: preset scenes
Power switch	Switchgear power supply

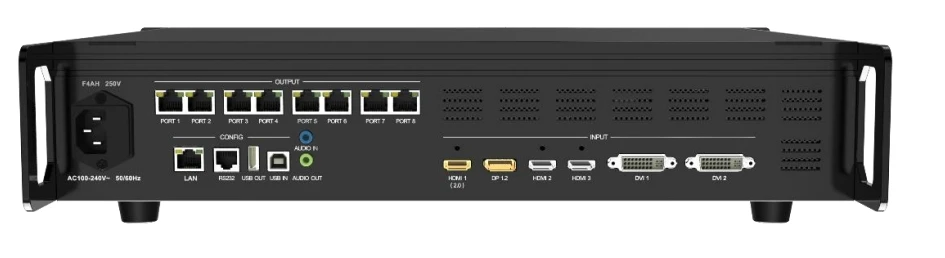

Input Interface
HDMI 2.0		1 HDMI2.0 input port
DP 1.2		One DP 1.2 input port
HDMI1, HDMI2		Two HDMI 1.4 input ports
DVI1, DVI2		Two DVI input ports
Output Interface
Port 1-8		RJ45, eight 1G network ports
Controlling Interface
LAN		RJ45, can connect to LAN
RS232		USB output, cascading with the next controller
USB OUT		USB output for cascading control between devices
USB IN		USB input, connected to the computer, for debugging parameters
Audio interface
AUDIO IN		Audio input, can receive computer and other equipment input audio
AUDIO OUT		Audio output, can output audio to active speakers and other devices (support HDMI, DP audio parsing output)
Power interface
AC 100~240V		Ac power interface, including power protection device

Packing&Shipping

We adopt the order - pick - delivery integration principle, that is, buy and send, customers place orders directly after the factory hair, so that products are protected.

In terms of packaging, we use air cases and cartons as one main packing body
