LED Display Processor Colorlight X6 with 6 Gigabit Network Port Output

classification：LED Display Video Processor -> Colorlight

market price：$0.00

Local price：$0.00

material：

color：RGB

Release date：2025-8-29 10:25:13

The Colorlight X4S is a professional video processor for small-to-medium LED display scenarios, highlighted by 4 Gigabit Ethernet port outputs as its core feature. It enables high-speed and stable data transmission to efficiently drive LED screens, supports a maximum input resolution of 1920×1200@60Hz, and comes with functions like seamless switching between multiple signals, arbitrary scaling and cropping of video sources. Suitable for retail advertising screens, office information displays and other scenarios, it provides smooth and adaptable signal processing support for LED displays.

Hotline：86 13699777670

Share to：QQ Zone Sina micro-blog Tencent micro-blog WeChat

Best-selling

P3.91 LED Display
classification：STAGE ALL KINDS LE..
P1.875 LED Display
classification：Small Pixel..
RGX P3 Rental Indoor LE...
classification：LED Display module..
RGX Indoor Mirror/Post ...
classification：COMMERCIAL DISPLAY..

Shenzhen RGX Electronics Co., Ltd.
Contact:ledrgx
Phone: 0755-23714515
Mobile: +86 18038069578
Whatsapp/wechat: +86 180 380 69578
Skype: levin-led
Q Q: 1006759127

After sale service: ledrgx@163.com

description

introduction to products

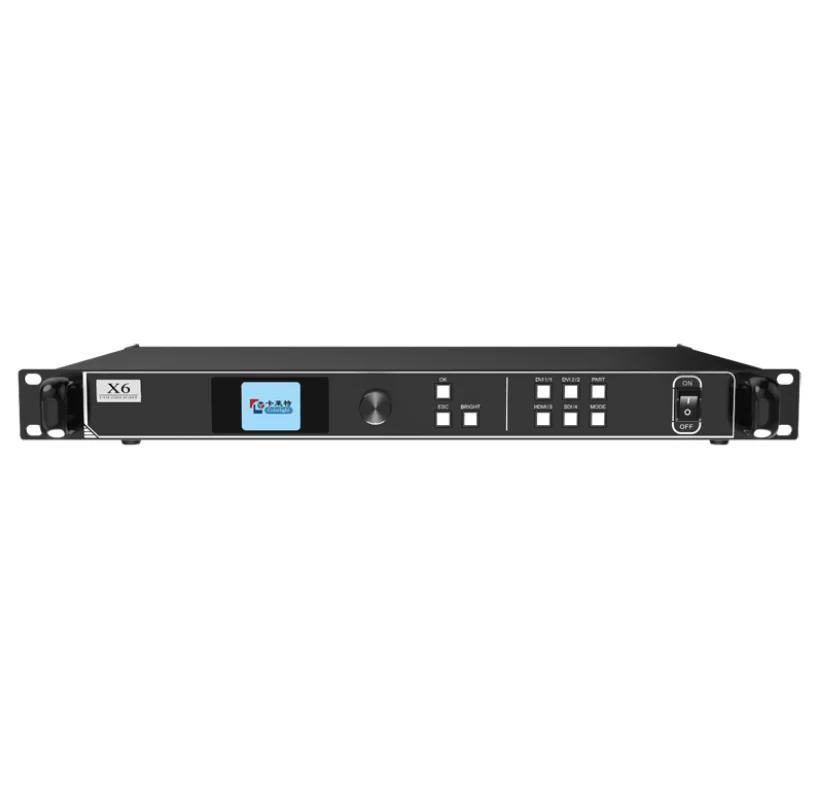

colorlight-X6

X6 is a professional control system and video processing equipment specially designedfor LED engineering applications. lt is shipped with various video signal interfaces,supports high-definition digital ports (DVl, HDl, SDl) and their seamless switching,allowing broadcast quality scaling and multi-pictures display.With 6 Gigabit Ethernet outputs,X6 supports LED display with maximum 8192 pixels inwidth or 4096 pixels in height. Also, used with a series ofversatile functionsfor aflexiblescreen control and high-quality image display, X6 enjoys strong advantages in LEDengineering applications.

Features
Various digital signal ports,including2x DVl, 1x HDMI, 1x SDI Loading capacityofup to 3.9 million pixels, with maximum 8192 pixels in width or maximum 4096 pixels in height. Input resolution up to 1920x1200@60Hz. 6 Gigabit Ethernet output ports,supports Ethernetport redundancy or controller redundancy. User-definable video source switching and scaling Up to 3 layers, easily customize position and size. Independent audio input and HDMl audio decoding. RS232 protocol. HDCP Brightness and color temperature adjustment. Supports Better Gray Level at Low Brightness, can effectively maintain the complete display of grey scale under low brightness.

Compare the same series of products

colorlight X series LED video processor comparison

name	X20	X16E	X12	X7/X6
Control area	13 megapixels	10.48 million pixels	7.2 million pixels	5.2 million pixels/X7 3.9 million pixels/X6
Maximum resolution	1xDP1.2, 1xHDMI2.0 2xHDMI1.4. 2xDVI,	1xDP1.2, 1xHDMI2.0 2xHDMI1.4. 2xDVI,	3xHDMI1.4 1xDVI	1xSDl 1xHDMI1.4. 2xDVI
Output resolution	4096*2160@ 60hz	4096*2160@ 60hz	1920*1200@60 hz	1920*1200@60 hz
Control mode	20 x 1G network port 2 x 10G optical port	16 x 1G network port	12 x 1G network port	8 x 1G network port/X7 6 x 1G network port/X6
HDCP	1.4	1.4	1.4	1.4
Video processing	tailor Zoom picture-in-picture Toggle	tailor Zoom picture-in-picture Toggle	tailor Zoom picture-in-picture Toggle	tailor Zoom picture-in-picture Toggle
Number of Windows	6	6	3	3
Window control	√	√	√	√
serial port control	√	√	√	√
USB port control	√	√	√	√
LAN control	√	√	×	×
Audio parsing	√	√	√	√
Loop backup	√	√	√	√
Precise color management	√	√	√	√

Product Paramenters

X6 Product specification parameter

Dimensions(WxHxD)
Unboxed	482.6mm(19.0")x44.0mm(1.7")x306.2mm (12.1"),1U chassis (w/o foot pads)
Boxed	525.0mm(20.7")x95.0mm(3.7")x355.0mm(14.0")
Weight
Net weight	3.07kg (6.77lbs)
Total weight	4.28kg (9.44lbs)
Electrical specification
Power input	AC100-240V,1.0A,50/60Hz
Rated power	30W (With all cards installed)
Operating environment
Temperature	-20°C~60°C /-4°F~140°F
Humidity	0%RH~80%RH,non-condensing
Storage environment
Temperature	-30°C~80°C /-22°F~176°F
Humidity	0%RH~90%RH,non-condensing
Certification
CCC, CE, FCC, IC, EAC, UKCA. lf the product does not have the relevant certifications required by the countries or regions where it is to besold, please contact Colorlight to confirm or address the problem. Otherwise, the customer shall beresponsible for the legal risks caused or Colorlight has the right to claim compensation

Application scenario

colorlight-X6 products can be widely used in the field of LED commercial display, such as lamp pole screen, chain store screen, advertising machine, mirror screen, retail store screen, door screen, car Loading screen, no PC screen, etc.

Classification	Description
Market type	Advertising media: To be used for advertising and informationpromotion including bar screen and advertising machine. Digital signage: To be used for signage display in retail storesincluding retail store screens and door head screens. Commercial display: To display commercial information ofhotel, cinema and shopping mall, such as chain store screens.

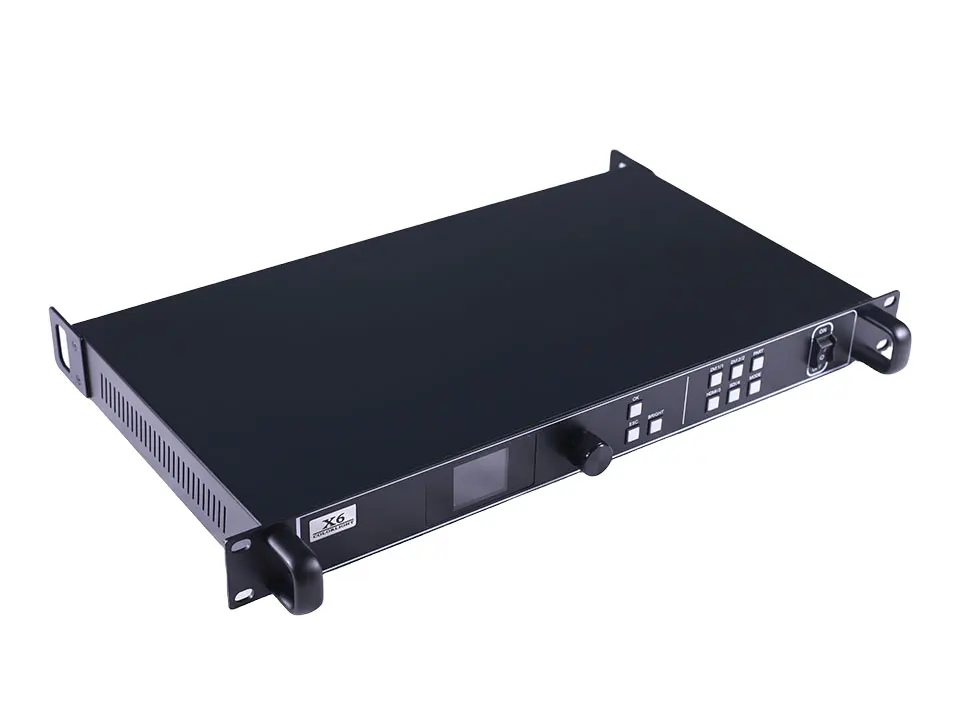

Picture display

Product use

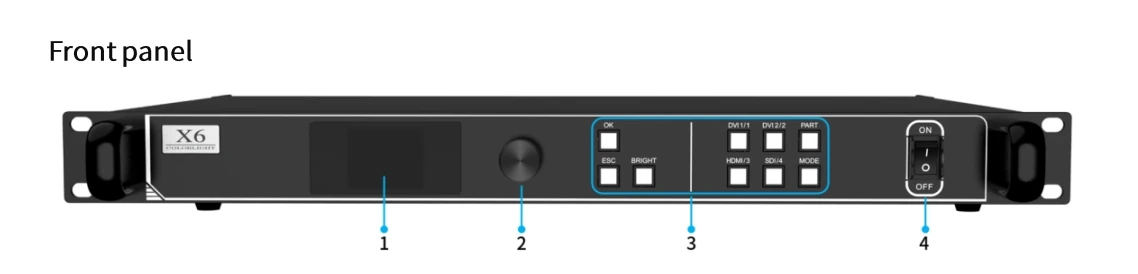

NO	ltem	Function
1	LCD	Display the operation menu and system information.
2	Knob	Select an item or adjust the parameter, press the knob to confirm your selection or adjustment.
3	Function Keys	OK: Confirm button. Bright: Tune brightness.. ESC：Exit the current operation or back to previous menu. PART: Crop Screen. MODE: Select a preset. 1~4:Quick selection of preset.
	Selection keys	DVI1/DVI2/HDM/SDl:Video source selection..
4	Power Switch	Switch On /Off

Power
1	MAINS INPUT	AC100-240V,50/60Hz, connect to AC power supply, built-in fuse.
Control
2	RS232	*RJ11 port(6p6c), connect to third-party device.
	USB IN	USB port input, connect to a PC for debugging or cascadinginput
	USB OUT	USB port output, as cascading output
Audio
3	AUDIO IN	Interface type: 3.5mm. Receive audio signals from computers or other audio sources
	AUDIO OUT	Interface type: 3.5mm. Support HDMl audio decodingand output audio signals to devices such as active speakers.
Input
4	DVI 1, DVI 2	2x DVlinput.
	HDMI	1x HDMl1.4 input.
	SDI	1x SDlinput, support 3G-SDlstandard and de-interlacing
Output
5	PORT 1-6	RJ45,6x 1G Ethernet ports output.

Packing&Shipping

We adopt the order - pick - delivery integration principle, that is, buy and send, customers place orders directly after the factory hair, so that products are protected.

In terms of packaging, we use air cases and cartons as one main packing body
