Colorlight X2m LED Video Controller with Five Input Signals

classification：LED Display Video Processor -> Colorlight

market price：$0.00

Local price：$0.00

material：

color：RGB

Release date：2025-8-29 10:25:17

Colorlight X2m is a professional LED video controller featuring **five input signals** to connect and switch between multiple video sources (e.g., HDMI, DP) flexibly. It specializes in stable processing and driving of LED display signals, ensuring smooth, high-quality visual output. Compact and practical, it suits scenarios like small-to-medium indoor LED displays (e.g., retail counters, office information screens, elevator advertising displays) that demand multi-source signal access and reliable video control.

Hotline：86 13699777670

Share to：QQ Zone Sina micro-blog Tencent micro-blog WeChat

Best-selling

P3.91 LED Display
classification：STAGE ALL KINDS LE..
P1.875 LED Display
classification：Small Pixel..
RGX P3 Rental Indoor LE...
classification：LED Display module..
RGX Indoor Mirror/Post ...
classification：COMMERCIAL DISPLAY..

Shenzhen RGX Electronics Co., Ltd.
Contact:ledrgx
Phone: 0755-23714515
Mobile: +86 18038069578
Whatsapp/wechat: +86 180 380 69578
Skype: levin-led
Q Q: 1006759127

After sale service: ledrgx@163.com

description

introduction to products

colorlight-X2m

X2m is a professional LED display control device with powerful video signal source
and processing capabilities. It can handle up to 1920×1080 HD digital signals,
supports various types of HD digital interfaces, and supports arbitrary zooming and
clipping of video sources. In addition, the X2m supports USB flash drive content
playback. X2m has 2 gigabit network port outputs and can support maximum 3840 pixels in
width and maximum 2000 pixels in height. At the same time, X2m has a series of
practical functions, providing flexible screen control and high-quality image display,
which can be perfectly applied to small LED display

Input
Inputresolution: max 1920x1080@60Hz.
Signal sources: 2xHDMI1.4,1xDV,1xVGA,1xCVBS
U-disk interface: 1xUSB.
Output	Loading capacity: 1.3 million pixels. Maximum width is 3840 pixels or maximum height is 2000 pixels. 2 Gigabit Ethernet output ports. Supports Ethernet port redundancy
Audio	Input:1x3.5mm. Output: 1x3.5mm, support HDMl and U-DISK audio outputs.
Function	Supports switching, clipping and zooming. Supports screen offset. Supports screen adjustment: contrast, saturation, chroma, brightness compensation and sharpness adjustment. Supports convert Limit Range to Full Range input color space. Supports send and read back screen correction factor, advanced stitching. Supports HDCP1.4. Supports Precise Color Management. Supports Better Gray Level at Low Brightness, can effectively maintain the complete display of grey scale under low brightness. 16 scene presets. Play back pictures and videos from U-disk. OSD for U-disk playback and screen adjustment (Remote controller optional).
Control	USB port for control RS232 protocol control. Infrared remote control(optional).

Compare the same series of products

colorlight X series LED video processor comparison

name	X40m	X20m	X4m	X2m
Control area	26.21 million pixels	13 megapixels	2.6 million pixels	1.3 million pixels
Ultimate width height	The widest is 16384, the highest is 8192	The widest is 16384, the highest is 8192	Maximum width 3840, maximum 2000	Maximum width 3840, maximum 2000
Maximum resolution	1xDP1.2, 1xHDMI2.0 2xHDMI1.4. 2xDVI, USBx1	1xDP1.2, 1xHDMI2.0 2xHDMI1.4. 2xDVI, USBx1	1xDVI 2xHDMI1.4. 1xVGA USBx1 1xCVBS	1xDVI 2xHDMI1.4. 1xVGA USBx1 1xCVBS
Signal output	4096*2160@60hz	4096*2160@60hz	1920*1080@60hz	1920*1080@60hz
Control mode	40x1G Ethernet/4x10G Fiber	20x1G Ethernet/2x10G Fiber	4x1G Net interface	2x1G Net interface
Video processing	PIP, Cropping, Scaling, Splicing	PIP, Cropping, Scaling, Splicing	Cropping, Scaling,	Cropping, Scaling,
Number of Windows	6	6	1	1
Prefabricated scene	128	128	16	16
Usb flash drive playback	√	√	√	√
Audio parsing	√	√	√	√
Loop backup	√	√	×	×

Product Paramenters

X2M Product specification parameter

Dimensions (WxHxD)
Host	482.6mm(19.0")x 44.0mm (1.7")x 292.0mm(11.5").
Package	523.0mm(20.6")x95.0mm(3.7")x 340.0mm(13.4")
Weight
Net weight	3.13kg (6.90lbs)
Total weight	4.16kg (9.17lbs)
Electricalspecification
Input power	AC100-240V，50/60Hz
Power rating	10W
Work condition
Temperature	-20°C~65°C(-4°F~149°F)
Humidity	0%RH-80%RH,no condensation
Storage environment
Temperature	-30“C~80C(-22°F~176°F)
Humidity	0%RH~90%RH,no condensation
Storage condition
LEDVISION	V8.5 or above
iSet	V6.0 or above.
LEDUpgrade	V3.9 or above.
Certification
CCC,CE, CE-RED,FCC,FCC-ID. *ifthe product does not havethe relevantcertifications required bythe countries orregions where it is to be soldplease contact Colorlightto confirmoraddressthe problem, 0therwise,the customer shall be responsibleforthe legal risks caused orColorlight has theright to claim compensation

Application scenario

colorlight-X2m products can be widely used in the field of LED commercial display, such as lamp pole screen, chain store screen, advertising machine, mirror screen, retail store screen, door screen, car Loading screen, no PC screen, etc.

Classification	Description
Market type	Advertising media: To be used for advertising and informationpromotion including bar screen and advertising machine. Digital signage: To be used for signage display in retail storesincluding retail store screens and door head screens. Commercial display: To display commercial information ofhotel, cinema and shopping mall, such as chain store screens.

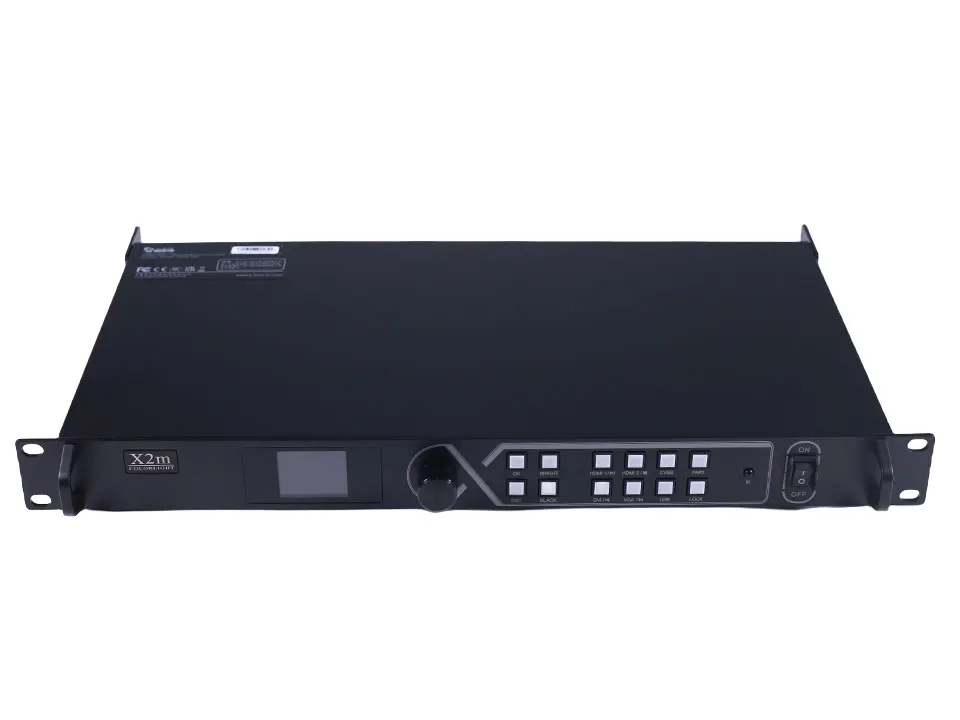

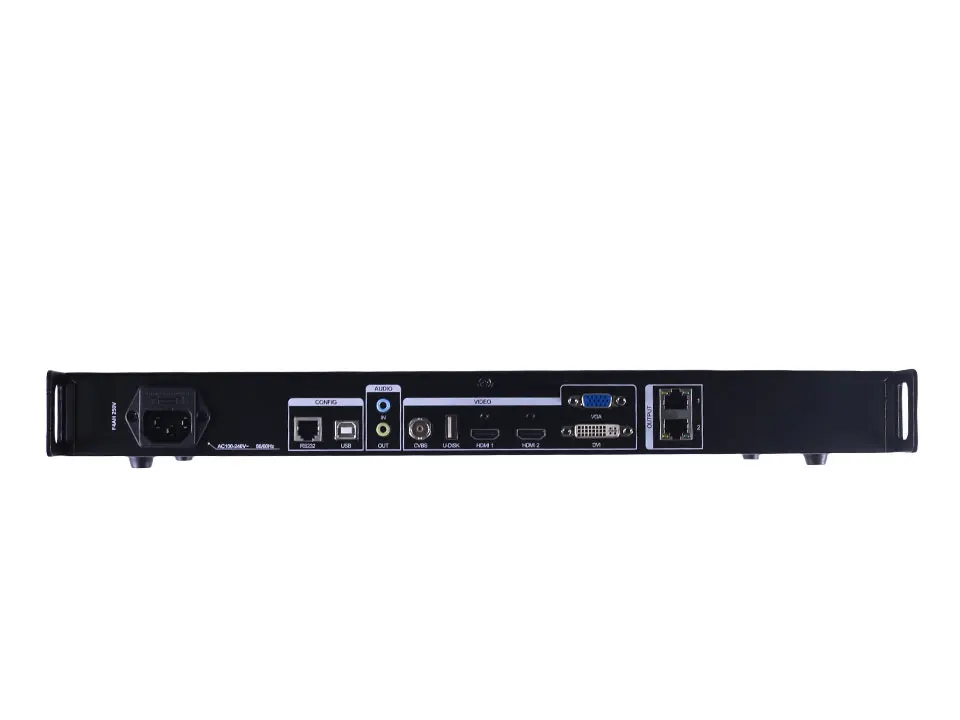

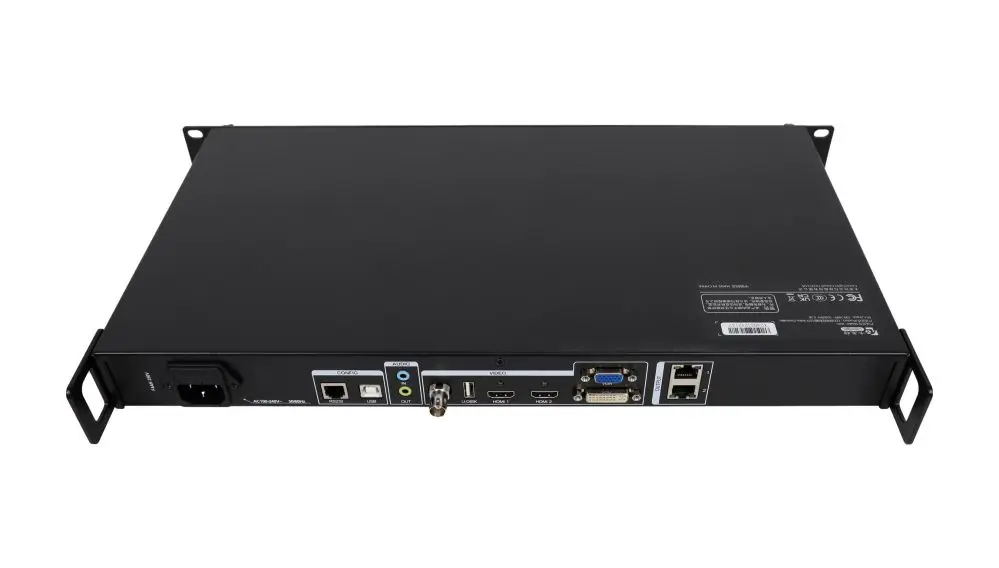

Picture display

Product use

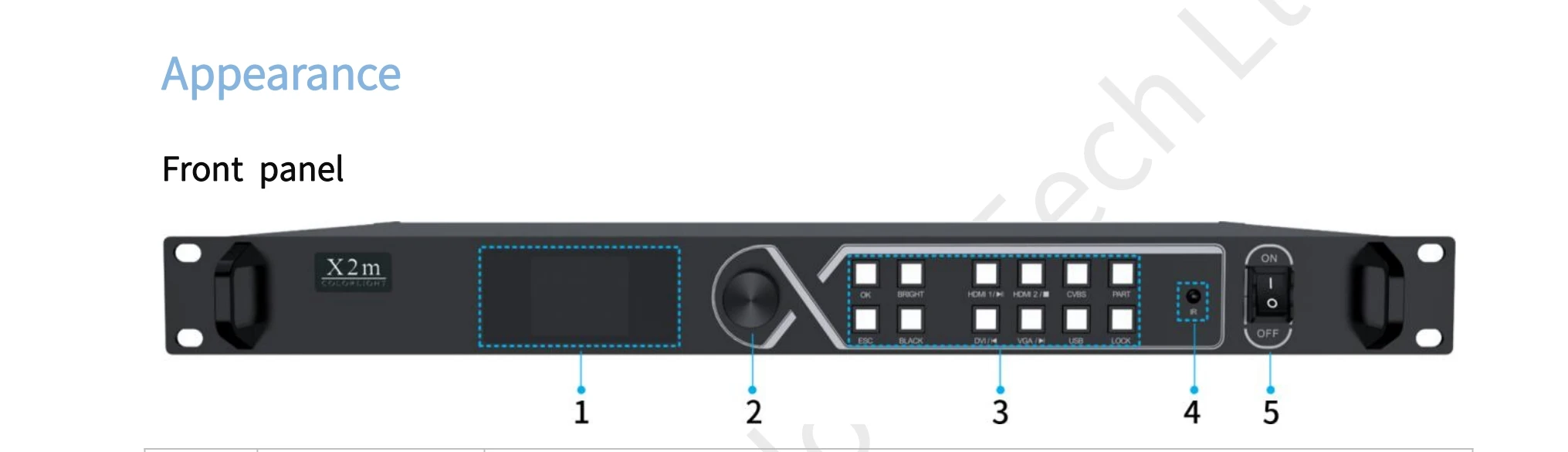

No.	Item	Function
1	LCD display	Display operation menu and system information.
2	Knob	Press the knob to access the submenu or confirm. Turn the knob to select menu items or adjust parameters.
3	Function button	OK: Enter. Bright: Adjust brightness. ESC: Exit the current interface. Black: Black the screen. HDMI 1 / HDMI 2 / DVI 1 / VGA : - Switching to a signal source by clicking corresponding button. - In U-disk playback mode, these buttons serve respectively as play/pause, stop, previous and next. CVBS: Switch to CVBS. PART: Clip the picture. USB: Click the USB button to enter the U-disk playback mode. Click again to enter the console interface. LOCK: Lock the buttons on the front panel.
4	IR	IR receiver.
5	Switch	Switch on/off.

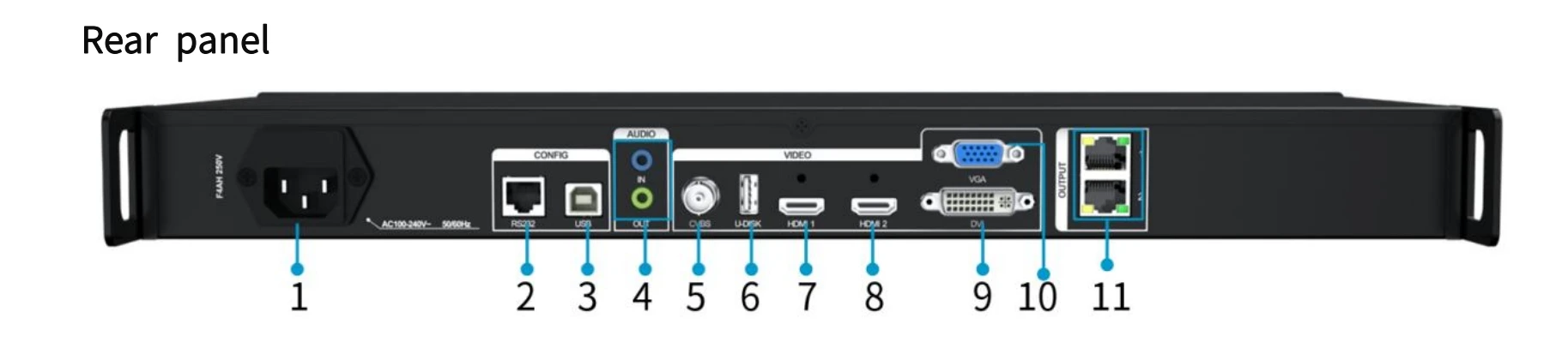

Power supply
1	Power Socket	AC100-240V~, 50 / 60Hz, Connect to AC power supply
Control
2	RS232	RJ11 (6P6C) interface *, used to connect the central control.
3	USB	USB2.0 Type B interface, connect to PC for configuration.
Audio
4	AUDIO IN	Interface type: 3.5mm Receive audio signals from computer or other equipment.
	AUDIO OUT	Interface type: 3.5mm Output audio signals to active speaker and other devices. (Support HDMI audio decoding and output)
Input
5	CVBS	PAL/NTSC video input
6	U-DISK	USB flash drive interface. USB flash drive format supported: NTFS, FAT32, FAT16. Image file formats: jpeg, jpg, png, bmp. Video codec: MPEG1/2, MPEG4, Sorenson H.263, H.263, H.264(AVC1), H.265(HEVC), RV30/40, Xvid. Audio codec: MPEG1/2 Layer I, MPEG1/2 Layer II, MPEG1/2 Layer III, AACLC, VORBIS, PCM, and FLAC. Video resolution: maximum 1920×1080@30Hz.
7	HDMI 1	1 x HDMI1.4 input. Maximum resolution: 1920×1080@60Hz. Support EDID1.4. Support HDCP1.4. Support audio input.
8	HDMI 2	1 x HDMI1.4 input. Maximum resolution: 1920×1080@60Hz. Support EDID1.4. Support HDCP1.4. Support audio input
9	DVI	Maximum resolution: 1920×1080@60Hz. Support EDID1.4. Support HDCP1.4.
10	VGA	Maximum resolution: 1920×1080@60Hz.
Output
11	PORT 1-2	2 Gigabit Ethernet ports. One network port load capacity: 655360 pixels. Total load capacity is 1.3 million pixels, maximum width is 3840 pixels and maximum height is 2000 pixels. It is highly recommended that the cable (CAT5E) length should not exceed 100m. Support redundant backup

Packing&Shipping

We adopt the order - pick - delivery integration principle, that is, buy and send, customers place orders directly after the factory hair, so that products are protected.

In terms of packaging, we use air cases and cartons as one main packing body
