X16E is a controller possessing powerful video signal input and processing capacity. lt supports 4K inputs with DP 1.2 and HDMl 2.0 ports, and 2K inputs with HDMl 1.4 and DVlports, and the multiple signals can be seamlessly switched. Equipped with 16 Gigabit Ethernet ports, the controller can greatly meet your different demands. Additionally,X16E boasts abundant practical functions that enable flexible screen control and high-quality image display.

Features

Input ports: 1xDP 1.2,1xHDMI2.0,2xHDMI 1.4,2xDVI.  Loading capacity: 10.48 million pixels, maximum16384 pixelsin width or maximum8192 pixels in height.  Input resolution:up to 4096x2160@60Hz,supporting customized setting.  Output ports: 16xGigabit Ethernet port.  Video source switching, cropping, splicing and scaling.  Up to 6 windows, of which the location and size can be freely adjusted.  Precise color management and display gamut adjustment.  Video sync.  Separate audio input and output.  Analyzing and outputting the audio signals of HDMl and DP inputs.  LAN control.  Control via hand-held terminal(app).  RS232 protocol control. 3D(optional).  HDCP (Only HD interface support).  Brightness and color temperature adjustment.

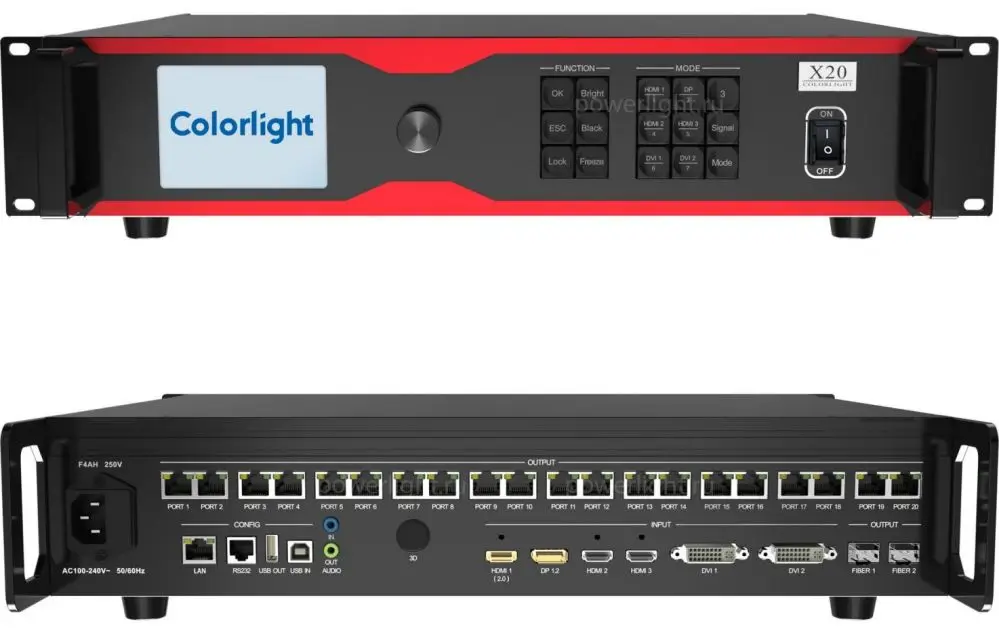

name	X20	X16E	X12	X7/X6
Control  area	13  megapixels	10.48  million pixels	7.2  million pixels	5.2 million pixels/X7 3.9 million pixels/X6
Maximum resolution	1xDP1.2,  1xHDMI2.0 2xHDMI1.4.  2xDVI,	1xDP1.2, 1xHDMI2.0 2xHDMI1.4. 2xDVI,	3xHDMI1.4 1xDVI	1xSDl 1xHDMI1.4. 2xDVI
Output resolution	4096*2160@ 60hz	4096*2160@ 60hz	1920*1200@60 hz	1920*1200@60 hz
Control mode	20 x 1G network port  2 x 10G optical port	16 x 1G network port	12 x 1G network port	8 x 1G network port/X7 6 x 1G network port/X6
HDCP	1.4	1.4	1.4	1.4
Video processing	tailor Zoom picture-in-picture Toggle	tailor Zoom picture-in-picture Toggle	tailor Zoom picture-in-picture Toggle	tailor Zoom picture-in-picture Toggle
Number of Windows	6	6	3	3
Window control	√	√	√	√
serial port control	√	√	√	√
USB port control	√	√	√	√
LAN control	√	√	×	×
Audio parsing	√	√	√	√
Loop backup	√	√	√	√
Precise color management	√	√	√	√

Model	X16E
Size	2U
Electrical Specifications	Input Voltage	AC100~240V,50/60Hz
	Power Consumption	50W
Operating Environment	Temperature	-20°C~70°C/-4°F~158°F
	Humidity	0%RH~80%RH,non-condensing
Storage Environment	Temperature	-30°C~80°C/-22°F~176°F
	Humidity	0%RH~90%RH,non-condensing
Device Specifications	Dimensions	WxHxL/482.6mmx103.0mmx415.1mm/19"x4.1 "x16.3"
	Net Weight	4.8kg/10.58lbs
PackingSpecifications	Dimensions	WxHxL/525.0mmx150.0 mmx495.0mm/20.7"x5.9"x19.5"
	Net Weight	1.8kg/3.97lbs

Classification	Description
Market type	Advertising media: To be used for advertising and informationpromotion including bar screen and advertising machine.  Digital signage: To be used for signage display in retail storesincluding retail store screens and door head screens.  Commercial display: To display commercial information ofhotel, cinema and shopping mall, such as chain store screens.

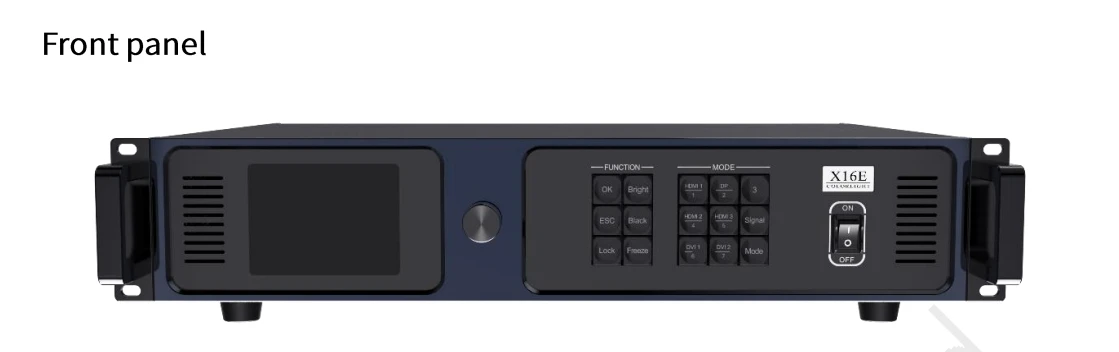

ltem	Function
LCD	Display the operation menu and system information.
Knob	Turn the knob to select an item or adjust the parameter.  press the knob to confirm your selection or adjustment.
Function Keys	OK: Enter.  Bright: Brightness adjustment.   ESC: Exit the current operation.  Black: Black out. Lock: Lock all the keys of the front panel. Freeze: Freeze the image.
Mode Keys	HDMI1/DP/HDMI2/HDMI3/DVI1/DVI2: Video sourceselection keys. Signal: View signal status.  Mode: Presets scene switches, which can be switched by knob orbutton row. 1~7: Load a preset scenein scene selection mode.
Power Switch	Switch the device on or off.

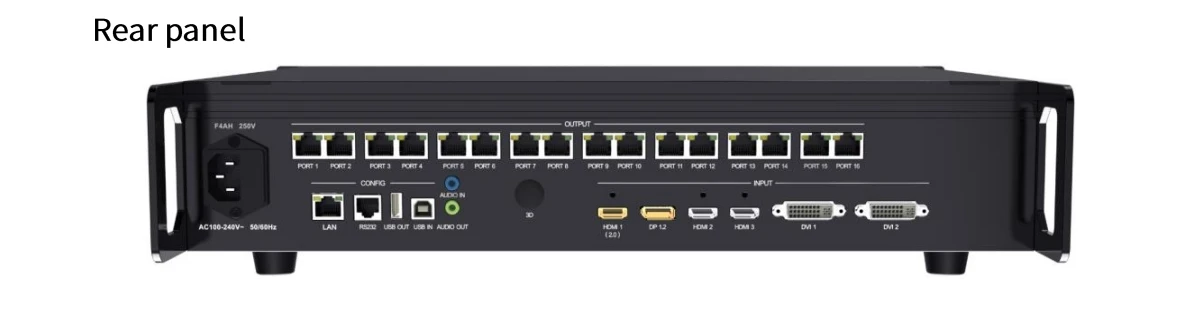

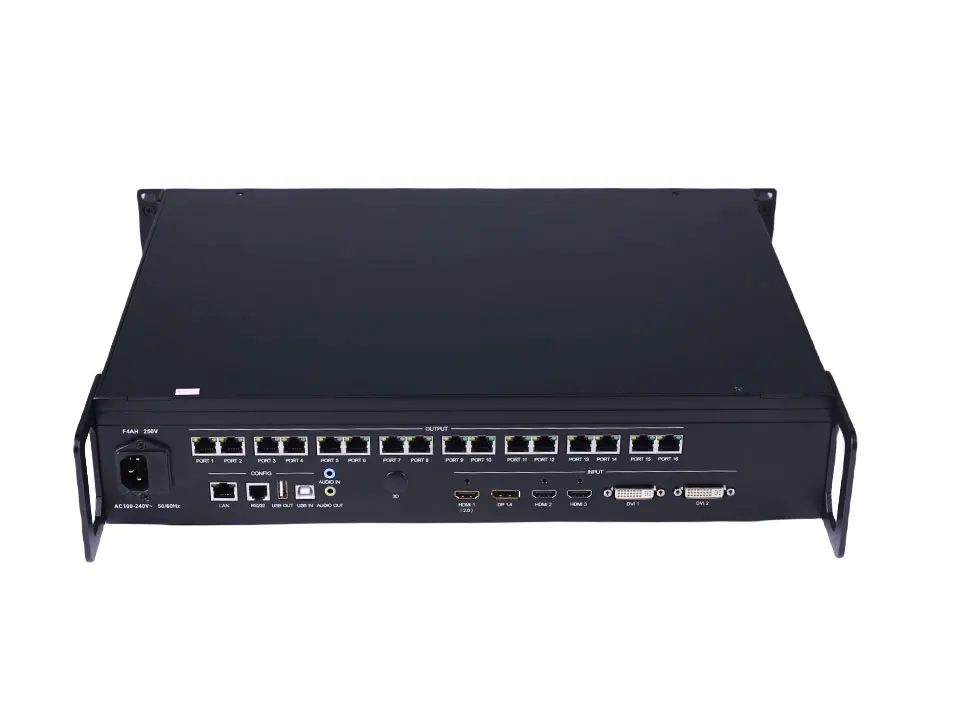

Input
HDMI 1 (2.0)		1x HDMI 2.0
DP 1.2		1x DP 1.2
HDMI2,HDMI3		2x HDMI 1.4
DVI1, DVI2		2x DVI
Output
Port 1-16		RJ45,16x 1 Gigabit Ethernet port
Control
LAN		Network control (communication with PC, or access network)
RS232		RJ11(6P6C)*, connect to the third party device
USB OUT		USB output, for cascading with the controller
USB IN		USB input, connecting to PC fordebugging
3D
3D (optional)		Connect to the 3D emitter
Audio
AUDIO IN		Audio input, forinputting audio signals from the computer or otherdevices
AUDIO  OUT		Audio output, for outputting audio signals to the speaker(Support outputting the audio signals of HDMl and DP)
power
MAINSINPUT		AC power connector,AC 100~240V,containing a built-in fuse
