Colorlight S20 LED Display Video signal Transmitter That Supports 20 Network Output

classification：LED Display Video Processor -> Colorlight

market price：$0.00

Local price：$0.00

material：

color：RGB

Release date：2025-8-29 10:25:1

Colorlight S20 is a dedicated video signal transmitter for LED displays, corely featuring support for **20 network outputs** to distribute video signals simultaneously. It specializes in stable transmission of LED display video signals, enabling efficient signal splitting and delivery to multiple display units. Suitable for medium-to-large LED display systems (such as commercial billboards, stage backgrounds, and indoor large-screen clusters), it ensures consistent signal quality across all connected outputs for smooth visual presentation.

Hotline：86 13699777670

Share to：QQ Zone Sina micro-blog Tencent micro-blog WeChat

Best-selling

P3.91 LED Display
classification：STAGE ALL KINDS LE..
P1.875 LED Display
classification：Small Pixel..
RGX P3 Rental Indoor LE...
classification：LED Display module..
RGX Indoor Mirror/Post ...
classification：COMMERCIAL DISPLAY..

Shenzhen RGX Electronics Co., Ltd.
Contact:ledrgx
Phone: 0755-23714515
Mobile: +86 18038069578
Whatsapp/wechat: +86 180 380 69578
Skype: levin-led
Q Q: 1006759127

After sale service: ledrgx@163.com

description

introduction to products

colorlight-S20

S20 is a controller possessing powerful video signal receiving capacity. lt supports the input of DP1.2 and HDMl2.0, and seamless switching betweensignal sources. Asingle unit features a loading capacity of up to 8.85 millionpixels, with a maximum width or height of 8192 pixels, while a singleEthernet port supports a loading width or height of up to 4096 pixels, andthe controllersupports signal inputs ofup to 4096x2160@60Hz resolution.Thus, S20 allows users to configure ultra-long, ultra-high and ultra-largescreens. S20 supports 20 Gigabit Ethernet outputs, as well as Ethernet portredundancyandcontrollerredundancy.lt can not onlyeffectivelyensurethedisplay stability ofscreens, but also provide high-quality image display andflexible screen control.

Features
Inputs: 1xDP 1.2,1xHDMI 2.0 Supports seamless switching between signal sources Loading capacity: up to 8.85 million pixels, maximum width or height:8192 pixels Loading capacity of a single Ethernet port: up to 650 thousand pixels,maximum width or height: 4096 pixels. The loading capacity will reducewhen the height exceeds 1280 pixels. Input resolution:up to4096x2160@60Hz,supporting customized setting of resolution within control range. Outputs:20 Gigabit Ethernet ports,supportingEthernet port redundancyor controllerredundancy Supports USB cascading controland RS232 protocol control Separate audio input and output Supports3D display (optional) Better gray at low brightness Compatible with all receivercards and multifunction cards ofColorlight

Product Paramenters

S20Product specification parameter

Model number		S20
Chassis specification		2U
Operating interface		3x Mini Dp (up to 4096x2304@60Hz)
CPU		Intel® 16 cores, 32 threads
RAM		128G
SSD		1TB M.2 high speed ssD
Acquisition card (optional)		SDI and DVI ports
Graphics card		2x16G Quadro"professional Graphics
Video interface		8x DP1.4
Maximum resolution of each port		4096x2160@120HZ
Maximum resolution		16384x4320@60Hz
Audio frequency		3.5mm audio input and multi-channel output
Network bandwidth		1GbE & 10GbE
Broadcast control software		GrandShow software
Operatingenvironment	temperature	-20°C~70°C/-4°F~158°F
	humidness	0%RH~80%RH,non-condensing
Storage environment	temperature	-40°C~80°C/-40°F~176°F
	humidness	0%RH~90%RH,non-condensing
Electrical specification	power supply	AC100~240V,50/60Hz
	power	40W
Device Specifications	dimension	WxHxL/482.6x88.0x369.0 mm3/19"x3.5"x14.5'
	NetWeight	5.1kg/11.24lbs
Packing Specifications	Dimensions	WxHxL/525.0x150.0x455.0mm3/20.7"x5.9"x17.9"
	NetWeight	6.7kg/14.77lbs

Application scenario

colorlight-S20 products can be widely used in the field of LED commercial display, such as lamp pole screen, chain store screen, advertising machine, mirror screen, retail store screen, door screen, car Loading screen, no PC screen, etc.

Classification	Description
Market type	Advertising media: To be used for advertising and informationpromotion including bar screen and advertising machine. Digital signage: To be used for signage display in retail storesincluding retail store screens and door head screens. Commercial display: To display commercial information ofhotel, cinema and shopping mall, such as chain store screens.

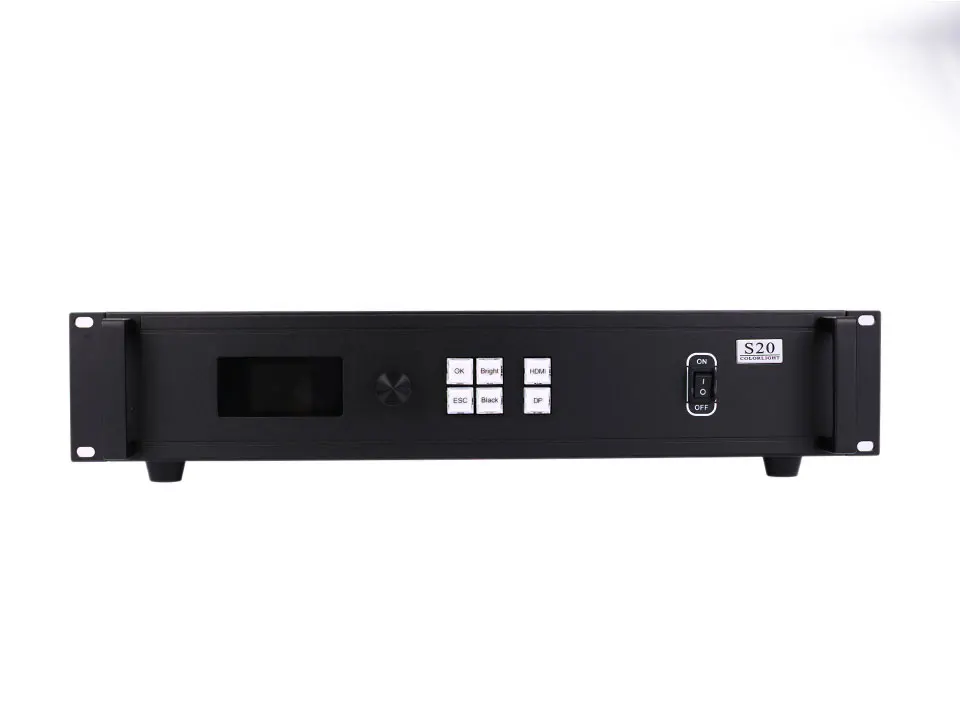

Picture display

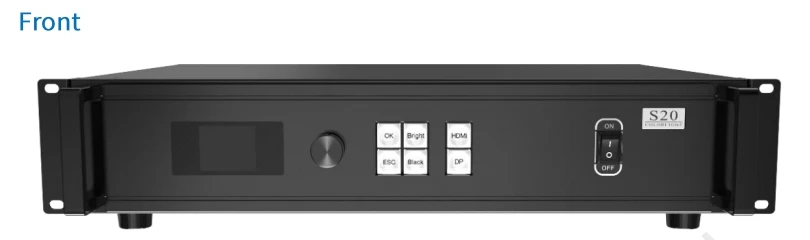

Product use

serial number	name	Feature
1	LCD	Display the operation menu and system information
2	Knob	Turn the knob to selectan item or adjust the parameter;press the knob to confirm your selection or adjustment
3	Function Key	OK: Enter key ESC: Escape key Bright: Brightnessadjustment Black: Blackout
4	Selection Key	HDMl: Select HDMl2.0 as the signalsource DP: SelectDP1.2as the signalsource
5	Power Switch	Power switching for the device

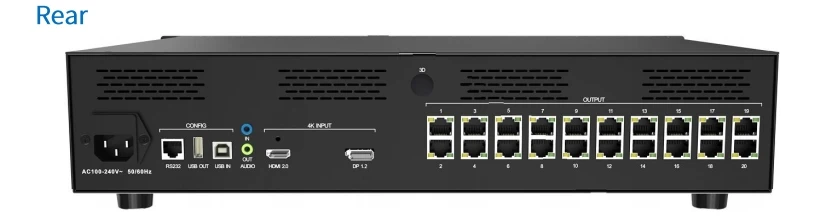

input
1	HDMI2.0	1XHDMI2.0
2	DP1.2	1xDP 1.2
Output
1	Port 1-20	RJ45,20 Gigabit Ethernet outputs
2	3D(Optional)	Output the 3D control signal
Control
1	USB IN	USB input, connecting to PCfor debugging
2	USB OUT	USB output, as cascadingoutput
3	RS232	RJ11 (6P6C)*,connect to the third party device
Audio
1	AUDIO IN	Audio input, input audio signals from the computer or otherdevices
2	AUDIO OUT	Audio output, output audio signals to the speaker (Supportprocessingandoutputting the audio signalofHDMland DP)
PowerSupply
1	AC 100~240V	AC power interface, containing a built-in fuse

Packing&Shipping

We adopt the order - pick - delivery integration principle, that is, buy and send, customers place orders directly after the factory hair, so that products are protected.

In terms of packaging, we use air cases and cartons as one main packing body
