Support 1920X1200*60Hz Output LED Display Multimedia Networking Player Colorlight A100
name:

Support 1920X1200*60Hz Output LED Display Multimedia Networking Player Colorlight A100

classification:LED Display Video Processor -> Colorlight
market price:$0.00
Local price:$0.00
material:
color:RGB
Release date:2025-8-29 10:25:1
The Colorlight A100 is an LED display multimedia networking player with high-performance output, supporting **1920×1200@60Hz** resolution for smooth HD visuals. It integrates synchronous display and asynchronous playback, handles 4K decoding (H.265/H.264/VP9), and can load up to 1.3 million pixels to drive large screens. It supports multi-network access (Wi-Fi/LAN/optional 4G) and flexible management via mobile/PC, with versatile program playback (videos, texts, etc.) and USB plug-and-play, suitable for commercial ads, government info screens, and more.
    Hotline:86 13699777670
consulting
Contact us
Contact us

Shenzhen RGX Electronics Co., Ltd.
Contact:ledrgx
Phone: 0755-23714515
Mobile: +86 18038069578
Whatsapp/wechat: +86 180 380 69578
Skype: levin-led
Q     Q: 1006759127

After sale service: ledrgx@163.com

http://www.rgxled.com

description

introduction to products

colorlight-A100

A100is a new-generation cloud networking player that supports synchronous display andasynchronous playback, it supports 4K H.265/H.264 hard decoding, 4K Vp9 decodingplayback. Maximum load capacity1.3 million pixelsandsupportup to 1920x1200@60Hz.Based on the ColorlightCloud platform, functions such as player monitoring, programcreating, program scheduling, program centralized publishing, and multilevel privilegemanagement are supported. A100 supports networking methods like WiFi, LAN, 4G (optional), which enables rapiddeploymentofintelligent cloud management, multi-screen, multi-service, cross-regionalunified management. A100 has a permanent WiFi hotspot, and can connect to other WiFihotspots. Program management and parameter settings can be achieved via smartphone,tablet and PC.A100 supports command scheduling and LAN scheduling, and can achieveautomatic brightness setting to meet the brightness adjustment needs of variousoccasions. With PlayerMaster, A100 offers program editing and publishing and program multiwindow arbitrary arrangement, allows for program materials playback such as video,picture, text, table, clock, streaming media, webpages, weather. Besides, itsupports plugand playcontent from USB flash drive. Program update and management can be achievedvia wired network. As a brand-new networking control system, A100 enjoys strong advantages in theapplication of outdoor commercial adverting screens, indoor government screen, publicplace information release screen, chain screen, doorstep screen, advertising players.
product feature
Loading capacityupto 13 million pixels, with maximum 4096 pixels in width or 2560pixels in height.
HDMl up to 1920x1200@60Hz.
Synchronous display or asynchronous playback, as well as the priority setting ofthese two modes.
Strong processing performance, 4KH.265/H.264 hard decoding, 4K VP9 decodingplayback
32GB storage, available 25G storage capacity.
Fully compatible with conventional synchronous control system program managementand display configuration.

Intelligent control, convenient management
USB flash drive can plug and play content and updates the list of programs. Synchronized playback of multiple screens (NTP synchronization).
Scheduled commands, LAN-based scheduling and internet-based scheduling
Ambienttemperature, humidity and brightness and otherparameters monitoring
as well as automatic display brightnessadjustment
Convenient program management
Rich media materials, such as pictures, videos, texts, tables, clocks, stream media,
webpages and weather.
Support overlaying of multiple windows, whose size and location can be freely
adjusted. Support multi-page playback, up to 32 program pages.
All-round control scheme
Manage player via different platforms like PC, smartphone, Pad
Differentapplication softwarefor management, convenient forvarioussituations

Network communication
WiFi 2.4G frequency band, WiFi hotspot mode or WiFi client mode
LAN, supports DHCP mode and static mode.
4G communication,4G network (optional).
GPS positioning(optional)

Compare the same series of products

colorlight A series networked player product comparison

name
A100
A200
A2K
A4K
A60
operating system
Android
Android
Android
Android
Android
Decoding capability
4K
4K
4K
4K
4K
Size
(L*W*H)
234.8*137.4*26/mm
234.8*137.4*26/mm
108*128*26
/mm
215*94*32
/mm
256.4*127.6*26.2/mm
storage space
32GB
32GB
32GB
32GB
32GB
External storage expansion
Usb flash drive, maximum 256G
Usb flash drive, maximum 256G
Usb flash drive, maximum 256G
Usb flash drive, maximum 256G
Usb flash drive, maximum 256G
Output Gigabit network port
Two ways
Four ways
×
×
Two ways

Network port control area
1.3 million pixels Maximum width 4096 pixels Up to 2560 pixels
2.3 million pixelsMaximum width 4096 pixels Up to 2560 pixels


×


×
1.3 million pixels Maximum width 4096 pixels Up to 2560 pixels
HDMl input
×
×
HDMl output
1920*1200@60hz
1920*1200@60hz
1920*1200@60hz
3840*2160@60hz
×
Cloud service cluster management





×
LAN
One hundred Megabyte
One hundred Megabyte
One hundred Megabyte
giga
One hundred Megabyte
4G/5G
×
WIFI
Mobile phone WiFi control
Synchronized program
external sensor
×
×
streaming

Product Paramenters

A100 Product specification parameter

Dimensions (WxHxD)
Unboxed
234.8mm(9.24")x26.0mm(1.02")x137.4mm(5.41")
Boxed
360.0mm(14.17")x93.0mm(3.66")x225.0mm (8.86")
Weight
Net weight
0.83kg(1.83lbs)
Total weight
1.70kg (3.75lbs)
Electricalspecification
Power input
DC12V
Rated power
12W
Operating environment
Temperature
0%RH~95%RH,non-condensing
Humidity
-20PC~65°C/-4°F~149°F
Certification
CCC,CE, CE-RED,FCC,FCC-ID.
*ifthe product does not havethe relevantcertifications required bythe countries orregions where it is to
be soldplease contact Colorlightto confirmoraddressthe problem, 0therwise,the customer shall be responsibleforthe legal risks caused orColorlight has theright to claim compensation

Application scenario

colorlight-A100 products can be widely used in the field of LED commercial display, such as lamp pole screen, chain store screen, advertising machine, mirror screen, retail store screen, door screen, car Loading screen, no PC screen, etc.
Classification
Description



Market type

Advertising media: To be used for advertising and informationpromotion including bar screen and advertising machine.
Digital signage: To be used for signage display in retail storesincluding retail store screens and door head screens.
Commercial display: To display commercial information ofhotel, cinema and shopping mall, such as chain store screens.

Picture display

Product use

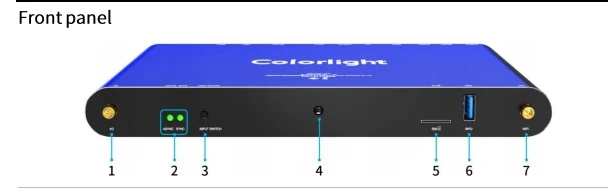

S/N
Name
Function
1
4G
Connect to 4G antenna (optional).
2
ASYNC SYNC
Indicator of sync and async modes.
3
INPUT SWITCH
Switch between sync and async modes
4
IR
Receive information via infrared light (remote control, easy to operate)
5
SIM
Micro-SlM card slot (use with 4G module).
6
USB
USB 3.0,connect to USB flash drive or USB camera.

7

WiFi
Connect to WiFi antenna,support 2.4G band.
WiFi hotspot.
WiFi client mode (connect to other WiFi routers).

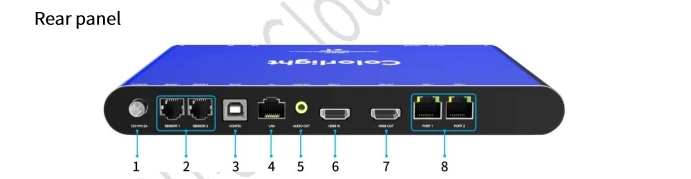

S/N
Name
Function
1
DCIN
DC 12Vpowerinput.

2

SENSOR 1/2
RJ1l port,connect to the sensor for automatic brightness
adjustment or monitoring ambient light, smoke, temperature
humidity andair quality.
3
CONFIG
USB-B port,connect to the PC for debugging or program publishing.
4
LAN
Ethernet port, connect to wired network.
5
AUDIO OUT
3.5mm audio interface, HiFi stereo output.
6
HDMIIN
Input sync HDMlsignal.
7
HDMI OUT
Output sync or async HDMl signal
8
PORT1-2
Ethernet output, connect to receiver cards of the display

Packing&Shipping

We adopt the order - pick - delivery integration principle, that is, buy and send, customers place orders directly after the factory hair, so that products are protected.
In terms of packaging, we use air cases and cartons as one main packing body
