Colorlight N6 Receiving Card for LED Display Supports 512*384 Pixels

classification：LED Display Video Processor -> Colorlight

market price：$0.00

Local price：$0.00

material：

color：RGB

Release date：2025-8-29 10:25:35

The Colorlight N6 Receiving Card for LED Display is a compact yet powerful solution. Measuring just 66.0 x 25.4 x 8.4 mm, it''s designed for outdoor fixed displays and LED lighting screens. This card can support a maximum of 512×384 pixels, with capabilities of handling up to 24 groups of parallel data or 64 groups of serial data. It features 8-bit video source input, allowing for color temperature adjustment and better grayscale performance at low brightness levels. It also supports frame rates of 30/50/60/100/120. For correction processing, it enables pixel-to-pixel calibration in both brightness and chromatography. Maintenance is made easy with functions like screen rotation, data group offset, a test input key, power-on with gradual brightening, no-signal display status, quick firmware upgrades, and the ability to support any pumping row, column, or point. In terms of reliability, it has loop redundancy, network cable status monitoring, firmware program redundancy and readback, and can work 7x24h uninterrupted, making it suitable for applications such as light bar screens, mesh screens, point light sources, and special-shaped screens, effectively saving design space and reducing design complexity.

Hotline：86 13699777670

Share to：QQ Zone Sina micro-blog Tencent micro-blog WeChat

Best-selling

P3.91 LED Display
classification：STAGE ALL KINDS LE..
P1.875 LED Display
classification：Small Pixel..
RGX P3 Rental Indoor LE...
classification：LED Display module..
RGX Indoor Mirror/Post ...
classification：COMMERCIAL DISPLAY..

Shenzhen RGX Electronics Co., Ltd.
Contact:ledrgx
Phone: 0755-23714515
Mobile: +86 18038069578
Whatsapp/wechat: +86 180 380 69578
Skype: levin-led
Q Q: 1006759127

After sale service: ledrgx@163.com

description

introduction to products

colorlight-N6

N6 is an ultra-small receiving card launched by Colorlight for outdoor fixed displayand LED lighting screen.N6 single card can carry a maximum of 512 x 384 pixels andsupport up to 24 groups of parallel data or 64 groups of serial data. The size is only 66.0 x25.4x8.4mm, suitable for application scenarios such as light bar screen, meshscreen, point lightsource,special-shaped screen, etc., which can effectively save designspace,reduce screen structure designand reduce design difficulty.

product feature
Display effect	Support 8bit Video source input Support color temperature adjustment Support better gray at low brightness Support 30/50/60/100/120frame rate
Correction processing	Support pixelto-pixel calibration in brightness and chromaticity
Easy maintenance	Support screen rotation Support data group offset Support test input key Support power on the screen and gradually brighten Support no signal display status Supports quick firmware upgrade and quick release of correction coefficients Support any pumping row, pumping column and pumping point
Stable and reliable	Supportloop redundancy Support ethernet cable status monitoring Support firmware program redundancyand readback Support 7x24h uninterrupted work

Product Paramenters

N6 Product specification parameter

Physical Specifications
Hardware interface	Dual 42Pin interface
Ethernet port transmission rate	1Gb/s
Communication Distance	Recommended: CAT5e cable≤100m
Compatible with Transmission Equipment	Gigabit switch, Gigabit fber converter, Gigabit fiber switch
Size	66.0x25.4x8.4mm
Weight	13g
Electrical specification
Voltage	DC 3.8V-12V，0.4A
Rated power	2.0W
Body Static Resistance	2KV
Operatingenvironment
Temperature	-20°C~70°C/-4°F~158°F
Humidity	0%RH-80%RH, no condensation
Storage and transport environment
Temperature	-30°C-85C /-22°F~176°F
Humidity	0%RH-90%RH, no condensation
Package information
Packaging rules	Standard blister box device, 8 cards per box,800 cards percarton
Package size	550.0mmx398.0mmx180.0mm
Certification
RoHS

Application scenario

colorlight-N6 products can be widely used in the field of LED commercial display, such as lamp pole screen, chain store screen, advertising machine, mirror screen, retail store screen, door screen, car Loading screen, no PC screen, etc.

Classification	Description
Market type	Advertising media: To be used for advertising and informationpromotion including bar screen and advertising machine. Digital signage: To be used for signage display in retail storesincluding retail store screens and door head screens. Commercial display: To display commercial information ofhotel, cinema and shopping mall, such as chain store screens.

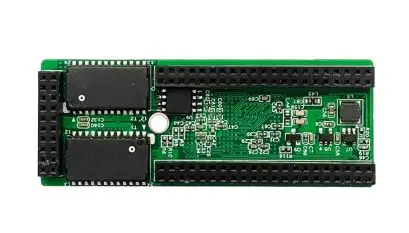

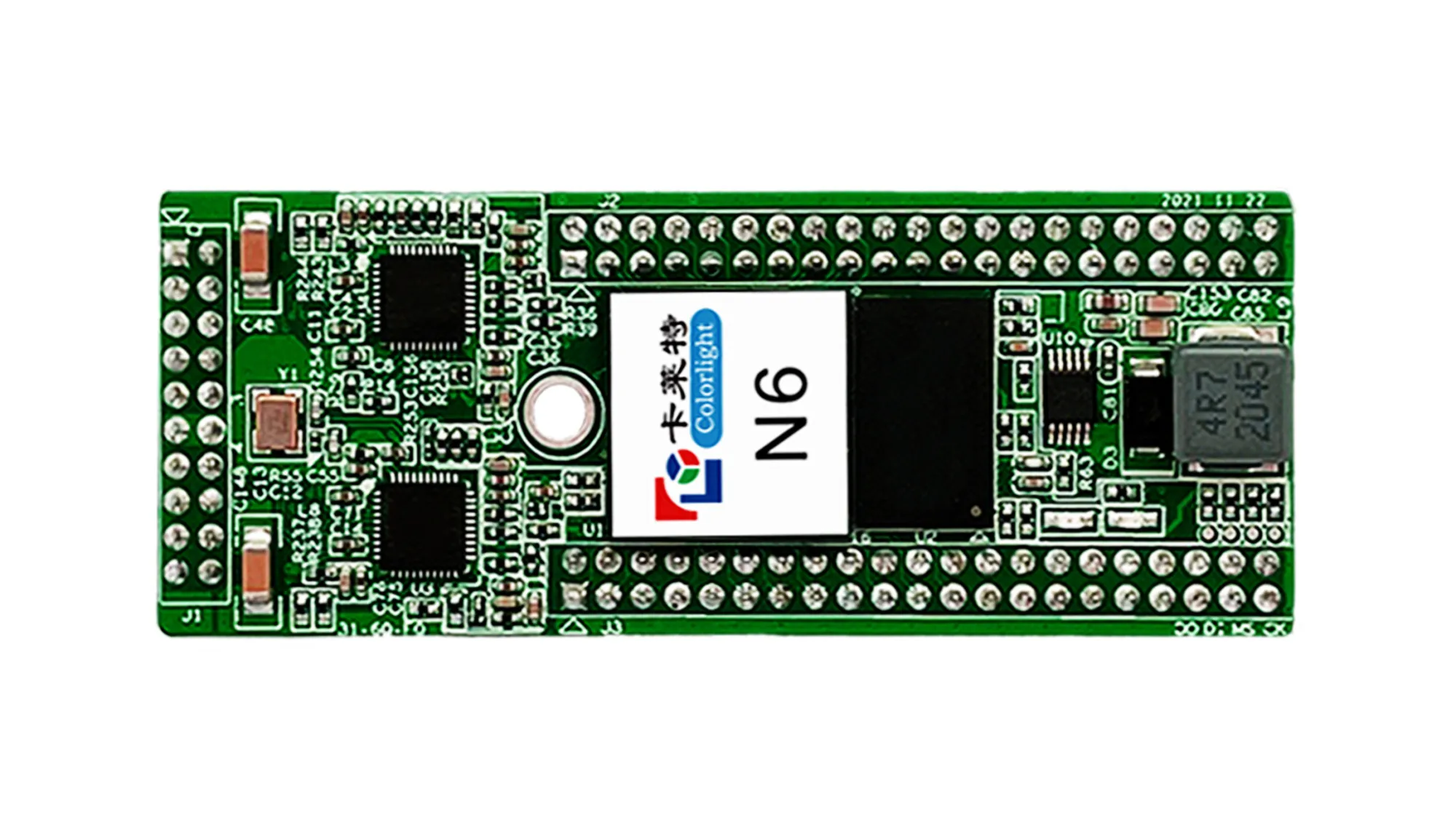

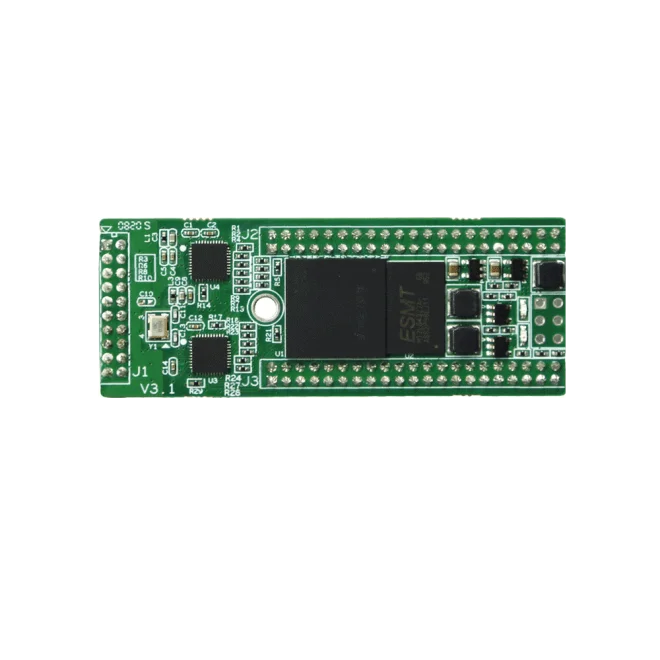

Picture display

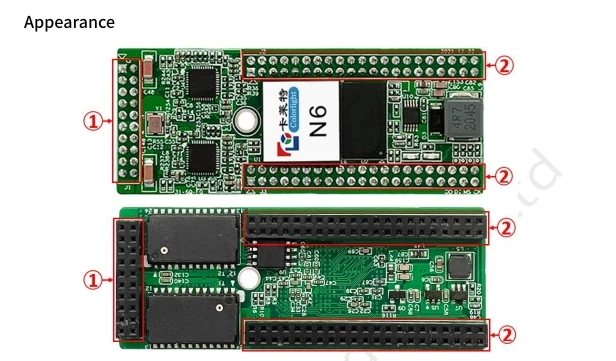

Product use

S/N	Name	Function
1	Powersupply	Connect the DC 3.8V~12V power supply to supply powerto the receiving card
	Network port	Used to transmit network signals withoutdistinguishingbetween input and output
2	Dual 42Pin interface	Connect with the display's HUB or module and see pindefinition for more details
