Support 256*1024 Pixel LED Display Receiving Card Colorlight E320

classification：LED Display Video Processor -> Colorlight

market price：$0.00

Local price：$0.00

material：

color：RGB

Release date：2025-8-29 10:25:57

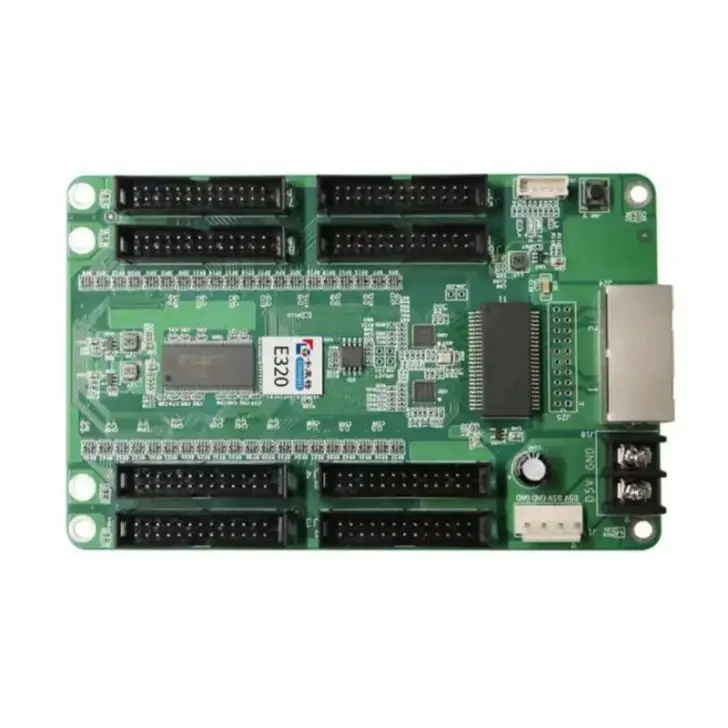

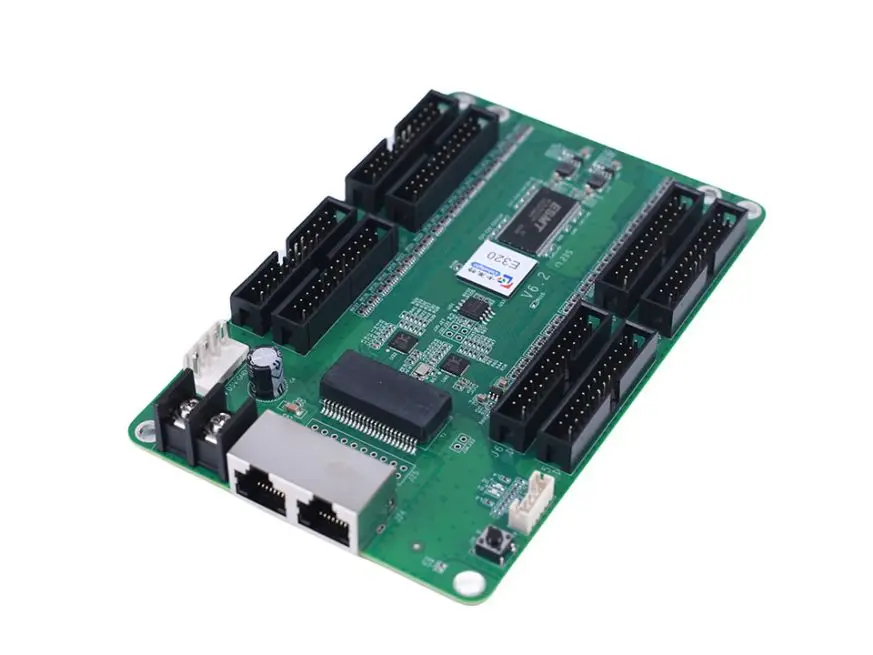

The Colorlight E320 is a high-performance LED display receiving card tailored for large-scale and high-resolution display scenarios. It supports a maximum pixel load of 256×1024, with multiple onboard Hub75 interfaces to efficiently drive LED display modules. The card is compatible with mainstream scan types (up to 1/128 scan) and offers 8-bit grayscale processing, delivering 16.77 million full colors for vivid image output. It seamlessly integrates with Colorlight series sending cards, eliminating the need for extra adapters to reduce connection complexity and failure risks, making it suitable for applications like stage backdrops, large outdoor billboards, and indoor high-definition displays.

Hotline：86 13699777670

Share to：QQ Zone Sina micro-blog Tencent micro-blog WeChat

Best-selling

P3.91 LED Display
classification：STAGE ALL KINDS LE..
P1.875 LED Display
classification：Small Pixel..
RGX P3 Rental Indoor LE...
classification：LED Display module..
RGX Indoor Mirror/Post ...
classification：COMMERCIAL DISPLAY..

Shenzhen RGX Electronics Co., Ltd.
Contact:ledrgx
Phone: 0755-23714515
Mobile: +86 18038069578
Whatsapp/wechat: +86 180 380 69578
Skype: levin-led
Q Q: 1006759127

After sale service: ledrgx@163.com

description

introduction to products

colorlight-E320

E320 receiving card is a specially introduced high cost-effect product of Colorlight,which is designed for customers to save cost, reduce points of fault and failure rate.E320 single card can load up to 256x1024 pixels, support up to 32 groups of paralleldata or 32 groups of serial data. Based on the technical advantages of conventionalreceiving cards, E320 can be integrateinto HUB75interfaces, which is more reliable andmore economical on the premiseofensuringhigh-guality display.

product feature
Display effect	8bit video source input. Color temperature adjustment. 240Hz frame rate. Better gray at low brightness.
Correction processing	Pixel-to-pixel calibration in brightness and chromaticity.
Easy maintenance	Highlight and OsD. Screen rotation. Data group offset. Any pump row and any pump columnand any pump point. Quick firmware upgrade and quick release of correction coefficients.
Stable and reliable	Loop redundancy. Ethernet cable status monitoring. Firmware program redundancy and readback. 7x24h uninterrupted work.

Product Paramenters

E320 Product specification parameter

Physical Specifications
Hardware interface	HUB75interfaces
Ethernet port transmission rate	1Gb/s
Communication Distance	Recommended: CAT5e cable≤100m
Compatible with Transmission Equipment	Gigabit switch, Gigabit fber converter, Gigabit fiber switch
Size	LxWxH/145.2mm(5.72")x91.7mm(3.61")x18.4mm(0.72")
Weight	94g/0.21lbs
Electrical specification
Voltage	DC 3.8-5.5V，0.6A
Rated power	3.0W
Body Static Resistance	2KV
Operatingenvironment
Temperature	-25℃~75℃(-13°F~167°F)
Humidity	0%RH-80%RH, no condensation
Storage and transport environment
Temperature	-40℃℃~125℃℃(-40°F~257°F)
Humidity	0%RH-90%RH, no condensation
Package information
Packaging rules	Standard blister card tray device, 100 cards per carton
Package size	WxHxD/603.0mm(23.74")x190.0mm(7.48")x501.0mm(19.72")
Certification
RoHS

Compare the same series of products

name	E320	E120	E80	5A-75E	5A-75B
Maximum output data	32	24	16	32	16
control area	512*512	512*384	512*256	512*512	512*384
Exact accuracy	8bit	8bit	8bit	8bit	8bit
Brightness/chroma calibration	√	√	√	√	√
Common seam	√	√	√	√	√
Network cable detection	√	√	√	√	√
Data migration	√	√	√	√	√
Module construction	√	√	√	√	√
Full screen opposite-sex module	√	√	√	√	√
driver chip	Market mainstream chip
gray scale	Up to 65536 gray levels
Serial data transmission	Support R1G1B1,R16G16B16
Scan support	Any scan between 1 and 128

Application scenario

colorlight-E320 products can be widely used in the field of LED commercial display, such as lamp pole screen, chain store screen, advertising machine, mirror screen, retail store screen, door screen, car Loading screen, no PC screen, etc.

Classification	Description
Market type	Advertising media: To be used for advertising and informationpromotion including bar screen and advertising machine. Digital signage: To be used for signage display in retail storesincluding retail store screens and door head screens. Commercial display: To display commercial information ofhotel, cinema and shopping mall, such as chain store screens.

Picture display

Product use

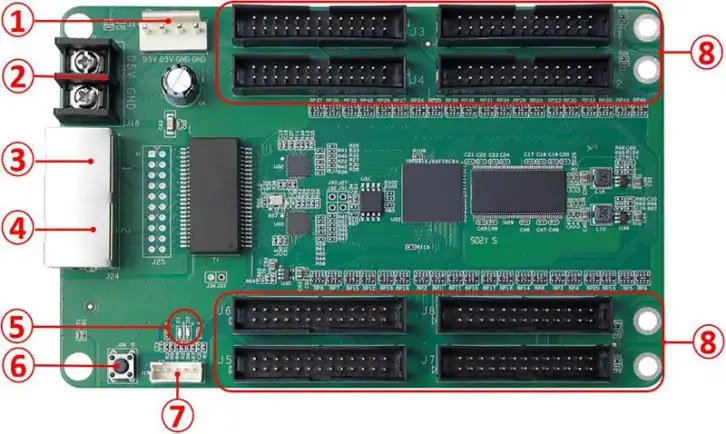

S/N	Name	Function
