Support 128*1024 Pixel LED Display Receiving Card Colorlight E80 LED Display Receiving Card

classification：LED Display Video Processor -> Colorlight

market price：$0.00

Local price：$0.00

material：

color：RGB

Release date：2025-8-29 10:25:56

The Colorlight E80 LED Display Receiving Card is a cost-effective solution, designed to meet the needs of various LED display applications. With 8 onboard Hub75 interfaces, it can load up to 128×1024 pixels, supporting up to 16 groups of parallel data or 32 groups of serial data. This card integrates the most common Hub75 interfaces, eliminating the need for additional adapter boards, thus reducing costs and potential failure points. It offers 8-bit video source input, enabling a monochrome grayscale of 256 and 16,777,216 mixed colors. It also supports a wide range of scan types, including up to 1/128 scan, and is compatible with all series of Colorlight sending devices, ensuring seamless integration and high-quality display performance.

Hotline：86 13699777670

Share to：QQ Zone Sina micro-blog Tencent micro-blog WeChat

Best-selling

P3.91 LED Display
classification：STAGE ALL KINDS LE..
P1.875 LED Display
classification：Small Pixel..
RGX P3 Rental Indoor LE...
classification：LED Display module..
RGX Indoor Mirror/Post ...
classification：COMMERCIAL DISPLAY..

Shenzhen RGX Electronics Co., Ltd.
Contact:ledrgx
Phone: 0755-23714515
Mobile: +86 18038069578
Whatsapp/wechat: +86 180 380 69578
Skype: levin-led
Q Q: 1006759127

After sale service: ledrgx@163.com

description

introduction to products

colorlight-E80

E80 receivingcard is aspeciallyintroduced highcost-effect productofColorlight, whichis designed forcustomers to save cost, reduce points offault and failure rate. E80 singlecard can load up to 128x1024 pixels, support up to 16 groups of parallel data or 32groups of serial data. Based on the technical advantages of conventional receivingcards, E80 can be integrate into HUB75 interfaces, which is more reliable and moreeconomical on the premise ofensuringhigh-quality display.

product feature
Display effect	8bit video source input. Color temperature adjustment. 240Hz frame rate. Better gray at low brightness.
Correction processing	Pixel-to-pixel calibration in brightness and chromaticity.
Easy maintenance	Highlight and OsD. Screen rotation. Data group offset. Any pump row and any pump columnand any pump point. Quick firmware upgrade and quick release of correction coefficients.
Stable and reliable	Loop redundancy. Ethernet cable status monitoring. Firmware program redundancy and readback. 7x24h uninterrupted work.

Product Paramenters

E80 Product specification parameter

Physical Specifications
Hardware interface	HUB75interfaces
Ethernet port transmission rate	1Gb/s
Communication Distance	Recommended: CAT5e cable≤100m
Compatible with Transmission Equipment	Gigabit switch, Gigabit fber converter, Gigabit fiber switch
Size	LxWxH/86.8mm(3.42")x91.7mm(3.61")x18.4mm(0.72")
Weight	61g/0.13lbs
Electrical specification
Voltage	DC 3.8-5.5V，0.6A
Rated power	3.0W
Body Static Resistance	2KV
Operatingenvironment
Temperature	-25℃~75℃(-13°F~167°F)
Humidity	0%RH-80%RH, no condensation
Storage and transport environment
Temperature	-40℃℃~125℃℃(-40°F~257°F)
Humidity	0%RH-90%RH, no condensation
Package information
Packaging rules	Standard blister card tray device, 100 cards per carton
Package size	WxHxD/603.0mm(23.74")x463.0mm(18.23")x140.0mm(5.51")
Certification
RoHS

Compare the same series of products

name	E320	E120	E80	5A-75E	5A-75B
Maximum output data	32	24	16	32	16
control area	512*512	512*384	512*256	512*512	512*384
Exact accuracy	8bit	8bit	8bit	8bit	8bit
Brightness/chroma calibration	√	√	√	√	√
Common seam	√	√	√	√	√
Network cable detection	√	√	√	√	√
Data migration	√	√	√	√	√
Module construction	√	√	√	√	√
Full screen opposite-sex module	√	√	√	√	√
driver chip	Market mainstream chip
gray scale	Up to 65536 gray levels
Serial data transmission	Support R1G1B1,R16G16B16
Scan support	Any scan between 1 and 128

Application scenario

colorlight-E80 products can be widely used in the field of LED commercial display, such as lamp pole screen, chain store screen, advertising machine, mirror screen, retail store screen, door screen, car Loading screen, no PC screen, etc.

Classification	Description
Market type	Advertising media: To be used for advertising and informationpromotion including bar screen and advertising machine. Digital signage: To be used for signage display in retail storesincluding retail store screens and door head screens. Commercial display: To display commercial information ofhotel, cinema and shopping mall, such as chain store screens.

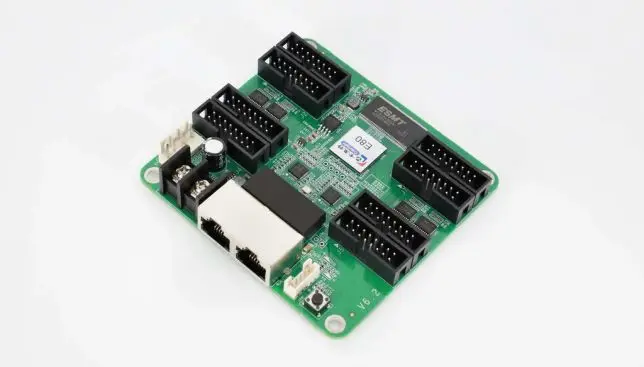

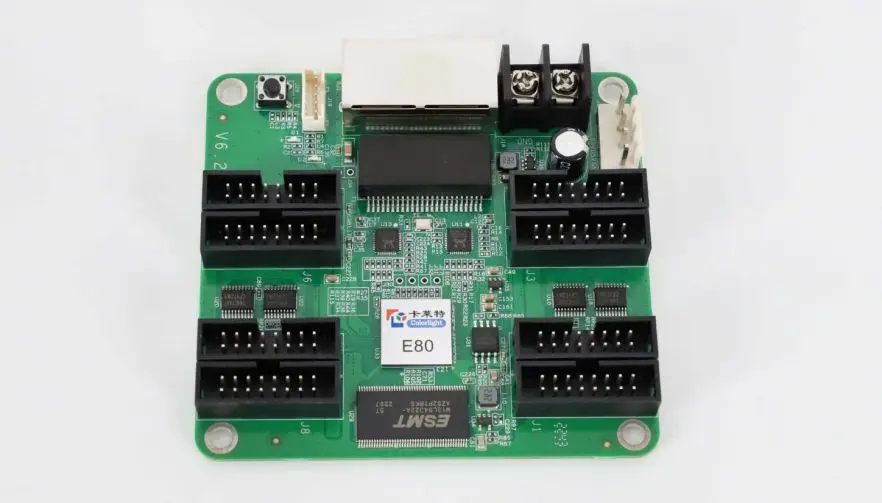

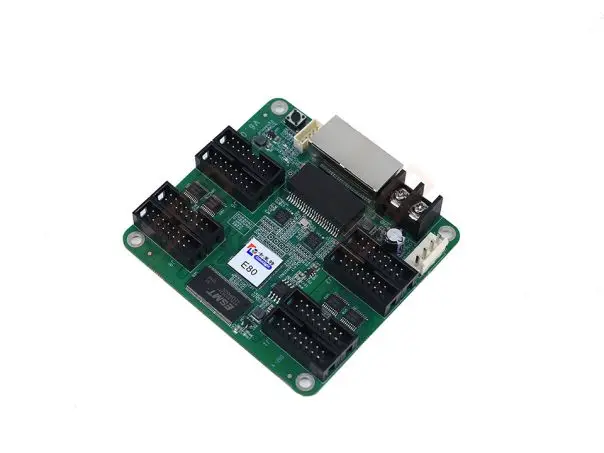

Picture display

Product use

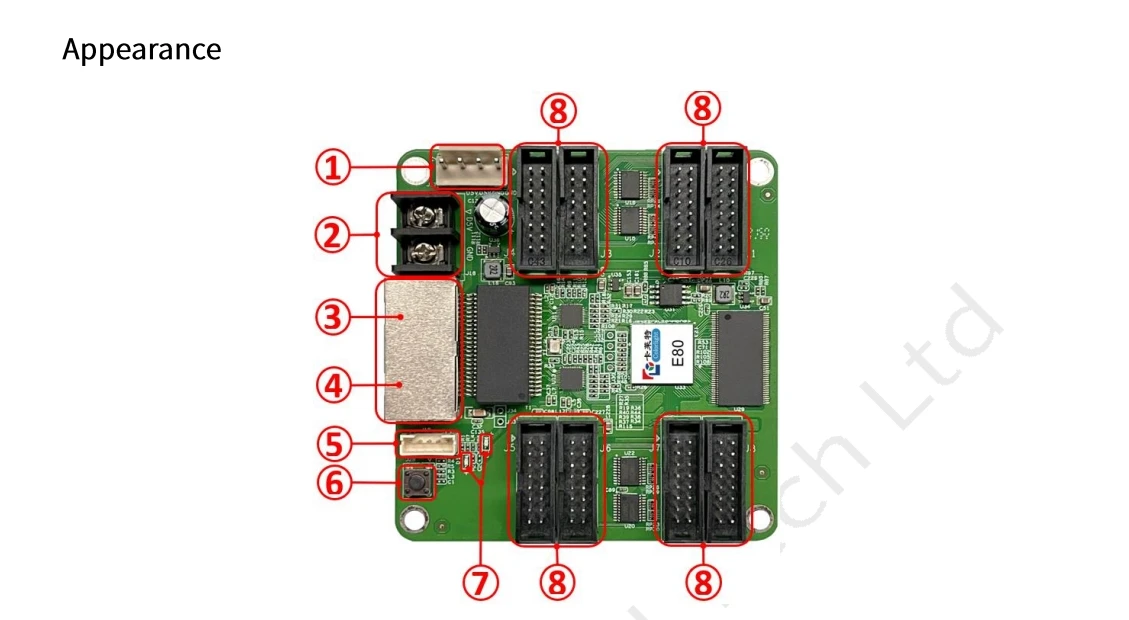

S/N	Name	Function
1	Power 1	Connect to DC 3.8v~5.5V power supply for the receiving card,only use one of them.
2	Power 2
3	Network port A	RJ45, for transmitting data signals, dual network ports canenter and exit at will, and the system will automatically identify.
4	Network port B
5	Externalinterface	For indicator light and test button.
7	Power indicator light Dl	Red indicator light shows that the power supply is normal
	Signal indicator D2	Flashes once persecond	Receiving card: normal working,Ethernet cable connection: normal
		Flashes 10 timesper second	Receiving card: normal working, Cabinet:Highlight
		Flashes 4 timesper second	Receiving card: back upsender cards (Loop redundancystatus).
6	Test button	The attached test procedures can achieve four kinds of monochrome display (red, green, blue and white), as well ashorizontal,vertical and other display scan modes.
8	HUB pins	HUB75 interface J1~J12 are connected to the display modules. For details, see the interface definition.
