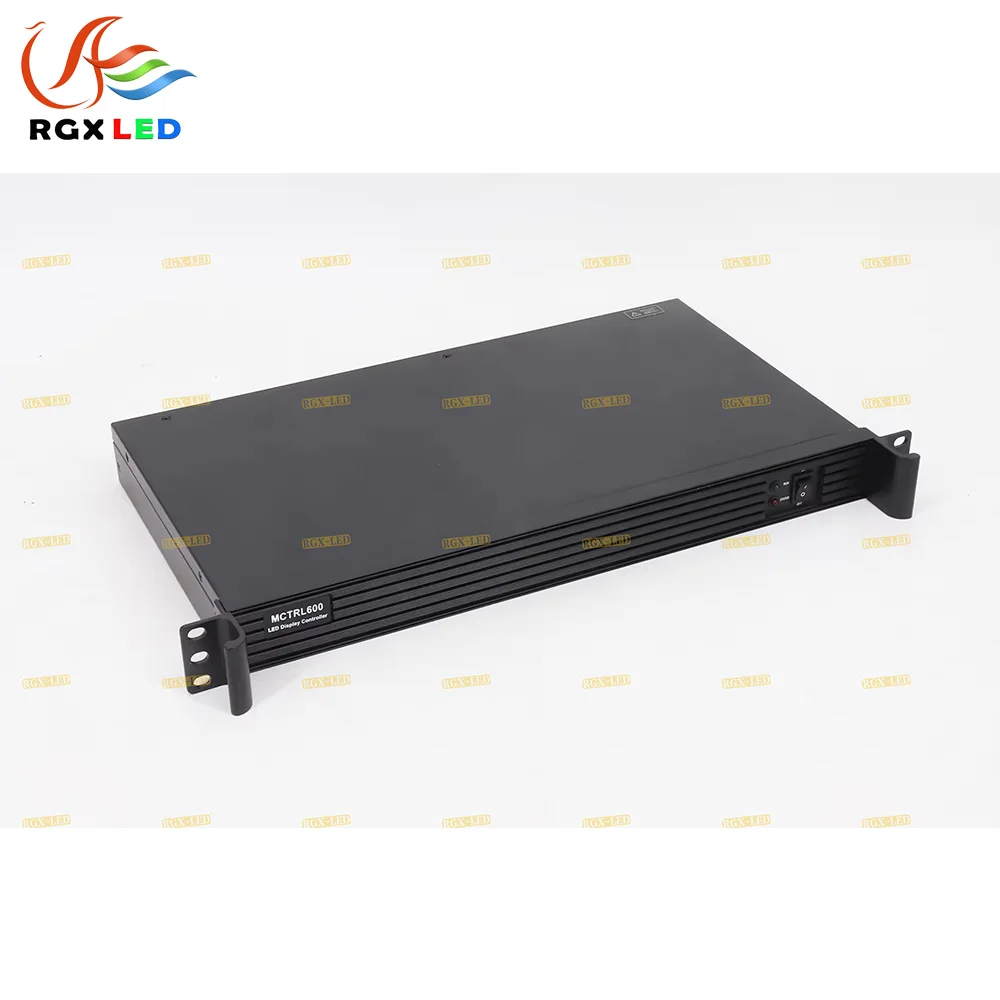

LED Sending Box LED Display Control System for Monitoring Center Novastar MCTRL600

classification：Novastar series Product -> Novastar MCTRL series

market price：$0.00

Local price：$0.00

material：MCTRL 600

color：RGB

Release date：2025-8-29 10:25:15

The Novastar MCTRL600 is a high - performance LED display controller, ideal for monitoring center applications. It supports 12bit/10bit HDMI and DVI video inputs, along with HDMI and external audio inputs, even allowing direct access to HDCP - protected blu - ray sources. With an 8bit video source, it can handle a resolution of 1920×1200@60Hz, while for 12bit high - order video sources, it manages 1440×900@60Hz. The controller allows for custom resolution settings, with a maximum horizontal and vertical resolution of 3840 pixels. Equipped with four - network port outputs, it has a large pixel - carrying capacity of up to 2.3 million pixels. It features a USB interface for easy control and can be cascaded with multiple units via the UART interface for unified operation. Additionally, it comes with a light sensor interface, enabling automatic adjustment of screen brightness according to ambient light conditions. Certified with CE, RoHS, FCC, EAC, and IC, the MCTRL600 ensures reliable and high - quality visual and audio transmission for monitoring center LED screens.

Hotline：86 13699777670

Share to：QQ Zone Sina micro-blog Tencent micro-blog WeChat

Best-selling

P3.91 LED Display
classification：STAGE ALL KINDS LE..
P1.875 LED Display
classification：Small Pixel..
RGX P3 Rental Indoor LE...
classification：LED Display module..
RGX Indoor Mirror/Post ...
classification：COMMERCIAL DISPLAY..

Shenzhen RGX Electronics Co., Ltd.
Contact:ledrgx
Phone: 0755-23714515
Mobile: +86 18038069578
Whatsapp/wechat: +86 180 380 69578
Skype: levin-led
Q Q: 1006759127

After sale service: ledrgx@163.com

description

Novastar-MCTRL600

The MCTRL660 is an LED display controller developed by NovaStar. It supports 1x DVI input, 1x HDMI input, 1x audio input, and 4x Ethernet outputs. A single MCTRL660 device supports input resolutions up to 1920×1200@60Hz.

The MCTRL660 adopts an innovative architecture to implement smart screen configuration without using a computer, allowing a screen to be configured within 30 seconds. It also allows users to adjust screen brightness manually, which is faster and more convenient.

The MCTRL660 can be mainly used in the rental and fixed applications, such as concerts, live events, security monitoring centers, Olympic Games andvarious sports centers

MCTRL600 Features

port	Supports three input interfaces	1 xSL-DVI 1 x HDMI 1.3 1 x AUDIO
	Network outlet	4x Gigabit Ethernet outputs
	usb control interface	1x type-B USB control port
	UART control interface	2x UART control ports They are used for device cascading. Up to 20 devices can be cascaded.
color depth	Support for high-bit-depth inputs: 8bit/10bit/12bit Support for 18-bit grayscale processing and display
rests	Support for manual screen brightness adjustment, which is fast and convenient Quick screen configuration without using a computer An innovative architecture to implement smart screen configuration, allowing a screen to be configured within 30 seconds and greatly shortening the stage preparation time Pixel level brightness and chroma calibration Work with the calibration platform to perform brightness and chroma calibration on each LED to effectively remove color differences and greatly improve display brightness consistency and chroma consistency, allowing for better image quality

Product Paramenters

MCTRL600 Product specification parameter and Video Source Features

Specifications
Electrical Parameters	input voltage	AC 100 V~240 V-50/60 Hz
	Rated power consumption	16W
Operating Environment	Temperature	-20℃～+60℃
	Humidity	10% RH to 90% RH, non-condensing

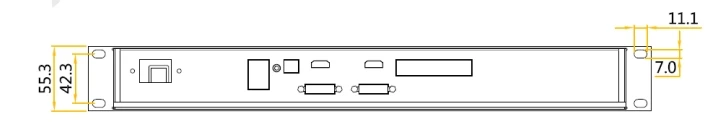

Physical Specifications	Dimensions	483.0 mm × 258.1 mm × 55.3 mm
	weight	3.6kg.
Packing Information	Carrying case	530 mm × 370 mm × 140 mm
	Accessory box	402 mm × 347 mm × 65 mm Accessories: 1x power cord, 1x USB cable, 1x DVI cable
	Packing box	550 mm × 440 mm × 175 mm

Video Source Features
Input Connector	Bit Depth	Sampling Format	Max. Input Resolution
Single-link DVI	8bit 10bit/ 12bit	RGB 4:4:4	8bit:1920×1200@60Hz 10bit/12bit: 1440×900@60Hz
HDMI 1.3

Application scenario

Novastar-MCTRL600 products can be widely used in the field of LED commercial display, such as lamp pole screen, chain store screen, advertising machine, mirror screen, retail store screen, door screen, car Loading screen, no PC screen, etc.

The following figure shows the text and picture

Product use

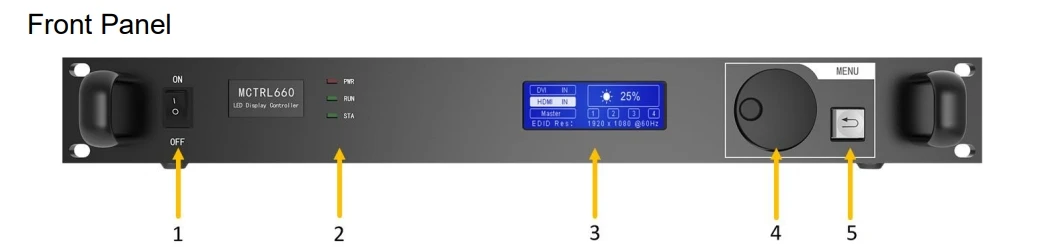

serial number	Name	Description
1	Power switch	ON/OFF
2	Indicator	PWR (Red)	Always on: The power supply is normal
			Off: The power is not supplied, or the power supply is abnormal.
		RUN (Green)	Slow flashing (flashing once in 2s): The video input is unavailable. Normal flashing (flashing 4 times in 1s): The video input is available. Rapid flashing (flashing 30 times in 1s): The screen is displaying startup image Breathing: The Ethernet port redundancy has taken effect.
		STA (Green)	Always on: The device is operating normally. Off: The device is not operating, or operating abnormally
3	LCD screen	Display the device status, menus, submenus and messages
4	Knob	Rotate the knob to select a menu item or adjust the parameter value. Press the knob to confirm the setting or operation
5	BACK button	Go back to the previous menu or exit the current operation

Indicator	Status	Description
Input	DVI	1x SL-DVI input connector Maximum resolution: 1920×1200@60Hz Support custom input resolutions Maximum width: 3840 (3840×600@60Hz) Maximum height: 3840 (548×3840@60Hz) DOES NOT support interlaced signal input.
	AUDIO	Audio input connector
	HDMI IN	1x HDMI 1.3 input connector Maximum resolution: 1920×1200@60Hz Support custom input resolutions Maximum width: 3840 (3840×600@60Hz) Maximum height: 3840 (548×3840@60Hz) Support HDCP 1.4. Do NOT support interlaced signal input
Output	4x RJ45	4x RJ45 Gigabit Ethernet ports Capacity per port up to 650,000 pixels Support redundancy between Ethernet ports.
	HDMI OUT	1x HDMI 1.3 output connector for cascading
	DVI OUT	1x SL-DVI output connector for cascading
Control	TO PC	Type-B USB 2.0 port to connect to PC
Control	UART IN/OUT	Input and output ports to cascade devices. Up to 20 devices can be cascaded.
Power	AC 100 V~240 V-50/60 Hz

Packing&Shipping

We adopt the order - pick - delivery integration principle, that is, buy and send, customers place orders directly after the factory hair, so that products are protected.

In terms of packaging, we use air cases and cartons as one main packing body
