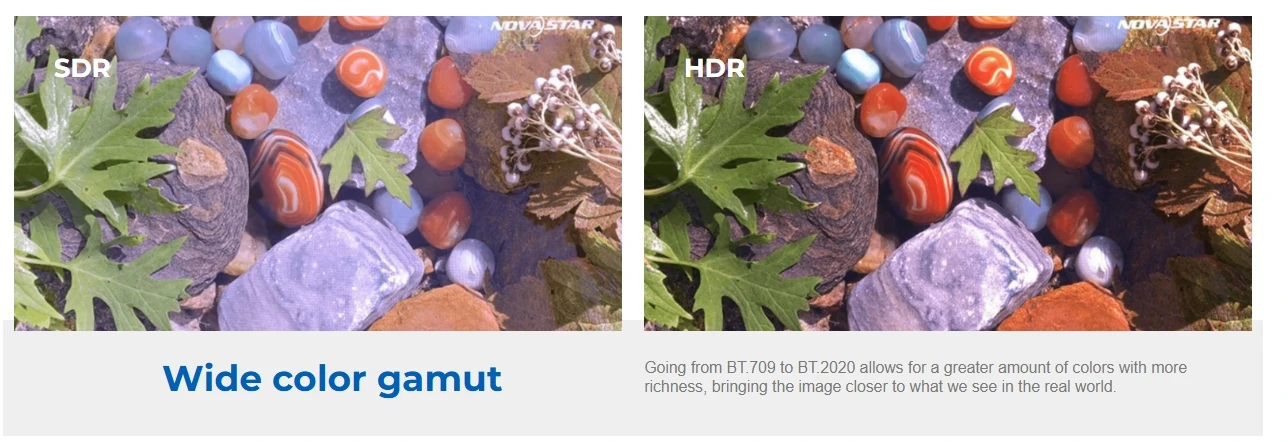

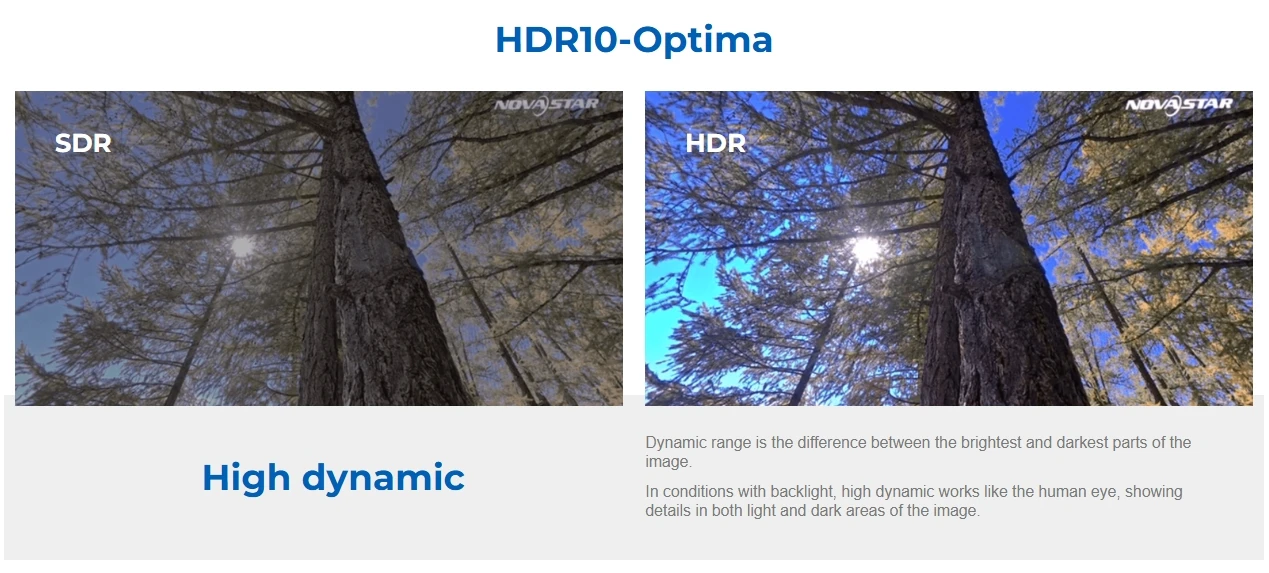

Electrical Parameters



input voltage



AC 100 V~240 V-50/60 Hz

Rated power consumption



30 W

Operating Environment

Temperature

-20℃～+60℃

Humidity

10% RH to 90% RH, non-condensing

Storage Environment

Temperature

-20°C to +70°C



Humidit



10% RH to 90% RH, non-condensing







Physical Specifications







Dimensions







482.6 mm × 372.0 mm × 88.1 mm



weight



4.6 kg



Packing Information



Carrying case



530 mm × 420 mm × 193 mm





Accessory box

405 mm × 290 mm × 48 mm Accessories:

 1x power cord

1x Ethernet cable

1x USB cable

1x HDMI cable

 1x DP cable

Packing box

550 mm × 440 mm × 210 mm

Classification

Description







Market type



Advertising media: To be used for advertising and informationpromotion including bar screen and advertising machine.

Digital signage: To be used for signage display in retail storesincluding retail store screens and door head screens.

Commercial display: To display commercial information ofhotel, cinema and shopping mall, such as chain store screens.

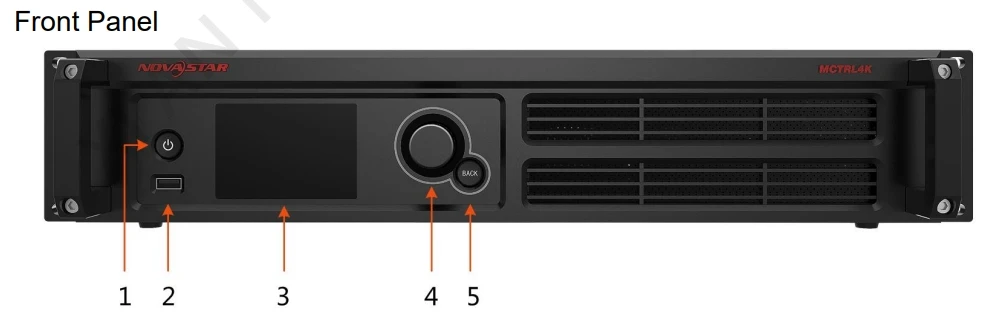

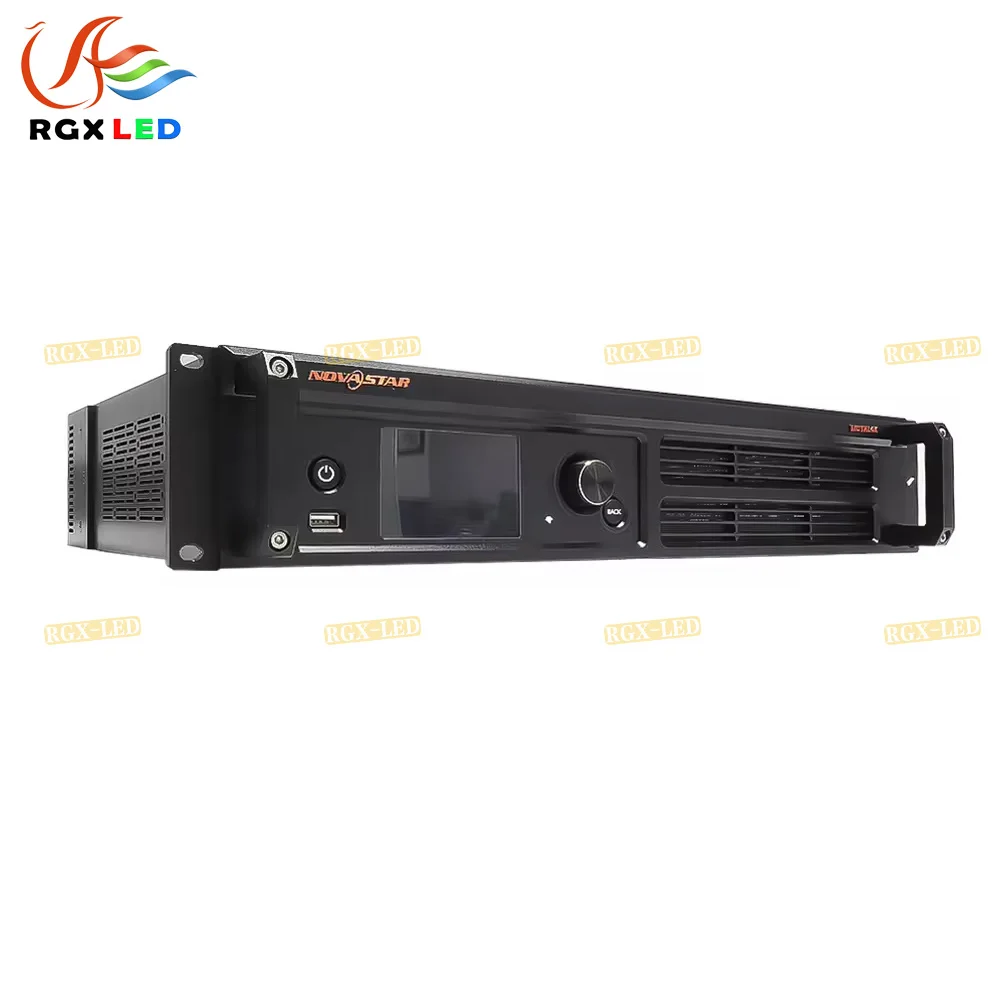

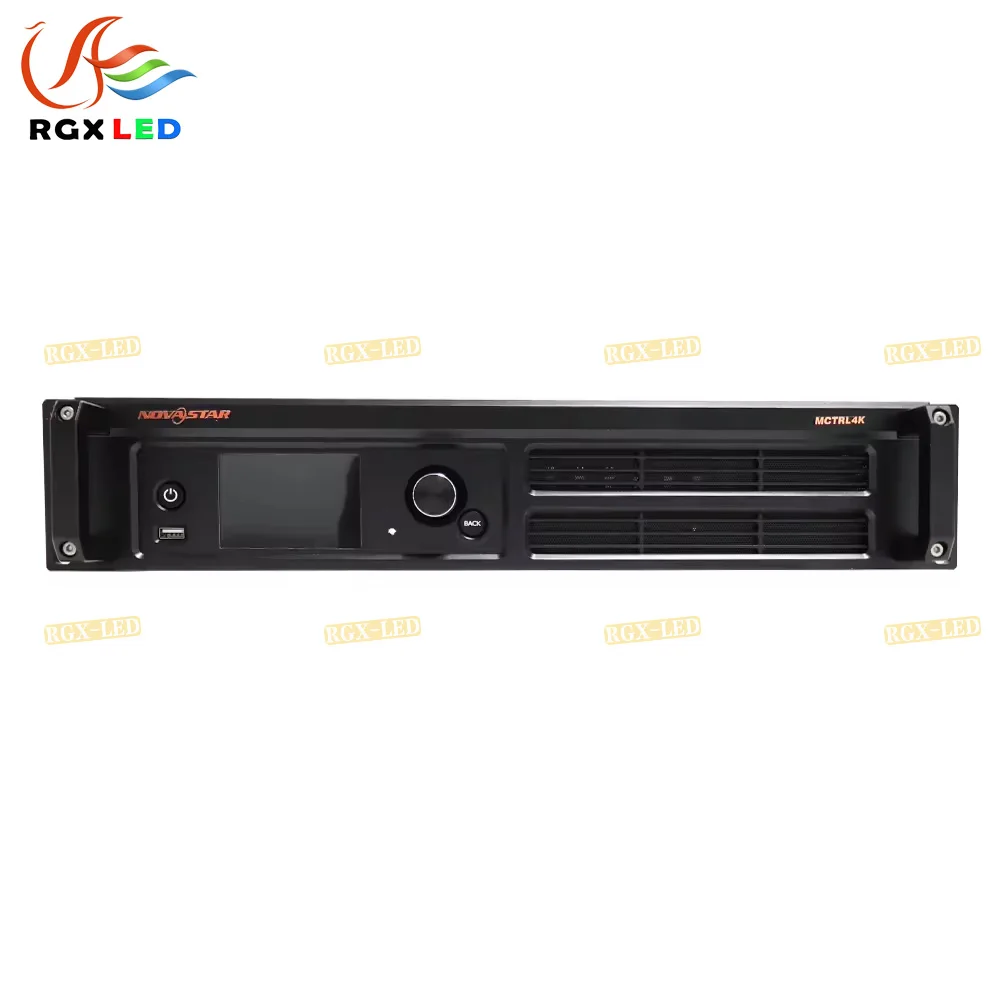

Serial number



Name



Description



1



Power button



Power on or off the device



2



USB



Connect to a USB drive.



3



LCD screen



Display the device status, menus, submenus and messages.

4



Knob



Select menus, adjust parameters, and confirm operations.



5



BACK



Go back to the previous menu or exit the current operation.

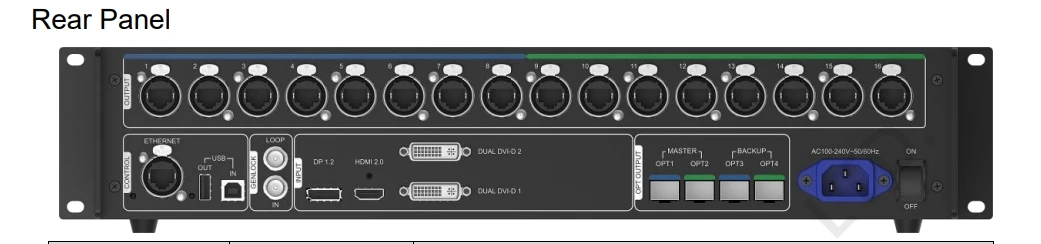

Connector Type

Connector Name

Description





























































Input



















DP 1.2

1x DP 1.2

Supported maximum resolution: 4096×2160@60Hz, supported minimum resolution: 640×480@24Hz

 Custom resolutions
supported Maximum width: 7680 pixels (7680×1080@60Hz) Maximum height: 7680 pixels (1080×7680@60Hz)

HDCP 1.3 compliant

Supported standard resolutions: 1280×1024@(24/25/30/48/50/60/72/75/85/100/120)Hz 1366×768@(24/25/30/48/50/60/72/75/85/100/120)Hz
1440×900@(24/25/30/48/50/60/72/75/85/100/120)Hz 1600×1200@(24/25/30/48/50/60/72/75/85/100/120)Hz
1920×1080@(24/25/30/48/50/60/72/75/85/100/120)Hz 1920×1200@(24/25/30/48/50/60/72/75/85/100/120)Hz
1920×2160@(24/25/30/48/50/60/72/75/85/100/120)Hz 2560×1600@(24/25/30/48/50/60/72/75/85/100/120)Hz
3840×1080@(24/25/30/48/50/60/72/75/85/100/120)Hz 3840×2160@(24/25/30/48/50/60)Hz

No support for interlaced input sources





















HDMI 2.0

1x HDMI 2.0

Supported maximum resolution: 4096×2160@60Hz, supported minimum resolution: 800×600@30Hz

Custom resolutions supported

Maximum width: 7680 pixels (7680×1080@60Hz)

Maximum height: 7680 pixels (1080×7680@60Hz)

HDCP 1.4 and HDCP 2.2 compliant

Supported standard resolutions: 1280×1024@(24/25/30/48/50/60/72/75/85/100/120)Hz

1440×900@(24/25/30/48/50/60/72/75/85/100/120)Hz

No support for interlaced input sources

















2x DL-DVI

Each with a maximum resolution of 3840×1080@60Hz and minimum resolution of 800×600@30Hz

Maximum height: 3840 pixels (800×3840@60Hz)













Output







1~16



16x Neutrik (NE8FBH) Gigabit Ethernet ports

Maximum capacity of a single port:

For 8-bit input sources: 650,000 pixels

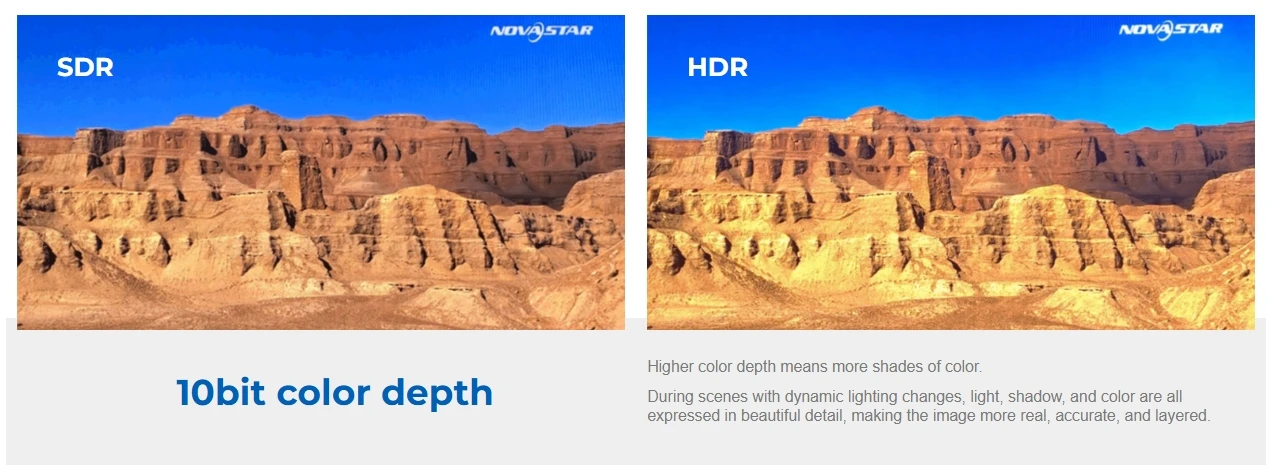

For10-bit/12-bit input sources: 320,000 pixels

No support for audio output

Support for redundancy between Ethernet ports





OPT1~OPT4

4x 10G optical ports

OPT1 transmits the data of Ethernet ports 1 to 8.

OPT4 is a duplicate channel of OPT2

















Control





ETHERNET

USB 3.0 (Type A) port Allows for USB playback, firmware upgrade and storage expansion. The Ext4 and FAT32 file systems are
supported. The maximum size of a single file supported by FAT32 is 4 GB. The exFAT and FAT16 file systems are not supported.







USB IN-OUT

IN: 1x USB 2.0 (Type-B)

Up to 10 units can be cascaded



GENLOCK INLOOP

Sync signal connector Support for Bi-level, Tri-level, and Blackburst

 IN: Genlock input connector

LOOP: Genlock loop output connector

Power

AC 100 V~240 V-50/60 Hz
