Sending Card LED Controller Novastar MSD600-1

classification：Novastar series Product -> Novastar MSD series

market price：$0.00

Local price：$0.00

material：MSD600-1

color：RGB

Release date：2025-8-29 10:25:24

The Novastar MSD300 - 1 is a cost - effective synchronous control card for full - color LED display screens. It has 1 DVI video input for video connection, 2 ethernet port outputs for device cascading (up to 20 units can be cascaded), and a USB control interface for instruction communication. Due to the temporary shortage of audio chips, it lacks an audio input, differentiating it from the MSD300. It supports high - resolution inputs like 1280×1024, 1024×1200, 1600×848, 1920×712, and 2048×668. Widely used in rental and fixed - installation applications such as concerts, live events, security monitoring centers, and sports centers, it ensures smooth and accurate image rendering.

Hotline：86 13699777670

Share to：QQ Zone Sina micro-blog Tencent micro-blog WeChat

Best-selling

P3.91 LED Display
classification：STAGE ALL KINDS LE..
P1.875 LED Display
classification：Small Pixel..
RGX P3 Rental Indoor LE...
classification：LED Display module..
RGX Indoor Mirror/Post ...
classification：COMMERCIAL DISPLAY..

Shenzhen RGX Electronics Co., Ltd.
Contact:ledrgx
Phone: 0755-23714515
Mobile: +86 18038069578
Whatsapp/wechat: +86 180 380 69578
Skype: levin-led
Q Q: 1006759127

After sale service: ledrgx@163.com

description

Product introduction

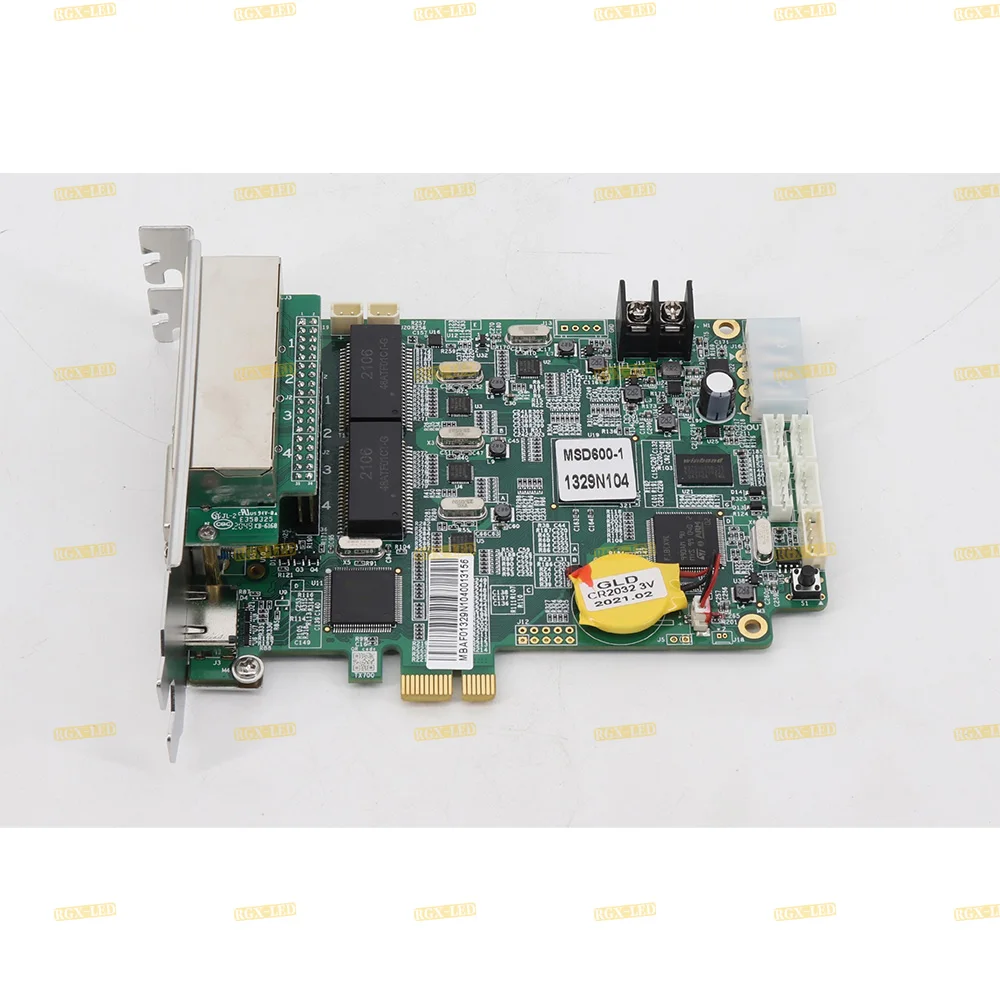

The MSD600-1 is a sending card developed by NovaStar. It supports 1x DVI input, 1x HDMI input,and 4x Ethernet outputs. A single MSD600-1 supports input resolutions up to 1920×1200@60Hz.
The MSD600-1 communicates with PC via type-B USB port. Multiple MSD600-1 units can be cascaded via UART port.
As a highly cost-effective sending card, the MSD600-1 can be mainly used in the rental and fixed installation applications, suchas concerts, live events, security monitoring centers, Olympic Games and various sports centers.

name	Instructions
input	2 types of input connectors − 1x SL-DVI − 1x HDMI 1.3
exportation	4x Gigabit Ethernet outputs
coupler	1x light sensor connector
port	1x type-B USB control port 2x UART control ports They are used for device cascading. Up to 20 devices can be cascaded
Pixel level brightness and chroma calibration	Working with NovaLCT and NovaCLB, the sending card supports brightness and chroma calibration on each LED, which can effectively remove color discrepancies and greatly improve LED display brightness and chroma consistency, allowing for better image quality.

Product specification

Indicator	Status	Description
RUN(Green)	Slow flashing (flashing once in 2s)	No video input is available.
	Normal flashing (flashing 4 times in 1s)	The video input is available.
	Fast flashing (flashing 30 times in 1s)	The screen is displaying the startup image.
	Breathing	The Ethernet port redundancy has taken effect.
STA(Red)	Always on	The power supply is normal.
STA(Red)	Off	The power is not supplied, or the power supply is abnormal.

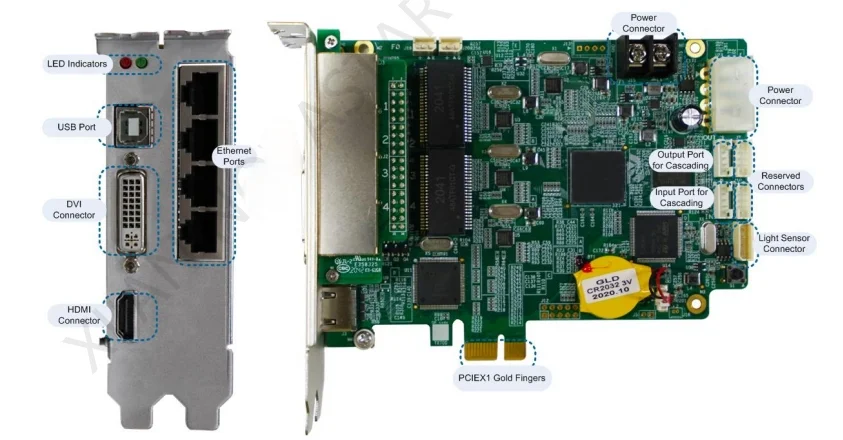

Connector Type	Connector Name	Description
Input	DVI	1x SL-DVI input connector Resolutions up to 1920×1200@60Hz Custom resolutions supported Maximum width: 3840 (3840×600@60Hz) Maximum height: 3840 (548×3840@60Hz) DOES NOT support interlaced signal input.
Input	HDMI	1x HDMI 1.3 input connector Resolutions up to 1920×1200@60Hz Custom resolutions supported Maximum width: 3840 (3840×600@60Hz) Maximum height: 3840 (548×3840@60Hz) HDCP 1.4 complian DOES NOT support interlaced signal input.
Output	4x RJ45	4x RJ45 Gigabit Ethernet ports Capacity per port up to 650,000 pixels Redundancy between Ethernet ports supported
Functionality	LIGHT SENSOR	Connect to a light sensor to monitor ambient brightness to allow for automatic screen brightness adjustment.
Control	USB	Type-B USB 2.0 port to connect to PC

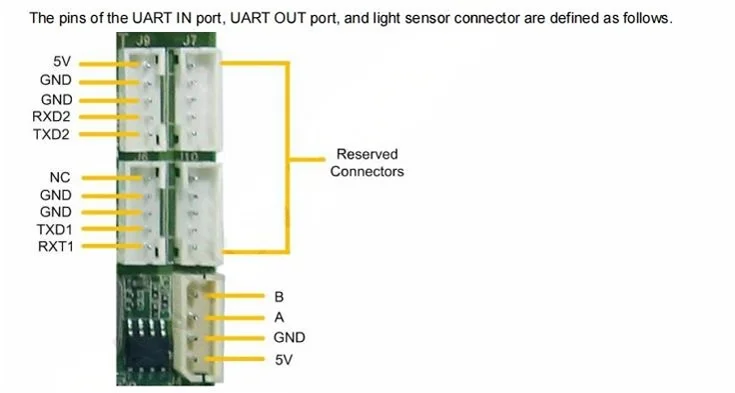

Control	UART IN/OUT	Input and output ports to cascade devices. Up to 20 devices can be cascaded.
Power	DC 3.3 V to 5.5 V

Product usage data

Electrical Specifications	Input voltage	DC 3.3 V to 5.5 V
	Rated current	1.32 A
	Rated power consumption	6.6 W
Operating Environment	Temperature	–20°C to +75°C
Operating Environment	Humidity	10% RH to 90% RH, non-condensing

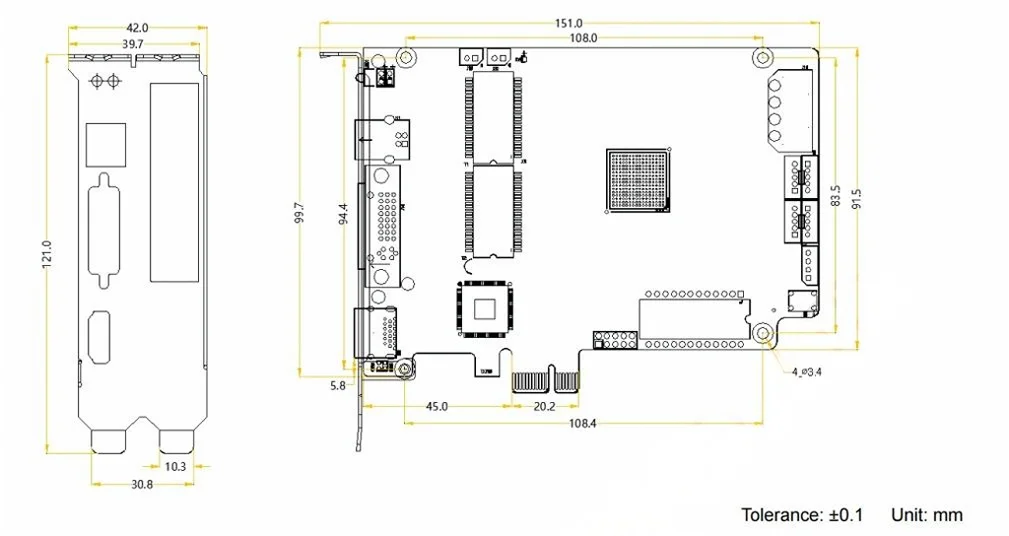

Physical	Dimensions	151.0 mm × 121.0 mm × 42.0 mm
Specifications	Net weight	157.6 g/Note: It is the weight of a single card only
Packing Information	Cardboard box	335 mm × 190 mm × 62 mm Accessories: 1x USB cable, 1x DVI cable
Packing Information	Packing box	400 mm × 365 mm × 355 mm

Video Source Features

Input Connector	Features
	Bit Depth	Sampling Format	Max. Input Resolution
Single-link DVI	8bit	RGB 4:4:4	1920×1200@60Hz
	10bit/12bit		1440×900@60Hz
HDMI 1.3	8bit		1920×1200@60Hz
	10bit/12bit		1440×900@60Hz

Application scenario

Novastar-MSD600-1products can be widely used in the field of LED commercial display, such as lamp pole screen, chain store screen, advertising machine, mirror screen, retail store screen, door screen, car Loading screen, no PC screen, etc.

Classification	Description
Market type	Advertising media: To be used for advertising and informationpromotion including bar screen and advertising machine. Digital signage: To be used for signage display in retail storesincluding retail store screens and door head screens. Commercial display: To display commercial information ofhotel, cinema and shopping mall, such as chain store screens.

Picture display

size

Packing&Shipping

We adopt the order - pick - delivery integration principle, that is, buy and send, customers place orders directly after the factory hair, so that products are protected.

In terms of packaging, we use air cases and cartons as one main packing body
