Best Price Send Card Led Display Novastar MSD300-1

classification：Novastar series Product -> Novastar MSD series

market price：$0.00

Local price：$0.00

material：MSD300-1

color：RGB

Release date：2025-8-29 10:25:56

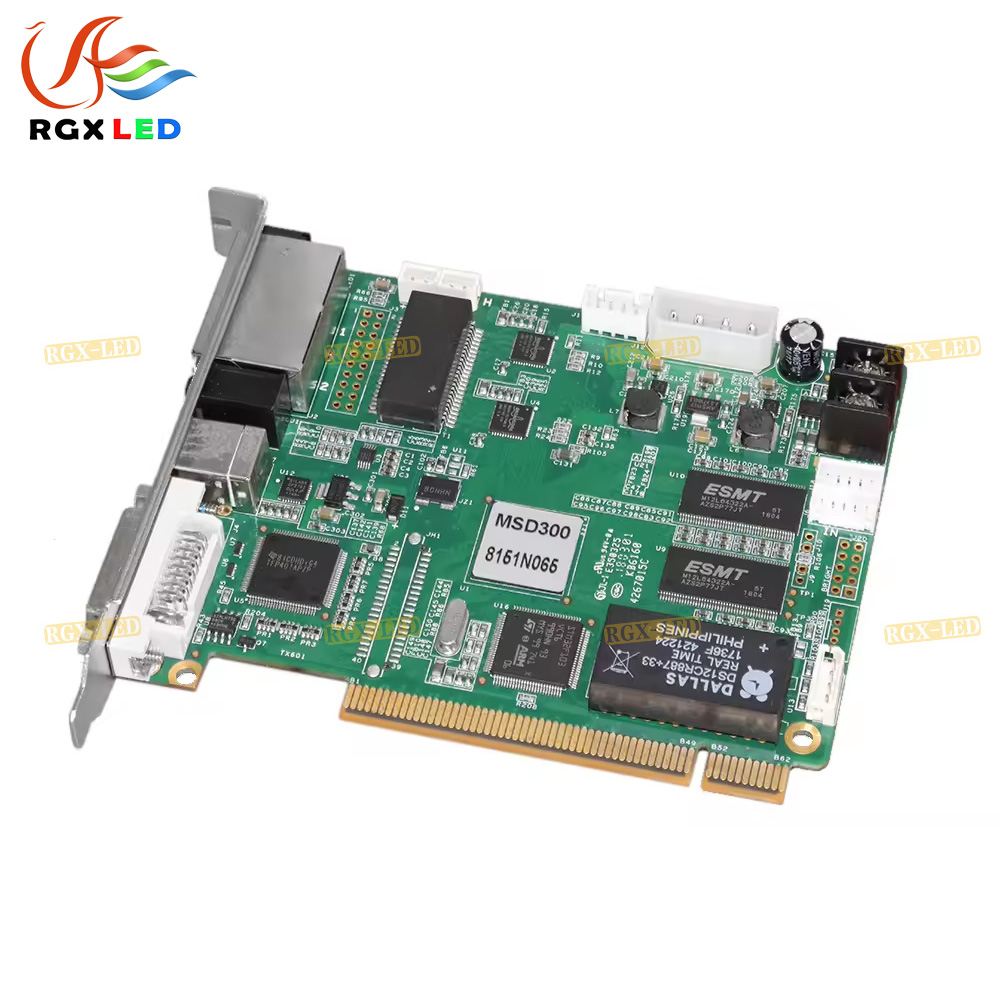

The Best Price Send Card Led Display Novastar MSD300 - 1 is a cost - effective and high - performance synchronous control card for full - color LED display screens. This card, developed by Novastar, features 1 DVI video input for seamless video connection, 2 ethernet port outputs enabling device cascading for uniform control (up to 20 units can be cascaded), and a USB control interface for instruction communication. Although it lacks an audio input (due to audio chip shortage, differentiated from MSD300), it still supports various high - resolution inputs such as 1280×1024, 1024×1200, 1600×848, 1920×712, and 2048×668. Widely used in rental and fixed - installation applications like concerts, live events, security monitoring centers, and sports centers, it ensures smooth and accurate image rendering, making it an excellent choice for LED display control needs.

Hotline：86 13699777670

Share to：QQ Zone Sina micro-blog Tencent micro-blog WeChat

Best-selling

P3.91 LED Display
classification：STAGE ALL KINDS LE..
P1.875 LED Display
classification：Small Pixel..
RGX P3 Rental Indoor LE...
classification：LED Display module..
RGX Indoor Mirror/Post ...
classification：COMMERCIAL DISPLAY..

Shenzhen RGX Electronics Co., Ltd.
Contact:ledrgx
Phone: 0755-23714515
Mobile: +86 18038069578
Whatsapp/wechat: +86 180 380 69578
Skype: levin-led
Q Q: 1006759127

After sale service: ledrgx@163.com

description

Product Description

Introduction

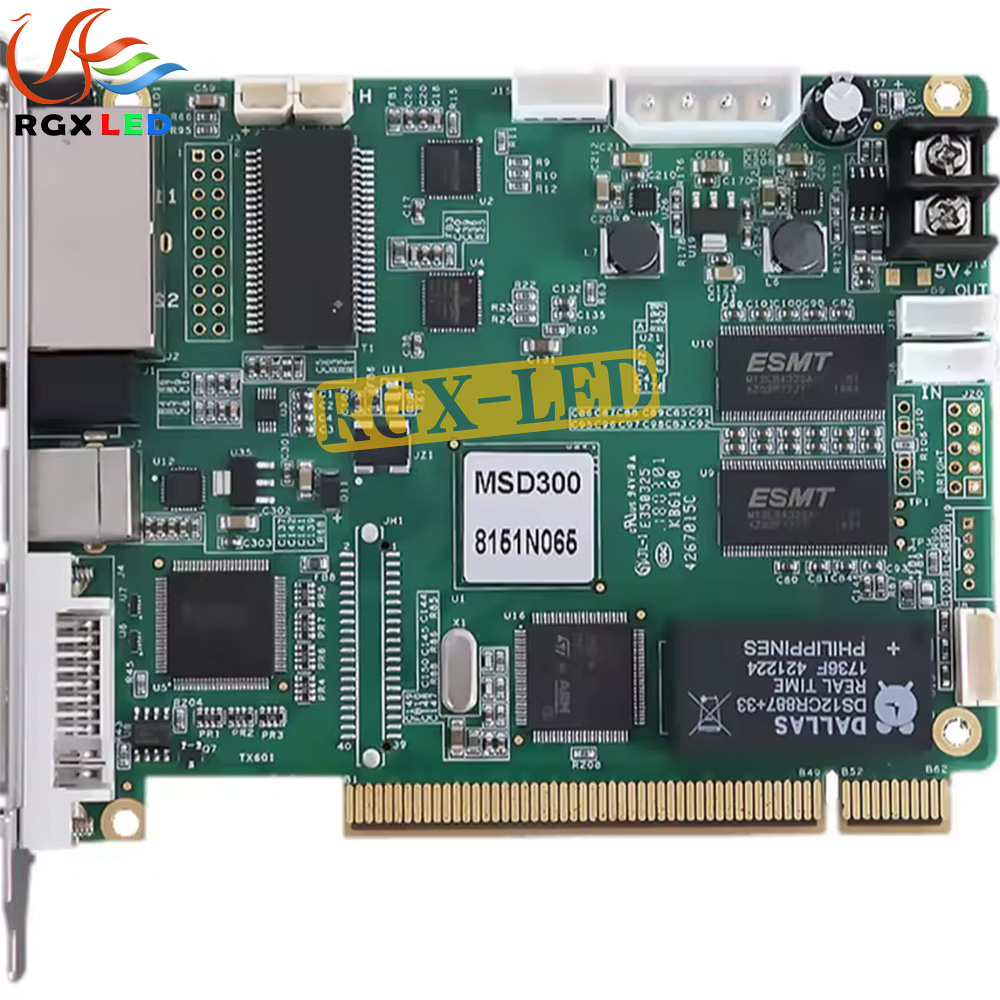

Introduction The MSD300 is a sending card developed by NovaStar. It supports 1x DVI input, 1x audio input, and 2x Ethernet outputs. A single MSD300 supports input resolutions up to 1920×1200@60Hz.

The MSD300 communicates with PC via type-B USB port. Multiple MSD300 units can be cascaded via UART port.

As a highly cost-effective sending card, the MSD300 can be mainly used in the rental and fixed installation

applications, such as concerts, live events, security monitoring centers, Olympic Games and various sports centers.

1.3 million pixel loading capacity, with resolutions of 1280×1024@60Hz, 1024×1200@60Hz, 1600×848@60Hz, 1970×712@69Hz, 2048×668@60Hz.

1 DVI video input

2 Audio transmission

3 Dual-Ethernet output, with dual-Ethernet cable hot backup and multiple controller hot backup

4 USB port control, for cascading and control of multiple units.

* 1 × DVI video input and 1 × audio input
* 2 × Gigabit Ethernet output
* 1 × light sensor connector
* Supports the new generation of pixel level calibration technology from NovaStar to provide a fast and efficient calibration process.
* Supports a variety of video formats

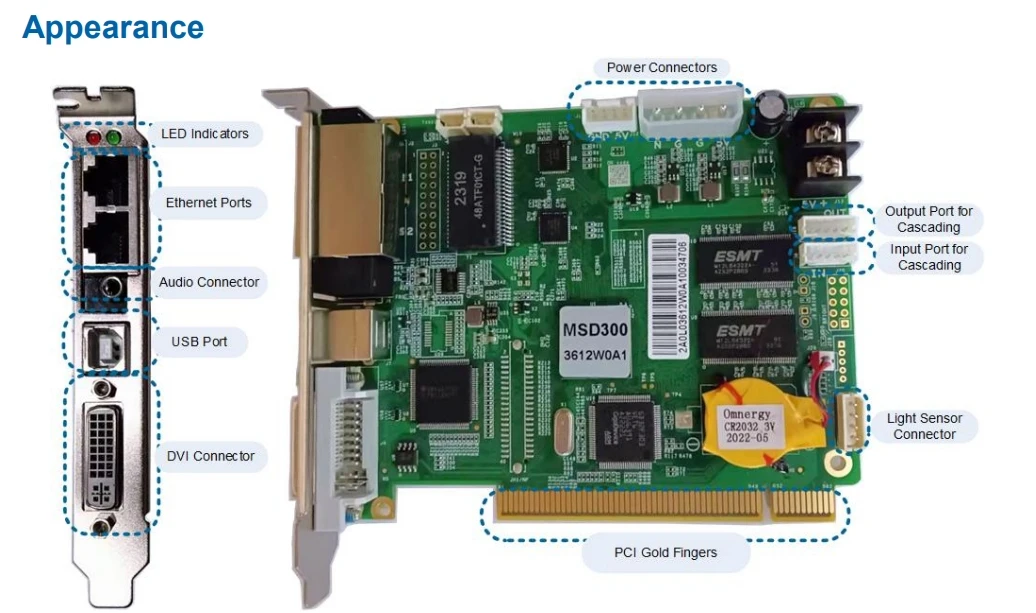

Indicator
Red	Device operating indicator. Working status: * On: The power supply is normal. * Off: The power is not supplied or the power supply is abnormal.
Green	Device status indicator. Working status: * Slow flashing: Video input unavailable * Normal flashing: Video input available * Fast flashing: The screen is displaying the startup image. * Breathing: The Ethernet port redundancy has taken effect.
Input

DVI×1	* Single-link DVI input connector * Supported maximum resolution: 1920×1200@60Hz, downward compatible * Resolution customizable * Maximum width: 3840 pixels * Maximum height: 1920 pixels
AUDIO	Audio input connector
Output

RJ45×2	* 2 Gigabit Ethernet ports * Maximum loading capacity of a single port: 650,000 pixels * Supports redundancy between Ethernet ports.
Control
USB (Type-B)	Connects to the PC.

UART IN/OUT	Input/Output connector for cascading devices
Function Connector
LIGHT SENSOR	Connects to a light sensor to monitor ambient brightness, allowing for automatic brightness adjustment of LED display.
