Original Novastar CVT-Rack CVT310 Optical Fiber Converter Used for LED Display price-Shenzhen RGXLED Electronics Co., Ltd.

Your location：Home>>Product>>Novastar series Product>>Novastar CVT series

name：

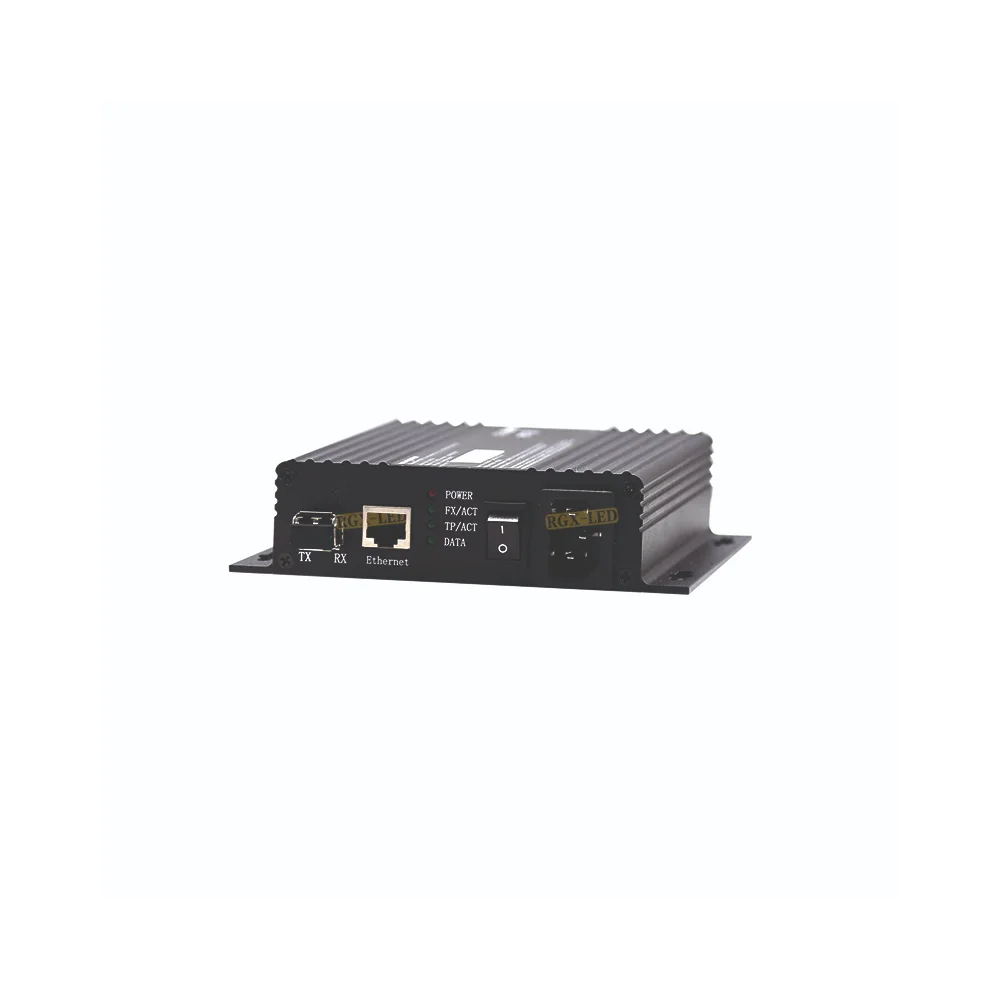

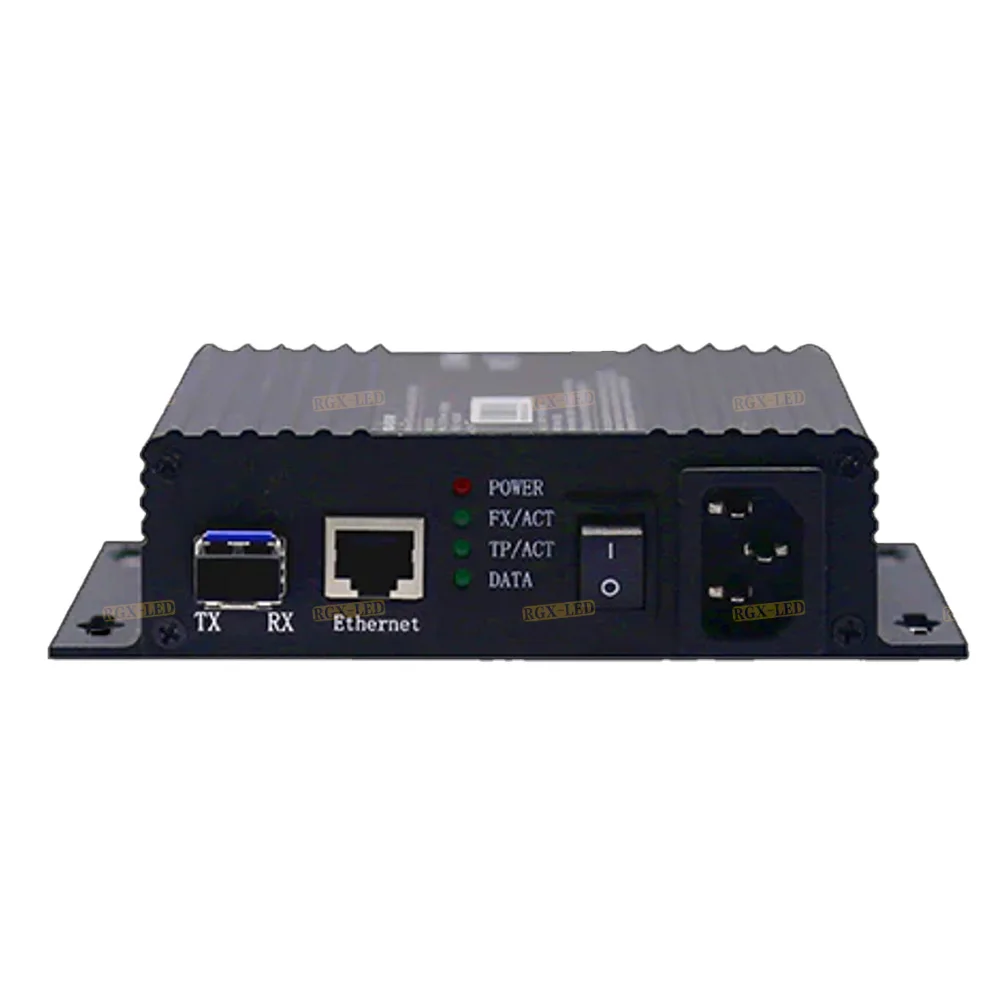

Original Novastar CVT-Rack CVT310 Optical Fiber Converter Used for LED Display

classification：Novastar series Product -> Novastar CVT series

market price：$0.00

Local price：$0.00

material：CVT310

color：RGB

Release date：2025-8-29 10:25:17

This is the original Novastar CVT-Rack CVT310 optical fiber converter, a dedicated device for LED display signal transmission. Its core function is to enable stable long-distance signal transmission for LED display systems, supporting a maximum transmission distance of up to 300m.

It achieves low-loss, anti-interference conversion between electrical and optical signals, effectively solving issues like signal attenuation or electromagnetic interference during mid-range transmission. Suitable for medium-scale LED display scenarios (e.g., commercial complexes, indoor large screens) that require 300m-range signal delivery, it ensures consistent signal quality and provides reliable support for the stable operation of LED display systems.

Hotline：86 13699777670

Share to：QQ Zone Sina micro-blog Tencent micro-blog WeChat

Best-selling

P3.91 LED Display
classification：STAGE ALL KINDS LE..
P1.875 LED Display
classification：Small Pixel..
RGX P3 Rental Indoor LE...
classification：LED Display module..
RGX Indoor Mirror/Post ...
classification：COMMERCIAL DISPLAY..

Shenzhen RGX Electronics Co., Ltd.
Contact:ledrgx
Phone: 0755-23714515
Mobile: +86 18038069578
Whatsapp/wechat: +86 180 380 69578
Skype: levin-led
Q Q: 1006759127

After sale service: ledrgx@163.com

description

introduction to products

Novastar-CVT310

The CVT310 is a fiber optic converter that converts optical and electrical signals to and from the video source between the sending card and the LED display, and can be used without any drive.

Multi-mode dual-core, LC interface fiber, transmission distance 300m

product feature
network port	1x Gigabit Ethernet port
Fiber Interface	1x Multiple-mode twin-core LC optical port with an optical module installed at the factory Optical port: 1.25 Gb/s rate, 850nm wavelength, up to 550 m transmission distance, hot pluggable

Product Paramenters

CVT310 Product specification parameter

Electrical Parameters	input voltage	AC 100-240 V, 50/60 Hz 0.7 A
	Rated power consumption	3.5 W
Operating Environment	Temperature	–20°C to +70°C
	Humidity	10% RH to 90% RH, non-condensing
Storage Environment	Temperature	–30°C to +80°C
	Humidit	10% RH to 90% RH, non-condensing

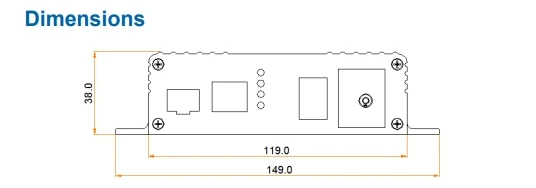

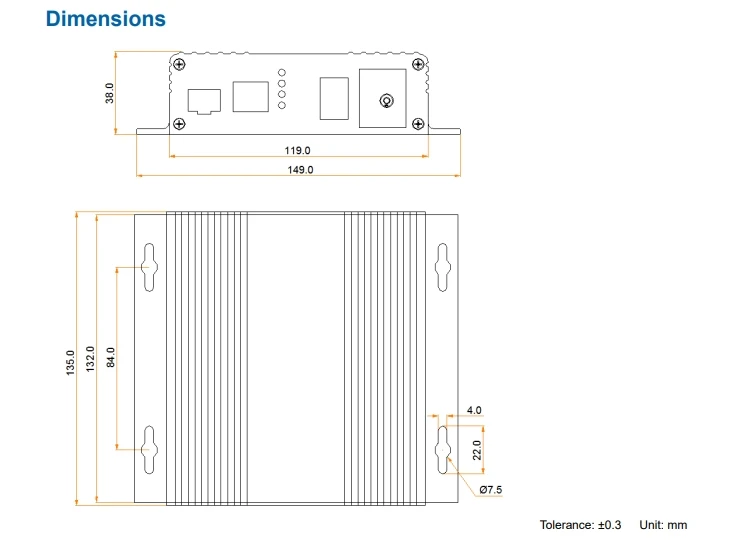

Physical Specifications	Dimensions	149.0 mm × 135.0 mm × 38.0 mm
	Net weight	0.53 kg
Packing Information	Outer box	335.0 mm × 190.0 mm × 62.0 mm, kraft paper box
	Foam	330.0 mm × 180.0 mm × 5.0 mm (Top) 330.0 mm × 180.0 mm × 53.0 mm (Bottom)
	Packing box	400.0 mm × 365.0 mm × 355.0 mm, kraft paper box
	Accessories	1x Power cord, 1x Certificate of Approval

Application scenario

Novastar-CVT310 products can be widely used in the field of LED commercial display, such as lamp pole screen, chain store screen, advertising machine, mirror screen, retail store screen, door screen, car Loading screen, no PC screen, etc.

The following figure shows the text and picture

Classification	Description
Market type	Advertising media: To be used for advertising and informationpromotion including bar screen and advertising machine. Digital signage: To be used for signage display in retail storesincluding retail store screens and door head screens. Commercial display: To display commercial information ofhotel, cinema and shopping mall, such as chain store screens.

Picture display

Product use

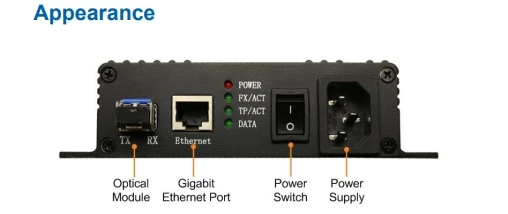

Indicator	Color	Status	Description
POWER	Red	Always on	The power supply is normal.
FX/ACT	Green	Always on	The optical port connection is normal.
TP/ACT	Green	Always on	The Ethernet port connection is normal.
DATA	Green	Flashing	The Ethernet port is outputting data.

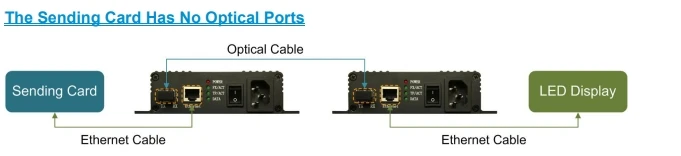

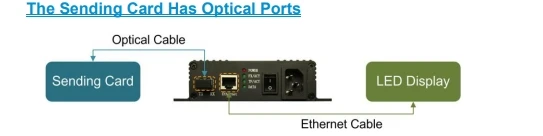

The CVT310 is used for long-distance data transmission. Users can decide a connection method based on whether the sending card has optical ports.

size

Packing&Shipping

We adopt the order - pick - delivery integration principle, that is, buy and send, customers place orders directly after the factory hair, so that products are protected.

In terms of packaging, we use air cases and cartons as one main packing body
