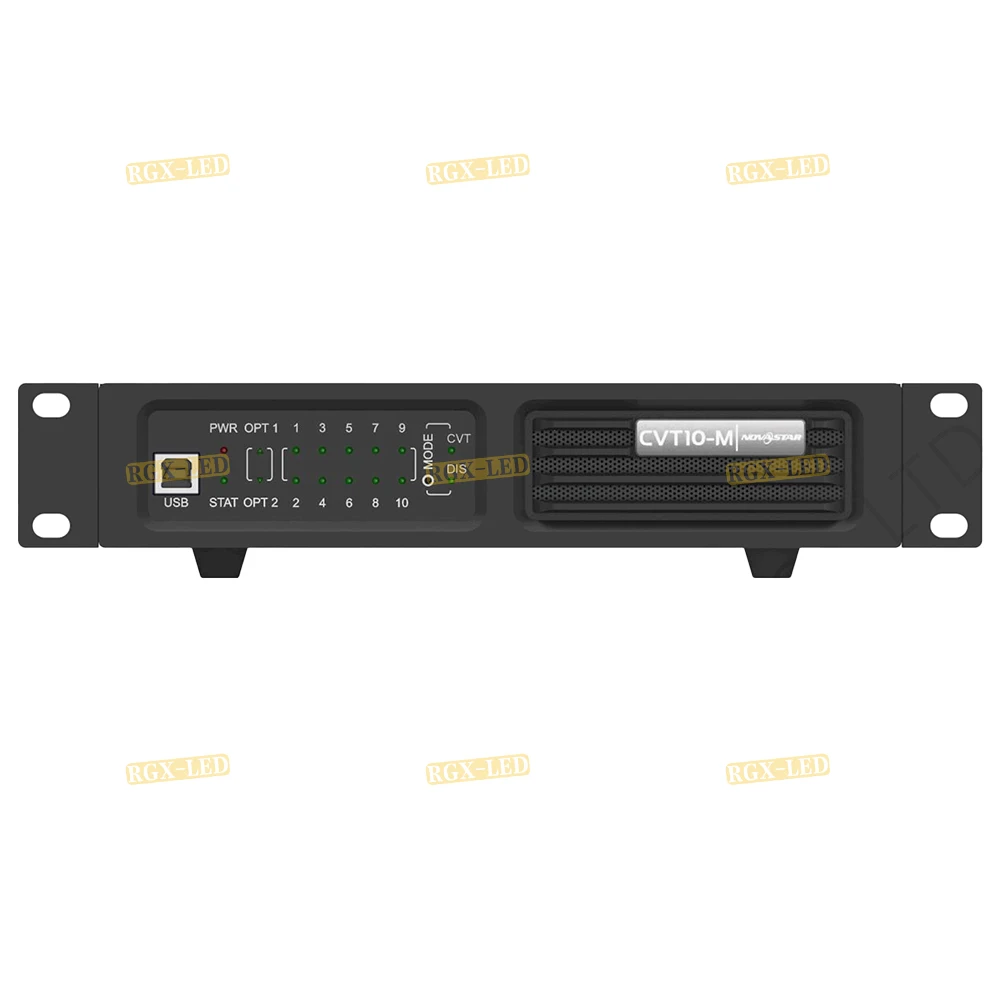

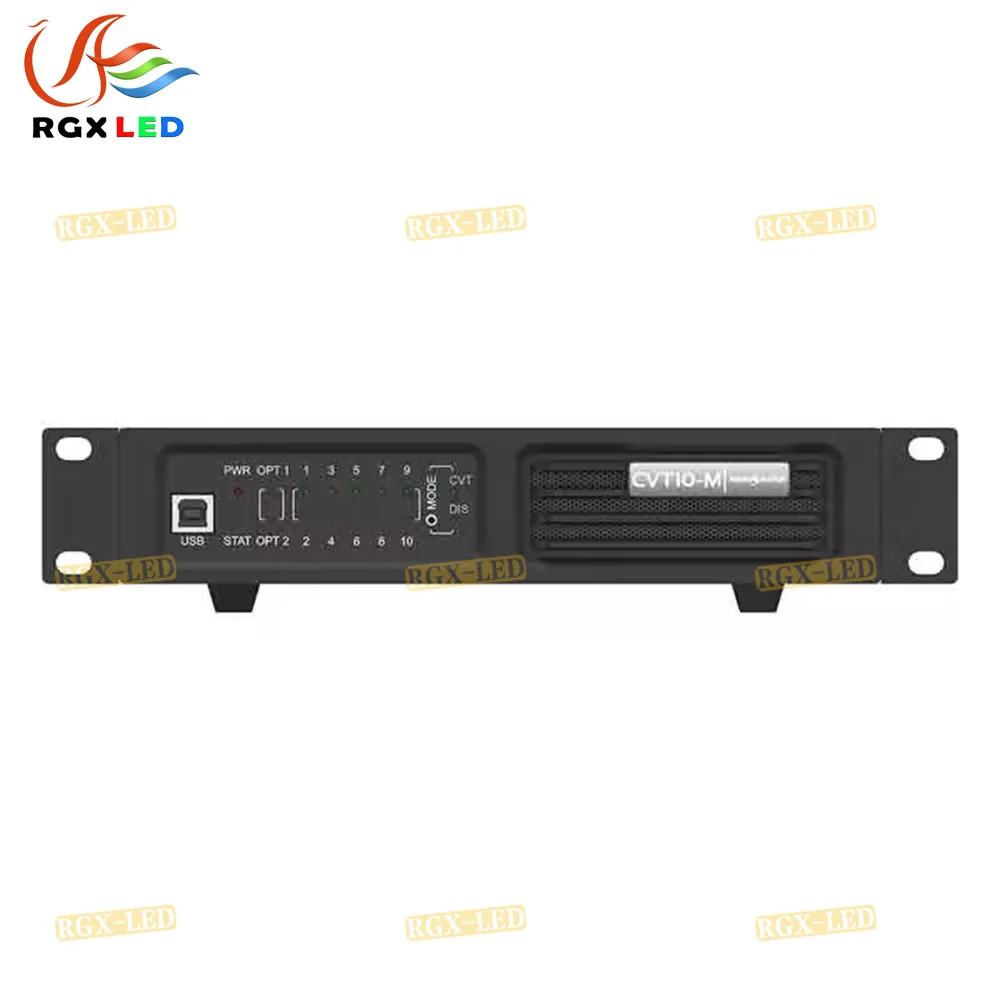

Fiber Optic Converter LED Video Processor NovastarCVT10-M

classification：Novastar series Product -> Novastar CVT series

market price：$0.00

Local price：$0.00

material：CVT10-S-N

color：RGB

Release date：2025-8-29 10:25:28

This is the Novastar CVT10-M fiber optic converter, specifically designed for LED video processing scenarios. As a key hub for signal transmission in LED display systems, it enables bidirectional conversion between electrical signals and optical signals.

It is equipped with two fiber optic ports (with pre-installed hot-swappable optical modules at the factory), each offering a bandwidth of up to 10 Gbit/s, along with ten Gigabit Ethernet ports (each with a bandwidth of 1 Gbit/s), allowing flexible adaptation to diverse signal input and output needs.

The product excels in long-distance signal transmission: it effectively avoids signal attenuation and interference, providing stable and reliable signal transmission support for scenarios such as large outdoor LED screens and long-distance distributed display systems. This ensures the accuracy of signals received and output by the LED video processor, guaranteeing high-quality image presentation.

Hotline：86 13699777670

Share to：QQ Zone Sina micro-blog Tencent micro-blog WeChat

Best-selling

P3.91 LED Display
classification：STAGE ALL KINDS LE..
P1.875 LED Display
classification：Small Pixel..
RGX P3 Rental Indoor LE...
classification：LED Display module..
RGX Indoor Mirror/Post ...
classification：COMMERCIAL DISPLAY..

Shenzhen RGX Electronics Co., Ltd.
Contact:ledrgx
Phone: 0755-23714515
Mobile: +86 18038069578
Whatsapp/wechat: +86 180 380 69578
Skype: levin-led
Q Q: 1006759127

After sale service: ledrgx@163.com

description

introduction to products

Novastar-CVT10-m

The CVT10-m fiber converter offers a cost-effective way of conversion between optical signals and electrical signals for video sources to connect the sending card to the LED display. Delivering a full-duplex, efficient and stable data

transmission that is not easily interfered with, this converter is ideal for long-distance transmission.

The CVT10-m hardware design focuses on the practicality and convenience of the on-site installation. It can be mounted horizontally, in a suspended way, or rack mounted, which is easy, secure and reliable. For rack mounting, two CVT10-m devices, or one CVT10-m device and a connecting piece can be combined into one assembly that is 1U in width.

Product Paramenters

CVT10-m Product specification parameter

Electrical Parameters	input voltage	100-240V~,50160Hz.0.6A
	Rated power consumption	22W
Operating Environment	Temperature	-20°C to +55°C
	Humidity	10% RH to 80% RH, non-condensing
Storage Environment	Temperature	-20°C to +70°C
	Humidit	10% RH to 95% RH, non-condensing
Physical Specifications	Dimensions	254.3 mm x 50.6 mmx 290.0 mm
	Net weight	2.1 kg Note: lt is the weight of a single product only.
Packing Information	Outer box	387.0 mm x 173.0 mm x 359.0 mm, kraft paper box
	Accessory box	1x Power cord. 1x USB cable 1x Supporting bracket A (with nuts), 1x Supporting bracket B (without nuts) 1x Connecting piece 12xM3*8 screws 1x Assembling diagram 1x Certificate of Approval
	Packing box	362.0 mm x 141.0 mm x 331.0 mm, kraft paper box

Novastar-CVT10-m features display

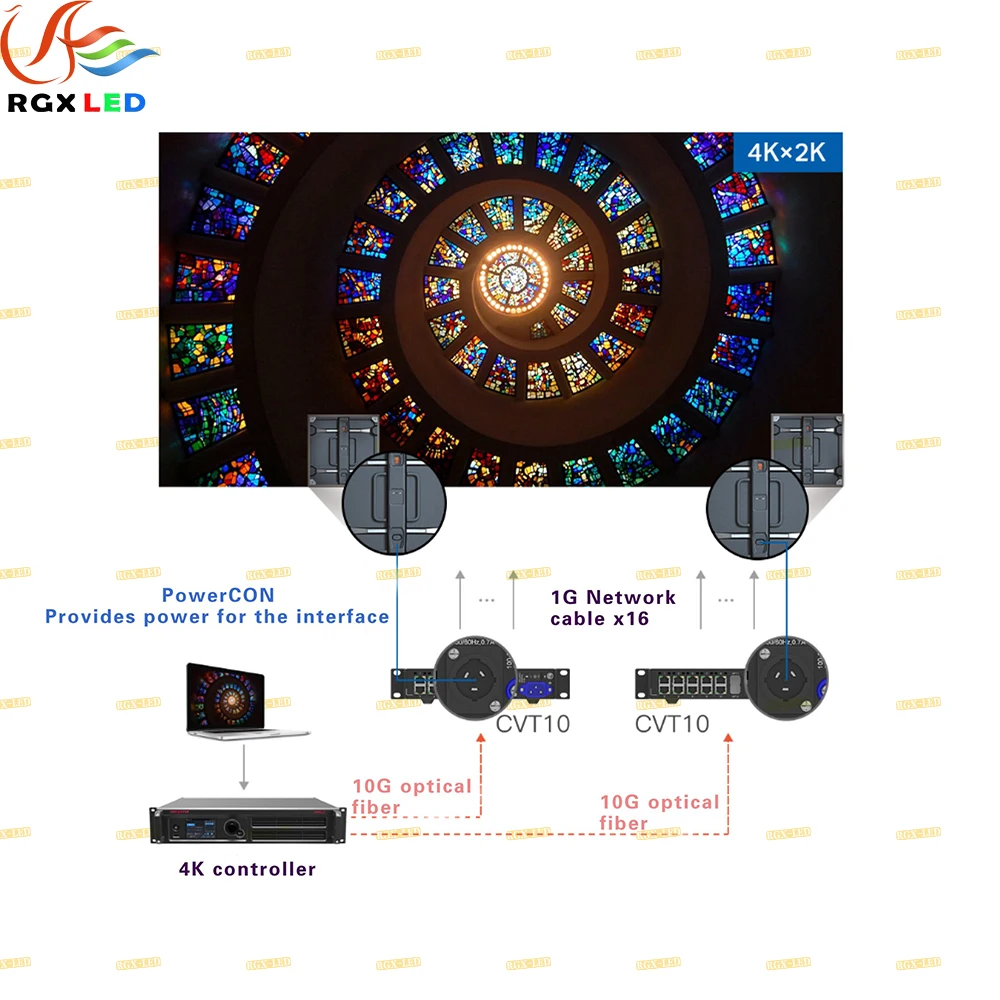

1 at most, ultra-high cost performance

1 fiber controllable multi-network port,

1 CVT10 at most multiple single-channel photoelectric converter

It can carry up to 4Kx1K large screen,

which greatly simplifies equipment and makes installation more convenient.

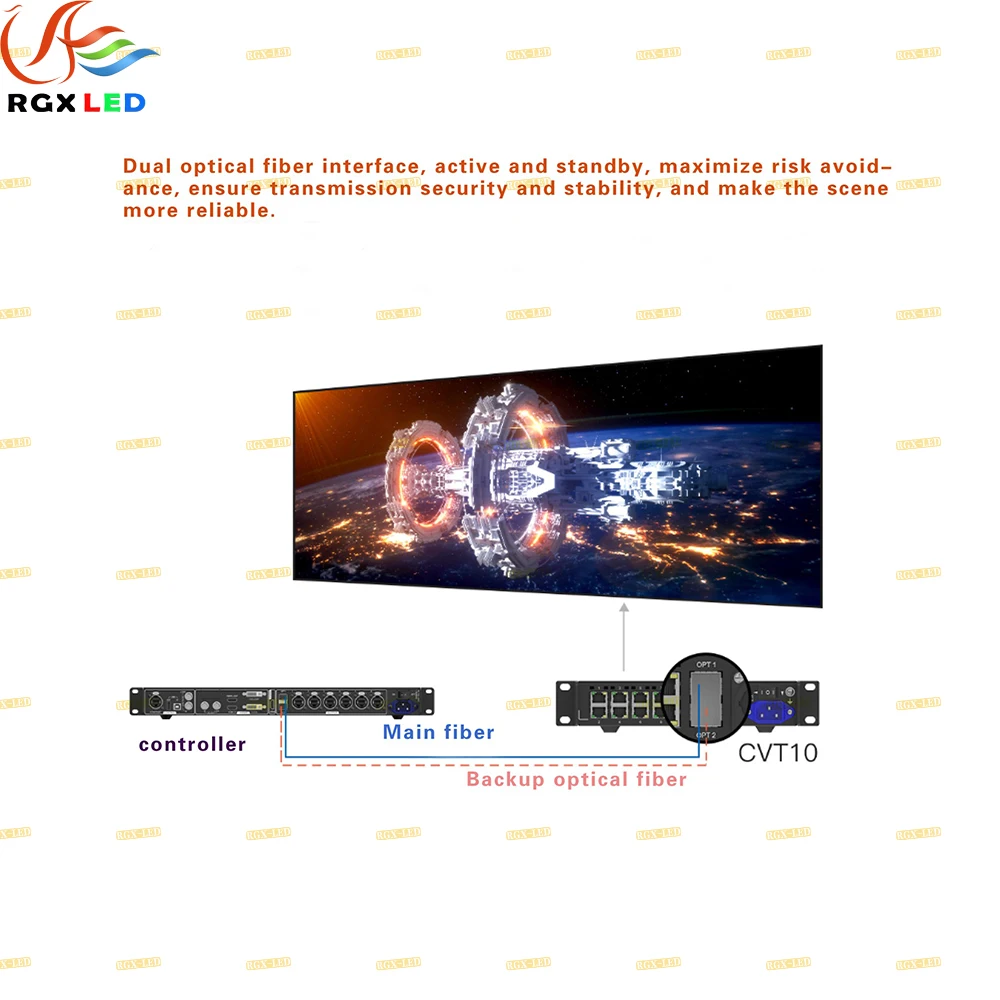

One master, one standby, stable transmission

Dual optical fiber interface,

master and backup, maximize remote risk,

ensure safe and stable transmission, make the scene more reliable

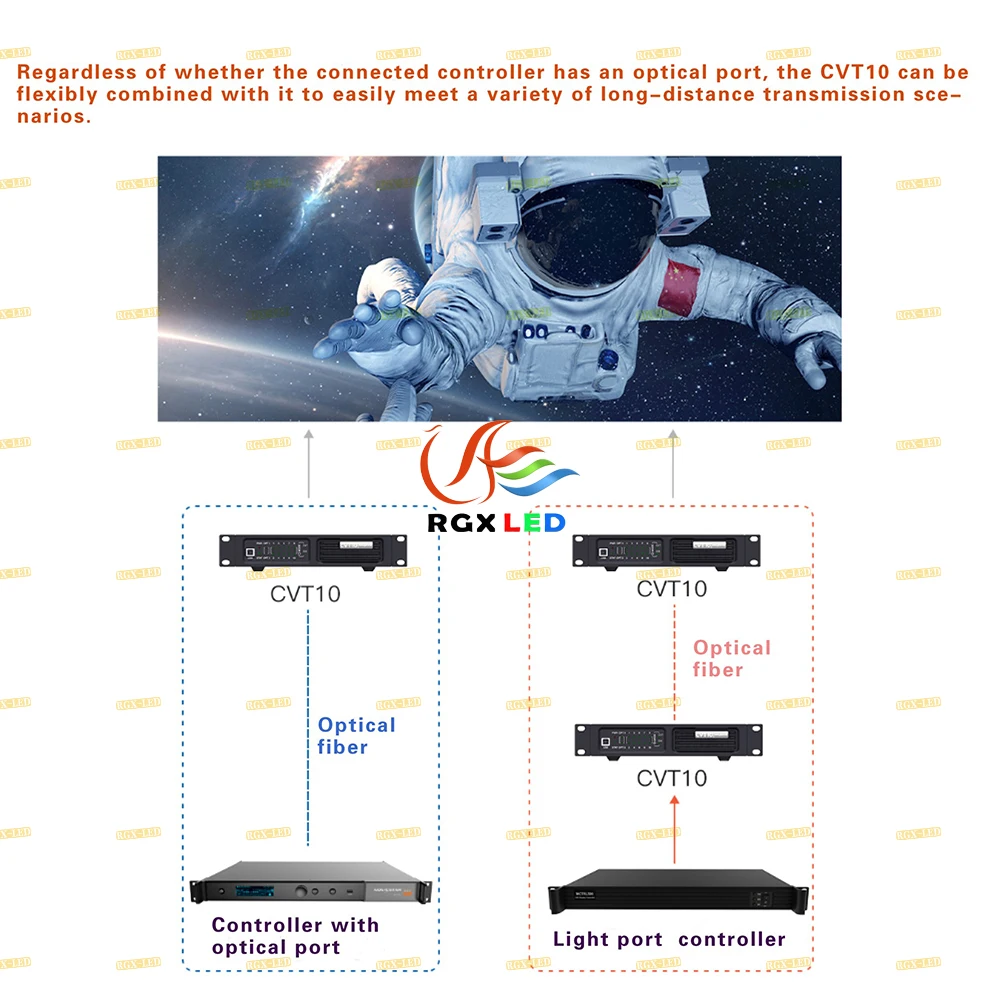

Flexible combination, precise selection

Whether the connected controller has an optical port or not, the CVT10 can be flexibly combined with it to easily meet a variety of remote transmission scenarios.

Application scenario

Novastar-CVT10-m products can be widely used in the field of LED commercial display, such as lamp pole screen, chain store screen, advertising machine, mirror screen, retail store screen, door screen, car Loading screen, no PC screen, etc.

The following figure shows the text and picture

Classification	Description
Market type	Advertising media: To be used for advertising and informationpromotion including bar screen and advertising machine. Digital signage: To be used for signage display in retail storesincluding retail store screens and door head screens. Commercial display: To display commercial information ofhotel, cinema and shopping mall, such as chain store screens.

Picture display

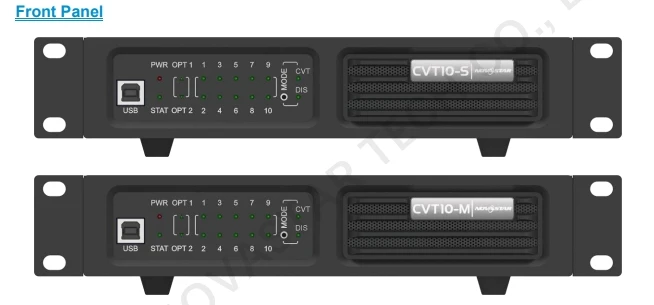

Product use

Name	Description
PWR	Power indicator Always on: The power supply is normal.
USB	Type-B USB control port Connect to the control computer (NovaLCT V5.4.0 or later) for upgrading the CVT10 program, not for cascading.
STAT	Running indicator Flashing: The device is functioning normally.
OPT1/OPT2	Optical port indicators Always on: The optical fiber connection is normal.
1–10	Ethernet port indicators Always on: The Ethernet cable connection is normal
MODE	The button to switch the device working mode The default mode is CVT mode. Only this mode is currently supported.
CVT/DIS	Working mode indicators Always on: The corresponding mode is selected. CVT: The fiber converter mode. OPT1 is the master port and OPT2 is the backup port. DIS: Reserved

Name	Description
100-240V~, 50/60Hz, 0.6A	Power input connector ON: Turn on the power. OFF: Turn off the power. For the PowerCON connector, users are not allowed to plug in hot. Pour le connecteur PowerCON, les utilisateurs ne sont pas autorisés à se connecter à chaud
OPT1/OPT2	10G optical ports
	CVT10-S optical module description: Hot swappable Transmission rate: 9.95 Gbit's to 11.3 Gbit/s Wavelength: 1310 nm Transmission distance: 10 km	CVT10-S optical fiber selection: Model: OS1/OS2 Transmission mode: Single-mode twin-core Cable diameter: 9/125 μm Connector type: LC Insertion loss: ≤ 0.3 dB Return loss: ≥ 45 dB
	CVT10-M optical module description: Hot swappable Transmission rate: 9.95 Gbit/s to 11.3 Gbit/s Wavelength: 850 nm Transmission distance: 300 m	CVT10-M optical fiber selection: Model: OM3/OM4 Transmission mode: Multi-mode twin-core Cable diameter: 50/125 μm Connector type: LC Insertion loss: ≤ 0.2 dB Return loss: ≥ 45 dB
1–10	Gigabit Ethernet ports
