Optical Fiber Converter NovastarCVT10-S CVT10-M EO Optical Fiber Interface of the Converter Deviceprice-Shenzhen RGXLED Electronics Co., Ltd.

Your location：Home>>Product>>Novastar series Product>>Novastar CVT series

name：

Optical Fiber Converter NovastarCVT10-S CVT10-M EO Optical Fiber Interface of the Converter Device

classification：Novastar series Product -> Novastar CVT series

market price：$0.00

Local price：$0.00

material：CVT10-S-N

color：

Release date：2025-8-29 10:25:41

This is Novastar''s CVT10-S and CVT10-M optical fiber converters, core devices for LED display signal transmission. Equipped with EO (Electrical-to-Optical) optical fiber interfaces, their primary function is to convert electrical signals from LED display control systems into stable optical signals, and vice versa—enabling low-loss, anti-interference long-distance signal transmission.
Suitable for large-scale LED display scenarios (e.g., outdoor billboards, stage screens) where long-distance signal delivery is required, the converters ensure consistent signal quality, avoid issues like signal attenuation or electromagnetic interference, and provide reliable support for the stable operation of large LED display systems.

Hotline：86 13699777670

Share to：QQ Zone Sina micro-blog Tencent micro-blog WeChat

Best-selling

P3.91 LED Display
classification：STAGE ALL KINDS LE..
P1.875 LED Display
classification：Small Pixel..
RGX P3 Rental Indoor LE...
classification：LED Display module..
RGX Indoor Mirror/Post ...
classification：COMMERCIAL DISPLAY..

Shenzhen RGX Electronics Co., Ltd.
Contact:ledrgx
Phone: 0755-23714515
Mobile: +86 18038069578
Whatsapp/wechat: +86 180 380 69578
Skype: levin-led
Q Q: 1006759127

After sale service: ledrgx@163.com

description

introduction to products

Novastar-CVT10-s

The CVT10-s fiber converter offers a cost-effective way of conversion between optical signals and electrical signals for video sources to connect the sending card to the LED display. Delivering a full-duplex, efficient and stable data

transmission that is not easily interfered with, this converter is ideal for long-distance transmission.

The CVT10-s hardware design focuses on the practicality and convenience of the on-site installation. It can be mounted horizontally, in a suspended way, or rack mounted, which is easy, secure and reliable. For rack mounting, two CVT10-s devices, or one CVT10-s device and a connecting piece can be combined into one assembly that is 1U in width.

Product characteristics
name	CVT10-S(Single module)	CVT10-M(multimode)
Optical fiber interface	2x optical ports with hot-swappable optical modules installed at the factory, bandwidth of each up to 10 Gbit/s
Network interface	10x Gigabit Ethernet ports, bandwidth of each up to 1 Gbit/s Fiber in and Ethernet out If the input device has 8 or 16 Ethernet ports, the first 8 Ethernet ports of the CVT10 are available. If the input device has 10 or 20 Ethernet ports, all the 10 Ethernet ports of the CVT10 are available. If Ethernet ports 9 and 10 are found unavailable, they will be available after upgrading in the future. Ethernet in and fiber out All the 10 Ethernet ports of the CVT10 are available.

Product Paramenters

CVT10-s Product specification parameter

Electrical Parameters	input voltage	100-240V~,50160Hz.0.6A
	Rated power consumption	22W
Operating Environment	Temperature	-20°C to +55°C
	Humidity	10% RH to 80% RH, non-condensing
Storage Environment	Temperature	-20°C to +70°C
	Humidit	10% RH to 95% RH, non-condensing
Physical Specifications	Dimensions	254.3 mm x 50.6 mmx 290.0 mm
	Net weight	2.1 kg Note: lt is the weight of a single product only.
Packing Information	Outer box	387.0 mm x 173.0 mm x 359.0 mm, kraft paper box
	Accessory box	1x Power cord. 1x USB cable 1x Supporting bracket A (with nuts), 1x Supporting bracket B (without nuts) 1x Connecting piece 12xM3*8 screws 1x Assembling diagram 1x Certificate of Approval
	Packing box	362.0 mm x 141.0 mm x 331.0 mm, kraft paper box

Novastar-CVT10-s features display

1 at most, ultra-high cost performance

1 fiber controllable multi-network port,

1 CVT10 at most multiple single-channel photoelectric converter

It can carry up to 4Kx1K large screen,

which greatly simplifies equipment and makes installation more convenient.

One master, one standby, stable transmission

Dual optical fiber interface,

master and backup, maximize remote risk,

ensure safe and stable transmission, make the scene more reliable

Flexible combination, precise selection

Whether the connected controller has an optical port or not, the CVT10 can be flexibly combined with it to easily meet a variety of remote transmission scenarios.

Application scenario

Novastar-CVT10-s products can be widely used in the field of LED commercial display, such as lamp pole screen, chain store screen, advertising machine, mirror screen, retail store screen, door screen, car Loading screen, no PC screen, etc.

The following figure shows the text and picture

Classification	Description
Market type	Advertising media: To be used for advertising and informationpromotion including bar screen and advertising machine. Digital signage: To be used for signage display in retail storesincluding retail store screens and door head screens. Commercial display: To display commercial information ofhotel, cinema and shopping mall, such as chain store screens.

Picture display

Product use

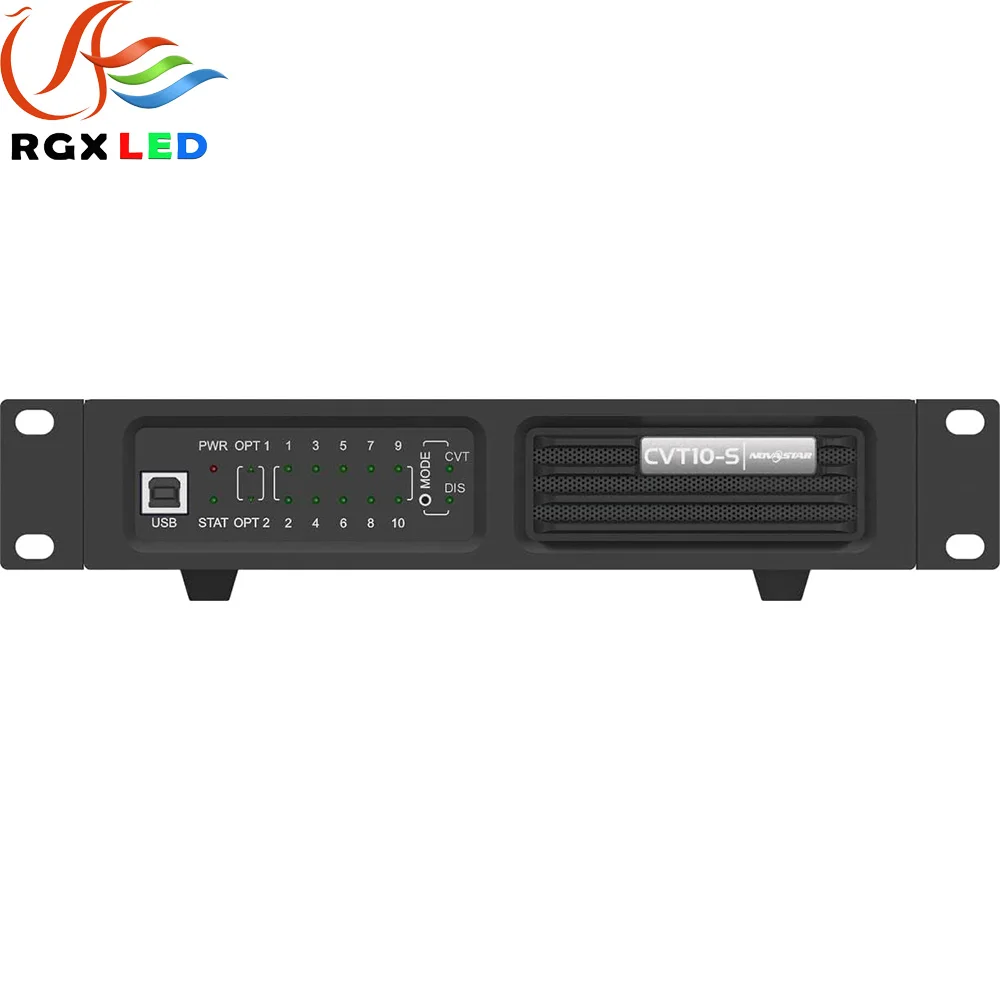

Name	Description
PWR	Power indicator Always on: The power supply is normal.
USB	Type-B USB control port Connect to the control computer (NovaLCT V5.4.0 or later) for upgrading the CVT10 program, not for cascading.
STAT	Running indicator Flashing: The device is functioning normally.
OPT1/OPT2	Optical port indicators Always on: The optical fiber connection is normal.
1–10	Ethernet port indicators Always on: The Ethernet cable connection is normal
MODE	The button to switch the device working mode The default mode is CVT mode. Only this mode is currently supported.
CVT/DIS	Working mode indicators Always on: The corresponding mode is selected. CVT: The fiber converter mode. OPT1 is the master port and OPT2 is the backup port. DIS: Reserved

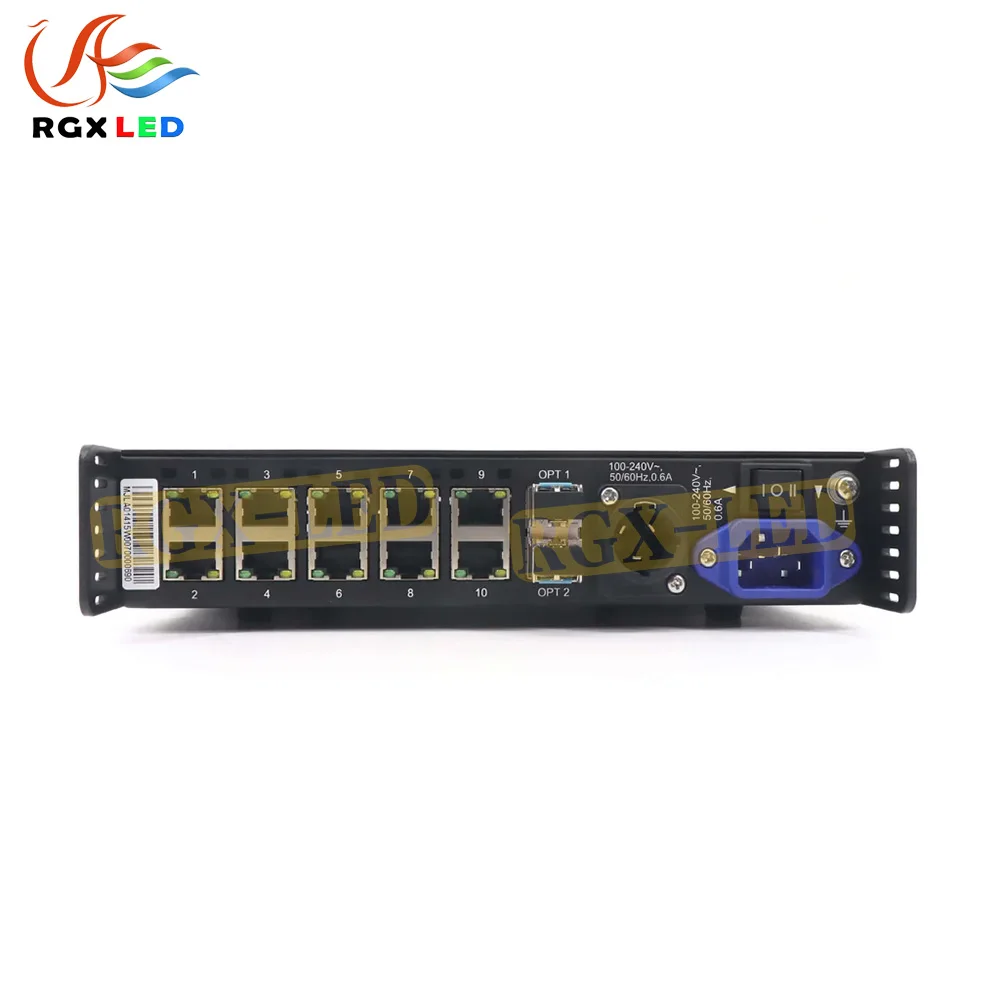

Name		Description
100-240V~, 50/60Hz, 0.6A	Power input connector ON: Turn on the power. OFF: Turn off the power. For the PowerCON connector, users are not allowed to plug in hot. Pour le connecteur PowerCON, les utilisateurs ne sont pas autorisés à se connecter à chaud
OPT1/OPT2	10G optical ports
	CVT10-S optical module description: Hot swappable Transmission rate: 9.95 Gbit's to 11.3 Gbit/s Wavelength: 1310 nm Transmission distance: 10 km	CVT10-S optical fiber selection: Model: OS1/OS2 Transmission mode: Single-mode twin-core Cable diameter: 9/125 μm Connector type: LC Insertion loss: ≤ 0.3 dB Return loss: ≥ 45 dB
	CVT10-M optical module description: Hot swappable Transmission rate: 9.95 Gbit/s to 11.3 Gbit/s Wavelength: 850 nm Transmission distance: 300 m	CVT10-M optical fiber selection: Model: OM3/OM4 Transmission mode: Multi-mode twin-core Cable diameter: 50/125 μm Connector type: LC Insertion loss: ≤ 0.2 dB Return loss: ≥ 45 dB
1–10	Gigabit Ethernet ports

Packing&Shipping

We adopt the order - pick - delivery integration principle, that is, buy and send, customers place orders directly after the factory hair, so that products are protected.

In terms of packaging, we use air cases and cartons as one main packing body
