Optical Fiber Controller Box for Large LED Display Novastar CVT4K-S

classification：Novastar series Product -> Novastar CVT series

market price：$0.00

Local price：$0.00

material：CVT4K-S

color：RGB

Release date：2025-8-29 10:25:28

This is the Novastar CVT4K - S optical fiber controller box, specifically designed for large - scale LED displays. Its core function is to provide high - speed and stable signal transmission and control for large LED screens. Relying on optical fiber transmission technology, it can transmit 4K high - definition signals over long distances (such as the 100 - meter level) with low loss, effectively solving the problems of signal attenuation and interference in large - scale screens and ensuring the synchronization and clarity of the picture.

The product supports multiple signal input and output, and is suitable for scenarios such as large - scale commercial displays, stage rentals, and outdoor large screens. It can stably connect the LED screen and the control terminal, providing reliable guarantee for the signal transmission and control of large - scale LED display systems, and meeting the high requirements of large - scale screens for signal quality and transmission distance.

Hotline：86 13699777670

Share to：QQ Zone Sina micro-blog Tencent micro-blog WeChat

Best-selling

P3.91 LED Display
classification：STAGE ALL KINDS LE..
P1.875 LED Display
classification：Small Pixel..
RGX P3 Rental Indoor LE...
classification：LED Display module..
RGX Indoor Mirror/Post ...
classification：COMMERCIAL DISPLAY..

Shenzhen RGX Electronics Co., Ltd.
Contact:ledrgx
Phone: 0755-23714515
Mobile: +86 18038069578
Whatsapp/wechat: +86 180 380 69578
Skype: levin-led
Q Q: 1006759127

After sale service: ledrgx@163.com

description

introduction to products

Novastar-CVT4K-S

The CVT4K-S is a high-performance fiber converter developed by NovaStar. It is used for conversion between optical signals and electrical signals, allowing for long-distance signal transmission that is stable and not easily interfered with. Easy to use, the CVT4K-S makes it convenient to connect terminal devices and simplifies on-site wiring connections.

Product characteristics
Network port input/output	16 Neutrik network port inputs and outputs.
Optical fiber output and input ports	four LC single-mode dual-core optical fiber ports, two of which are active input/output and the other two are backup ports. Dual power supply redundancy backup, more stable and reliable.
Power interface	Two power interfaces (Pin socket and PowerCON socket) to meet the different needs of customers.
Control interface	Two kinds of control interfaces (USB Type B interface and network port) make the connection of the main control computer more flexible and convenient. The front panel is equipped with various indicators to display various device status.

Product Paramenters

CVT4K-S Product specification parameter

Electrical Parameters	input voltage	AC 100 V to 240 V, 50/60 Hz, 1.6 A
	Rated power consumption	10W
Operating Environment	Temperature	-20°C to +60°C
	Humidity	10% RH to 90% RH, non-condensing
Storage Environment	Temperature	-20°C to +70°C
	Humidit	10% RH to 90% RH, non-condensing
Physical Specifications	Dimensions	482.6 mm × 377.0 mm × 96.0 mm
	Net weight	4.6 kg
Packing Information	Outer box	530.0 mm × 193.0 mm × 420.0 mm, white cardboard box
	Accessory box	405.0 mm × 290.0 mm × 48.0 mm, white cardboard box Accessories: 1x Power cord, 1x Ethernet cable, 1x USB cable, 12x M4*10 screws
	Packing box	550.0 mm × 440.0 mm × 210.0 mm, craft paper bo

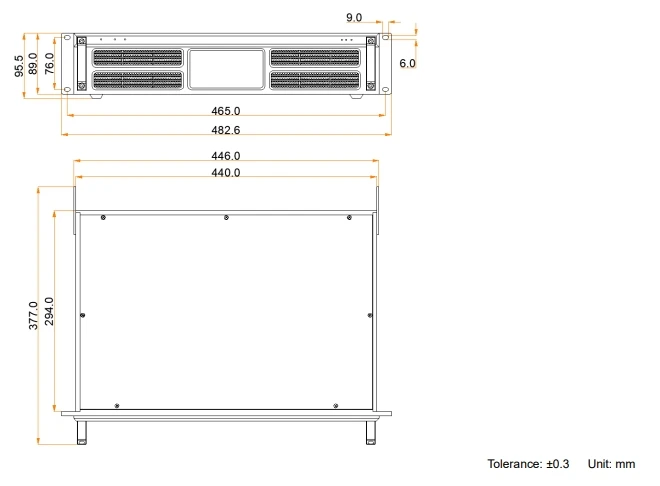

dimension

Application scenario

Novastar-CVT4K-Sproducts can be widely used in the field of LED commercial display, such as lamp pole screen, chain store screen, advertising machine, mirror screen, retail store screen, door screen, car Loading screen, no PC screen, etc.

The following figure shows the text and picture

Classification	Description
Market type	Advertising media: To be used for advertising and informationpromotion including bar screen and advertising machine. Digital signage: To be used for signage display in retail storesincluding retail store screens and door head screens. Commercial display: To display commercial information ofhotel, cinema and shopping mall, such as chain store screens.

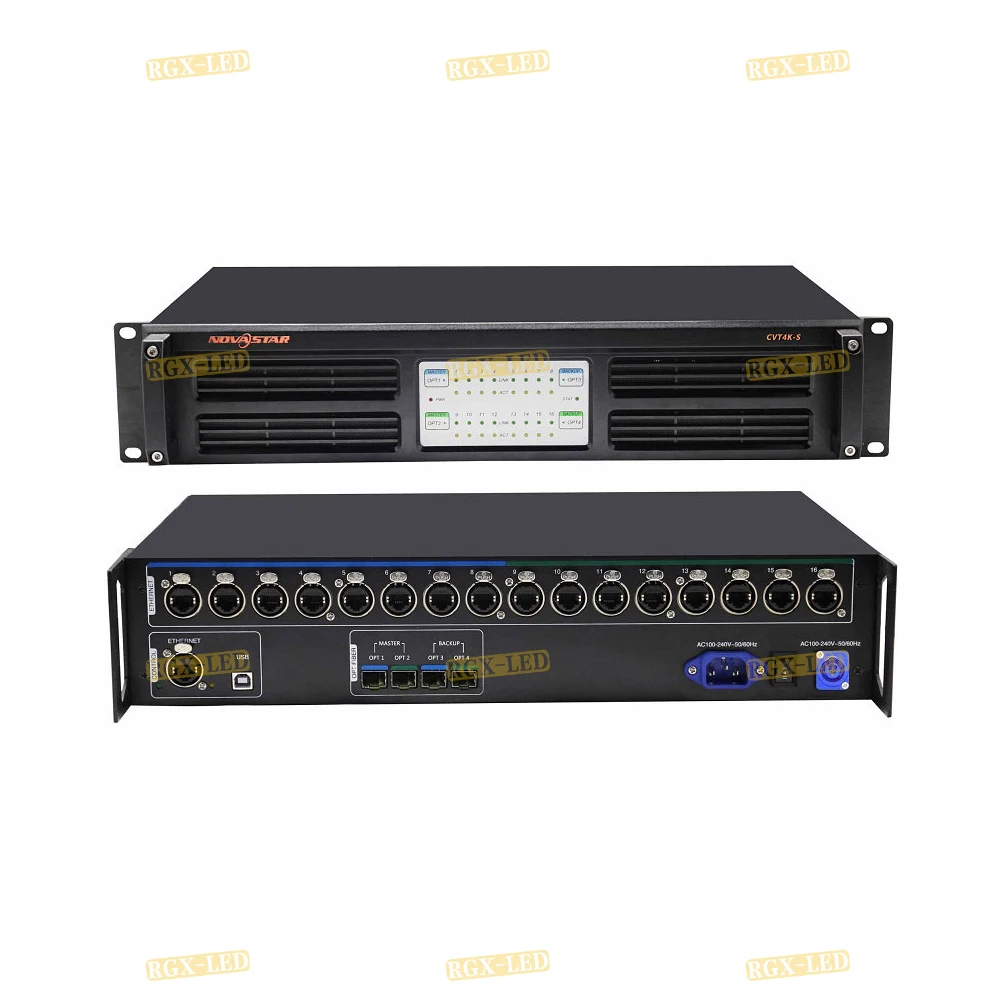

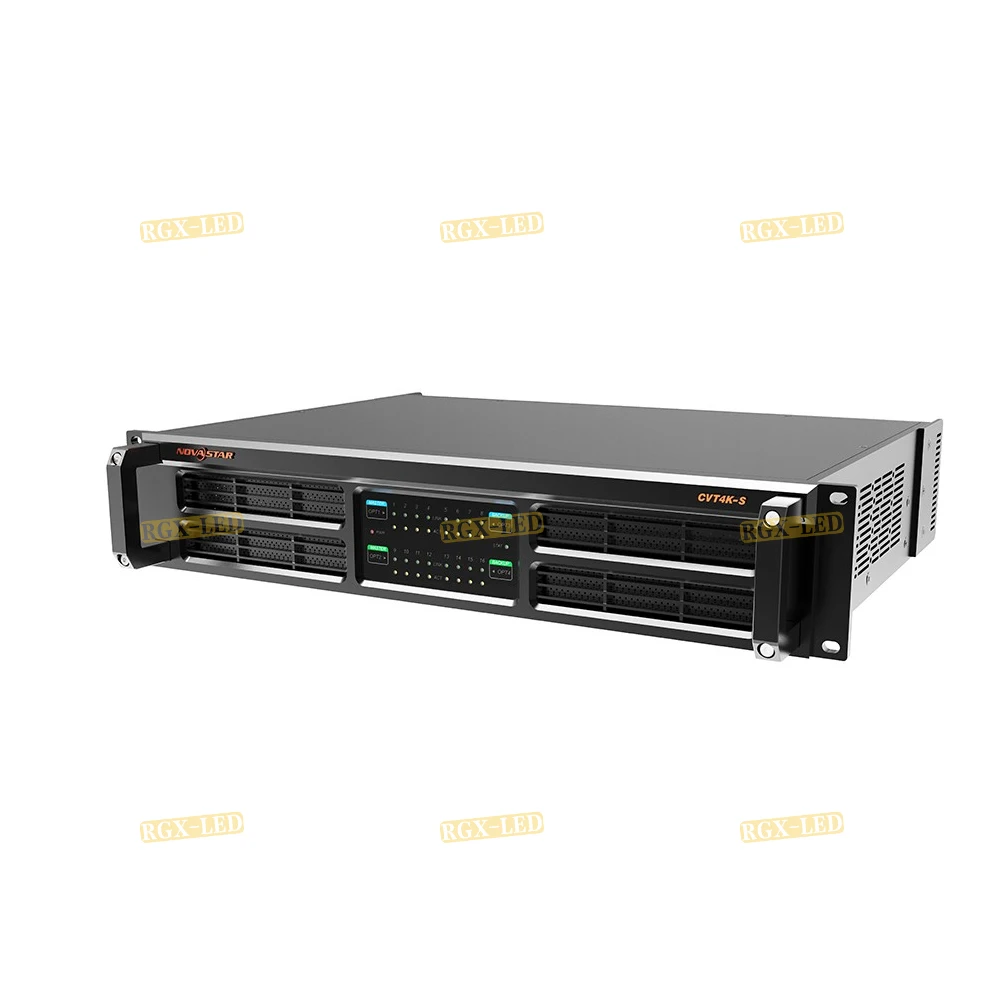

Picture display

Product use

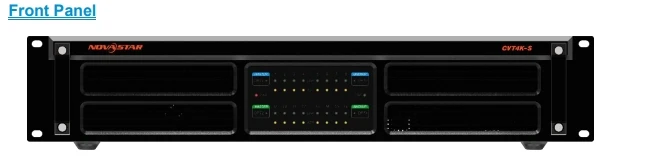

Name	Color	Status	Description
PWR	Red	Always on	The power supply is normal.
STAT	Green	Flashing	The device is functioning normally.
OPT1–OPT4	Green	Always on	The optical fiber connection is normal
1–16	Green	Always on	The Ethernet cable connection is normal.
	Yellow	Flashing	There is data transmission.
	Yellow	Always on	There is no data transmission.

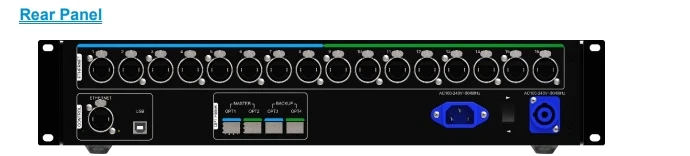

Name	Description
AC 100- 240V~50/60Hz	Power input connectors, including a 3-pin power socket and a PowerCON socket For the PowerCON connector, users are not allowed to plug in hot. Pour le connecteur PowerCON, les utilisateurs ne sont pas autorisés à se connecter à chaud.
OPT1–OPT4	4x optical ports for data input or output OPT1 corresponds to Ethernet ports 1–8 and OPT2 corresponds to Ethernet ports 9–16. OPT3 is the backup of OPT1 and OPT4 is the backup of OPT2.
	Description of the optical module: Installed at the factory, hot pluggable Transmission rate: 9.95 Gb/s to 11.3 Gb/s Wavelength: 1310 nm Transmission distance: 10 km	Optical fiber selection: Model: OS1/OS2 Transmission mode: Single-mode twin-core Cable diameter: 9/125 μm Connector type:LC Insertion loss: ≤ 0.3 dB Return loss: ≥ 45 dB

1–16	16x Neutrik Gigabit Ethernet ports for data input or output
Control
ETHERNET	Ethernet port for control computer connection
USB	Type-B USB port for control computer connection, not for cascading
Power
