Input connectors
− 1x HDMI 1.3 (IN & LOOP)
− 1x HDMI 1.3
− 1x DVI (IN & LOOP)
− 1x 3G-SDI (IN & LOOP)
− 1x optical fiber port (OPT1)
Output connector
4x Gigabit Ethernet ports A single device unit drives up to 2.6 million pixels, with a maximum width of 10,240 pixels and a maximum height of 8192 pixels. − 2x Fiber outputs OPT 1 copies the output on 4 Ethernet ports. OPT 2 copies or backs up the output on 4 Ethernet ports. − 1x HDMI 1.3 For monitoring or video output
Self-adaptive OPT 1 for either video input or sending card output
Thanks to the self-adaptive design, OPT 1 can be used as either an input or output connector, depending on its connected device.
Audio input and output
Audio input accompanied with HDMI input source − Audio output via a multifunction card
− Output volume adjustment supported
Low latency
Reduce the delay from the input to receiving card to 20 lines when the low latency function and Bypass mode are both enabled.
2x layers
− Adjustable layer size and position
− Adjustable layer priority
Output synchronization
An internal input source can be used as the sync source to ensure the output images of all cascaded units in sync
Powerful video processing
Based on SuperView III image quality
processing technologies to provide stepless output scaling
One-click full screen display
− Free input croppin
Automatic screen brightness adjustment
Adjust the screen brightness automatically based on the ambient brightness collected by the external light sensor
Easy preset saving and loading
Up to 10 user-defined presets supported
Multiple kinds of hot backup
− Backup between devices
− Backup between Ethernet ports
Mosaic input source supported
The mosaic source is composed of two sources
(2K×1K@60Hz) accessed to the OPT 1.
Up to 4 units cascaded for image mosaic

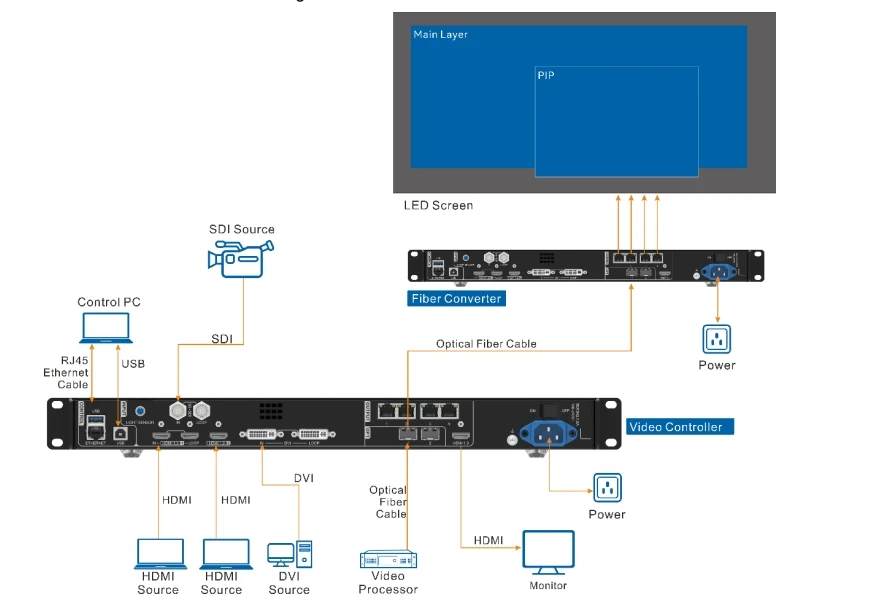

Three working modes
− Video Controller
− Fiber Converter
− Bypass
All-round color adjustment
Input source and LED screen color adjustment supported, including brightness,
contrast, saturation, hue andGamma
Pixel level brightness and chroma calibration
Work with NovaLCT and NovaStar calibration software to support brightness and chroma calibration on each LED, effectively removing color discrepancies and greatly improving LED display brightness and chroma consistency, allowing for better image quality
Multiple operation modes
Control the device as you wish via V-Can, NovaLCT or device front panel knob and buttons.
