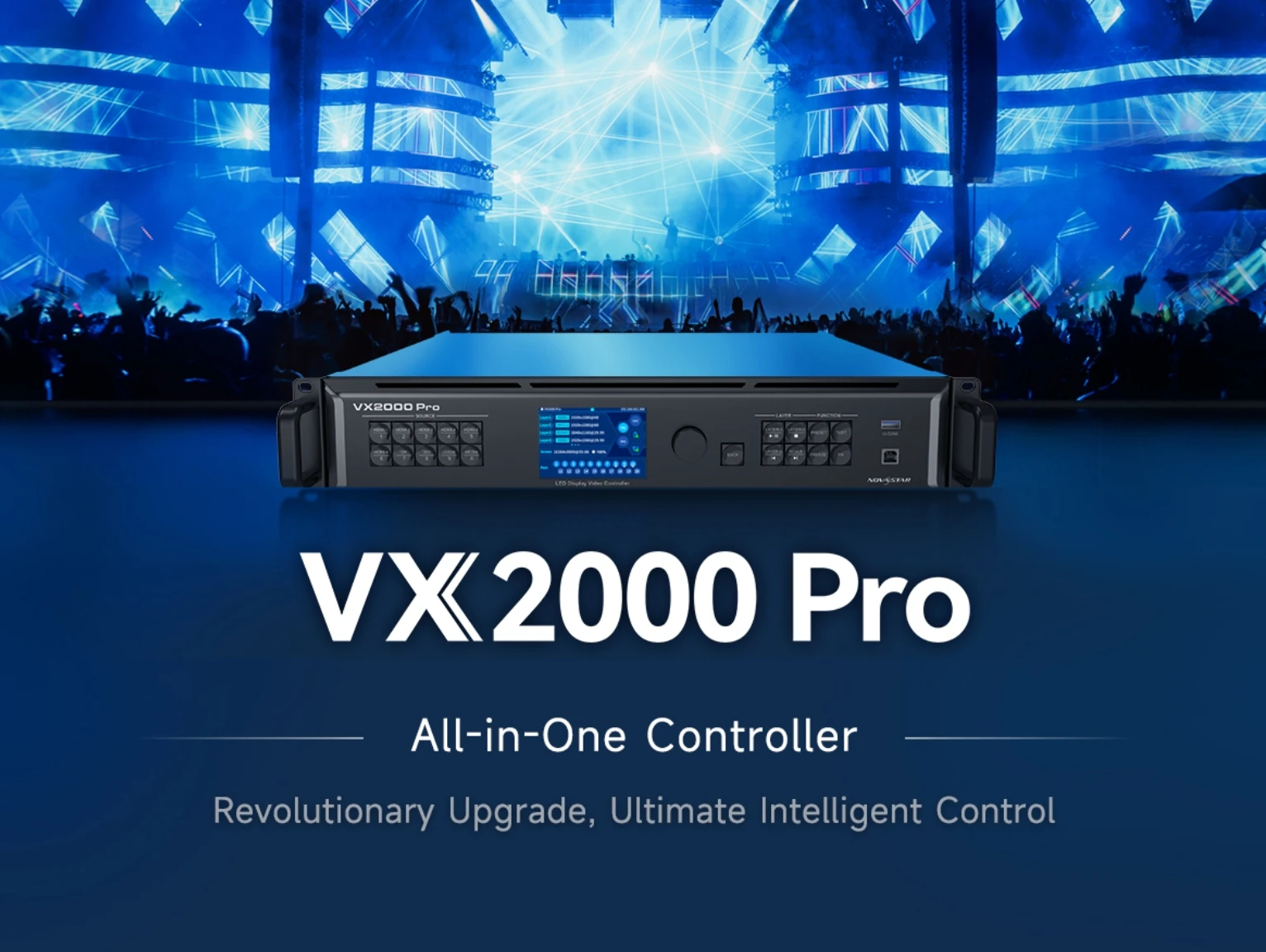

Features

Multiple connectors, free input and output

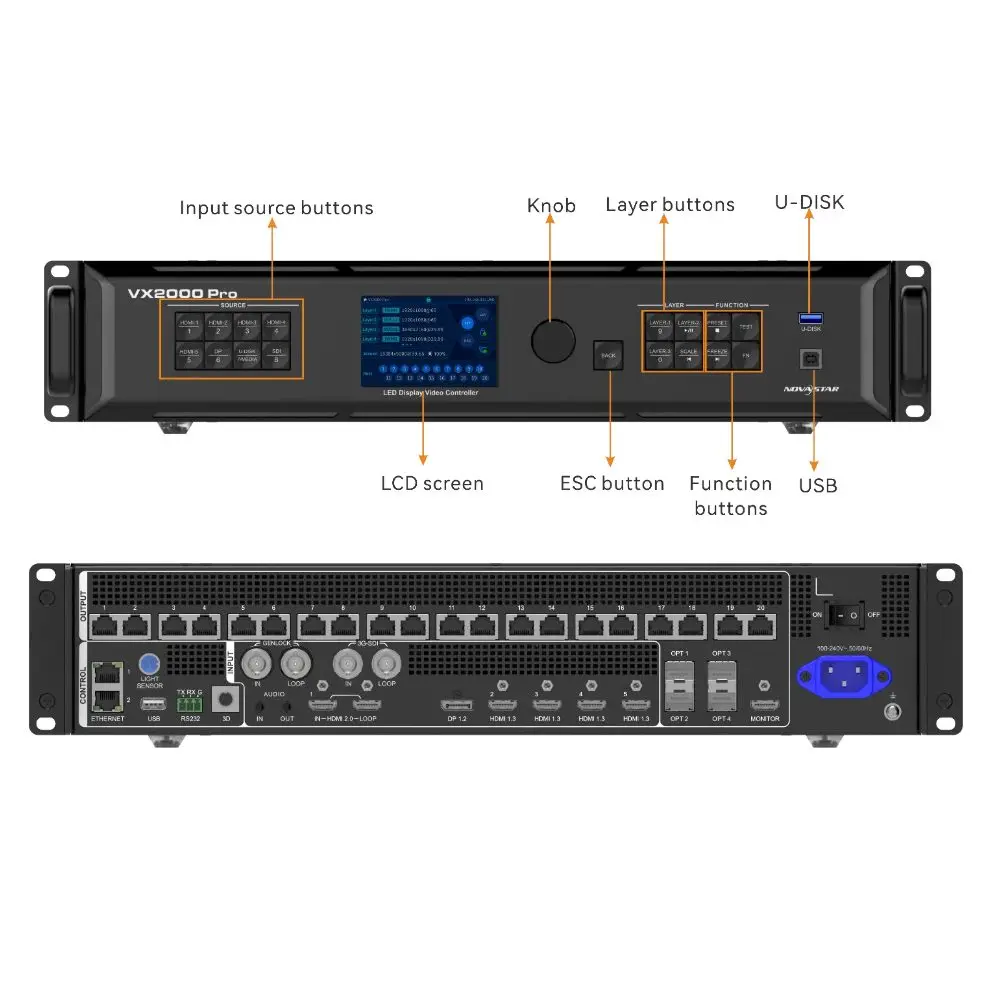

A comprehensive range of input connectors
1x DP 1.2
2x HDMI 2.0
4x HDMI 1.3
2x 10G optical fiber port (OPT 1 & OPT 2)
1x 12G-SDI (IN & LOOP)
1x USB 3.0 (Play images or videos saved in a USB drive
Output connectors
20x Gigabit Ethernet ports
A single device supports up to 13 million pixels, delivering a maximum width of 16,384
pixels and a maximum height of 8192 pixels.
4x Fiber outputs
OPT 1 and OPT 2 send the output on Ethernet ports 1~10 and 11~20 respectively.
OPT 3 and OPT 4 copy or back up the output on Ethernet ports 1~10 and 11~20
respectively.
1x HDMI 1.3
For monitoring display.
1x 3D connector
Directly connect a third-party 3D emitter.
 Self-adaptive OPT 1/2 for either video input or sending card output
Thanks to the self-adaptive design, OPT 1/2 can be used as either an input or output
connector, depending on its connected device.
HDMI mosaic
Supports mosaicing of two HDMI 2.0 inputs or four HDMI 1.3 inputs.
Max. mosaicing resolution: 4K×2K
Fiber input mosaic

The input source connected through OPT 1/2 can be used either independently or combined
to create a mosaic input source.
Audio input and output
Audio input accompanied with HDMI and DP sources
3.5 mm independent audio input and output
Adjustable output volume
 Free topology
The maximum resolution of the circumscribed rectangles loaded by the VX2000 Pro is up to
13 million pixels.
Flexible screen configuration without worrying about unused blank areas when calculating
Ethernet port load capacity, allowing for optimal use of port bandwidth.
*Specific receiving cards are required.
Low latency
By enabling the low latency feature and ByPass mode, the device delay can be reduced to 0
frame.
Output synchronization
An internal input source or external Genlock can be used as the sync source to ensure the
output images of all cascaded units in sync.
EDID management
Import and export EDID files.

Diverse display possibilities for flexible configuration

 Easy preset saving and loading
Up to 256 user-defined presets supported
Load a preset by simply pressing one button.
Save, overwrite and delete a preset.
Preview the layer layout saved in the preset. (Unico web page)
Multiple layer display
Supports 12*2K×1K layer resources.

Users can create layers in three different specifications - 4K×2K, 4K×1K, and 2K×1K.
These layers will use 4x, 2x, and 1x 2K layer resources respectively, depending on the
capacity of the input source connector used to open the layers.
Adjustable layer size and position
Adjustable layer priority
Adjustable aspect ratio
3D function
Traditional solution: Connect the EMT200 3D emitter to the device's Ethernet port, and
use the compatible 3D glasses to enjoy a 3D visual experience.
New solution: Connect the third-party 3D emitter to the device 3D connector and use
the compatible 3D glasses to enjoy a 3D visual experience.
Note: Enabling 3D function will halve the device output capacity.
Personalized image scaling
Supports three kinds of image scaling modes, including full screen, pixel to pixel and custom.
Powerful video processing
Based on SuperView III image quality processing technologies to provide stepless
output scaling.
One-click full screen display
Free input cropping
Color adjustment
Supports output color management, including brightness, saturation, contrast and hue.
Pixel level brightness and chroma calibration
Work with NovaLCT and NovaStar calibration software to support brightness and chroma
calibration on each LED, which can effectively remove color discrepancies and greatly
improve LED display brightness and chroma consistency, allowing for better image quality.

The function of displaying image on screen for test is also supported.

USB playback, timesaving and effortless

Supports USB playback for instant plug-and-play convenience.

Multiple device modes and operation modes, convenient and efficient

Three working modes

Video Controller
Fiber Converter
Bypass

Multiple control options
Device front panel knob
Unico Web page control
NovaLCT
VICP app
Data saving after power failure and backup design, stable and reliable
End-to-End backup
Backup between devices
Backup between input sources
Backup between Ethernet ports
Backup between optical fiber ports
Ethernet port backup test
Test whether the pre-stored images, backup Ethernet ports and devices take effect without
plugging and unplugging the Ethernet cables.
Data saving after power failure
After a normal shutdown or unexpected power outage, reconnecting the power will
automatically restore the previously saved settings on the device.
24/7 rigorous stability test under extreme high and low temperatures proved robust stability
and reliability

Function

Limitation



3D

Work with the matched 3D glasses. Mutually Exclusive Function Input crop Enabling 3D function will halve the deviceoutput

capacity.



Input crop





Low Latency



All cabinets loaded by Ethernet ports must bealigned at the top of the circumscribed rectangle

Genlock: When the deviceworks as a video controllerthe low latency and Genlockare not exclusive.When the device works in ByPassmode, the two functionscannot be enabledsimultaneously.







GENLOCK







N/A

Low latency: When the

device works as a video

controller, the low latency

and Genlock are not

exclusive. When the device

works in ByPass mode, the

two functions cannot be

enabled simultaneously





ByPass Mode

When the device works as an independent LED

display controller, the video processing function is

unavailable.





N/A

VX Pro Series Selection Table

Device Model

VX400 Pro

VX600 Pro

VX1000 Pro

VX2000 Pro

Loading Capacity

2.6 million pixels

3.9 million pixels

6.5 million pixels

13 million pixels

Max Width (pixels)

10240

10240

10240

16384

Max Height (pixels)

8192

8192

8192

8192

Layers

6 *2K×1K

6 *2K×1K

6 *2K×1K

12 *2K×1K







Input Connectors

1× HDMI 2.0（IN&LOOP）

2× HDMI 1.3

1× 3G-SDI（IN&LOOP）

1× 10G OPT Port（OPT1）

1× USB3.0

1× HDMI 2.0（IN&LOOP）

2× HDMI 1.3

1× 3G-SDI（IN&LOOP）

1× 10G OPT Port（OPT1）

1× USB3.0

1× HDMI 2.0（IN&LOOP）

2× HDMI 1.3

1× 3G-SDI（IN&LOOP）

1× 10G OPT Port（OPT1）

1× USB3.0

1× 12G-SDI(IN&LOOP)

1× DP 1.2

2× HDM 2.0

4× HDMI 1.3

2× OPT

1× USB3.0





Output Connectors

4× Ethernet Ports

1× HDMI1.3

1× HDMI 2.0 LOOP

1× 3G-SDI LOOP

2× OPT

6× Ethernet Ports

1× HDMI1.3

1× HDMI 2.0 LOOP

1× 3G-SDI LOOP

2× OPT

10× Ethernet Ports

1× HDMI1.3

1× HDMI 2.0 LOOP

1× 3G-SDI LOOP

2× OPT

20× Ethernet Ports

1× HDMI1.3

4× OPT

1× 2G-SDI LOOP

4× OPT

Presets

256

256

256

256

Control

Connectors

2× Ethernet Port

1× USB

2× Ethernet Port

1× USB

2× Ethernet Port

1× USB

2× Ethernet Port

1× USB







Electrical Parameters





Power connector





100-240V~,50/60Hz

Rated power consumption

82W

Operating Environment

Temperature



0°C to 50°C

Humidity

5% RH to 85% RH, non-condensing

Storage Environment

Temperature

-10'C to +60℃℃

Humidity

5% RH to 95% RH, non-condensing





Physical Specifications

Dimensions

482.6 mmx409.0 mmx 94.6 mm

Total weight

10 kg

Net weight

7kg









Packing Information

Carrying Case

625 mm x 560 mm x195 mm









Accessories



1xPower cord,

1xEthernet cable,

1x HDMl cable.

4x Silicone dustproof plugs,

1x USB cable,

1x Phoenixconnector,

1xQuick Start Guide,

1x Certificate ofApproval

Packing Box

645 mm x 580 mm x 215 mm

45 dB (A)
