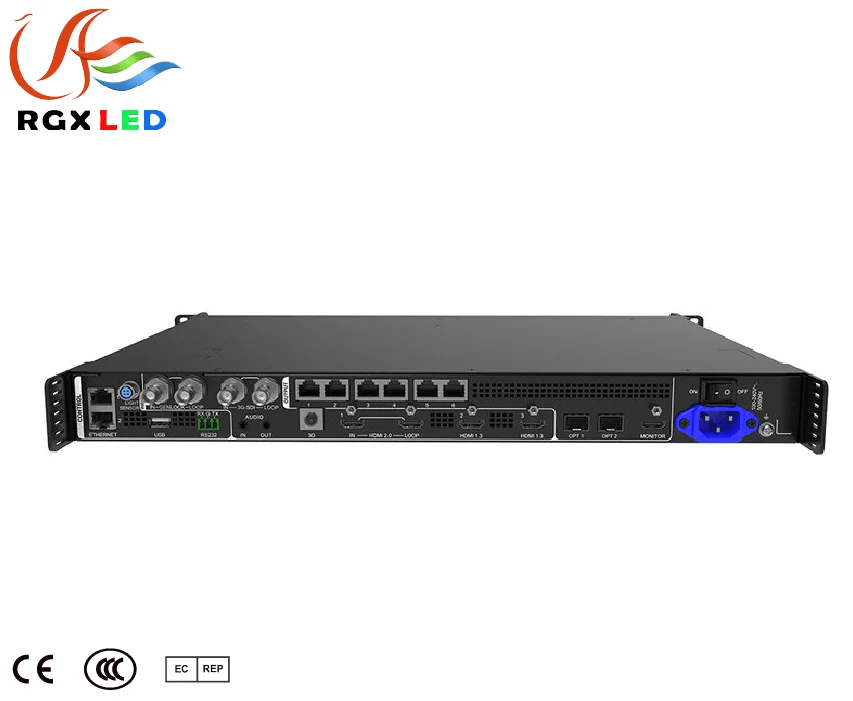

Features

A comprehensive range of input connectors

1x HDMI 2.0 (IN & LOOP)
2x HDMI 1.3
1x 10G optical fiber port (OPT 1)
1x 3G-SDI (IN & LOOP)
1x USB 3.0 (Play images or videos saved in a USB drive.)

Output connector

6x Gigabit Ethernet ports
A single device supports up to 3.9 million pixels, delivering a maximum width of 10,240
pixels and a maximum height of 8192 pixels.
2x Fiber outputs
OPT 1 sends the output on Ethernet ports 1~6.
OPT 2 copies or backs up the output on Ethernet ports 1~6.
1x HDMI 1.3
For monitoring display.
1x 3D connector
Directly connect a third-party 3D emitter.

Self-adaptive OPT 1 for either video input or sending card output

Thanks to the self-adaptive design, OPT 1 can be used as either an input or output
connector, depending on its connected device.

Audio input and output

Audio input accompanied with HDMI sources
3.5 mm independent audio input and output
Adjustable output volume

Free topology

Flexible screen configuration without rectangle restriction on a single Ethernet port. The
maximum circumscribed rectangle of the large screen loaded by the device must be within
the device loading capacity.
*Specific receiving cards are required.

Low latency

By enabling the low latency feature and ByPass mode, the device delay can be reduced to 0
frame.

Output synchronization

An internal input source or external Genlock can be used as the sync source to ensure the
output images of all cascaded units in sync

EDID management

Import and export EDID files

Easy preset saving and loading

Up to 256 user-defined presets supported
Load a preset by simply pressing one button.
Save, overwrite and delete a preset.
Preview the layer layout saved in the preset

Multiple layer display

Supports 6*2Kx1K layer resources. Users can create layers in three different specifications - 4Kx2K, 4Kx1K, and 2Kx1KThese layers
will use 4x, 2x, and 1x 2Klayer resources respectively, depending on thecapacity of the input source connector used to open the
layers. Adjustable layer size and position Adjustable layer priority Adjustable aspect ratio

3D function

Traditional solution: Connect the EMT200 3D emitter to the device's Ethernet port, and
use the compatible 3D glasses to enjoy a 3D visual experience.
New solution: Connect the third-party 3D emitter to the device 3D connector and use
the compatible 3D glasses to enjoy a 3D visual experience.

Note: When the 3D function is enabled and the video source format is Side-by-Side or Top
and-Bottom, the device output capacity will be halved.

Personalized image scaling

Supports three kinds of image scaling modes, including full screen, pixel to pixel and custom.

Powerful video processing

Based on SuperView III image quality processing technologies to provide stepless
output scaling.
One-click full screen display
Free input cropping

Color adjustment

Supports output color management, including brightness, saturation, contrast and hue

Pixel level brightness and chroma calibration

Work with NovaLCT and NovaStar calibration software to support brightness and chroma
calibration on each LED, which can effectively remove color discrepancies and greatly
improve LED display brightness and chroma consistency, allowing for better image quality.
The function of displaying image on screen for test is also supported.

VX Pro Series Selection Table

Device Model

VX400 Pro

VX600 Pro

VX1000 Pro

VX2000 Pro

Loading Capacity

2.6 million pixels

3.9 million pixels

6.5 million pixels

13 million pixels

Max Width (pixels)

10240

10240

10240

16384

Max Height (pixels)

8192

8192

8192

8192

Layers

6 *2K×1K

6 *2K×1K

6 *2K×1K

12 *2K×1K







Input Connectors

1× HDMI 2.0（IN&LOOP）

2× HDMI 1.3

1× 3G-SDI（IN&LOOP）

1× 10G OPT Port（OPT1）

1× USB3.0

1× HDMI 2.0（IN&LOOP）

2× HDMI 1.3

1× 3G-SDI（IN&LOOP）

1× 10G OPT Port（OPT1）

1× USB3.0

1× HDMI 2.0（IN&LOOP）

2× HDMI 1.3

1× 3G-SDI（IN&LOOP）

1× 10G OPT Port（OPT1）

1× USB3.0

1× 12G-SDI(IN&LOOP)

1× DP 1.2

2× HDM 2.0

4× HDMI 1.3

2× OPT

1× USB3.0





Output Connectors

4× Ethernet Ports

1× HDMI1.3

1× HDMI 2.0 LOOP

1× 3G-SDI LOOP

2× OPT

6× Ethernet Ports

1× HDMI1.3

1× HDMI 2.0 LOOP

1× 3G-SDI LOOP

2× OPT

10× Ethernet Ports

1× HDMI1.3

1× HDMI 2.0 LOOP

1× 3G-SDI LOOP

2× OPT

20× Ethernet Ports

1× HDMI1.3

4× OPT

1× 2G-SDI LOOP

4× OPT

Presets

256

256

256

256

Control

Connectors

2× Ethernet Port

1× USB

2× Ethernet Port

1× USB

2× Ethernet Port

1× USB

2× Ethernet Port

1× USB



Electrical Parameters

Power connector

100-240V~, 50/60Hz

Rated power consumption

41 W

Operating

Environment

Temperature

0°C to 50°C

Humidity

5% RH to 85% RH, non-condensing



Storage Environment

Temperature

–10°C to +60°C

Humidity

5% RH to 95% RH, non-condensing



Physical Specifications

Dimension

482.6 mm × 302.2 mm × 50.1 mm

Net weight

3.9 kg

Total weight

6.5kg









Packing Information

Carrying

Case

545 mm × 425 mm × 145 mm





Accessories

1x Power cord, 1x Ethernet cable, 1x HDMI cable, 2x
Silicone dustproof plugs, 1x USB cable, 1x Phoenix
connector, 1x Quick Start Guide, 1x Certificate of
Approval

Packing Box

565 mm × 450 mm × 175 mm

Noise Level (typical

at 25°C/77°F

45 dB (A)
