Colorlight Indoor and Outdoor Synchronous Asynchronous RGB Display Receiver Card 5A-75Bprice-Shenzhen RGXLED Electronics Co., Ltd.

Your location：Home>>Product>>LED Display Video Processor>>Colorlight

name：

Colorlight Indoor and Outdoor Synchronous Asynchronous RGB Display Receiver Card 5A-75B

classification：LED Display Video Processor -> Colorlight

market price：$0.00

Local price：$0.00

material：

color：RGB

Release date：2025-8-29 10:25:23

This is a Colorlight brand RGB display receiver card (model 5A-75B) suitable for both indoor and outdoor scenarios, supporting both synchronous and asynchronous working modes. Designed specifically for large-scale stage activities, it can efficiently receive and process signals, ensuring stable content presentation on RGB displays. It meets the needs for signal transmission and control of display screens in large-scale stage events, providing reliable support for stage visual effects.

Hotline：86 13699777670

Share to：QQ Zone Sina micro-blog Tencent micro-blog WeChat

Best-selling

P3.91 LED Display
classification：STAGE ALL KINDS LE..
P1.875 LED Display
classification：Small Pixel..
RGX P3 Rental Indoor LE...
classification：LED Display module..
RGX Indoor Mirror/Post ...
classification：COMMERCIAL DISPLAY..

Shenzhen RGX Electronics Co., Ltd.
Contact:ledrgx
Phone: 0755-23714515
Mobile: +86 18038069578
Whatsapp/wechat: +86 180 380 69578
Skype: levin-led
Q Q: 1006759127

After sale service: ledrgx@163.com

description

introduction to products

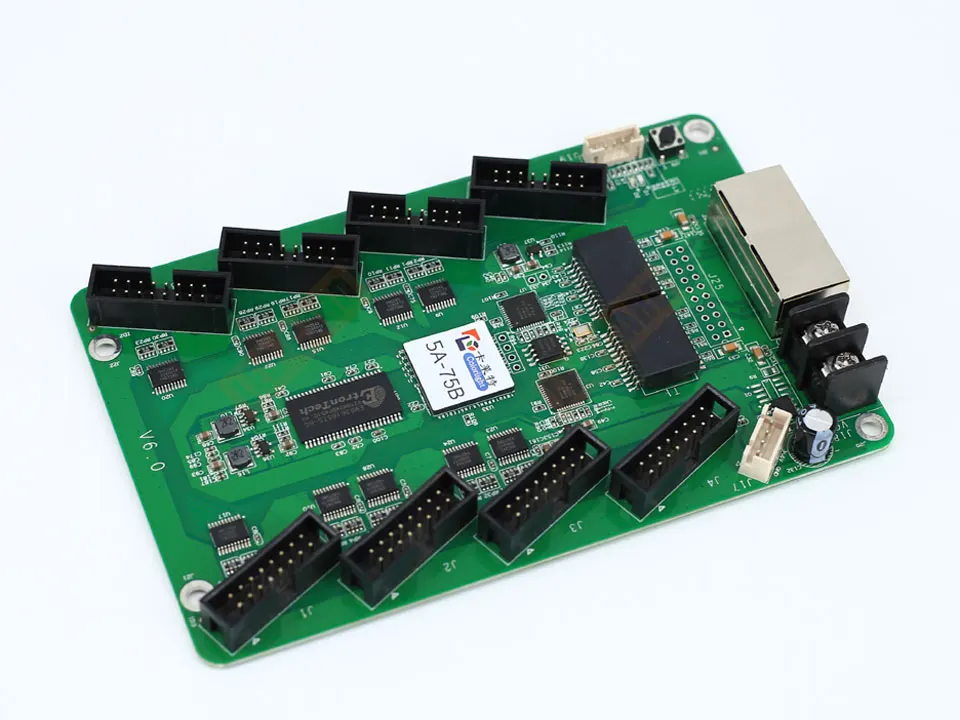

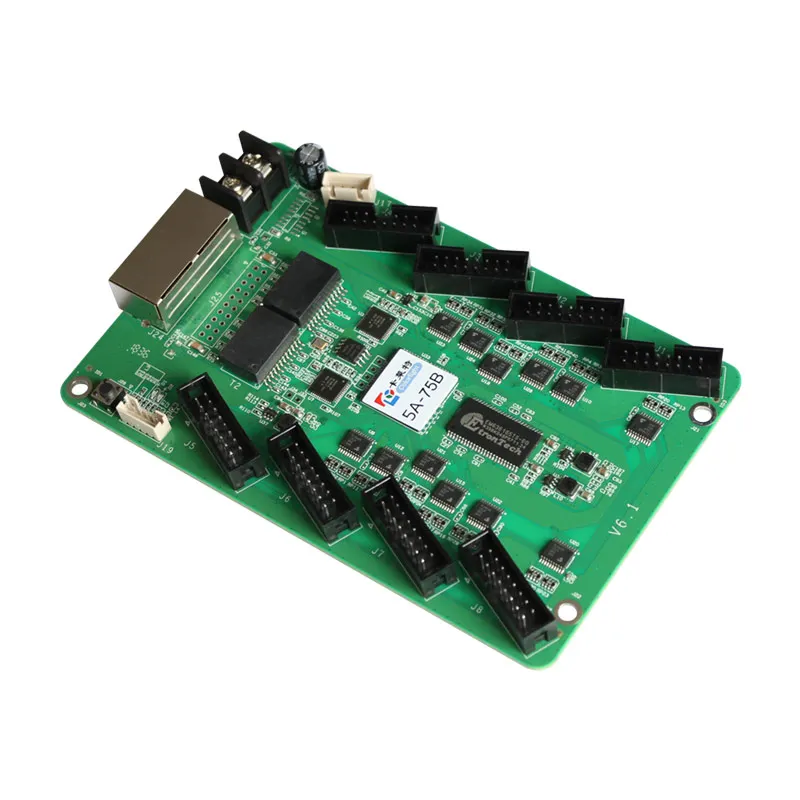

colorlight-5A - 75B

5A - 75B receiving card is a specially introduced high costeffect productof Colortight,

whichis designed forcustomers to save cost, reduce points offaultand failure rate. 5A-

75B single card canload up to 192×1024 pixels and supportup to 16 groups ofparallel

data or 32 groups of serial data.Based on the technical advantages of conventional

receiving cards, 5A-75B can be integrate into the HUB75 interfaces, which is more

reliable and more economical on the premise ofensuring high-quality display.

product feature
Display effect	8bit video source input. Color temperature adjustment. 240Hz frame rate. Better gray at low brightness.
Correction processing	Pixel-to-pixel calibration in brightness and chromaticity.
Easy maintenance	Highlight and OsD. Screen rotation. Data group offset. Any pump row and any pump columnand any pump point. Quick firmware upgrade and quick release of correction coefficients.
Stable and reliable	Loop redundancy. Ethernet cable status monitoring. Firmware program redundancy and readback. 7x24h uninterrupted work.

Product Paramenters

5A - 75B Product specification parameter

Physical Specifications
Hardware interface	HUB75interfaces
Ethernet port transmission rate	1Gb/s
Communication Distance	Recommended: CAT5e cable
Compatible with Transmission Equipment	Gigabit switch, Gigabit fber converter, Gigabit fiber switch
Size	LxWxH/145.2mm(5.72")x91.7mm(3.61")x18.4mm(0.72")
Weight	82g/0.18lbs
Electrical specification
Voltage	DC 3.8-5.5V，0.6A
Rated power	3.0W
Body Static Resistance	2KV
Operatingenvironment
Temperature	25°C~75°C(-13°F~167°F)
Humidity	0%RH-80%RH, no condensation
Storage environment
Temperature	40°C~125°C (-40°F~257°F
Humidity	0%RH-90%RH, no condensation
Package information
Packaging rules	Standard blister card tray device, 100 cards per carton
Package size	WxHxD/603.0mm(23.74")x190.0mm(7.48")x501.0mm(19.72")
Certification
RoHS

Compare the same series of products

name	E320	E120	E80	5A-75E	5A-75B
Maximum output data	32	24	16	32	16
control area	512*512	512*384	512*256	512*512	512*384
Exact accuracy	8bit	8bit	8bit	8bit	8bit
Brightness/chroma calibration	√	√	√	√	√
Common seam	√	√	√	√	√
Network cable detection	√	√	√	√	√
Data migration	√	√	√	√	√
Module construction	√	√	√	√	√
Full screen opposite-sex module	√	√	√	√	√
driver chip	Market mainstream chip
gray scale	Up to 65536 gray levels
Serial data transmission	Support R1G1B1,R16G16B16
Scan support	Any scan between 1 and 128

Application scenario

colorlight-5A - 75B products can be widely used in the field of LED commercial display, such as lamp pole screen, chain store screen, advertising machine, mirror screen, retail store screen, door screen, car Loading screen, no PC screen, etc.

Classification	Description
Market type	Advertising media: To be used for advertising and informationpromotion including bar screen and advertising machine. Digital signage: To be used for signage display in retail storesincluding retail store screens and door head screens. Commercial display: To display commercial information ofhotel, cinema and shopping mall, such as chain store screens.

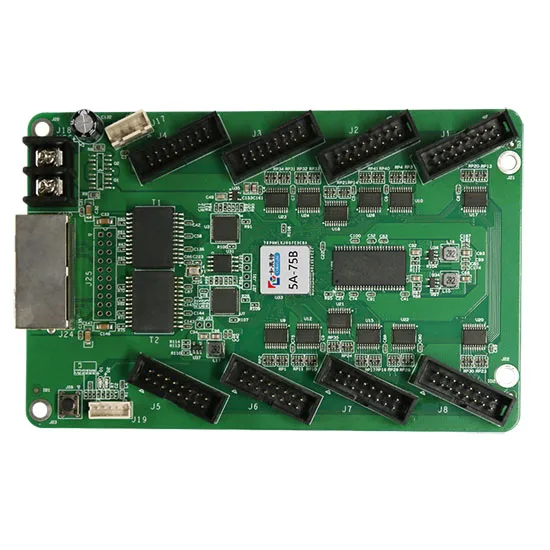

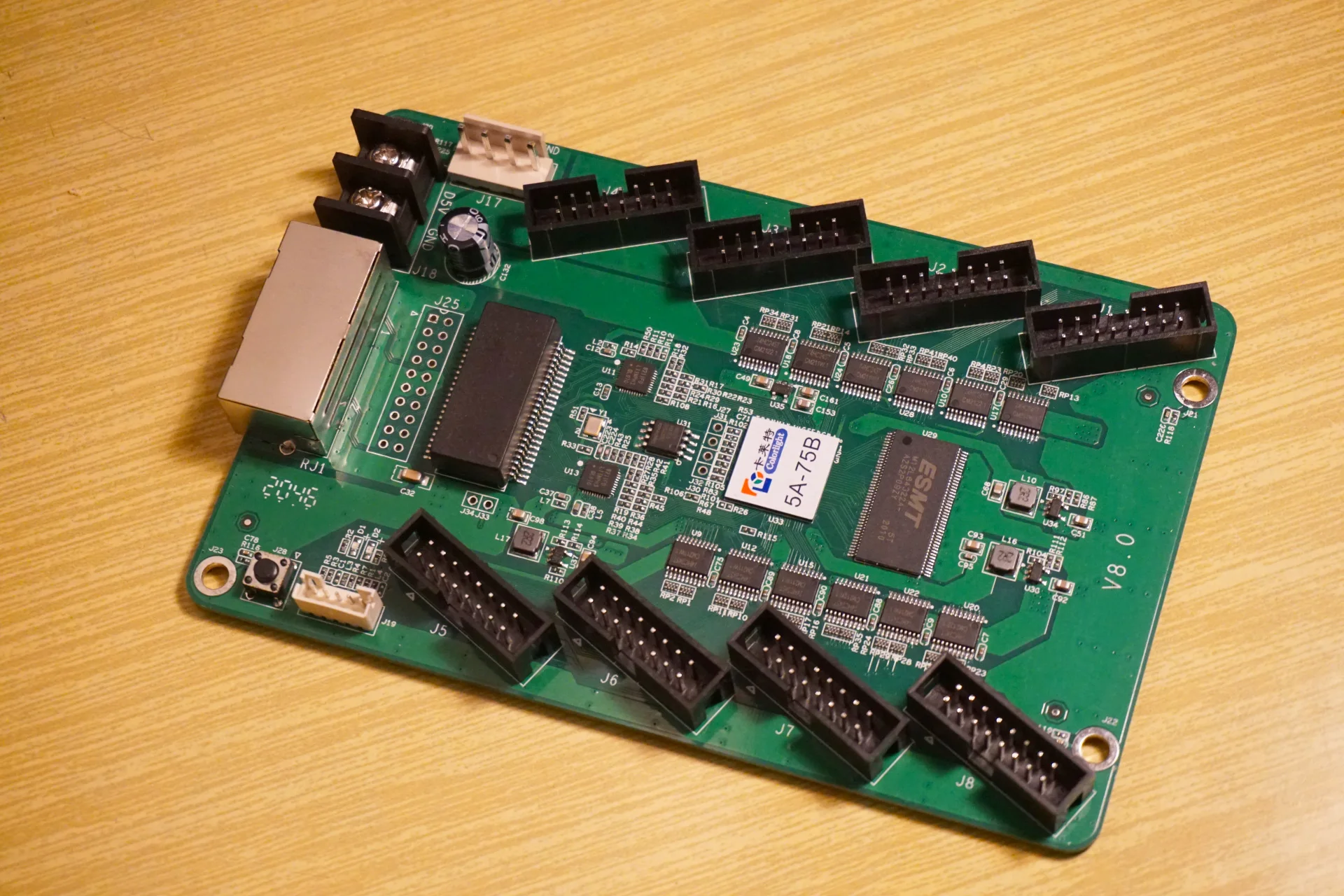

Picture display

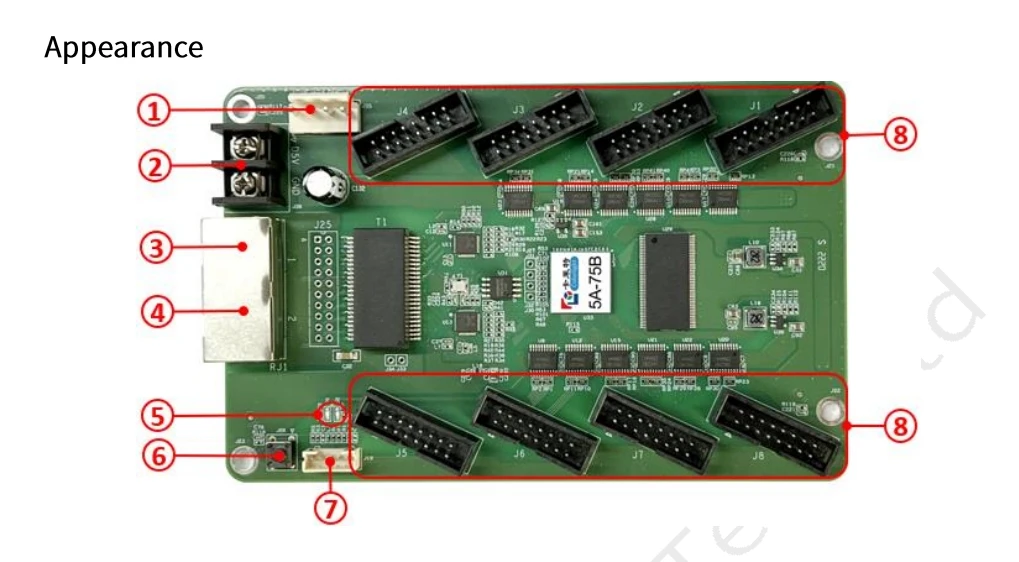

Product use

S/N	Name	Function
1	Power 1	Connect to DC 3.8v~5.5V power supply for the receiving card,only use one of them.
2	Power 2
3	Network port A	RJ45, for transmitting data signals, dual network ports canenter and exit at will, and the system will automatically identify.
4	Network port B
5	Power indicator light Dl	Red indicator light shows that the power supply is normal
	Signal indicator D2	Flashes once persecond	Receiving card: normal working,Ethernet cable connection: normal
		Flashes 10 timesper second	Receiving card: normal working, Cabinet:Highlight
		Flashes 4 timesper second	Receiving card: back upsender cards (Loop redundancystatus).
6	Test button	The attached test procedures can achieve four kinds of monochrome display (red, green, blue and white), as well ashorizontal,vertical and other display scan modes.
7	External interface	For indicator light and test button.
8	HUB pins	HUB75 interface J1~J8 are connected to the display modulesFor details, see the interface definition.

Packing&Shipping

We adopt the order - pick - delivery integration principle, that is, buy and send, customers place orders directly after the factory hair, so that products are protected.

In terms of packaging, we use air cases and cartons as one main packing body
