Interactive Outdoor Floor Standing Commercial Advertising Solution Waterproof LCD Advertise Machine
name:

Interactive Outdoor Floor Standing Commercial Advertising Solution Waterproof LCD Advertise Machine

classification:LCD splicing screen
market price:$0.00
Local price:$0.00
material:
color:RGB
Release date:2025-8-29 10:25:7
This is an interactive floor-standing commercial advertising solution designed for outdoor use, with a waterproof LCD advertising machine at its core. It features interactive functions, enabling interaction with users, and is equipped with a waterproof design to adapt to outdoor environments. It can be used for commercial advertising, providing an intuitive, vivid, and audience-engaging advertising display method for outdoor scenarios, meeting the outdoor application needs of commercial promotion.
    Hotline:86 13699777670
consulting
Contact us
Contact us

Shenzhen RGX Electronics Co., Ltd.
Contact:ledrgx
Phone: 0755-23714515
Mobile: +86 18038069578
Whatsapp/wechat: +86 180 380 69578
Skype: levin-led
Q     Q: 1006759127

After sale service: ledrgx@163.com

http://www.rgxled.com

description

Product Description

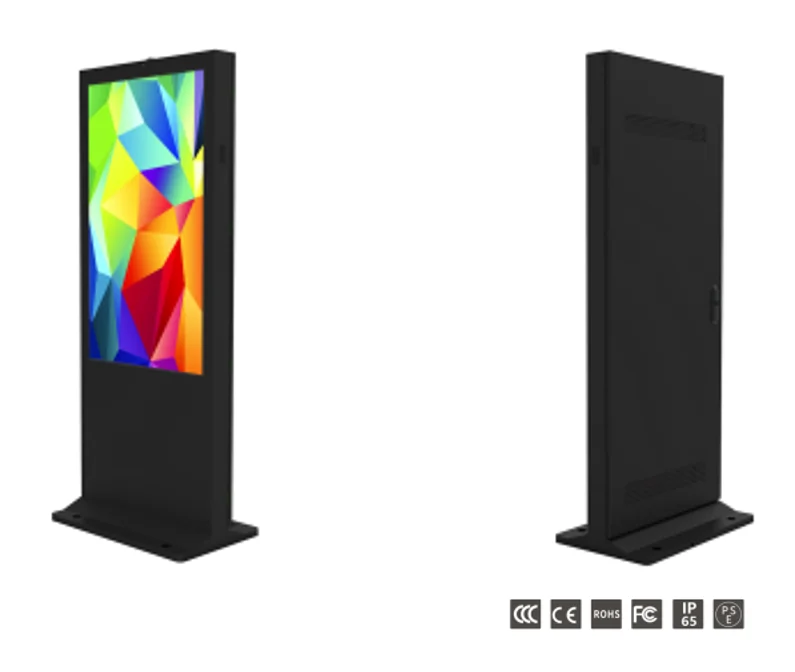

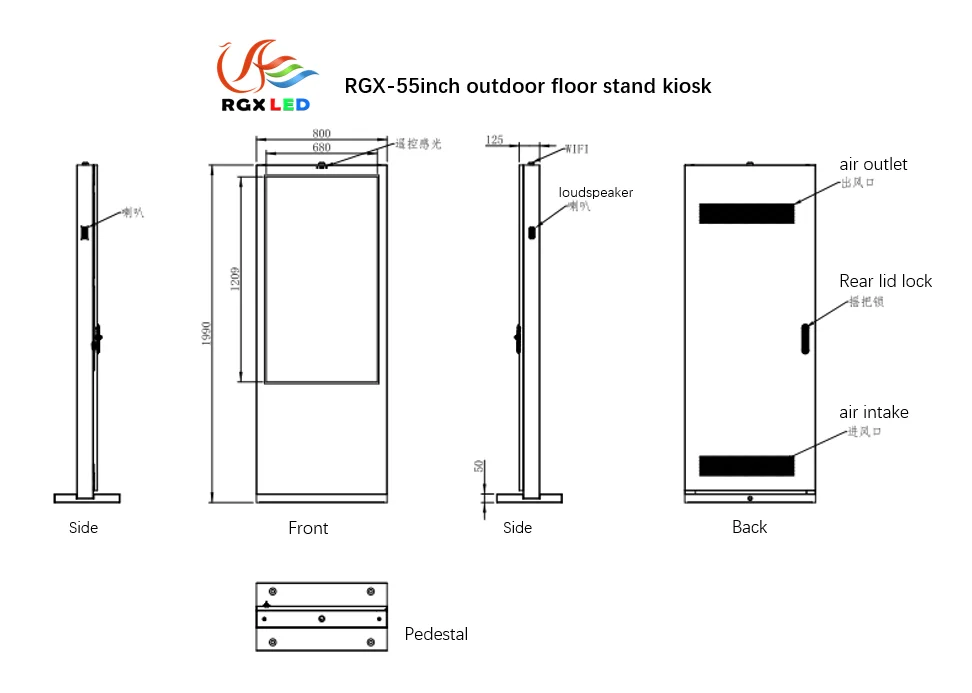

Outdoor advertising machine structure
1 Choose a 55-inch LG / BOE LCD screen.
2 Brightness requires:2000 cd / ㎡, with ambient automatic light sense and toughened explosion-proof glass.
3 Modular design of internal structure, reinforcement, neat line, the whole machine can resist 12 typhoon, the machine is made of galvanized steel plate, spray paint process using double layer spray outdoor powder.
4 The whole machine adopts high-quality fan heat dissipation, lightning protection, overload, over voltage, over current and over temperature protection equipment, and the structure adopts rain, dustproof and sun exposure design.

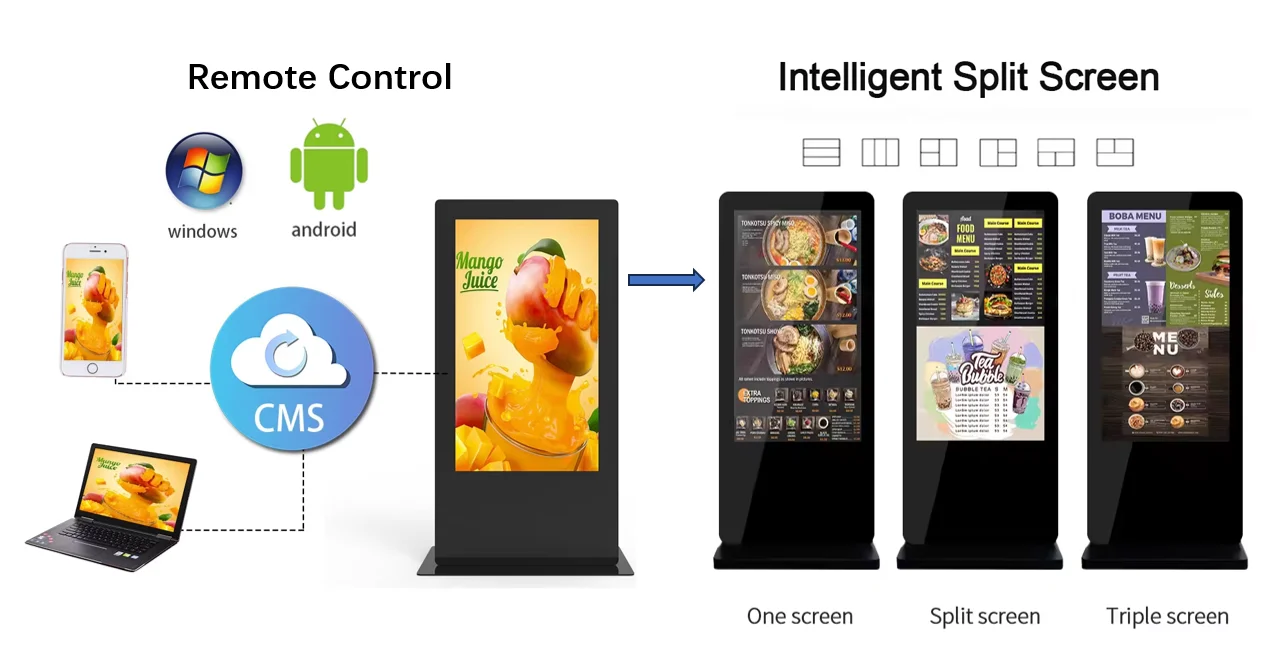

5 Function needs: use industrial grade Android motherboard, support WIFI, RJ 45 interface, 4G networking (optional), can control multiple or single device, support full HD 1920x1080 decoding.
6 Nanometer touch or capacitive touch (optional), 10-point touch control, touch control deviation of 2mm, energy consumption of 1.5W, drive-free, light transmittance of more than 93%, transmission mode of USB2.0
Product Features
Outdoor advertising machine features
Model appearance: standard shell, according to customer needs, design a variety of different appearance, novel design, diverse style, high-grade extraordinary.
Timed backlight: support 3 groups of backlight timing control in different time periods, support Monday to Sunday optional working status, and support Android APP interface operation.
Intelligent temperature control: intelligent temperature control system, to maintain the constant temperature and dry environment inside the fuselage, to prevent fog and condensate phenomenon.

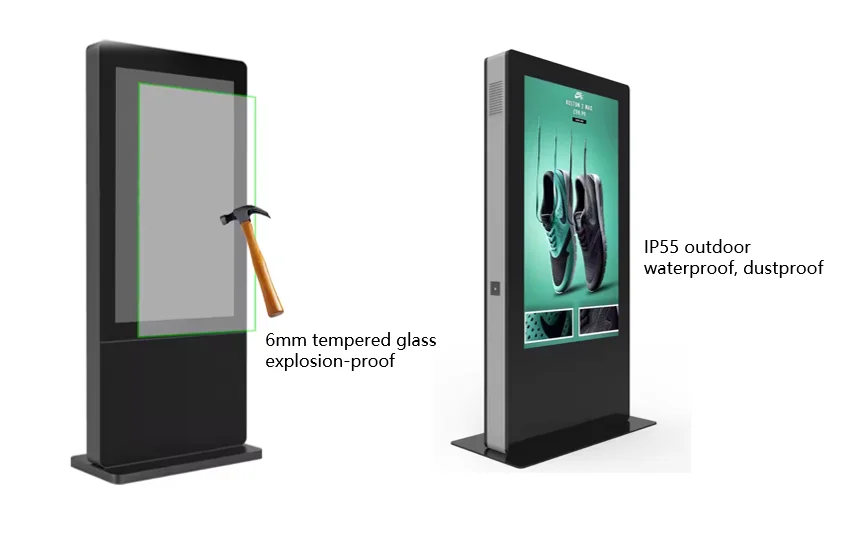

Dust-proof and waterproof: the whole machine airtight design to prevent external dust and water from entering the interior, meet the IP55 grade standard.
Sunscreen and explosion-proof: the shell is galvanized steel sheet, with special outdoor powder paint, waterproof sunscreen, corrosion protection and explosion-proof and professional surface technical treatment; it can be used outdoors for 10 years.
High definition and high brightness: high score defense rate, high contrast, high brightness, greatly improve the sense of picture hierarchy, 16.7M color, the picture is more natural, more delicate.
178° wide view angle
Enjoy a clear new horizon, full-view viewing.

Specification

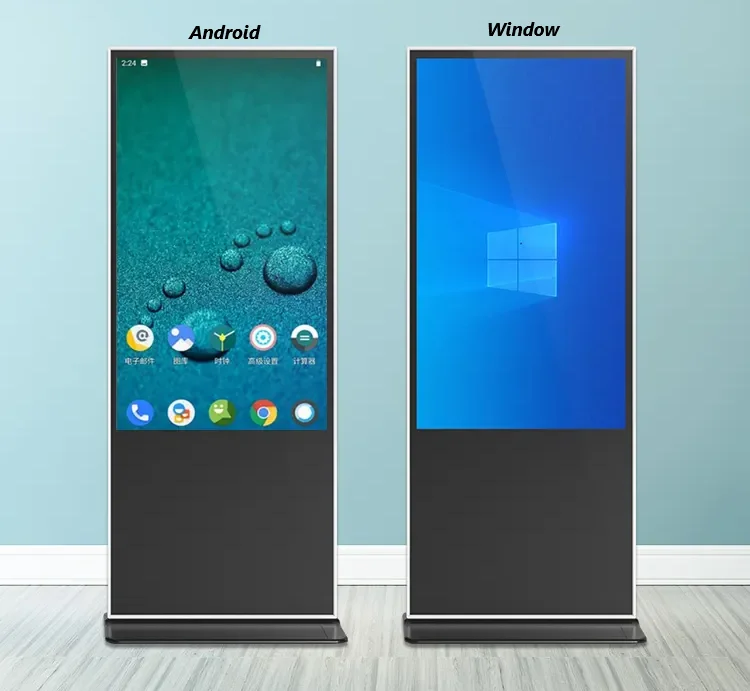

Android

Windows
Display size
35inch
Display size
55inch
Display area
1209*680mm
Display area
1209*680mm
Show the proportion
16:9
Show the proportion
16:9
Resolution ratio
1920*1080
Resolution ratio
1920*1080
Luminance
2000cd/sqm
Luminance
2000 cd/sqm
Contrast ratio
1200 : 1
Contrast ratio
1200:1
Visual angle
178°/178°
Visual angle
178°/178°
CPU
RK 3288/RK 3568
CPU
154 generation (13.17 optional)
Internal storage
2 GDDR (4G and 8G optional)
Internal storage
4G (8G, 16G optional)
Caliche
16G Flash (32G, 64G and 1 28G optional)
Caliche
128G (256G, 512G optional)
Joggle
USB2.0*4   RJ45*1
Joggle
USB2.0*4  RJ45*1
Edition
Android 7.1 and above
Edition
WINDOWS7 / WINDOWS10 (not genuine)
Video interface
LVDS/HDMI output
Video interface
LVDS/HDMI output
Levels of protection
IP55
Levels of protection
IP55
Cover glass
6mm tempered and explosion-proof glass
Cover glass
6mm tempered and explosion-proof glass
Brightness control
Automatic photosensitive system
Brightness control
Automatic photosensitive system
Sound power
8 O. M. 210W
Sound power
8 O. M. 210W
Radiation system
Automatic temperature sensing and stepless speed control intelligent fan
Radiation system
Automatic temperature sensing and stepless speed control intelligent fan
Working temperature
-30°C to +50°C
Working temperature
-30°C to +50°C
Working humidity
5% to 90%
Working humidity
5% to 90%
Working life
50000h
Working life
5000 h
Source
220V
Source
220V
Power
400W
Power
400W
The above is for reference only, the specific to the physical object shall prevail

Product use

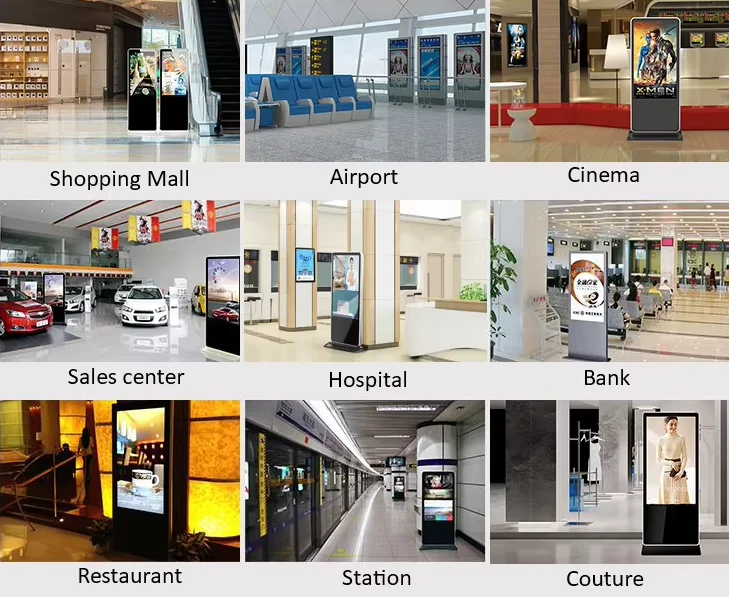

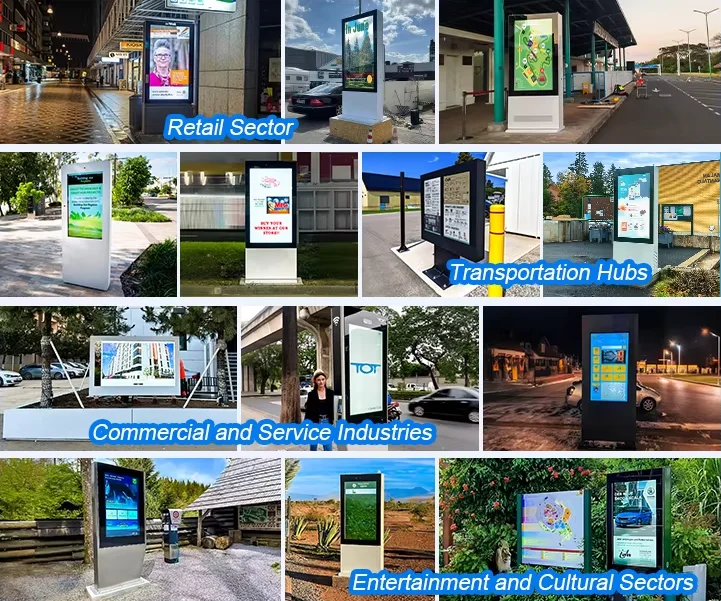

RGX-Outdoor floor stand kiosk is widely used in: large shopping malls, hospitals, schools, apartments, chain stores, supermarkets, star hotels, restaurants, office buildings, cinemas, gyms, clubs, subway, airport, exhibition hall, etc.

Packing & Delivery

FAQ
1. How can I place an order? Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time. For designing or further discussion, it is better to contact us with Skype/email /phone, in case of any delays. . 2 What kind of display do we provide? We have indoor/outdoor/mobile LED /rental LED display /LED stage/ Advertising LED display for you choose. 3. What about the lead time for an order? Always: 10-17 days, as your order quantity, sometimes we have stock, can delivery within 7 days 4. What about the warranty? We have Three years quality guaranteed, spare parts such as led module, receiving card, control card, power supply are damaged not cause of artificial damaged, then it’s free maintenance and ship back new ones for replacement. 5.How about the quality? Our led products must be testing of at least 72 hours before shipping, from purchase raw materials to ship ,Each step has strict quality control systems to ensure led display with good quality
