Model No. |
RGX-65inch LCD video wall |
|
Panel Size |
65" |
|
Brightness |
500nits -1000nits / sqm |
|

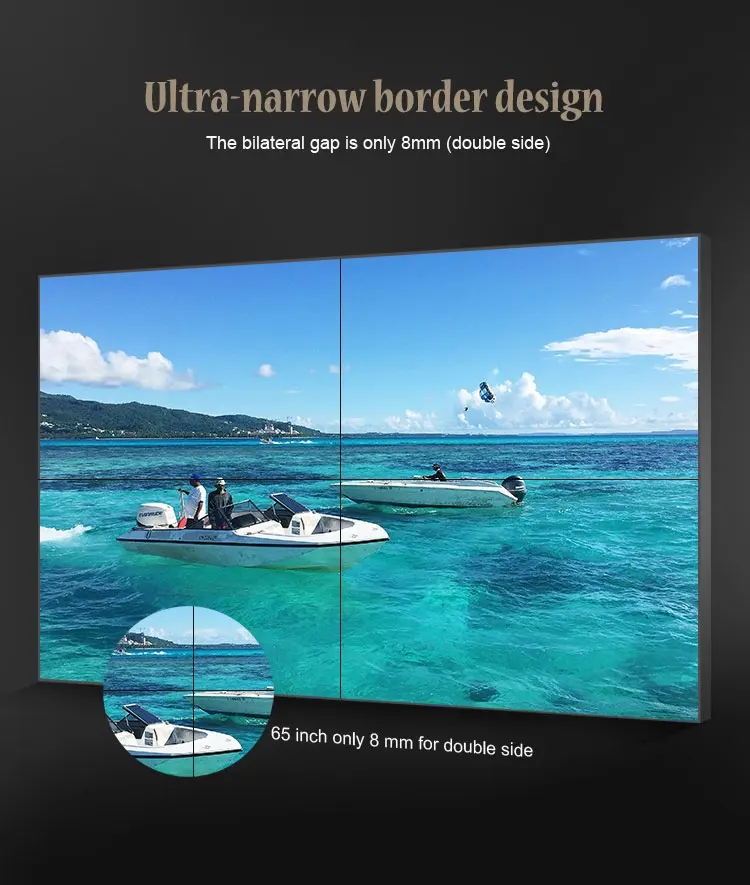

Bezel |
8mm (double side) |
|
Maximum Power Consumption (W ) |
220 |
|
Product dimension L*W*H (MM) |
1432.4*807.9*97.3 |
Honeycomb Box dimension
L*W*H (MM) |
1620*995*360 |
|
NW (kgs ) Two pcs in one carton |
59.6 |
|
GW (kgs)Two pcs in one carton |
75.65 |
|
Aspect Ratio |
16:9 |
|
Max Resolution Support |
3840*2160 |
|
Color |
8Bit,16.7M |
|
Contrast |
3500 |
|
Visual Angle (H/V) |
180° |
|
Response Time |
≤6ms |
|
Life(hrs) |
>100,000(hrs) |
|
Input and output |
|
DVI |
1 |
|
HDMI |
1 |
|
VGA |
1 |
|
YPbPr |
1(BNCx3) |
|
S-video |
1(BNCx2) |
|
Composite Video Input/(AV) |
3(BNCx3) |
|
Composite Video Output |
2(BNCx2) |
|
Control signal input and loop out |
RS232(RJ45-8) |
|

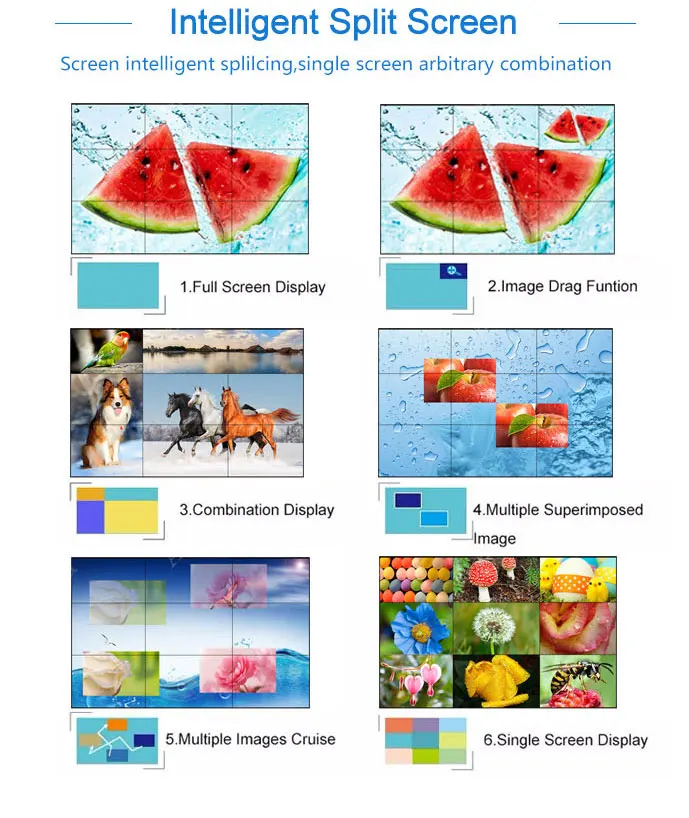

Split Screen |
Support Picture in Picture(PIP/POP) |
|
Power Supply |
AC100V~240V |
|
Standby Power Consumption |
<=3W |
|
Working Temperature |
0℃~50℃ |
|
Working Humidity |
10%-90% |
|

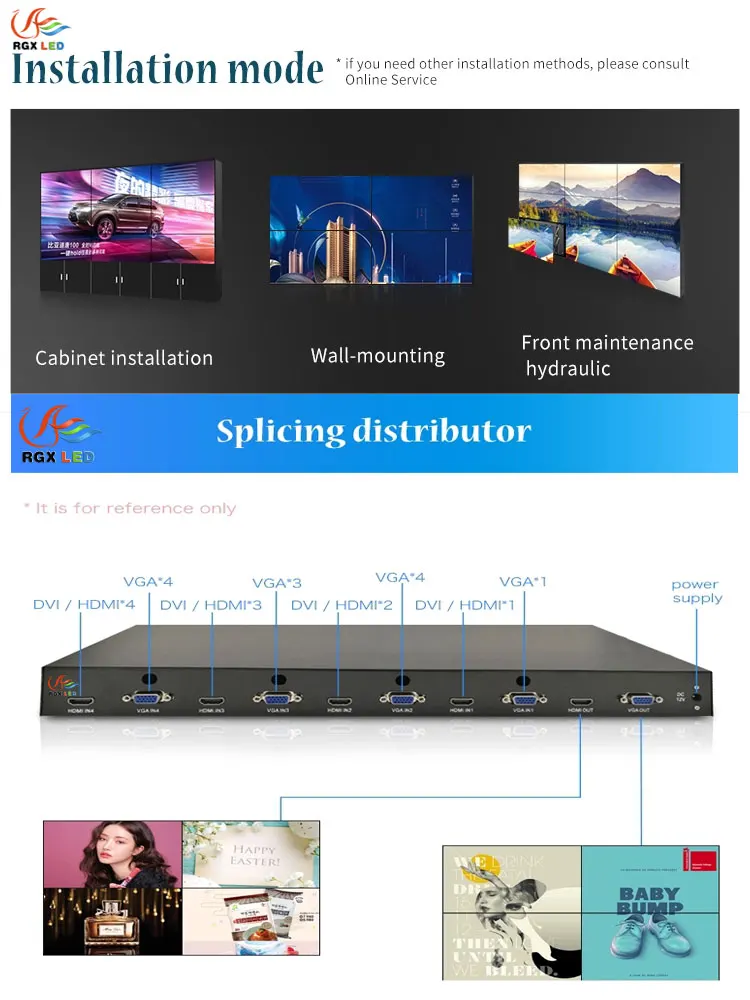

Video Wall Controller(Built-in each Screen) |
|
Model No. |
|
|
Input |
CVBS |
3*BNC inputs, support PAL/NTSC all formats, 2*BNC loop outputs |
|
VGA |
1*D15 port, support SVGA/XGA/WXGA |
|
YPbPr/YCbCr |
1* YPbPr/YCbCr input, support PAL/NTSC all formats, and 720P,1080I, HDTV |
|
Y/C |
2*BNC inputs, support PAL/NTSC all formats |
|
Output |
LVDS |
Support signal or double LVDS output, and WUXGA (1920*1080) display |
|
Operate mode |
Panel key operation(needs customization) |
|
Standard RS232 port( provide free control software) |
|
Infrared Remote Control Operation |
|
Engineering software |
Customize
d
|
|
Working temperature |
0~70 ℃ |
|
working humidity |
5~95 %RH |
|
AC voltage power supply |
100-240V/50, 60Hz |
|
power consumption |
Max 300W,according to different Screen models |
