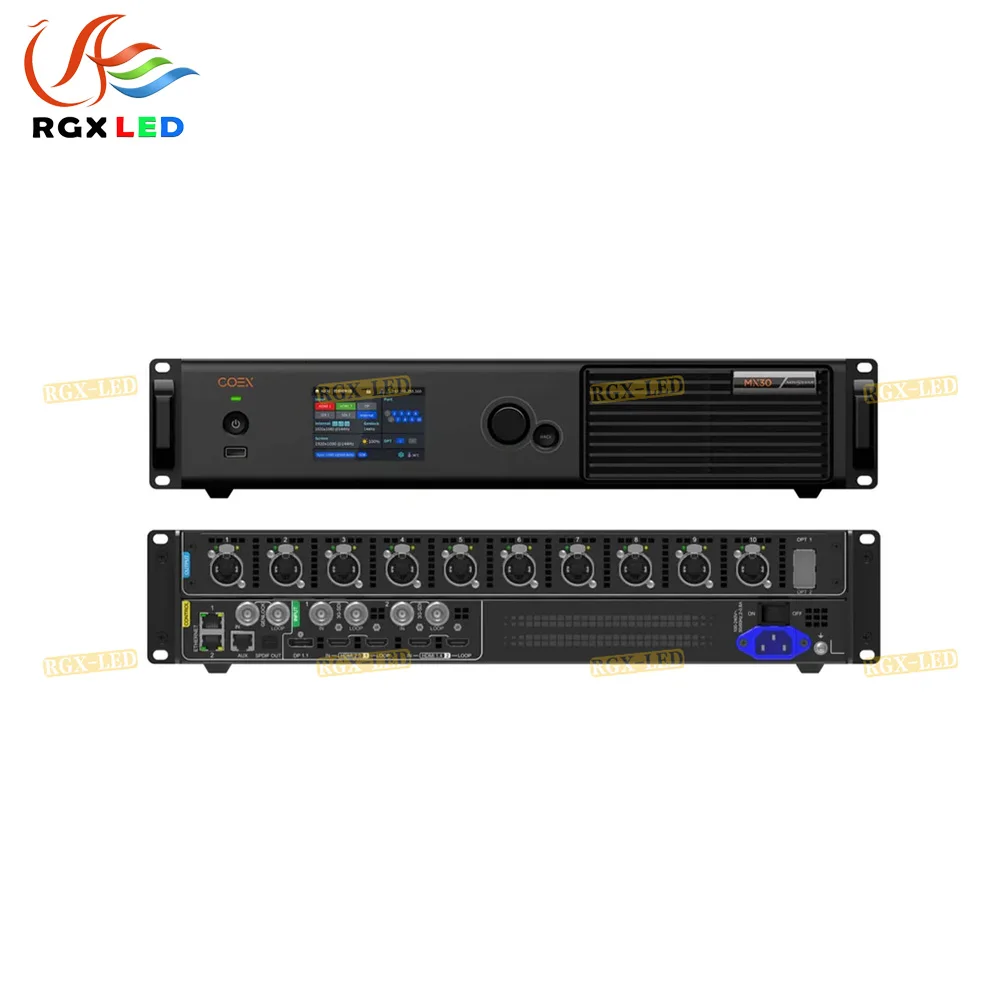

Video Control Server Novastar COEX Series MX30

classification：Novastar series Product -> Novastar MX series

market price：$0.00

Local price：$0.00

material：MX30

color：RGB

Release date：2025-8-29 10:25:45

The Novastar COEX Series MX30 is an all - in - one video control server that combines video processing and control functions in a single unit. It comes with a rich variety of video input interfaces, such as 1 HDMI 2.0 (capable of up to 4096×2160 @ 60Hz), 1 HDMI 1.4, 1 DP 1.1, and 2 3G - SDI ports, ensuring compatibility with diverse video sources. On the output side, it features 10 ethernet ports that can support up to 6.5 million pixels and 2 10G optical ports for seamless transmission to large - scale LED displays. Paired with the new Vision Management Platform (VMP) software, the MX30 offers users an intuitive and efficient operation experience. It also has advanced features like genlock for synchronization, 14 - channel color correction for accurate color reproduction, full greyscale calibration for uniform display, and low latency for real - time applications.

Hotline：86 13699777670

Share to：QQ Zone Sina micro-blog Tencent micro-blog WeChat

Best-selling

P3.91 LED Display
classification：STAGE ALL KINDS LE..
P1.875 LED Display
classification：Small Pixel..
RGX P3 Rental Indoor LE...
classification：LED Display module..
RGX Indoor Mirror/Post ...
classification：COMMERCIAL DISPLAY..

Shenzhen RGX Electronics Co., Ltd.
Contact:ledrgx
Phone: 0755-23714515
Mobile: +86 18038069578
Whatsapp/wechat: +86 180 380 69578
Skype: levin-led
Q Q: 1006759127

After sale service: ledrgx@163.com

description

introduction to products

Novastar-MX30

The MX30 is an all-in-one LED display controller in the brand-new control system COEX series of Xi’an NovaStar Tech Co., Ltd.(hereinafter referred to as NovaStar). This controller integrates video processing and video control into one box and offers rich video input connectors (HDMI 2.0, HDMI 1.4, DP 1.1 and 3G-SDI), 10x Ethernet output ports and 2x 10G optical ports. It can also work with the brand-new software VMP (Vision Management Platform) to provide a better operation and control experience.

MX30 Features

Input and output
port	Multiple types of inputs	− 1x HDMI 2.0 (with loop through) − 1x HDMI 1.4 (with loop through) − 1x DP 1.1 − 2x 3G-SDI (with loop through)
	Video source input	10bit/8bit
	Three output interfaces	− 10x Gigabit Ethernet ports, load capacity up to 6.5 million pixels − 2x 10G optical ports − 1x SPDIF digital audio port
	Three control interfaces	− 1x Genlock signal input (with loop through) − 2x Ethernet control ports −1x Auxiliary port

Product Paramenters

MX30 Product specification parameter and Video Source Features

Specifications
Electrical Parameters	Power input	100-240V~, 50/60Hz, 2- 0.8A
	Max power consumption	55W
Operating Environment	Temperature	-20℃～+50℃
	Humidity	0% RH to 80% RH, non-condensing
Storage Environment	Temperature	–30ºC to +80ºC
	Humidity	0% RH to 95% RH, non-condensing
Physical Specifications	Dimensions	482.6 mm × 94.2 mm × 466.7 mm
	weight	7.2kg.
	Gross weight	10.2 kg Note: It is the total weight of the product, accessories, and packing materials packed according to the packing specifications.
Packing Information	Packing box	660.0 mm × 570.0 mm × 210.0 mm, kraft paper box
	Accessory box	408.0 mm × 294.0 mm × 51.0 mm, white cardboard box
	Accessories	1x Power cord 1x Ethernet cable 1x HDMI cable 1x DP cable 1x Certificate of Approva
IP Rating	IP20 (Please prevent the product from water intrusion and do not wet or wash the product).

Application scenario

Novastar-MX30 products can be widely used in the field of LED commercial display, such as lamp pole screen, chain store screen,advertising machine, mirror screen, retail store screen, door screen, car Loading screen, no PC screen, etc.The following figure shows the text and picture

Function comparison between MX series and KU series

product name	KU20	MX20	MX30	MX40 Pro
Carrying capacity	3.9 million	3.9 million	6.5 million	Nine million
Input width and height limit	Max width 3840; Up to 2560	Max width 3840; Up to 2560	Max width 8192; Up to 7680	Max width 8192; Up to 8192
Input interface	1x HDMI 1.3	2xHDM1 1.3 1x3G-SDI	1xHDMI 2.0 1xHDMI 1.4 1xDP1.1 2x3G-SDl	3xHDM 2.0 1xDP1.2 1x12G-SDl
Output interface	6x network port 1x10G optical fiber port 1xHDM1.3 LOOF 1xSPDIF(reserved)	6x network port 2x10G optical fiber port 2xHDMI1.3 LOOp 1x3G SDI LOOP 1xSPDIF(reserved)	10x network port 2x10G optical fiber port 1xHDMI2.0 LOOP 1xHDM.4 LOOP 2x3G SDI LOOP 1xSPDIF(reserved)	20x network port 4x10G optical fiber port 3xHDmi 2.0 LOOP 1 x 12G-SDI LOOP. 1xSPDIF(reserved)
Control mode	Gigabit Ethernet port /TCP/IP	Gigabit Ethernet port /TCP/IP	Gigabit Ethernet port /TCP/IP	Gigabit Ethernet port /TCP/IP
Working mode	Independent master/video controller	Independent master/video controller	Independent master/video controller	Independent master/video controller
One-click zoom	√	√	√	√
Layer number	1	3	3	4
Genlock	---	√	√	√
High level input source information	8bit/10bit(custom required)	8bit / 10bit	8bit / 10bit	8bit / 10bit / 12bit
Frame rate adaptive	23.98/24/25/29.97/30/48/50/59.94/60/71.93/72/75/100/119.88/120 hz (only A10s Pro receiving card support, The supported driver IC is ICND2065 ICND2055 MBI5253A MBI5253B MBI5754B MBI5264 MBI52648 MBI5264C CFD555. It is necessary to use the special screen configuration debugging tool provided by Nova to debug and generate driver IC parameters for different frame rates. NCP file for field use)	23.98/24/25/29.97/30/48/50/59.94/60/71.93/72/75/100/119.88/120 hz (only A10s Pro receiving card support, The supported driver IC is ICND2065 ICND2055 MBI5253A MBI5253B MBI5754B MBI5264 MBI52648 MBI5264C CFD555. It is necessary to use the special screen configuration debugging tool provided by Nova to debug and generate driver IC parameters for different frame rates. NCP file for field use)	23.98/24/25/29.97/30/48/50/59.94/60/71.93/72/75/100/119.88/120 hz (only A10s Pro receiving card support, The supported driver IC is ICND2065 ICND2055 MBI5253A MBI5253B MBI5754B MBI5264 MBI52648 MBI5264C CFD555. It is necessary to use the special screen configuration debugging tool provided by Nova to debug and generate driver IC parameters for different frame rates. NCP file for field use)	23.98/24/25/29.97 /30/48/50/59.94/6 0/71.93/72/75/100 /119.88/120 hz (only A10s Pro receiving card support, The supported driver IC is ICND2065 ICND2055 MBI5253A MBI5253B MBI5754B MBI5264 MBI52648 MBI5264C CFD555. It is necessary to use the special screen configuration debugging tool provided by Nova to debug and generate driver IC parameters for different frame rates. NCP file for field use)
No rectangular box restrictions	√	√	√	√
3D	—	—	—	√
HDR	—	—	HDR10 / HLG	HDR10 / HLG
Low latency (<1ms)	√	√	√	√
Image Quality Engine 2.0	(Only supported by A8S,A8S-N,A10s Pro receiving card, color analyzer CA410-VP427/CA410-P427/CA410-P427 for color gamut and brightness scale To order)	(Only supported by A8S,A8S-N,A10s Pro receiving card, color analyzer CA410-VP427/CA410-P427/CA410-P427 for color gamut and brightness scale To order)	(Only supported by A8S,A8S-N,A10s Pro receiving card, color analyzer CA410-VP427/CA410-P427/CA410-P427 for color gamut and brightness scale To order)	(Only supported by A8S,A8S-N,A10s Pro receiving card, color analyzer CA410-VP427/CA410-P427/CA410-P427 for color gamut and brightness scale To order)
Dynamic engine	—	—	—	√ (Support for A10s Pro receiving card only)
Full grey scale correction	√ (Only supported by A10s P0 receiver card, requires C3200 scientific camera for full grey scale correction)	√ (Only supported by A10s P0 receiver card, requires C3200 scientific camera for full grey scale correction)	√ (Only supported by A10s P0 receiver card, requires C3200 scientific camera for full grey scale correction)	√ (Only supported by A10s P0 receiver card, requires C3200 scientific camera for full grey scale correction)
Thermal compensation	√ (Only supported by A10s Pro receiving card)	√ (Only supported by A10s Pro receiving card)	√ (Only supported by A10s Pro receiving card)	√ (Only supported by A10s Pro receiving card)
Art-Net/SNMP	√	√	√	√
