name：

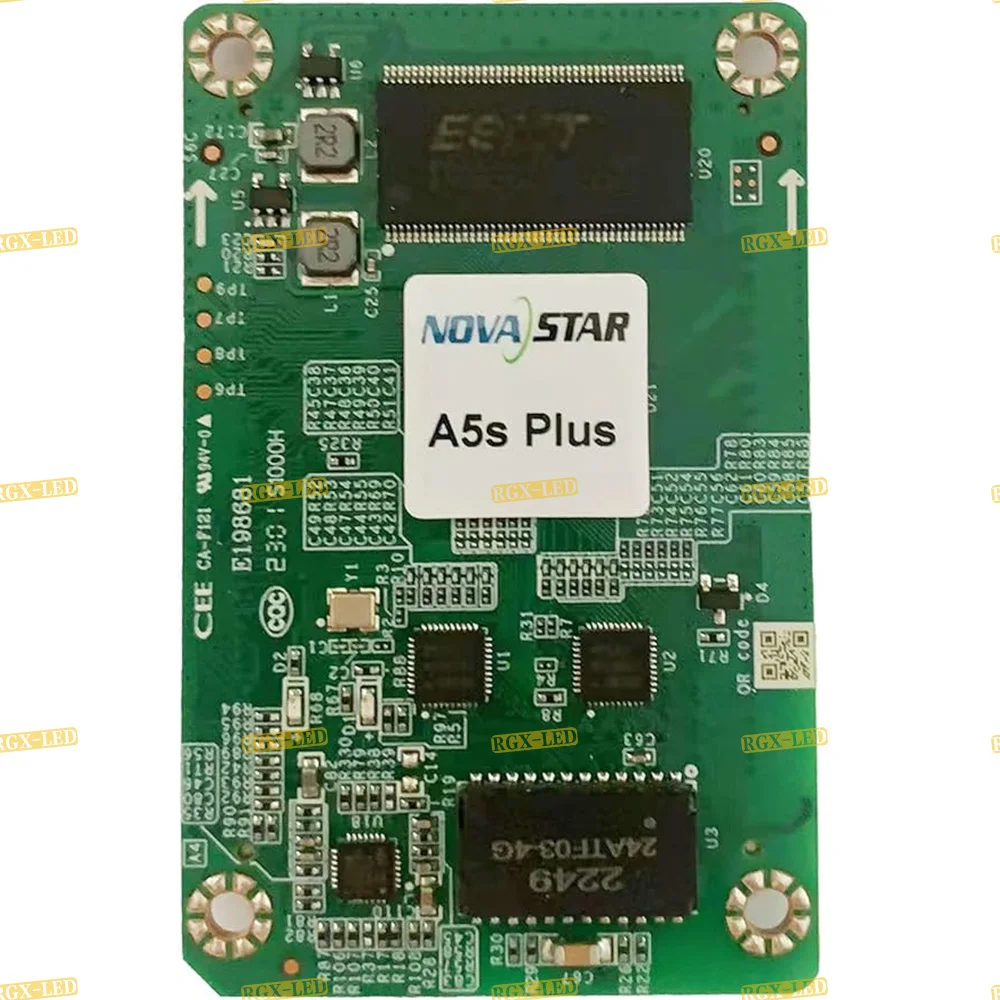

LED Display Receiving Card Nova NovastarA5S Plus

classification：Novastar series Product -> Novastar A5plus series

market price：$0.00

Local price：$0.00

material：A5plus

color：RGB

Release date：2025-8-29 10:25:53

This is the Novastar A5S Plus LED display receiving card, a high-performance miniaturized receiving card. Its core function is to receive and process control signals for LED screens, and drive the screen to display images accurately.

A single card supports a maximum pixel load of 512×384 (when used with Novalct v5.3.1 or later versions). It is equipped with features such as 18bit+ grayscale enhancement, multi-color gamut switching, and pixel-level brightness and chroma calibration, which can optimize image details and color consistency. Additionally, it supports 3D output and 90° incremental rotation, adapting to diverse display needs.

In terms of hardware, it adopts high-density connectors for dust and vibration resistance, and complies with the EMC Class B standard, ensuring strong stability. It is widely applicable to various LED display scenarios such as stage rentals and commercial advertising.

Hotline：86 13699777670

Share to：QQ Zone Sina micro-blog Tencent micro-blog WeChat

Best-selling

P3.91 LED Display
classification：STAGE ALL KINDS LE..
P1.875 LED Display
classification：Small Pixel..
RGX P3 Rental Indoor LE...
classification：LED Display module..
RGX Indoor Mirror/Post ...
classification：COMMERCIAL DISPLAY..

Shenzhen RGX Electronics Co., Ltd.
Contact:ledrgx
Phone: 0755-23714515
Mobile: +86 18038069578
Whatsapp/wechat: +86 180 380 69578
Skype: levin-led
Q Q: 1006759127

After sale service: ledrgx@163.com

description

introduction to products

Novastar- A5s Plus

The A5s Plus is a general small receiving card developed by NovaStar. A single A5s Plus supports resolutions up to

512×384@60Hz (NovaLCT V5.3.1 or later required). Supporting color management, 18bit+, pixel level brightness and
chroma calibration, individual gamma adjustment for RGB, and 3D functions, the A5s Plus can significantly improve
the display effect and user experience.
The A5s Plus uses high-density connectors for communication to limit the effects of dust and vibration, resulting in
high stability. It supports up to 32 groups of parallel RGB data or 64 groups of serial data (expandable to 128 groups
of serial data). Its reserved pins allow for custom functions of users. Thanks to its EMC Class B compliant hardware
design, the A5s Plus has improved electromagnetic compatibility and is suitable for various on-site setups.

product feature
Improve display	Color management: Supports standard color gamut (Rec.709 / DCI-P3 / Rec.2020) and Customize the color gamut to make the color display more accurate. Light by light chroma correction： With the Nova Nebula high precision calibration system, the light of each light point Degree and chroma calibration, effectively eliminate brightness differences and chroma differences Different, so that the brightness of the whole screen to achieve a highdegree of consistency. 3D: Output 3D images with the controller that supports 3D functions RGB IndependentGamma adjustment: With the controller that supports RGB independent Gamma adjustment and NovaLCT (V5.2.0 and above), adjust "red Gamma", "green Gamma" and "blue Gamma" respectively. Effectively control the display low gray uneven, white balance drift and other issues, so that the picture is more real. The screen is rotated in a multiple of 90° (0°/90°/180°/270°) Color management:Supports standard color gamut (Rec.709 / DCI-P3 / Rec.2020) and Customize the color gamut to make the color display more accurate. 18bit+:Improve the LED display grayscale by 4 times to avoid grayscale loss due to low brightness and allow for a smoother image. Low latency;For PWM class driver ics, the video source can be reduced at the receiving card end The delay is as low as 1 frame. For DCLK continuous classes PWM driver IC, if you need to support low latency function, you need to use the set Make firmware.
Improve maintainability	Correction factor: The correction factor is quickly uploaded to the receiving card to improve efficiency. Mapping 1.0: Displays the controller number, receiver card number, and network port information on a container to clearly obtain the location and cabling mode of the receiver card. Temperature and voltage monitoring: real-time monitoring of the receiving card's own temperature and voltage without other peripherals. Box body fluid display: display the temperature, voltage, single run time and total run time of the receiving card through the box LCD module. Error code detection: Detects the communication quality of the receiving card network port and records the number of error packets to help eliminate network communication risks. Read back of the same program: read back the same program of the receiving card and save it to the local. Configuration parameter read back: Read back the configuration parameters of the receiving card and save them to the local PC. Smart module (dedicated firmware program support) :With the intelligent module, it can realize the ID management of the lamp board, the storage of correction coefficient and module parameters, the monitoring of module level temperature, voltage and line communication status, the detection of LED bad spots, and the recording of module running time. Indicator board Flash management:For an indicator board with Flash, it can manage the information in the indicator board Flash, and store and read back the correction coefficient and indicator board ID. One-click Application Flash correction coefficient of the indicator board For an indicator board with Flash, if the network cable is off for a long time, press the self-test button on the container to upload the correction coefficient of the indicator board Flash to the receiving card Dual power supply status detection:When two power supplies are connected at the same time, the two power supplies can be detected Working state
Improve reliability	Loop backup: The receiver card is connected to the controller in a loop through the active and standby lines. When a fault occurs somewhere in the line, the screen body can still be displayed normally. Dual program backup: Two copies of the firmware program are saved at the factory of the receiving card to prevent the receiving card deadlock problem from abnormal updating process. Configure parameter dual backup:The receiving card configuration parameters are stored in both the application area and the working area of the receiving card The factory district. The user usually operates the configuration parameters of the application area The configuration parameters of the factory area can be restored to the application area. Dual card backup and condition monitoring:In scenarios with high reliability requirements, a single Hub board can be used simultaneously Connect the active and standby receiving cards. When the active receiving card is faulty, the standby receiving card is faulty The card will immediately take over the work of the main receiving card to ensure the normal display of the screen Yes. Configure parameter dual backup:The receiving card configuration parameters are stored in both the application area and the working area of the receiving card The factory district. The user usually operates the configuration parameters of the application area The configuration parameters of the factory area can be restored to the application area

Product Paramenters

A5s Plus Product specification parameter

Maximum Resolution	512×384@60Hz
Electrical Parameters	input voltage\Rated current	DC 3.8 V to 5.5 V 0.6A
	Rated power consumption	3.0W
Operating Environment	Temperature	–20°C to +70°C
	Humidity	10% RH to 90% RH, non-condensing
Storage Environment	Temperature	–25°C to +125°C
	Humidit	0% RH to 95% RH, non-condensing
Physical Specifications	Dimensions	70.0 mm × 45.0 mm × 8.0 mm
	Net weight	16.2 g Note: It is the weight of a single receiving card only.
	Gross weight	1.2 kg Note: It is the total weight of the products, printed materials and packing materials packed according to the packing specifications.
Packing Information	Packing specifications	Each receiving card is packaged in a blister pack. Each packing box contains 100 receiving cards.
	Packing box dimensions	378.0 mm × 190.0 mm × 120.0 mm

Application scenario

Novastar-A5s Plus products can be widely used in the field of LED commercial display, such as lamp pole screen, chain store screen, advertising machine, mirror screen, retail store screen, door screen, car Loading screen, no PC screen, etc.

Classification	Description
Market type	Advertising media: To be used for advertising and informationpromotion including bar screen and advertising machine. Digital signage: To be used for signage display in retail storesincluding retail store screens and door head screens. Commercial display: To display commercial information ofhotel, cinema and shopping mall, such as chain store screens.

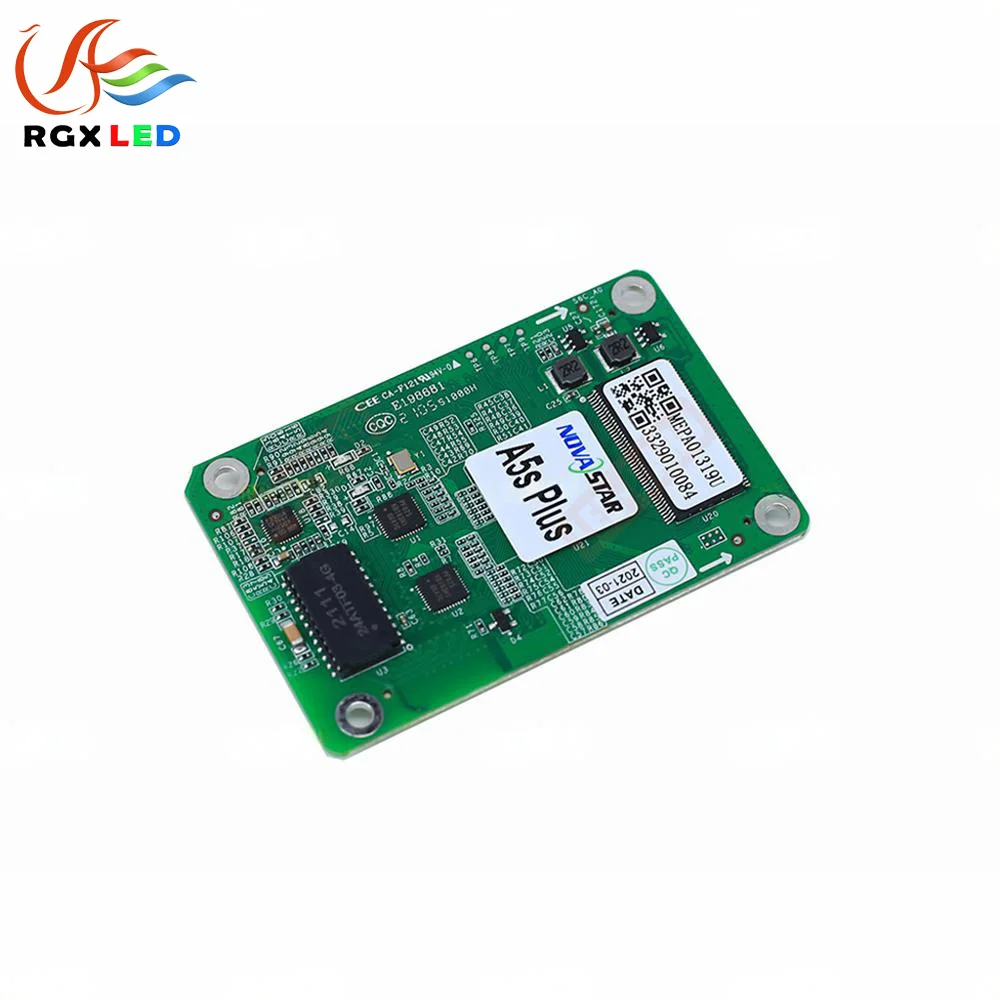

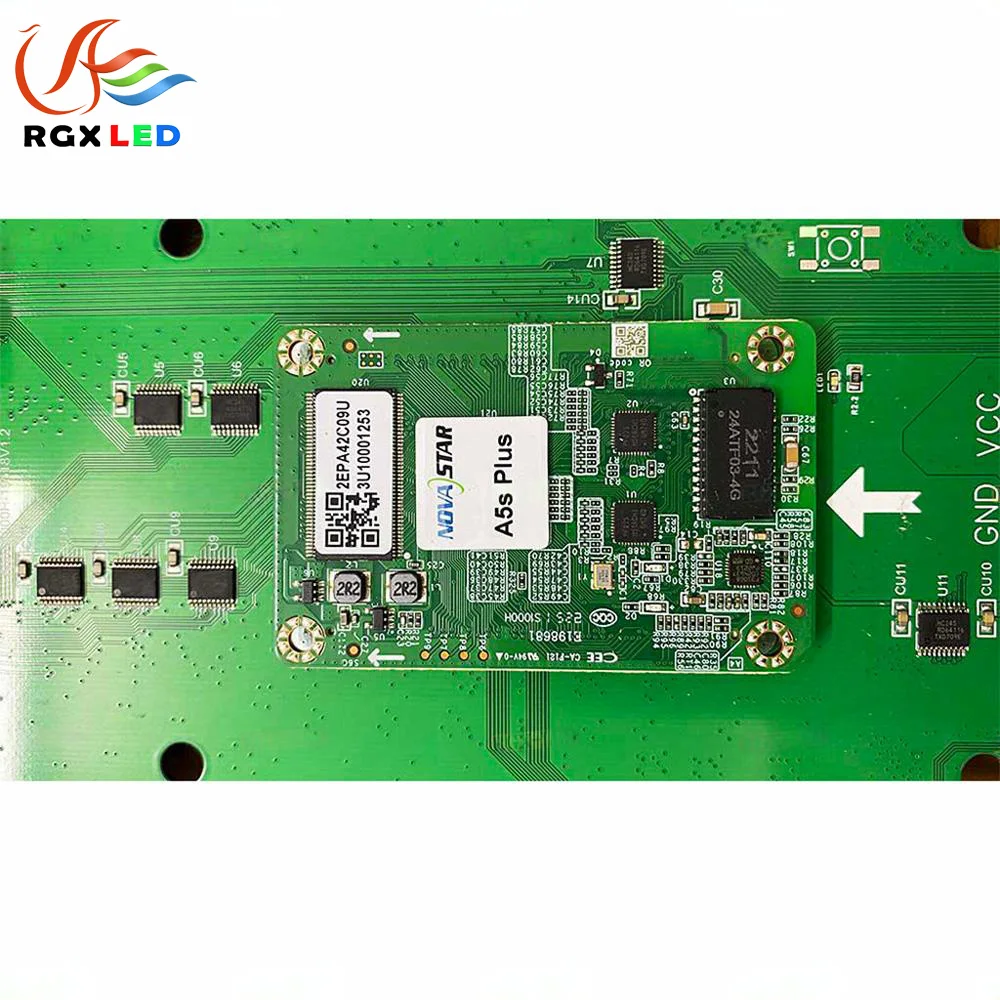

Picture display

Product use

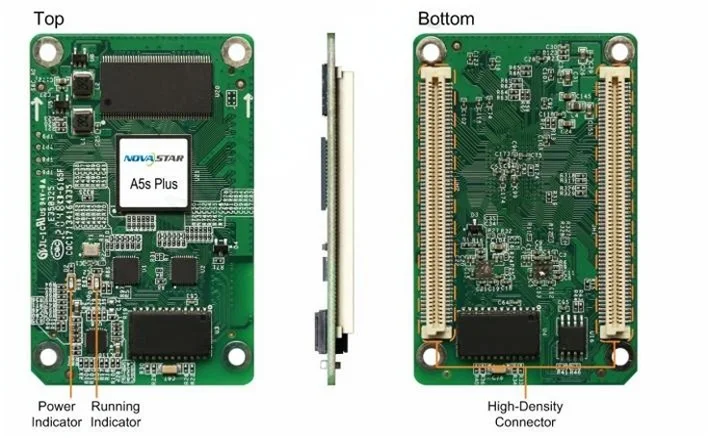

Indicator	Color	Status	Description
Running indicator	Green	Flashing once every 1s	The receiving card is functioning normally. Ethernet cable connection is normal, and video source input is available.
		Flashing once every 3s	Ethernet cable connection is abnormal.
		Flashing 3 times every 0.5s	Ethernet cable connection is normal, but no video source input is available.
		Flashing once every 0.2s	The receiving card failed to load the program in the application area and is now using the backup program
		Flashing 8 times every 0.5s	A redundancy switchover occurred on the Ethernet port and the loop backup has taken effect
Power indicator	Red	Always on	The power supply is normal.

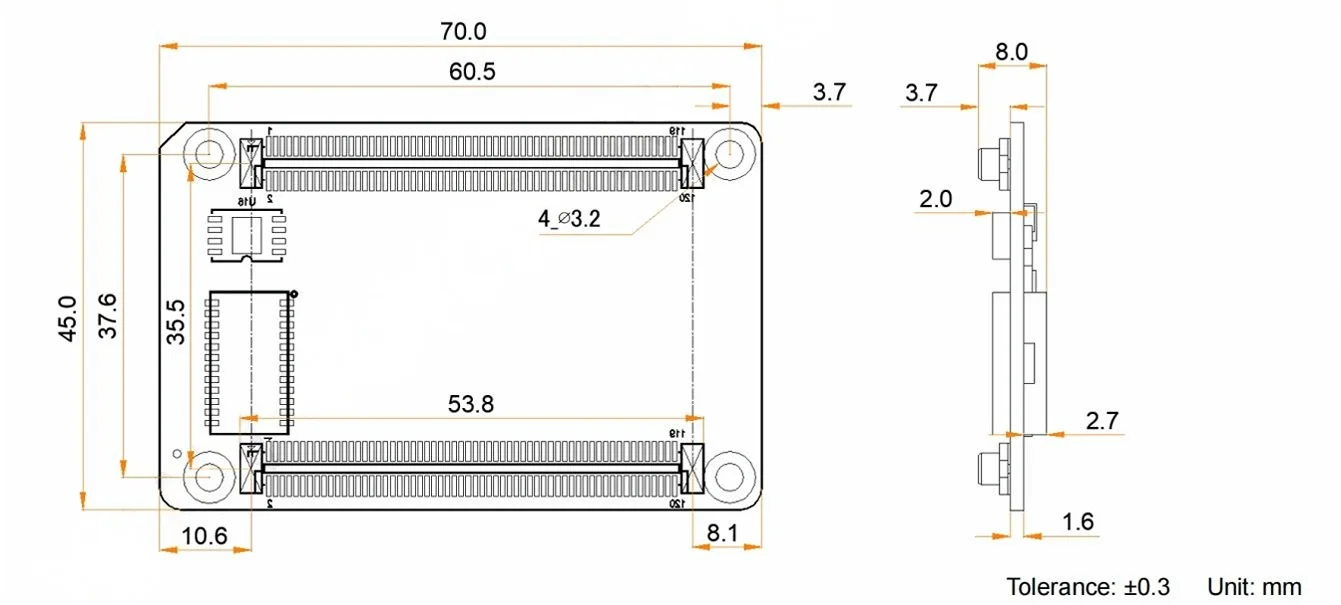

size

The board thickness is not greater than 2.0 mm, and the total thickness (board thickness + thickness of components

on the top and bottom sides) is not greater than 8.5 mm. Ground connection (GND) is enabled for mounting holes.

Packing&Shipping

We adopt the order - pick - delivery integration principle, that is, buy and send, customers place orders directly after the factory hair, so that products are protected.

In terms of packaging, we use air cases and cartons as one main packing body
