Full Color LED Video Display Receiving Card Novastar DH7516-Sprice-Shenzhen RGXLED Electronics Co., Ltd.

Your location：Home>>Product>>Novastar series Product>>Novastar DH series

name：

Full Color LED Video Display Receiving Card Novastar DH7516-S

classification：Novastar series Product -> Novastar DH series

market price：$0.00

Local price：$0.00

material：DH7516S

color：RGB

Release date：2025-8-29 10:25:44

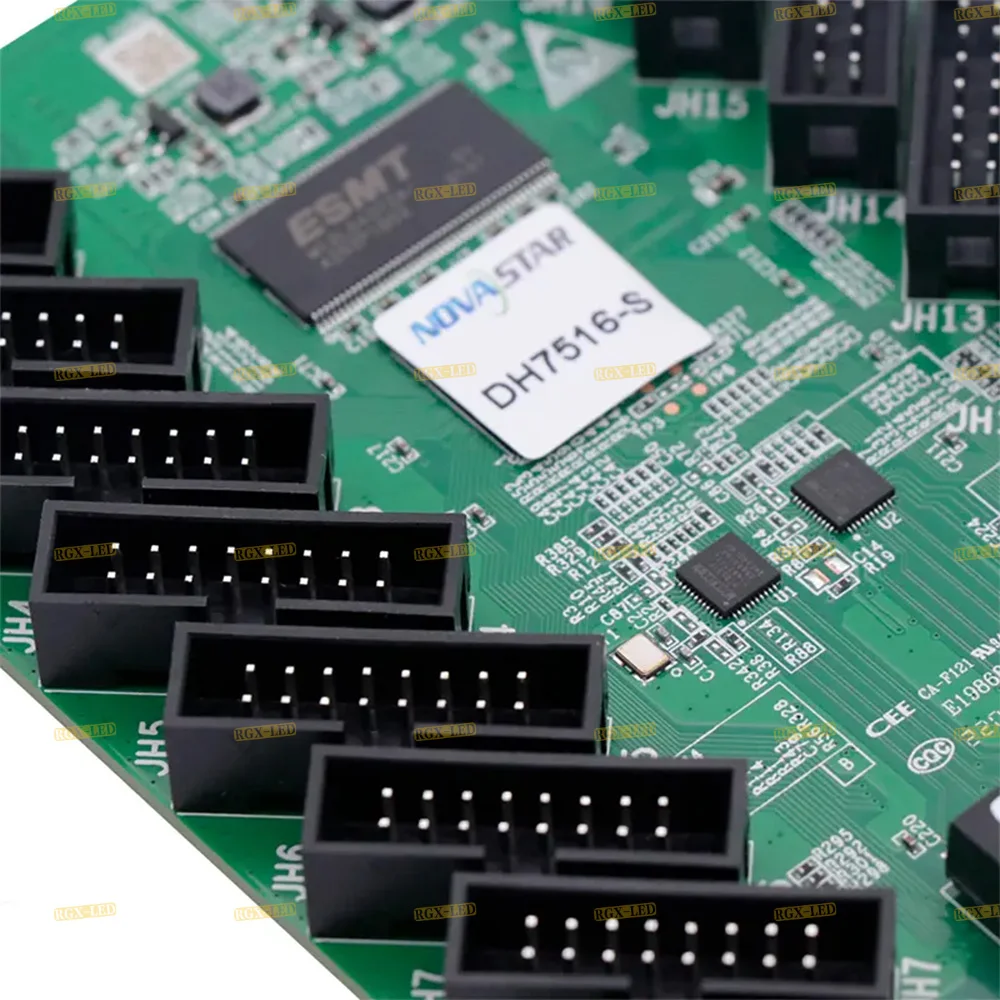

This is the Novastar DH7516-S full-color LED video display receiving card, whose core function is to receive and process video data for full-color LED screens. It supports a maximum single-card load resolution of 512×512@60Hz (for PWM-type driver ICs), is equipped with 16 HUB75E interfaces, and enables 32 groups of RGB parallel data transmission, making it suitable for the data reception needs of medium-to-large full-color LED screens.

It comes with image optimization features such as pixel-level brightness and chroma calibration as well as 3D display. Meanwhile, it supports real-time temperature and voltage monitoring, loop backup, and complies with EMC standards, allowing stable operation in complex environments. It provides reliable data processing support for various full-color LED video display projects.

Hotline：86 13699777670

Share to：QQ Zone Sina micro-blog Tencent micro-blog WeChat

Best-selling

P3.91 LED Display
classification：STAGE ALL KINDS LE..
P1.875 LED Display
classification：Small Pixel..
RGX P3 Rental Indoor LE...
classification：LED Display module..
RGX Indoor Mirror/Post ...
classification：COMMERCIAL DISPLAY..

Shenzhen RGX Electronics Co., Ltd.
Contact:ledrgx
Phone: 0755-23714515
Mobile: +86 18038069578
Whatsapp/wechat: +86 180 380 69578
Skype: levin-led
Q Q: 1006759127

After sale service: ledrgx@163.com

description

introduction to products

Novastar-DH7516S

The DH7516S is a cost-effective receiving card. For PWM driver IC, the maximum on-load resolution of single card is 512×384@60Hz; For general driver ics, the maximum on-load resolution of a single card is 384×384@60Hz. Support brightness correction, fast light and dark line adjustment, 3D, RGB independent Gamma adjustment, screen 90° multiple rotation and other functions, improve the screen display effect, improve user experience.

DH7516-S uses 16 standard HUB75E interfaces for communication, has high stability, and supports up to 32 sets of RGB parallel data, which is suitable for the construction of a variety of field environments.

product feature
Improve display	Brightness correction: the brightness of each light point is corrected to effectively eliminate the brightness difference, so that the brightness of the whole screen is consistent. Fast light and dark line adjustment: Adjust the light and dark lines caused by module splicing and box splicing to improve the visual obtrude caused by bright and dark lines 3D: Output 3D images with the controller that supports 3D functions RGB IndependentGamma adjustment: With the controller that supports RGB independent Gamma adjustment and NovaLCT (V5.2.0 and above), adjust "red Gamma", "green Gamma" and "blue Gamma" respectively. Effectively control the display low gray uneven, white balance drift and other issues, so that the picture is more real. The screen is rotated in a multiple of 90° (0°/90°/180°/270°)
Improve maintainability	Correction factor: The correction factor is quickly uploaded to the receiving card to improve efficiency. Mapping 1.1: Displays the controller number, receiver card number, and network port information on a container to clearly obtain the location and cabling mode of the receiver card. Temperature and voltage monitoring: real-time monitoring of the receiving card's own temperature and voltage without other peripherals. Box body fluid display: display the temperature, voltage, single run time and total run time of the receiving card through the box LCD module. Error code detection: Detects the communication quality of the receiving card network port and records the number of error packets to help eliminate network communication risks. Read back of the same program: read back the same program of the receiving card and save it to the local. Configuration parameter read back: Read back the configuration parameters of the receiving card and save them to the local PC.
Improve reliability	Loop backup: The receiver card is connected to the controller in a loop through the active and standby lines. When a fault occurs somewhere in the line, the screen body can still be displayed normally. Dual program backup: Two copies of the firmware program are saved at the factory of the receiving card to prevent the receiving card deadlock problem from abnormal updating process.

Product Paramenters

DH7516S Product specification parameter

Maximum Resolution	512×384@60Hz (PWM driver ICs) 384×384@60Hz (Common driver ICs)
Electrical Parameters	input voltage\Rated current	DC 3.8 V to 5.5 V 0.5 A
	Rated power consumption	2.5 W
Operating Environment	Temperature	–20°C to +70°C
	Humidity	10% RH to 90% RH, non-condensing
Storage Environment	Temperature	–25°C to +125°C
	Humidit	0% RH to 95% RH, non-condensing
Physical Specifications	Dimensions	145.7 mm × 91.5 mm × 18.3 mm
	Net weight	100.9 g Note: It is the weight of a single receiving card only.
Packing Information	Packing specifications	Each receiving card is packaged in a blister pack. Each packing box contains 100 receiving cards.
	Packing box dimensions	625.0 mm × 180.0 mm × 470.0 mm

Application scenario

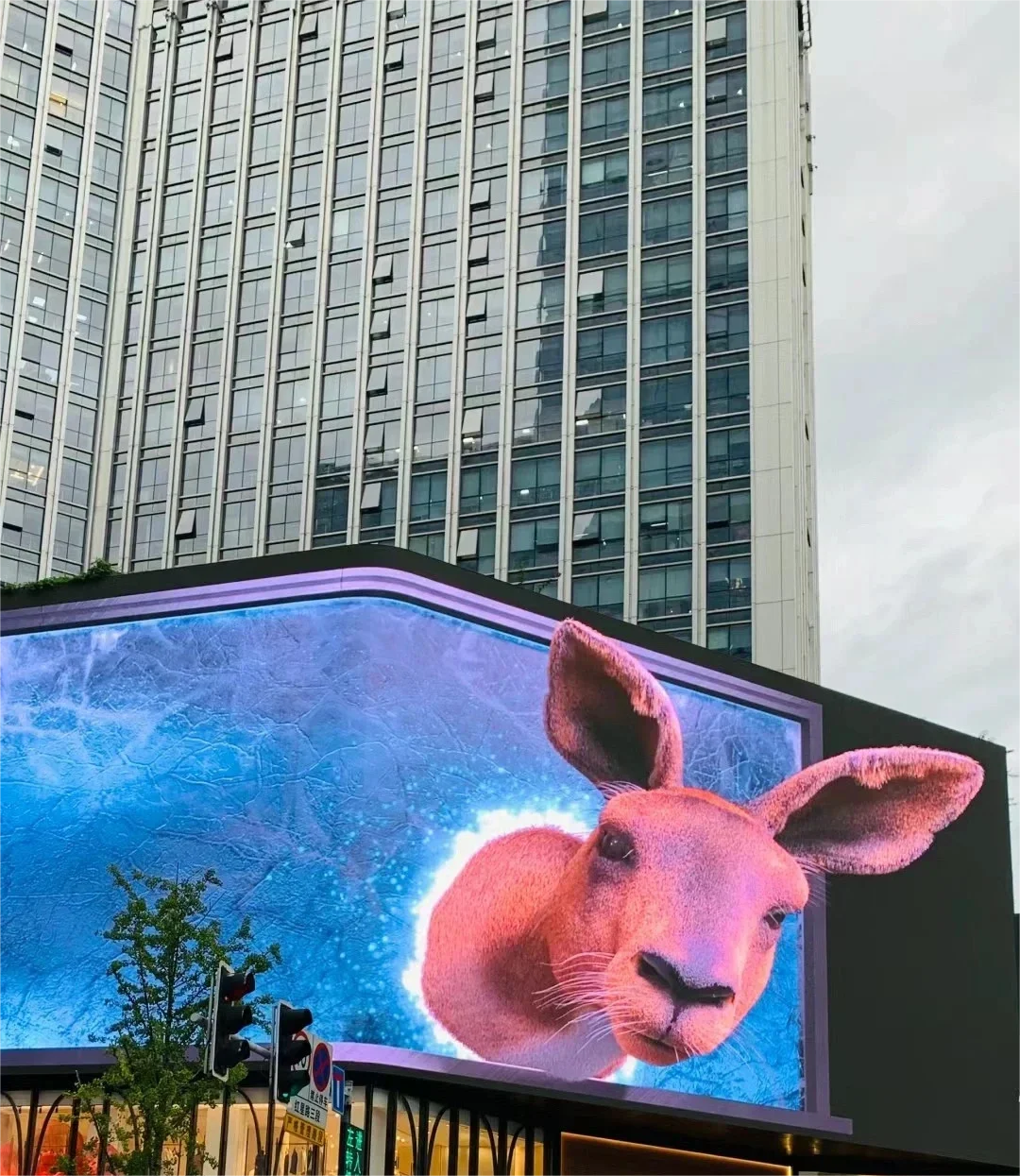

Novastar-DH7516S products can be widely used in the field of LED commercial display, such as lamp pole screen, chain store screen, advertising machine, mirror screen, retail store screen, door screen, car Loading screen, no PC screen, etc.

Classification	Description
Market type	Advertising media: To be used for advertising and informationpromotion including bar screen and advertising machine. Digital signage: To be used for signage display in retail storesincluding retail store screens and door head screens. Commercial display: To display commercial information ofhotel, cinema and shopping mall, such as chain store screens.

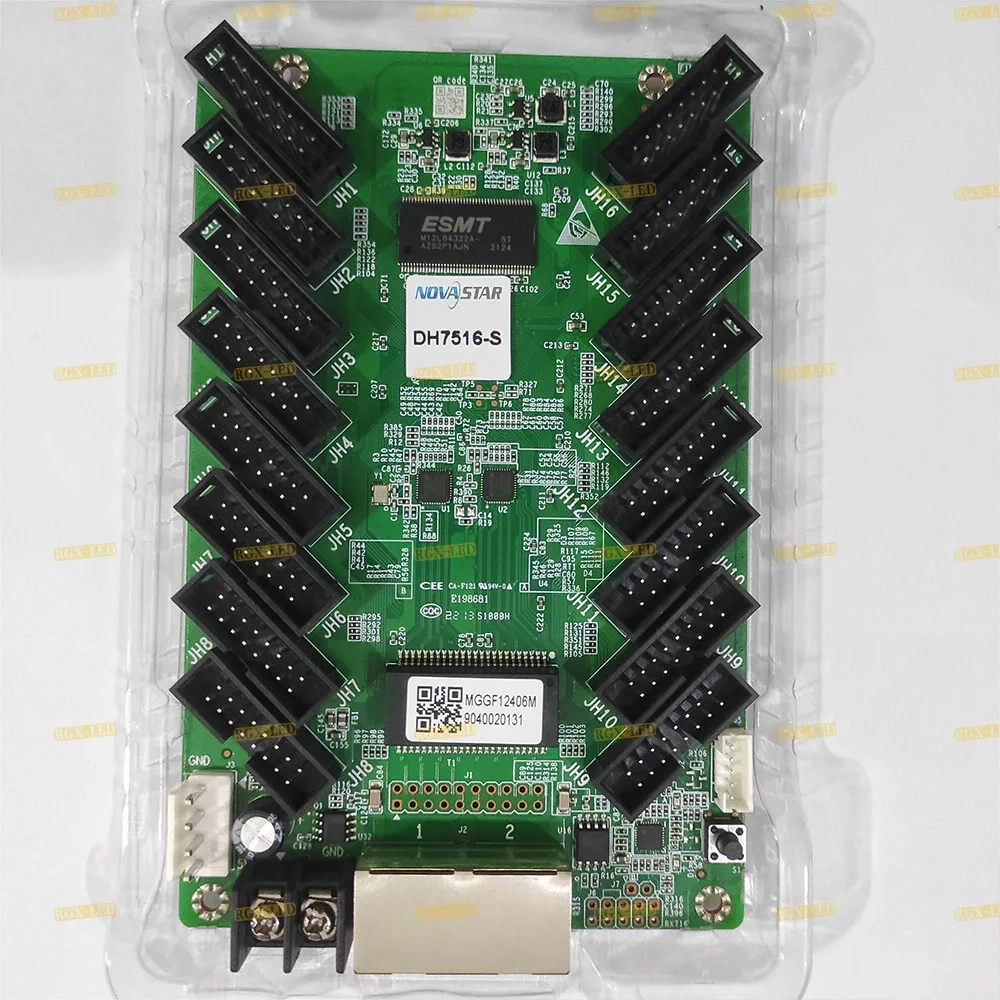

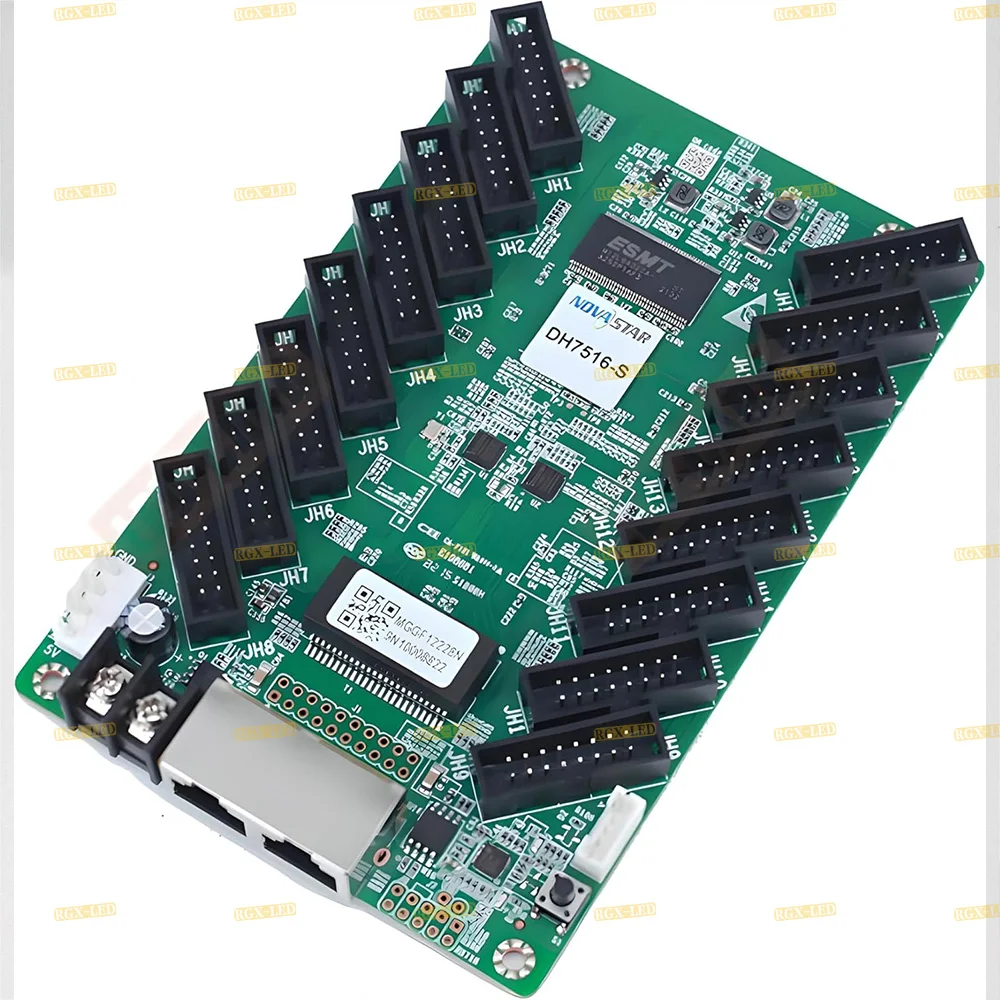

Picture display

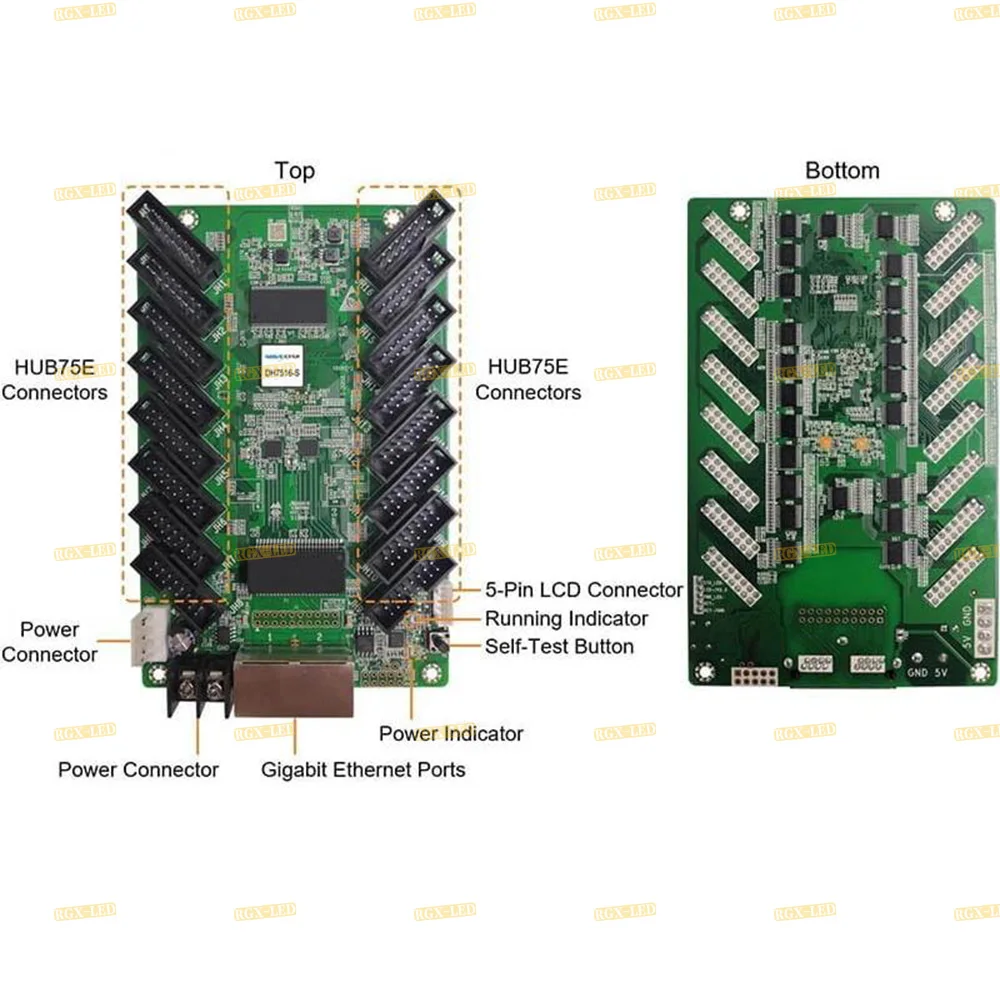

Product use

Name	Description
HUB75E Connectors	Connect to the module
Power Connector	Connect to the input power. Either of the connectors can be chosen.
Gigabit Ethernet Ports	Connect to the sending card, and cascade other receiving cards. Each connector can be used as input or output.
Self-Test Button	Set the test pattern. After the Ethernet cable is disconnected, press the button twice, and the test pattern will be displayed on the screen. Press the button again to switch the pattern.
5-Pin LCD Connector	Connect to the LCD

Indicator	Color	Status	Description
Running indicator	Green	Flashing once every 1s	The receiving card is functioning normally. Ethernet cable connection is normal, and video source input is available.
		Flashing once every 3s	Ethernet cable connection is abnormal.
		Flashing 3 times every 0.5s	Ethernet cable connection is normal, but no video source input is available.
		Flashing once every 0.2s	The receiving card failed to load the program in the application area and is now using the backup program
		Flashing 8 times every 0.5s	A redundancy switchover occurred on the Ethernet port and the loop backup has taken effect
Power indicator	Red	Always on	The power supply is normal.

size

The board thickness is not greater than 2.0 mm, and the total thickness (board thickness + thickness of components

on the top and bottom sides) is not greater than 19 mm.
