RGX P8mm Full Color LED Matrix Module - 256*128mm Indoor HD LED Display Panel ,Perfect for Various Lprice-Shenzhen RGXLED Electronics Co., Ltd.

Your location：Home>>Product>>LED Display module>>Indoor LED display module

name：

RGX P8mm Full Color LED Matrix Module - 256*128mm Indoor HD LED Display Panel ,Perfect for Various L

classification：LED Display module -> Indoor LED display module

market price：$0.00

Local price：$0.00

material：P8mm/256*128mm

color：RGB

Release date：2025-8-29 10:25:50

This is an RGX-brand P8mm full-color LED matrix module, with a single module size of 256×128mm, serving as an indoor HD LED display panel. As a core splicing unit, its full-color display feature enables the presentation of delicate and high-definition images. It is suitable for various LED application scenarios such as indoor advertising, information release, and multimedia display, providing stable high-definition imaging support for display projects with different needs.

Hotline：86 13699777670

Share to：QQ Zone Sina micro-blog Tencent micro-blog WeChat

Best-selling

P3.91 LED Display
classification：STAGE ALL KINDS LE..
P1.875 LED Display
classification：Small Pixel..
RGX P3 Rental Indoor LE...
classification：LED Display module..
RGX Indoor Mirror/Post ...
classification：COMMERCIAL DISPLAY..

Shenzhen RGX Electronics Co., Ltd.
Contact:ledrgx
Phone: 0755-23714515
Mobile: +86 18038069578
Whatsapp/wechat: +86 180 380 69578
Skype: levin-led
Q Q: 1006759127

After sale service: ledrgx@163.com

description

Product Introduction

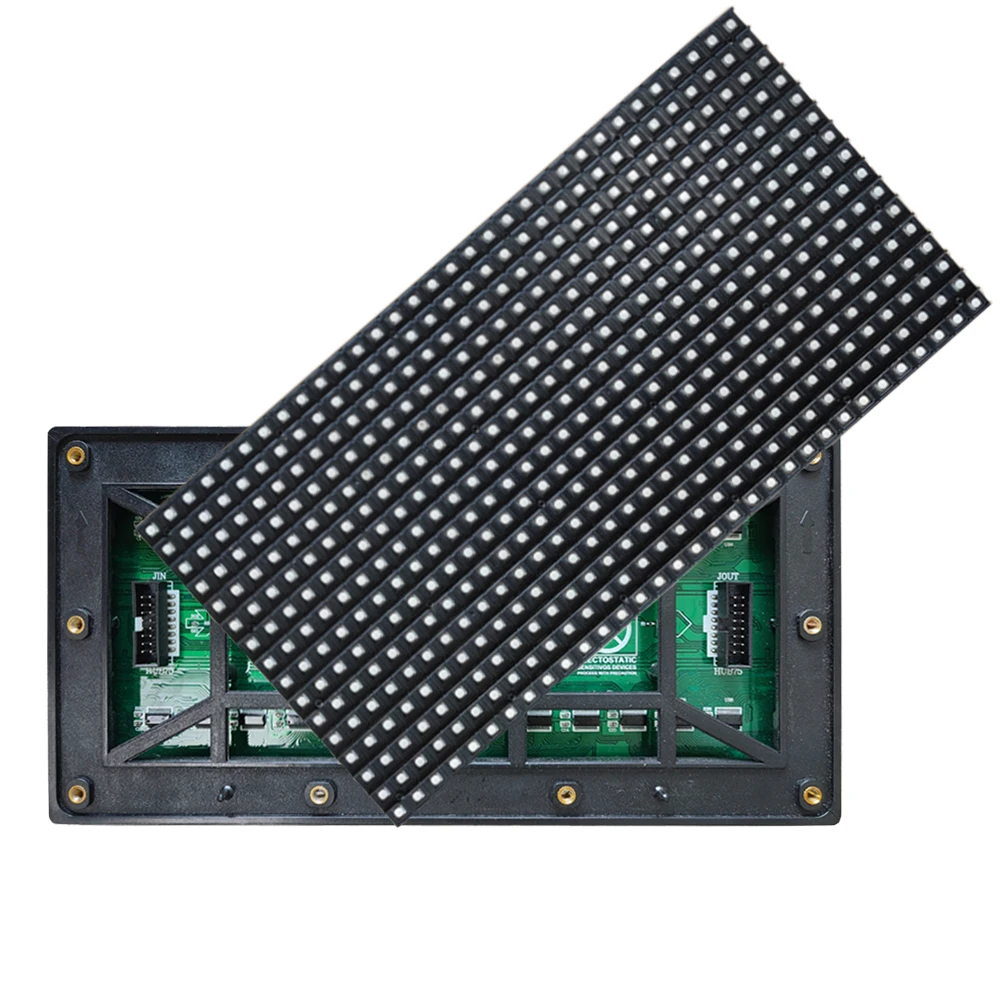

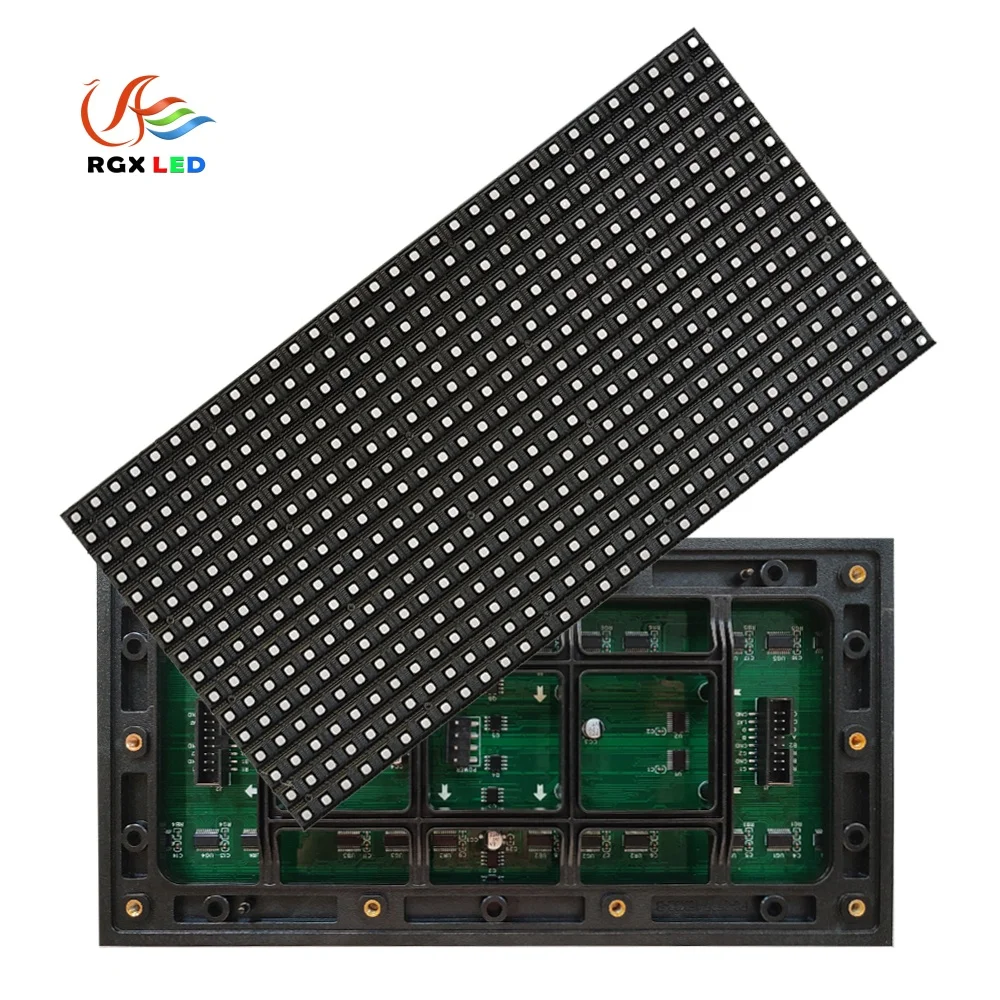

RGX P8mm Outdoor SMD 256mm*128mm 1/4 Scan LED Module

Pixel Pitch: P8mm
LED Type: SMD3535

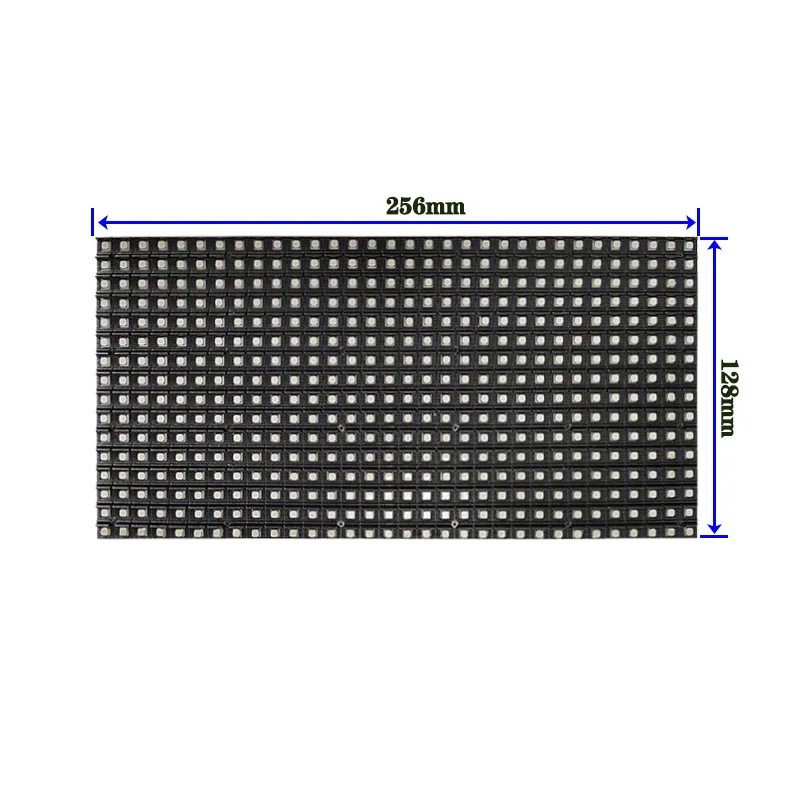

Module Size: 256*128mm
Module Resolution: 32*16dot
In Stock
CE,RoHS,FCC Approved

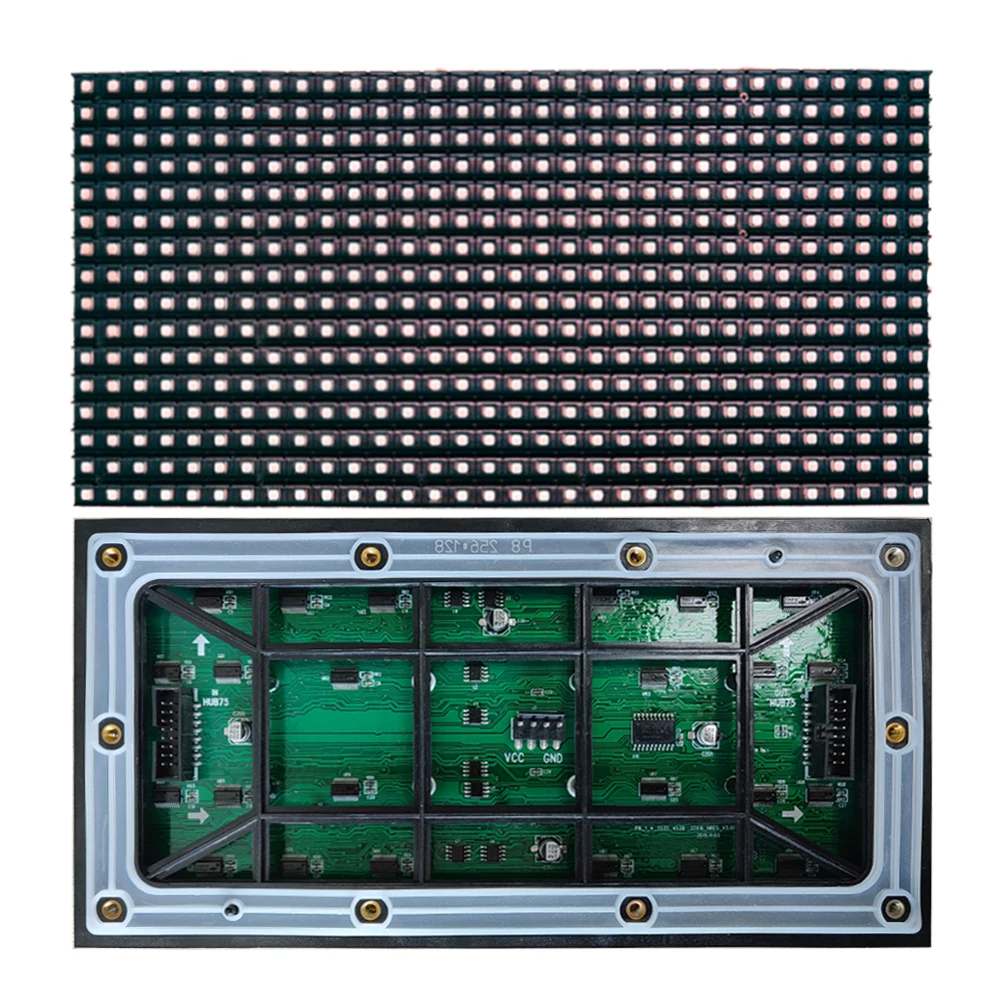

Unit Module Specifications
Model	P8mm Outdoor Fool Color LED Module
Pixel Pitch	8mm
Pixel Configuration	3in1(1R1PG1B)
Module Size	256mm*128mm
Module Resolution	32*16 dot
LED chip	SMD 3535
Pixel Density	15625dots/㎡
Driving Method	Constant Current Driving
Scan Method	1/4 scan
Interface Way	HUB 75
Brightness	≥3500-8500CD/SQM
Certificate	FCC、CCC、ROHS、TUV、CE ISO9001
Installation Method	Front Maintenance/Post-Installation
Power Supply Specifications
Operating Voltage	AC:100V~120V AC:220~240V
Average Power	150~350W/SQM
Main Technical Parameter Specifications
Driving Device	Constant Current Driving
Refresh Rate	≥3840~7680Hz
Color	RGB(3 in 1)
Life span	≥100000hours

Product Details

*Attention:

* We recommend that you buy the same batch led modules at once for the Same LED Display. Because different batches of led modules have different brightness and display colors, even different config files.
* If you want to build led screen, please buy enough LED Modules and Spare Parts.
* Tariffs or Duties at the destination not included. If you have questions about Importation to your country, please contact us online sales.

Product Features

1. LED Module Including the Data and Power Cables.
2. Epistar LEDs, 2 Years Warranty, Ship in 24 hours,Free Online Support.
3. 48 Hours aging test (white balance aging (24 hours) and video aging (24 hours) before dispatch.
4. Driving LEDs with constant current.

RGX P8mm full-color outdoor LED Display Module has high quality, high refresh rate, high contrast, and high resolution for various indoor events.

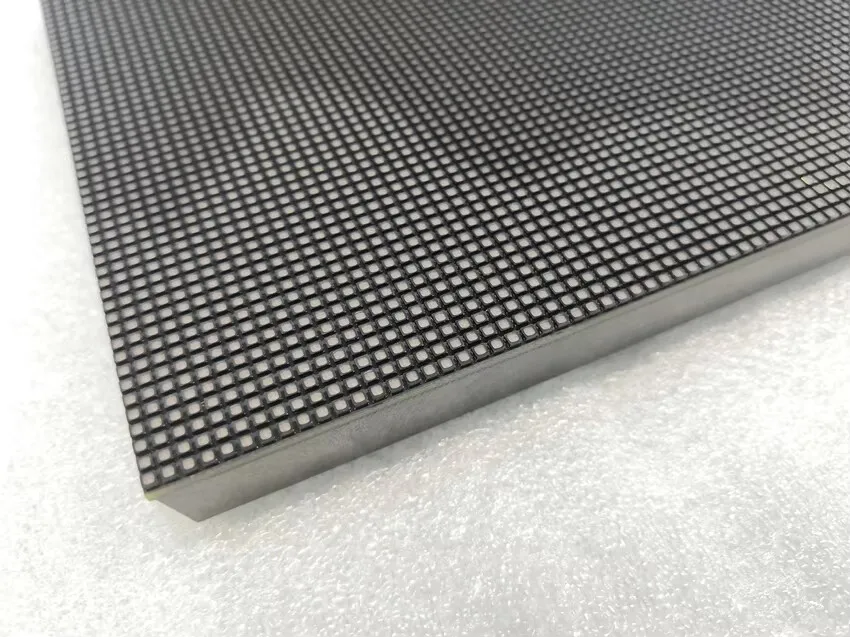

High-quality SMD

RGX use high quality SMD led lamp bead, no damge lamp . In the case of the same current and uniform brightness, RGX's LED products have a higher gray level .

Waterproof

UV resistant, dustproof and waterproof, IP65 protection level; stable signal and power supply, safe and reliable for outdoor use.

Adjustable Brightness and Vivid Color Rendering

With a brightness range of 3500 – 8000 cd/㎡, the RGX display maintains visibility in different indoor lighting. RGX utilizes a 1R1G1B pixel configuration and SMD 3in1 LED technology for true-to-life color reproduction.

High Resolution and High Contrast

RGX's LEDs use advanced technology and high-quality LED chips, which also makes our LEDs have a higher resolution than other brands.

Broad Viewing Angles

Wide 140° horizontal and vertical angles ensure content is clearly visible from any perspective.

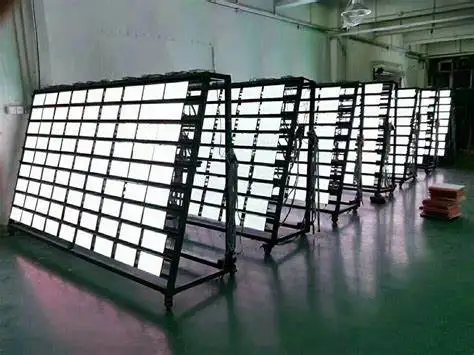

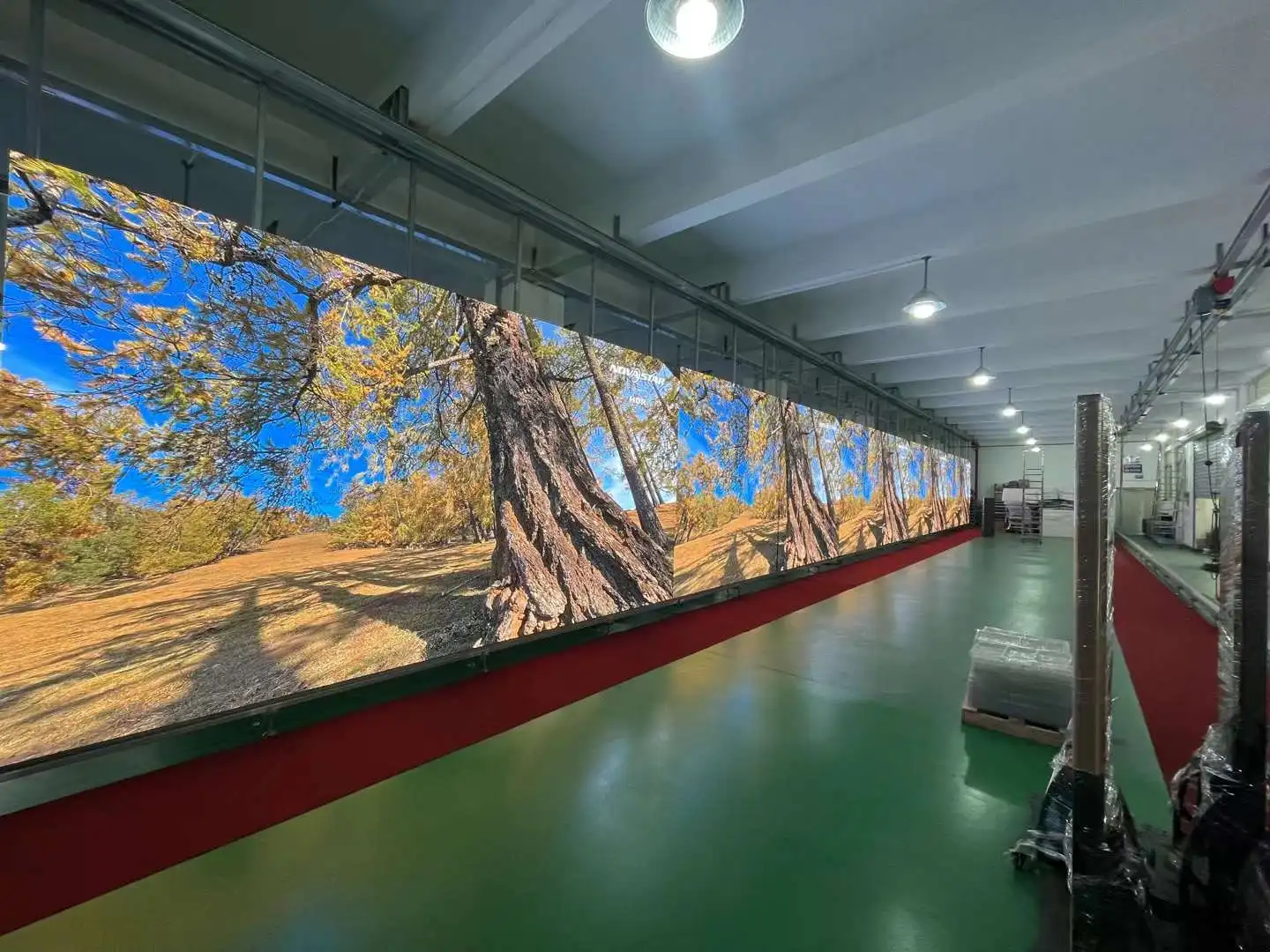

LED Display Module Aging & Testing

LED Display Module aging and testing is refers to imitate the long time operation without working problems,it is the most important to ensure the reliability of the LED display. LED display can be more stable after aging, and it can help the use of the efficiency. led screen aging test is a very important link in quality control.

*Aging test process of led display screen

1. Check the led display module to install all correct.
2. Check whether there is a short circuit or not.
3. Check whether the module is flat and neat.
4. Check whether the appearance is intact or not.
5. Use the online led control system to light up.

After the aging test, please check the quality control group for parameters.Test content: white balance, red, green, blue,gray gradient,video effect,text effect.after 48 hours aging test,the problem should be reported to the manager of the engineering department in a timely manner.replace or repair the broken leds. making sure all parts will be working well stably before packing.

Installation Instruction

Product Packaging

1. Original carton and impact-proof foam for LED module

2. Wooden case with foam for fixed installation type LED display

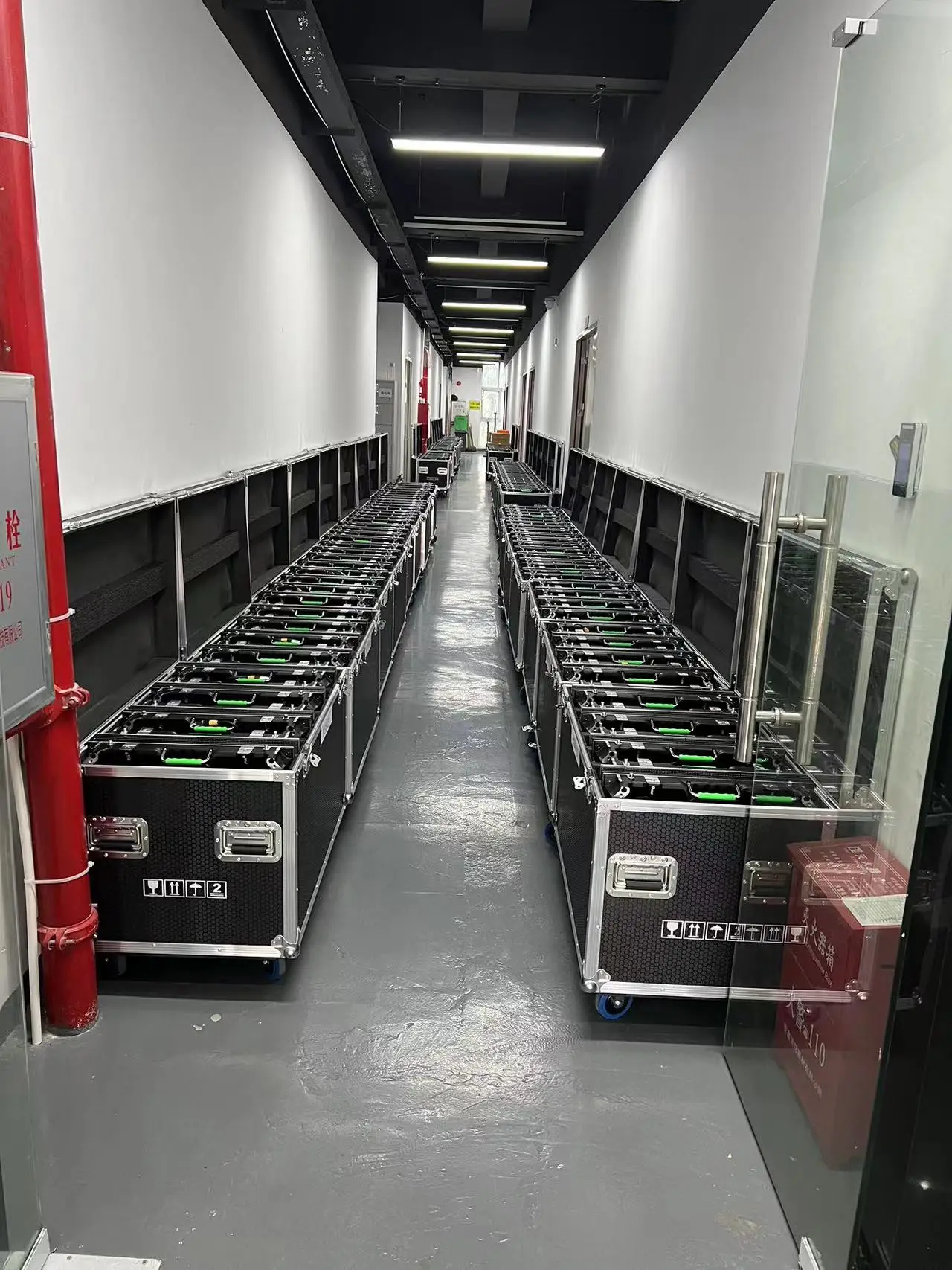

3. Flight case with foam for rental type LED display

4.We provide sea, express, air, special line for customers to choose

FAQ

Q:How do i choose the product?

A: 1. Will you use it indoors or outdoors? 2. Is it for rental purpose (need to move from one place to another often) or for fixed installation (to be installed in one place forever)? 3. What is the length and width of the LED screen you want to buy?

Q: Can I customize it?
A: Of course. All the goods can be customized, we have a professional product development team, welcome to customize.

Q: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q. What kind of display do we provide?
A:We have indoor/outdoor/mobile LED /rental LED display /LED stage/ Advertising LED display for you choose.

Q: What about the lead time for an order?
A: Always 10-17 days, as your order quantity, sometimes we have stock, can delivery within 7 days
