RGX P1.875mm 240x240mm Led Module with 480x480mm High Quality Led Module Panel Display
P3.91 LED Display classification：STAGE ALL KINDS LE..
P1.875 LED Display classification：Small Pixel..
RGX P3 Rental Indoor LE... classification：LED Display module..
RGX Indoor Mirror/Post ... classification：COMMERCIAL DISPLAY..
Shenzhen RGX Electronics Co., Ltd. Contact:ledrgx Phone: 0755-23714515 Mobile: +86 18038069578 Whatsapp/wechat: +86 180 380 69578 Skype: levin-led Q Q: 1006759127
After sale service: ledrgx@163.com

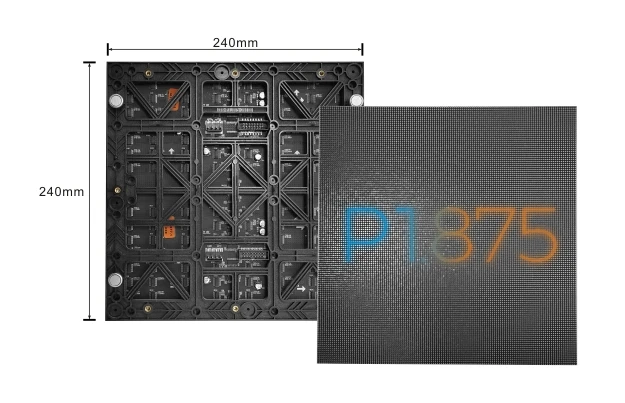

RGX is LED OEM manufacturer in shenzhen China, Indoor P1.875mm SMD LED Display Module Size is 240*240mm（9.4*9.4inch) With 128×128dots. , cabinet size 640*480mm
Attention: * We recommend that you buy the same batch led modules at once for the Same LED Display. Because different batches of led modules have different brightness and display colors, even different config files. * If you want to build led screen, please buy enough LED Modules and Spare Parts. * Tariffs or Duties at the destination not included. If you have questions about Importation to your country, please contact us online sales.
Module Pitch
P1.875mm
Module Size
240*240mm (9.4 * 9.4inch)
Module Resolutuion
128*128mm dots
Cabinet size
480*480mm
Refresh
3840hz-7680hz
RGX Indoor LED Series P0.8 P0.9 P1.25 P1.53 P1.56 P1.667 P1.86 p1.875 p2 p2.5mm, you can use Novastar ,Huidu ,colorlight, linsn etc video processor to control our led module make the working very well, our factory will give you loading file make you easy working it
* All images in this page are for illustrative purposes only.
Brightness and refresh of P1.875mm LED modules Panel size 240*240mm
Whether it is an indoor or outdoor LED display, customers will pay attention to its brightness and refresh to judge the quality of the LED screen.
For P1.875 indoor LED modules, whether it is an indoor stage movable screen or an indoor fixed installation screen, we generally use 1000-1200nits. The brightness of ordinary modules on the market generally ranges from 500-1000.
The refresh rate of all our LED screens and modules is 3840hz-7680hz, unless the customer requires low refresh rate products due to budget reasons.
Full color lamp beads
High-quality full-color surface-mount lamp beads, stable quality, good color rendering effect and long life.
Binding post
The upgraded design hides the wiring pins, making wiring more convenient and eliminating the need to worry about electric shock safety.
Indoor LED Screen Panel
LED Lamp
For the Indoor LED display module, we choose Kinglight and Nationstar LED which have high reliability and contrast, wide view angle, and good consistency which meet the need for high brightness, high refresh rate,high gray scale, and keep natural color at one time with best color uniformity
Driver IC
To achieve the best visual performance of our indoor and outdoor led display, we use the best Driving IC, such as MBI5124, MBI5153, ICN2038S, and ICN2153 with high refresh rate, high grey level with the latest technology.
72 Hours Aging Test
72 hours aging test (white balance aging (2×24 hours) and video aging (24 hours)) to improve the reliability of the indoor LED display modules and ensure the LED modules are without broken LEDs.
All Pixels Available
Unit Indoor LED display Panel has all pixel available from P2mm, P2.5mm, P3mm, P3.91mm, P4mm, P4.81mm, P5mm, P6mm, P6.72mm, P10mm and small pixel series such as P1.875mm , P1.25mm, P1.538mm, P1.667mm, P1.86mm, etc
LED display module lighting test
After the production is completed, we will place each module on the aging rack for lighting testing.
Ensure that every lamp bead of every module is inspected, and faulty modules are repaired and replaced in a timely manner toensure the quality of the modules and prevent customers from receiving dead lamp products.
Dynamic Content Capabilities:
The module supports dynamic content capabilities, such as video playback and interactive features. It allows for engaging and interactive experiences, enabling businesses to capture the attention and interest of their audience.
Scalability:
The Flexible Indoor Screen offers scalability, allowing for the expansion or modification of display installations as needed. Additional modules can be easily added or reconfigured to adapt to changing requirements or to accommodate larger display areas.
RGX High Brightness and Contrast:
The LED outdoor tile display offers high brightness levels and excellent contrast ratio, ensuring optimal visibility even in bright outdoor environments.
Easy Maintenance
Indoor Module is designed for easy maintenance. It features a modular design, allowing for quick and easy replacement or repair of individual modules. This reduces downtime and ensures that the display remains operational with minimal disruption.
PRODUCT SPECIFICATIONS
RGX other pitch for refrence
No
Item
Module size
module resolution
Big sign size
1
P1.53mm
320*160mm
208*104 dots
Big size according the panel size to assembly to big size，the resolution you can according the Pitch to calculate it
2
P1.86mm
172*86 dots
3
P2mm
160*80 dots
4
P2.5mm
128*64 dots
SALES AND SERVICE NETWORK
FAQ
WHAT ARE SELF-ASSEMBLED LED SCREENS? Self-assembly screens are a great saving for buyers of LED screens for advertising. Thanks to our years of experience in the digital advertising sector with LED screens, we have detected that most of our customers want LED screen sat a good price, but without giving up the best technical characteristics. To do this, we have developed self-assembly LED screens that reduce installation costs, and can be installed with technical advice and following our installation manuals. The installation process is simple and can be executed by the clients themselves. This makes it possible to save costly trips and hours of technical personnel that are crucial for a quick investiment return. Other manufacturers and importers offer assembly and maintenance services that involve substantial additional costs. Moreover, these not only have a great impact on the initial cost, but also force maintenance contracts that last for years
p1.86mm flexible led display screen soft led module with size 320*160mm curved led advertising display module for indoor p1.56 p1.667 p1.86 p1.875 p2 p2.5 p3 p4 p5 p3 curved led panel soft flexible module flexible led display flexible led screen curved creative led dsiplay Indoor Full Color P1.579 P2 P2.5 P3 P4 Curved Round Circular Pilar Convex Flexible Module Led Video Wall Display Screen.
