Latest New Model Indoor Led Module P1.78mm Size 128x128mm Smd P1.78mm Led Panel
name:

Latest New Model Indoor Led Module P1.78mm Size 128x128mm Smd P1.78mm Led Panel

classification:LED Display module -> Indoor LED display module
market price:$0.00
Local price:$0.00
material:P1.78mm/128*128mm
color:RGB
Release date:2025-8-29 10:25:52

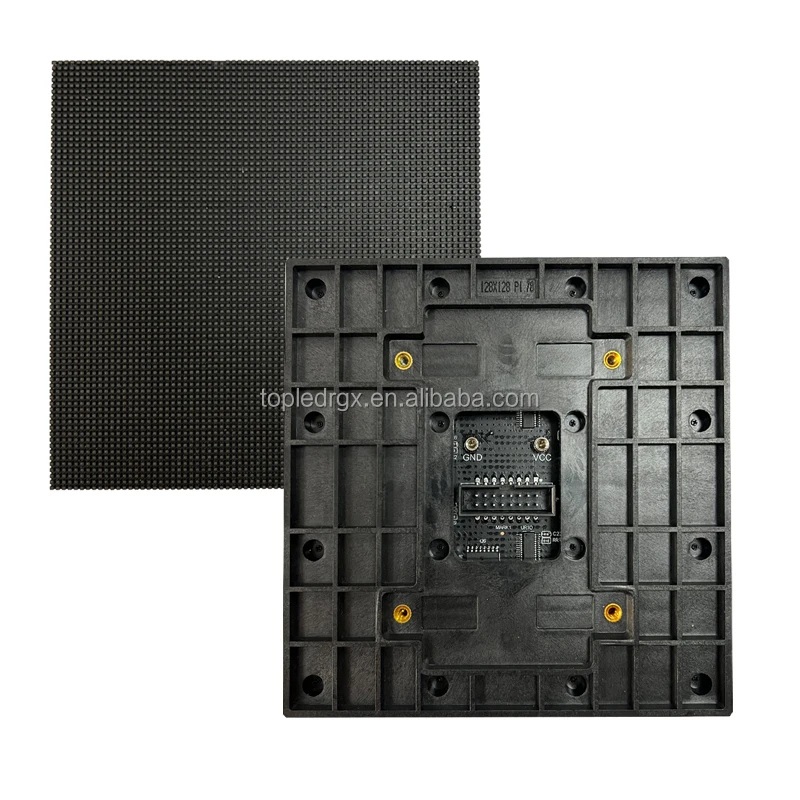

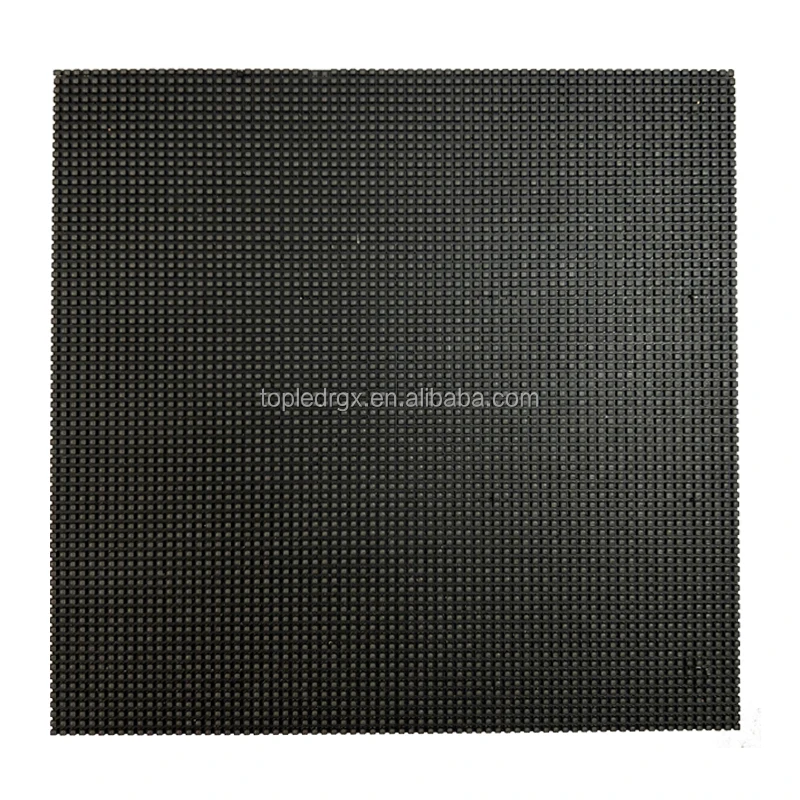

Discover our cutting - edge Latest New Model Indoor LED Module! With a pixel pitch of P1.78mm, it offers remarkable clarity for indoor applications. Measuring 128x128mm, this compact module packs 72X72 pixels, ensuring sharp and vivid visuals.

It features DMX control and RGB SMD technology, enabling a wide spectrum of colors to bring any content to life. Whether for a small - scale event, a retail store display, or a corporate meeting room presentation, its 5*5 - inch size makes it versatile for various setups.

Based on the Hub75 matrix, installation and integration into your LED system are seamless. This P1.78mm LED pane is crafted with high - quality materials in our factory, combining top - notch performance with an affordable price. Ideal for those seeking a high - definition indoor display solution without compromising on quality or budget.
    Hotline:86 13699777670
consulting
Contact us
Contact us

Shenzhen RGX Electronics Co., Ltd.
Contact:ledrgx
Phone: 0755-23714515
Mobile: +86 18038069578
Whatsapp/wechat: +86 180 380 69578
Skype: levin-led
Q     Q: 1006759127

After sale service: ledrgx@163.com

http://www.rgxled.com

description

Latest New Model Indoor Led Module P1.78mm size 128x128mm(5*5inch) and resolution 72X72 Pixel Rgb Smd P1.78mm Led Pane 5*5inch Hub75 Matrix Led Rgb

Specification

Package LED Mode



SMD 1515



Pixel Density



561,1798 dots/sqm





Module Resolution



72x72 dots





Module Size



128(w)x128(h)mm





Scanning Method



1/64 scan





Brightness



≥600 cd/sqm



Color Temperature



3200K-9300K (adjustable)



Pixel Configuration



3in1 (1R1PG1B)



Input Voltage



5V





Lifespan



85,000~100,000 hours





Gray Level



RGB 256 graylevel



 Viewing angle



Horizontal 160°, Vertical 160°

 Latest New Model Indoor Led Module P1.78mm Size 128x128mm 72X72 Pixel Dmx Rgb Smd P1.78mm Led Pane 5*5inchl Hub75 Matrix Led Rgb

Latest New Model Indoor Led Module P1.78mm Size 128x128mm 72X72 Pixel Dmx Rgb Smd P1.78mm Led Pane 5*5inchl Hub75 Matrix Led Rgb

Latest New Model Indoor Led Module P1.78mm Size 128x128mm 72X72 Pixel Dmx Rgb Smd P1.78mm Led Pane 5*5inchl Hub75 Matrix Led Rgb

Note: Each LED module comes with a 16PIN LED modules flat signal cable and a DC5V LED modules power cable.

Online Service

    You'd better buy all LED modules at a time for one LED display, in this way, we can make sure that all of them are of the same batch.
    For different batch of LED modules have a few differences in RGB rank, color, frame, brightness etc.
    We recommend that you purchase the LED display cabinet as the smallest unit for assembly.
    Need to be personalized, Please leave a message to our sales staff for the LED display system solution.
