P8mm 320*320mm RGB LED Display Advertising Billboard Video Wall Seamless Splicing LED Outdoor Screen
name:

P8mm 320*320mm RGB LED Display Advertising Billboard Video Wall Seamless Splicing LED Outdoor Screen

classification:LED Display module -> Outdoor LED display module
market price:$0.00
Local price:$0.00
material:P8mm/320*320mm
color:RGB
Release date:2025-8-29 10:25:4

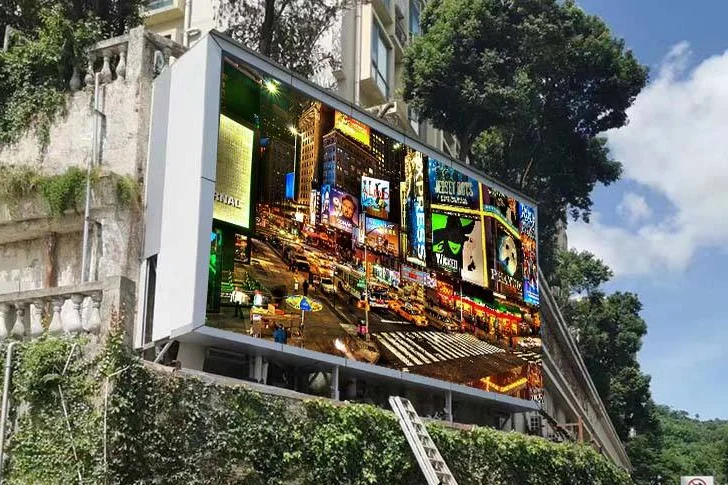

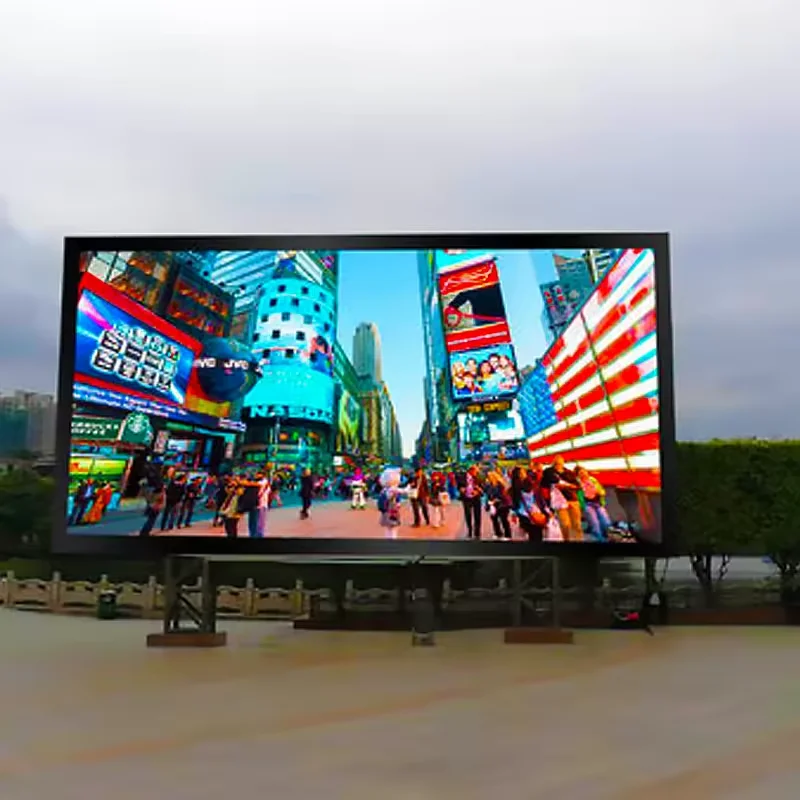

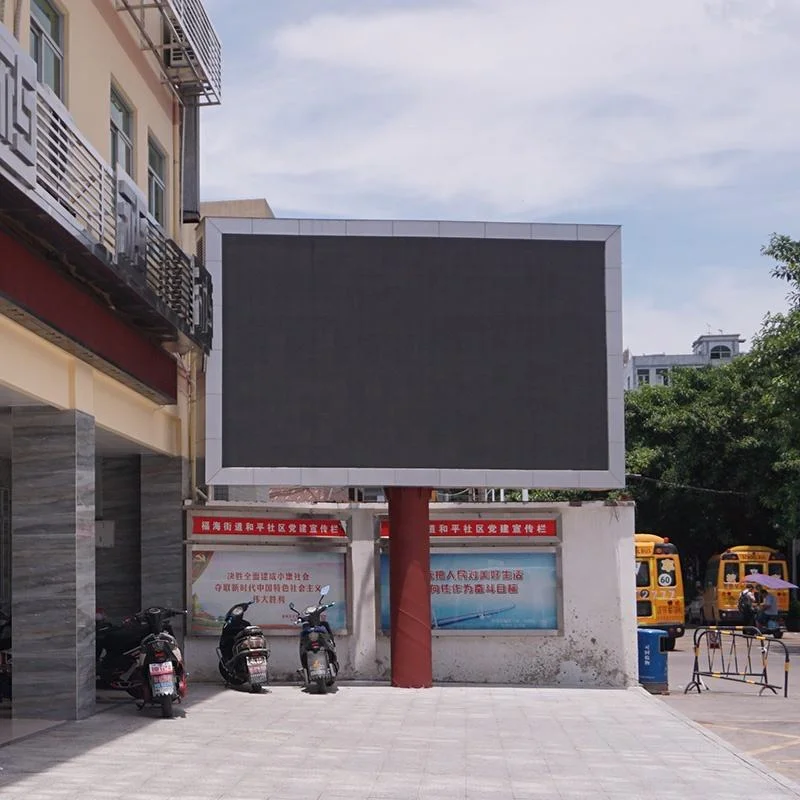

This is an outdoor RGB LED display with a pixel pitch of 8mm and a size of 320*320mm, which can be used as an advertising billboard or video wall. It supports seamless splicing to form large-size display screens, featuring rich colors and clear display. Adaptable to outdoor environments, it is suitable for scenarios such as commercial advertising and information display, providing a high-quality display solution for outdoor promotion.
    Hotline:86 13699777670
consulting
Contact us
Contact us

Shenzhen RGX Electronics Co., Ltd.
Contact:ledrgx
Phone: 0755-23714515
Mobile: +86 18038069578
Whatsapp/wechat: +86 180 380 69578
Skype: levin-led
Q     Q: 1006759127

After sale service: ledrgx@163.com

http://www.rgxled.com

description

Product introduction

Front Service LED Display

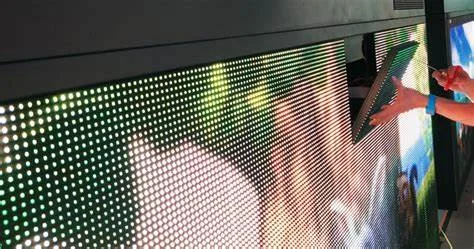

By the design of removable front maintenance module, make repair and maintenance work more convenient and efficient. This design allows maintenance personnel to enter the display directly from the front to perform common maintenance operations such as lamp bead replacement, power supply repair, module replacement, etc., without having to disassemble the entire display.
Name
Outdoor Front Service Module
Pixel Pitch
P6.67mm
P8mm
P10mm
Module Size
320*320mm

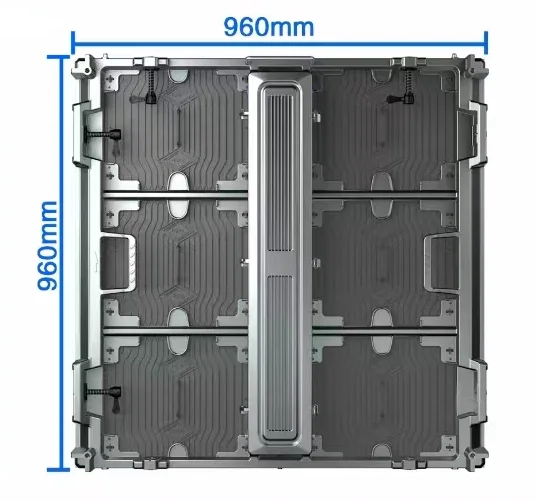

Cabinet Size
960*960mm
Refresh Rate
3840-7680 HZ
Brightness
3500-6500 cd/sqm
Resolution
27777 dot/㎡
15625 dot/㎡
10000 dot/㎡

Product Features

Easy Installation & Maintenance
The installation and maintenance for outdoor front service led screen is fast and easy. It supports front & back maintenance with T-tool. No need professional device and technician.
RGX High Refresh Rate
Outdoor front service led display could be 6500 nits high brightness. It has crystal quality for image and video even under direct sunlight.
Outdoor Waterproof
Waterproof technology for led module with high standard IP 65 protection
Large View Angle
Large viewing angle from vertical and horizontal, brightness and color will keep same from different angles. No color cast & glare
Support Customized
The cabinet size can be freely customized according to the module size, so you can determine more cases with different sizes for your project, such as 1920 x 1280 mm, 1280 x 1280 mm, 960 x 960 mm, 1280 x 960 mm. And you don’t need to worry about theinstallation structure, we provide you with solutions that can be hung or fixed.
Ultra Thin Cabinet
The front maintenance display box can be made lighter and thinner, and the LED module can be removed more easily and efficiently.
Therefore, the overall thickness of the LED display structure can be greatly reduced, saving space.
Usually LED displays require consideration for repair space, the front service solution will help you eliminate the worry of these issues. outdoor wall-mounted installation and no space for the back, we can use front service led display. It is easier and faster to repair the LED display. There are two modes of front maintenance: clamshell-type and single detachable module.

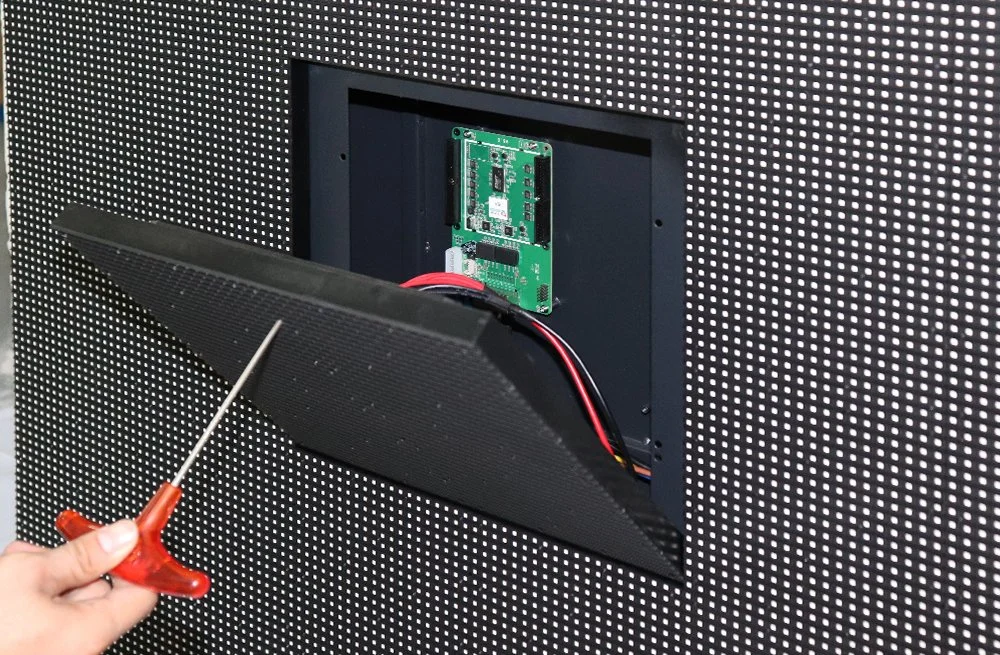

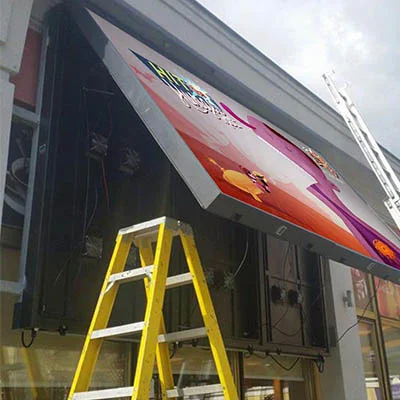

Front service clamshell-type module
When the display screen fails, we can open the front cover to check the internal wiring. Generally suitable for wall-mounted installation with a height of no more than 2 meters

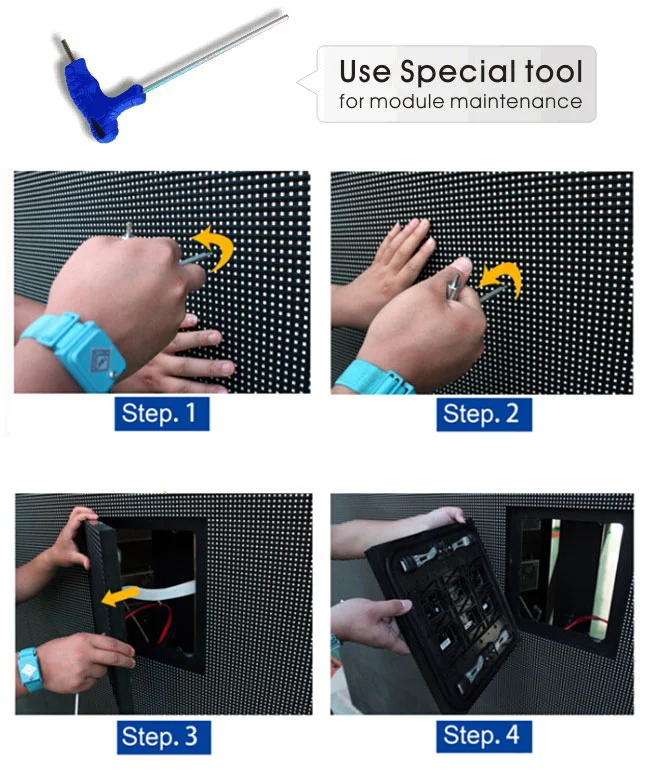

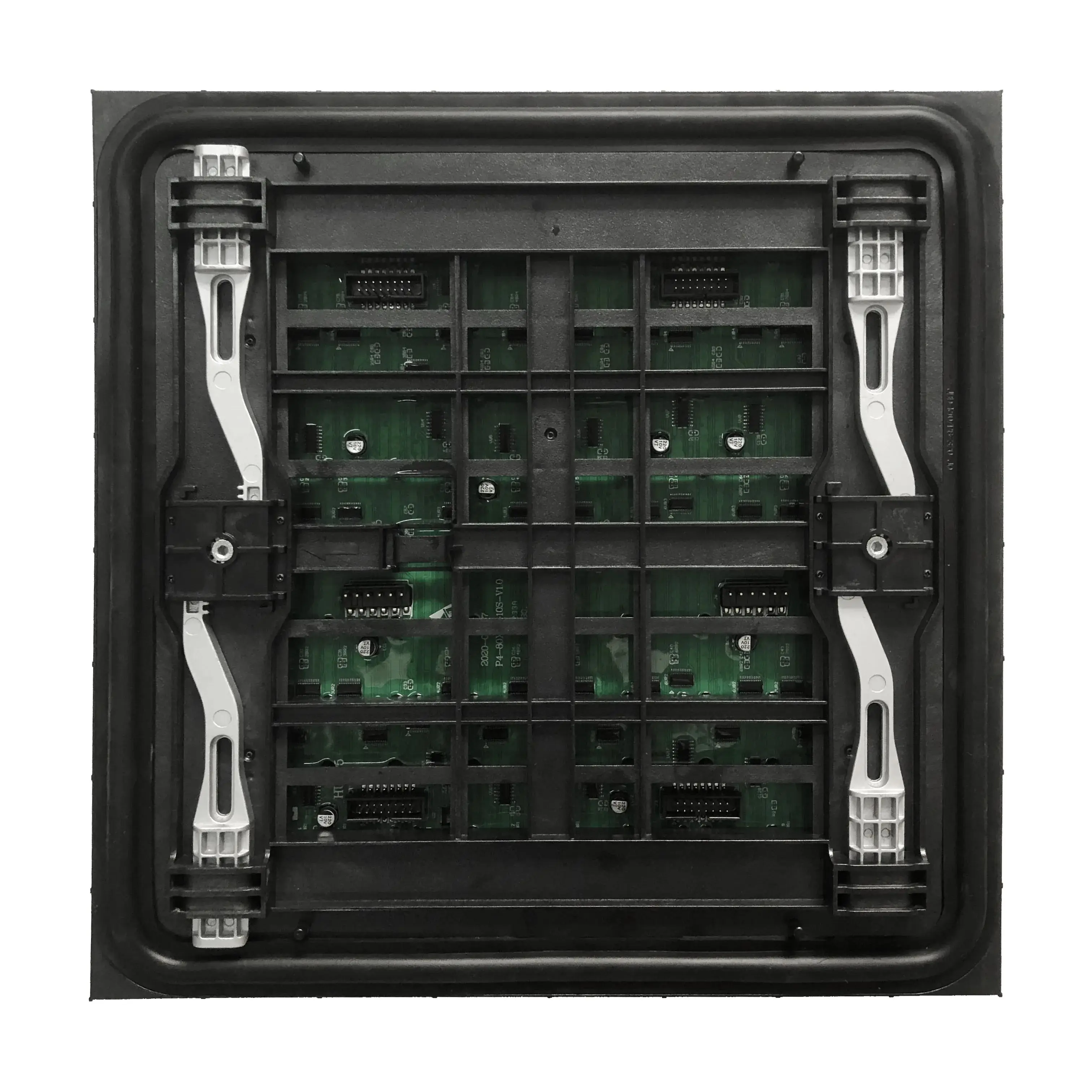

Single detachable module
When a single module fails, specific tools can be used to disassemble the module for repair. Each front service module is fixed with two screws, we just need to remove two screws from the front to remove the faulty module.
It will help you save about 3 minutes when replacing the defective module. The service tool is simple, only a wrench is needed

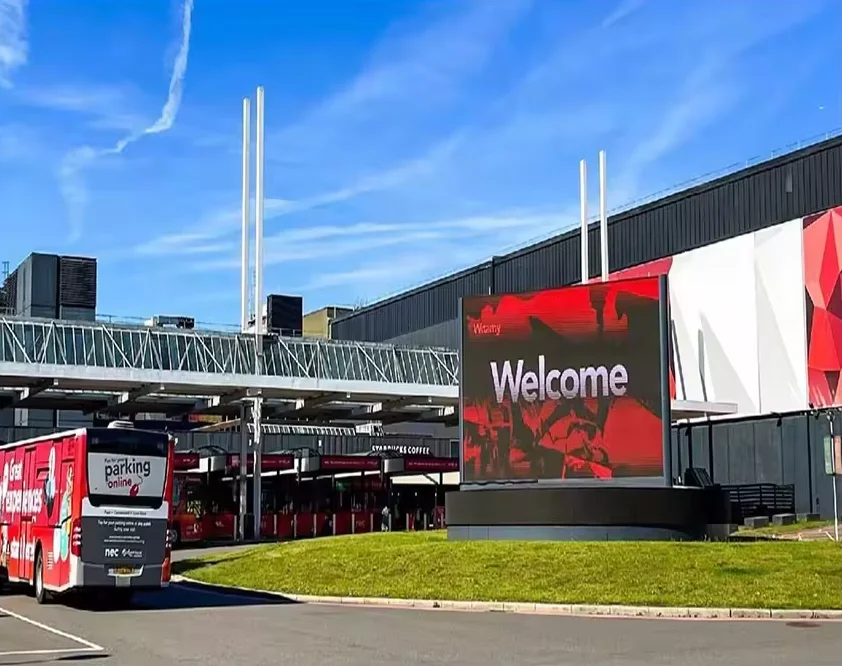

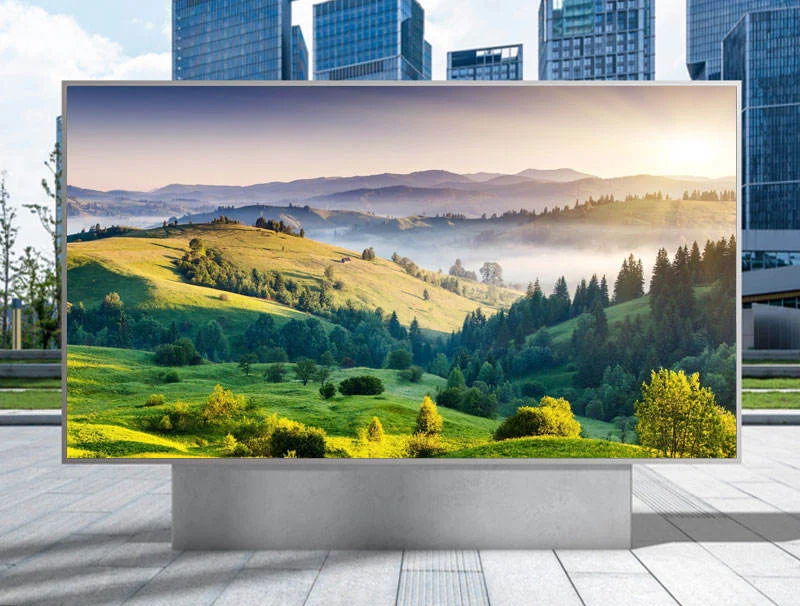

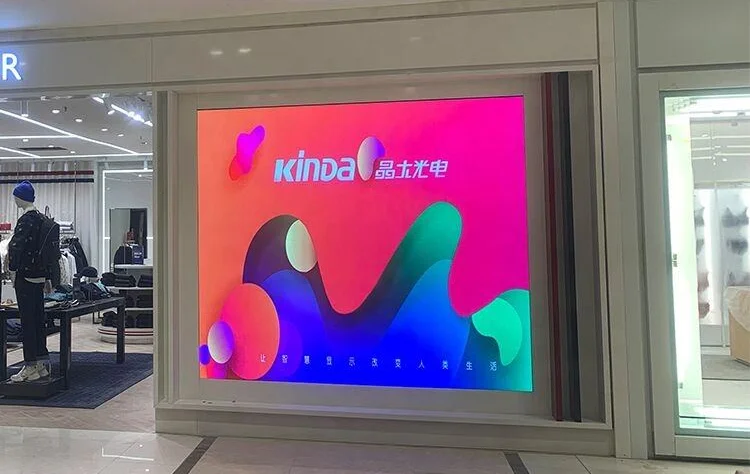

Application scenario

Recommend Products

Taxi Top Screen
P3.076/P4/P5

Conference LED Display
P1.25/P1.53/P1.667/P1.86/P2/
P2.5
Cube LED Display
P2.5
Poster LED Display
P1.25/P1.53/P1.667/P1.86/P2/
P2.5
Ball LED Display
P1.5/P1.8/P2/P2.5/P3/P4
Outdoor LED Display
P6/P8/P10
Rental LED Display
P2.604/P2.976/P3.91/P4.81
Indoor LED Display
P1.25/P1.53/P1.667/P1.86/P2/
P2.5
P2.5mm LED Module
160*80mm(160*160mm)
Shelf LED Screen
P1.5/P1.875
Car LED Flexible Sign
70*173mm/120*190mm
P2mm LED Module
128*128mm(256*1258mm)
Football LED Display
P3.076/P4/P5/P6.667/P8/P10
Flexible and Soft LED Display
P1.53/P1.86/P1.875/P2/P2.5
/P3/P4/P5
DJ Table LED Display
P2.5/P4/P5

Floor LED Design Display
P2.604/P3.91/P4.81
Shop LED Sign
P1.25/P1.53/P1.667/P1.86/P2/
P2.5/P3/P4/P5

P3mm LED Module
192*192mm(196*96mm)
LED display is widely used, suitable for all walks of life, if necessary, please contact us, we will give you a professional advice and good price.

FAQ
Q: How can I place an order?
A: Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time. For designing or further discussion, it is better to contact us with Skype/email /phone, in case of any delays.

Q: What kind of display do we provide?
A: We have indoor/outdoor/mobile LED /rental LED display /LED stage/ Advertising LED display for you choose.

Q: What about the lead time for an order?
A: Always: 10-17 days, as your order quantity, sometimes we have stock, can delivery within 7 days.

Q: What about the warranty?
A: We have Three years quality guaranteed, spare parts such as led module, receiving card, control card, power supply are damaged not cause of artificial damaged, then it’s free maintenance and ship back new ones for replacement.

Q: How about the quality?
A: Our led products must be testing of at least 72 hours before shipping, from purchase raw materials to ship ,Each step has strict quality control systems to ensure led display with good quality.

Q: Can you offer a technical support? Since it's my first time....
A: We provide free training for our customer, teach the client how to set up screens, make configuration of parameters, broadcast the videos through control systems, our engineer can directly teach you how to control, or help you to done if you are really don't know how to control (Our Engineer can text English, we can save more time) Any question please contact us.
