Window Seamless Splicing Led Screen OEM Desktop Poster Banner Display LED Light Box
name:

Window Seamless Splicing Led Screen OEM Desktop Poster Banner Display LED Light Box

classification:COMMERCIAL DISPLAY -> 2 Poster LED Display
market price:$0.00
Local price:$0.00
material:Die-cast Aluminum
color:RGB
Release date:2025-8-29 10:25:1
Including various models such as P1.25, P1.53, P1.667, P1.86, and P2, the window seamless splicing LED screens support OEM customization and can be flexibly used as desktop poster and banner display devices. Their seamless splicing design enables the presentation of complete and smooth images, and they can perform excellently in various scenarios for information dissemination or content display, combining practicality with high-quality visual performance.
    Hotline:86 13699777670
consulting
Contact us
Contact us

Shenzhen RGX Electronics Co., Ltd.
Contact:ledrgx
Phone: 0755-23714515
Mobile: +86 18038069578
Whatsapp/wechat: +86 180 380 69578
Skype: levin-led
Q     Q: 1006759127

After sale service: ledrgx@163.com

http://www.rgxled.com

description

Product Description

P1.25 / P1.53 / P1.667 / P1.86 / P2 LED display LED poster is composed of several P1.25 / P1.53 / P1.667 / P1.86 / P2 small LED modules that comes with a ultra small pixel pitch of 1.25/1.53/1.667/1.86/2mm.
is a metric that describes how far the centers of two adjacent pixels are on an LED display. Pixel pitch The smaller it is, the sharper the display resolution tends to be.
LED displays are commonly used in applications where ultra high resolution and close viewing distances are required, such as in conference rooms, control rooms, retail environments, advertising displays and so on.P1.25 P1.53 P1.667 P1.86 P2indoor
RGX poster LED display can be controlled by .5G, 4G, WIFI, USB, SD Card and LAN cable

Specification

Module
KP1.2
KP1.5
KP1.6
KP1.8
KP2.0
KP2.5
KP3.07
Pixel Pitch
1.25mm
1.53mm
1.667mm
1.86mm
2mm
2.5mm
3.076mm
Module Size
320*160mm
Module Resolution
256*128
208*104
192*96
172*86
160*80
128*64
104*52
Physical Density
640000dots/m2
422754dots/m2
359856dots/m2
289050dots/m2
250000dots/m2
160000dots/m2
105688dots/m2
LED Type
SMD1010
SMD1212
SMD1212
SMD1515
SMD1515
SMD2020
SMD2020
Cabinet Size
640*480*49mm
Cabinet Resolution
512*384
416*312
384*288
344*258
320*240
256*192
208*156
Cabinet Weight
7kgs
Cabinet Material
Die Casting Aluminum
Mantainance Way
Front
Best Viewing Distance
≥1m
≥1.5m
≥1.6m
≥1.8m
≥2m
≥2.5m
≥3m
Best Viewing Angle
H:160°;V160°
Driving Method
1/64 Scan
1/52 Scan
1/48 Scan
1/43 Scan
1/40 Scan
1/32 Scan
1/26 Scan
Video Frame Rate
≥60Hz
Refresh Rate
3840-7680Hz
Brightness
≥600-5500nits
Grey Level
12-16 bit
Ingross Protoction
IP43
Life Time
>100,000 Hours
The Rate
<0.0002

How to choose the LED screen display pixel pitch?

Where is the LED display screen placed, and how far do audiences stand to see it, this is only an important factor in determining the pixel pitch when choosing an LED display screen.A team of PGX experts that have 16 years experience will guide you so that the purchase of your LED screen is a success.

Product Features

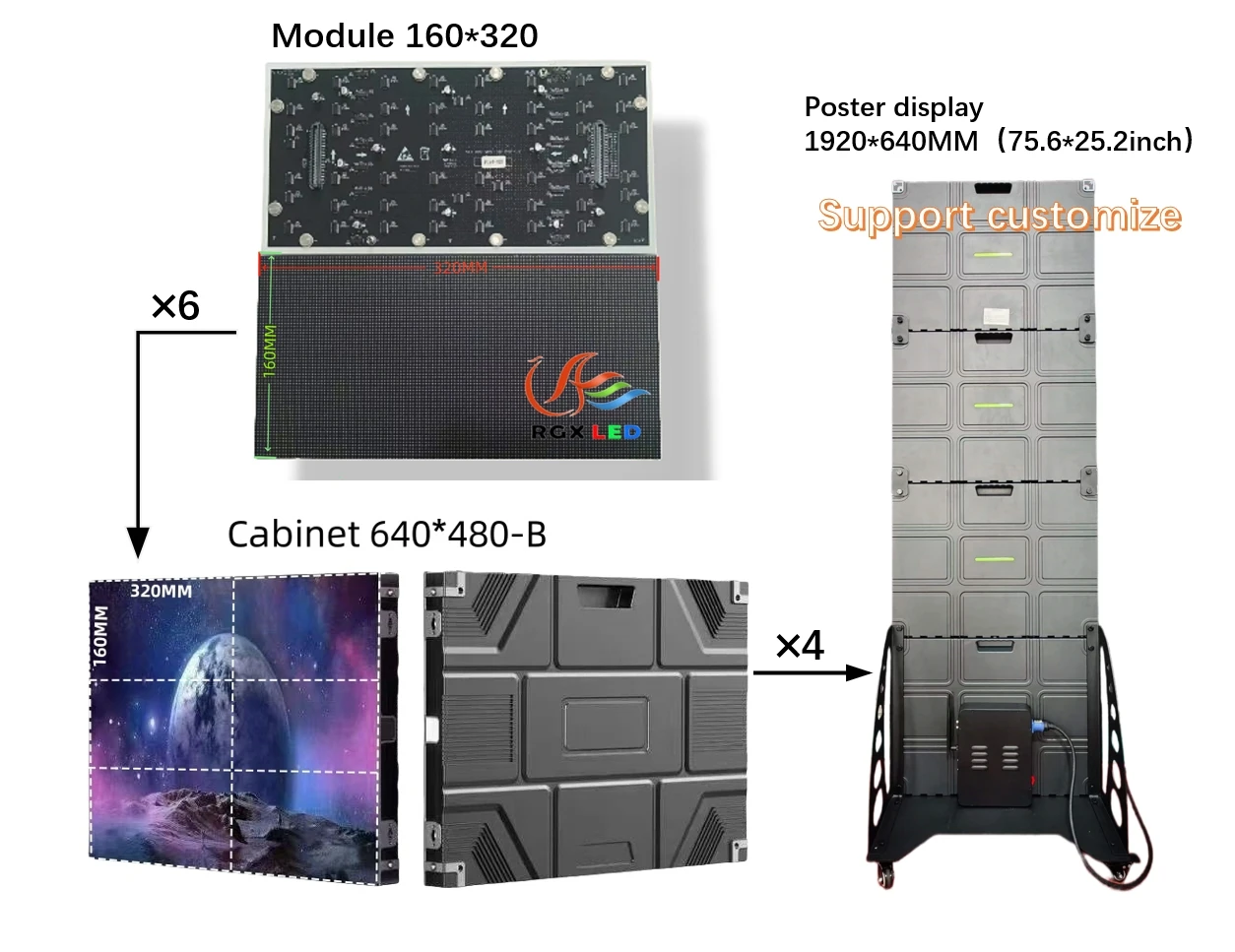

Size (Support customization)
RGX Factory Long-Life P1.25 / P1.53 / P1.667 / P1.86 / P2 SMD Advertising Led Poster Display show

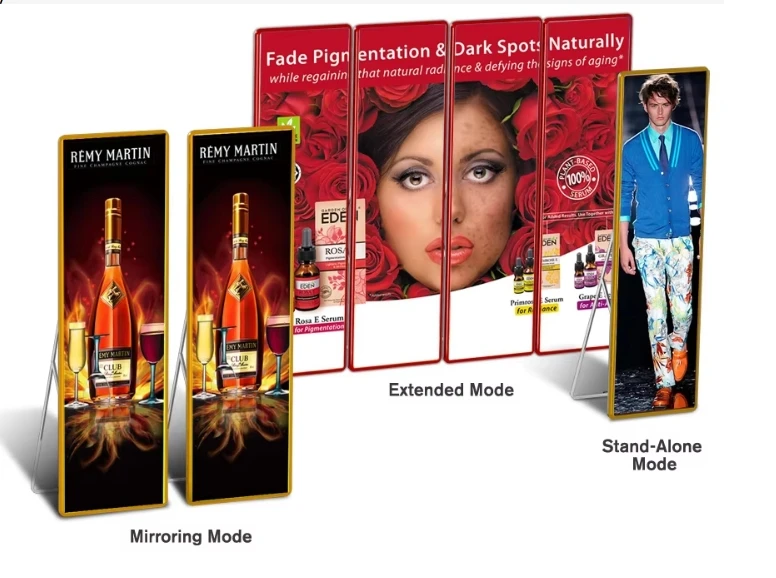

Multi-functional Design:

Multi-screen mode

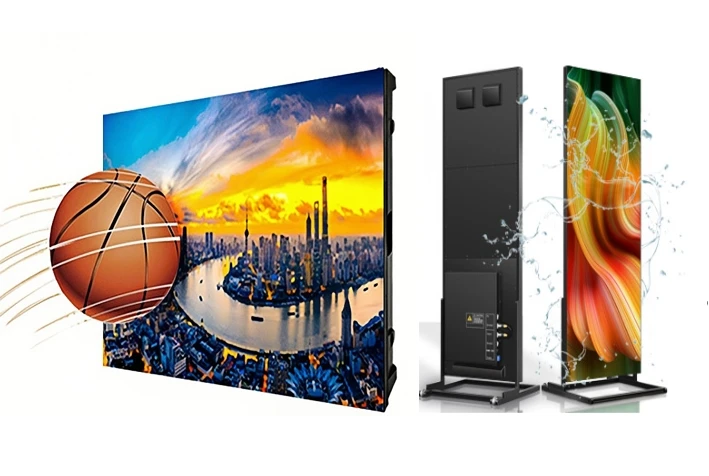

The LED poster screen can be spliced together to make a bigger screen which can be nearly seamless due to the thin frame of each LED poster, with no interruption to the images presented on the big screen.
And you can play same or different content on each digital LED poster screen.

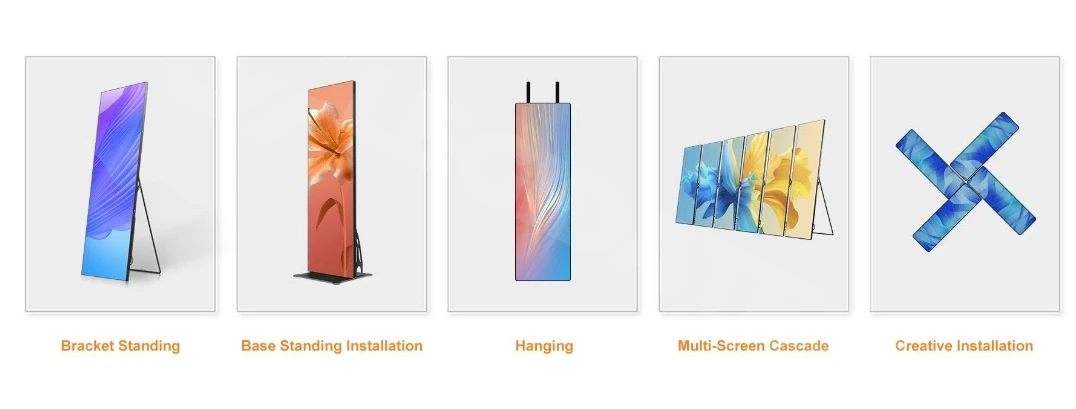

Diversified Installation Methods

The LED poster display comes in different installation ways. It can be wall-mounted, ceiling-mounted, hanging or floor-standing.Or you can use it horizontally as a banner display, and you can splice together several horizontally placed LED digital posters to get a screen in a different ratio.

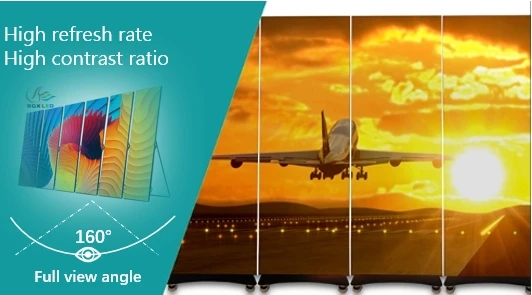

Excellent Visual Display&

Wide view angle

High-quality LEDs and Driving IC ensure high refresh rate and high contrast ratio.
The Refresh rate is up to 3840Hz and high definition image quality with 5000:1. The brightness reaches to 1000 Nits that provide the viewers with perfect display effect.
Horizontal /vertical view angle : 160° Ensure that multi angle can present the most perfect picture quality

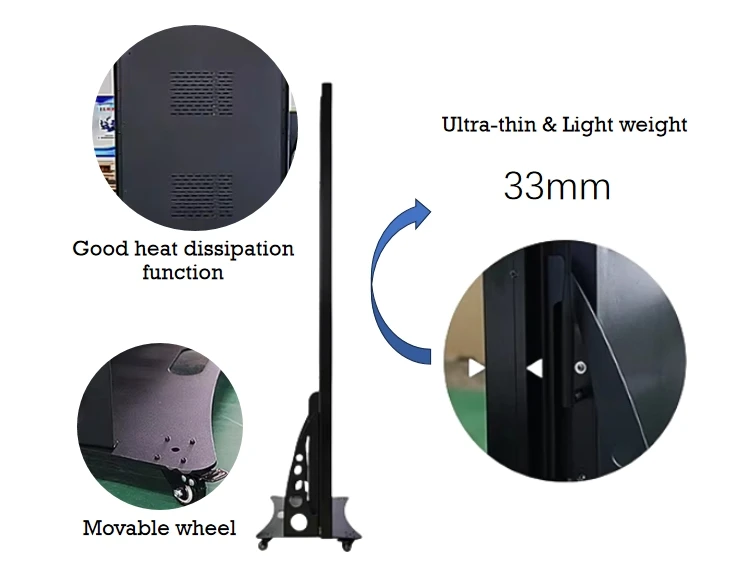

Ultra-thin & Light weight   & Portable

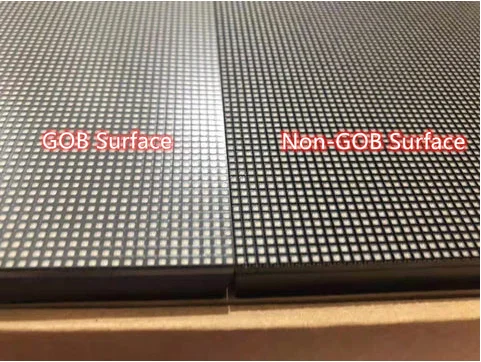

With GOB ( Glue On Board )

Smooth toutch
Waterproof and durable
Protect from dust and attack

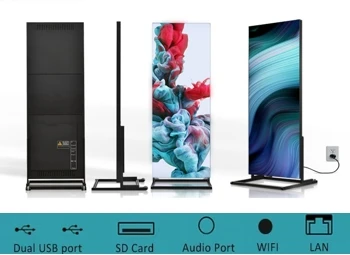

Plug & Play

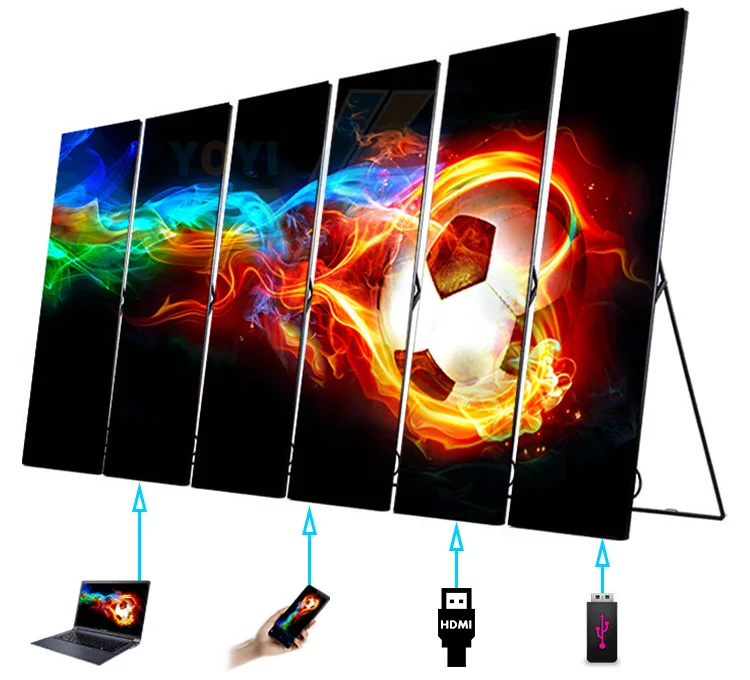

RGX poster LED display can be controlled by 5G, 4G, WIFI, USB and LAN cable. Simply put, after you send the program, the LED poster can automatically play video, pictures, text, and other programs once you connect the plug.

Smart Cloud Management

RGX Poster LED Display supports both synchronous & asynchronous control system, and the contents can be updated via iPad, Phone or Notebook. Real-time play, cross-platform information delivering, USB or WIFI supporting and IOS or Android multi-devices.

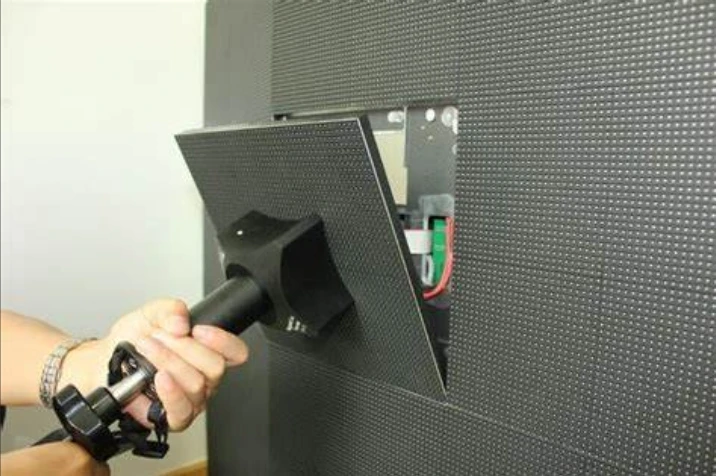

Front access, change modules by 3 seconds

LED modules and controller card can be maintained from front side, it is more convenient and easier to operate digital poster display

Application scenario

Packing & Delivery

Company Profile

FAQ
1. How can i place an order? Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time. For designing or further discussion, it is better to contact us with Skype/email /phone, in case of any delays. 2. What kind of display do we provide? We have indoor/outdoor/mobile LED /rental LED display /LED stage/ Advertising LED display for you choose. 3. What about the lead time for an order? Always: 10-17 days, as your order quantity, sometimes we have stock, can delivery within 7 days 4. What about the warranty? We have Three years quality guaranteed, spare parts such as led module, receiving card, control card, power supply are damaged not cause of artificial damaged, then it’s free maintenance and ship back new ones for replacement. 5.How about the quality? Our led products must be testing of at least 72hours before shipping, from purchase raw materials to ship ,Each step has strict quality control systems to ensure led display with good quality 6. Can you offer a technical support? Since it's my first time.... We provide free training for our customer, teach the client how to set up screens, make configuration of parameters, broadcast the videos through Nova star or Linsn control systems, our engineer can directly teach you how to control, or help you to done if you are really don't know how to control(Our Engineer can text English, we can saving more time ) Any question please add my wechat/ whatsapp +86137 1700 8357 for quick response or send your detailed inquiries in the belows for free samples, click"send"Now.
