Products Description

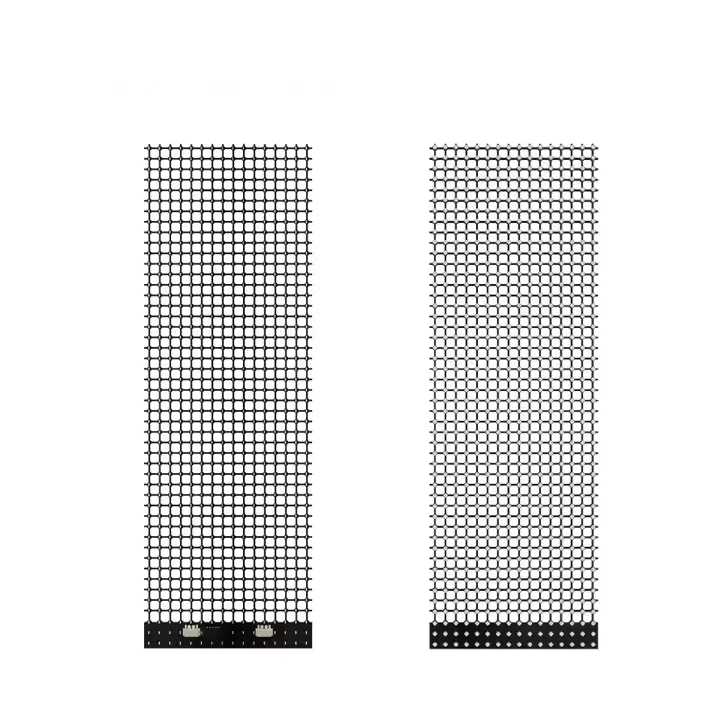

LED Holographic screen

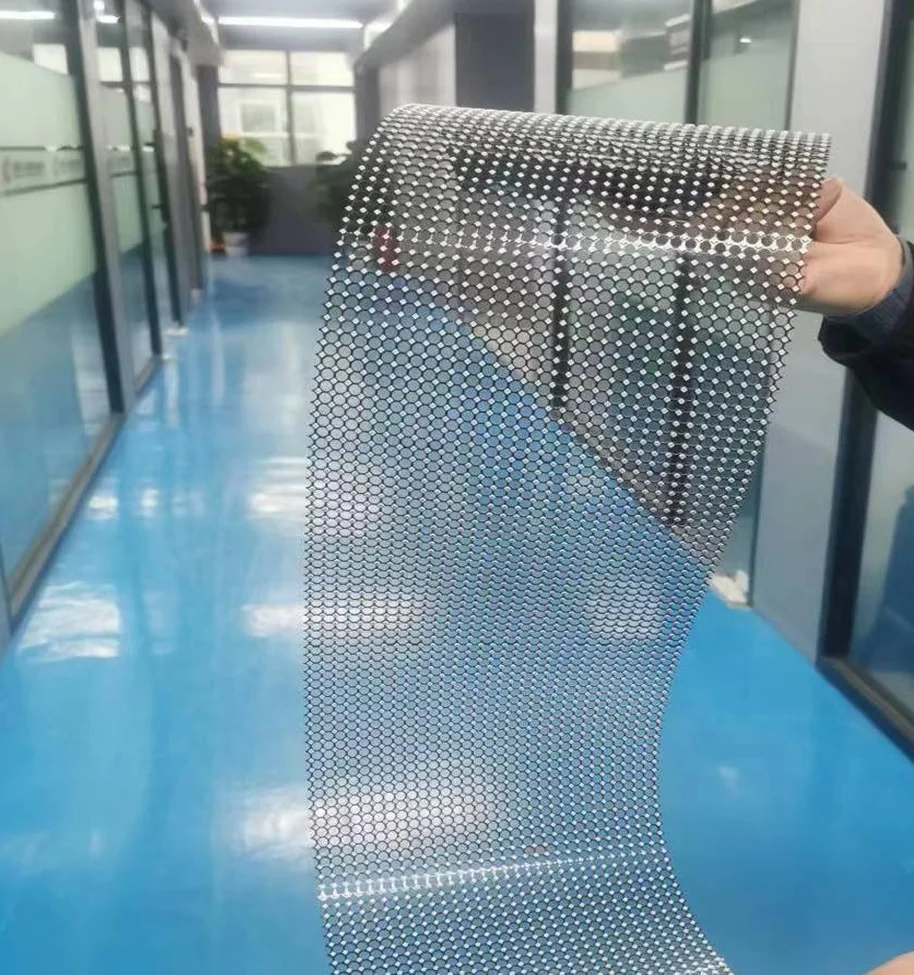

Holographic screen, also known as holographic transparent cold screen, LED holographic transparent screen, or invisible screen, is a new type of display technology. It combines LED technology and optical principles. By using an array of LED light bulbs and through precise algorithms and control techniques, it achieves a three-dimensional display effect. The screen is in a grid-like structure and uses specially designed transparent LED display components, allowing light to pass through the screen without causing obvious obstruction to the background.

Product Features

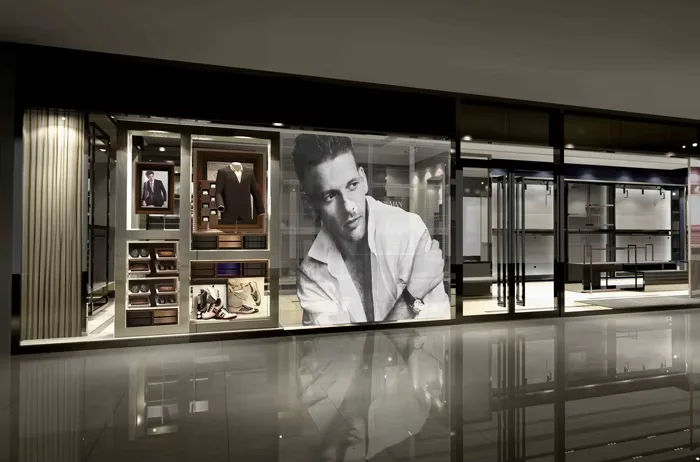

HIGH TRANSPARENCY

Boasting no structural frame design and unique transparent LED display elements, it has high transparency up to 90%, resulting in low wind resistance and preventing the sight from being blocked by the screen.

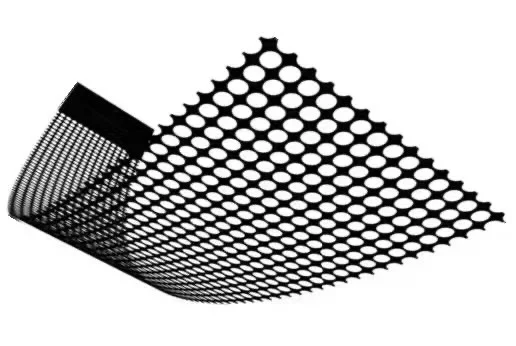

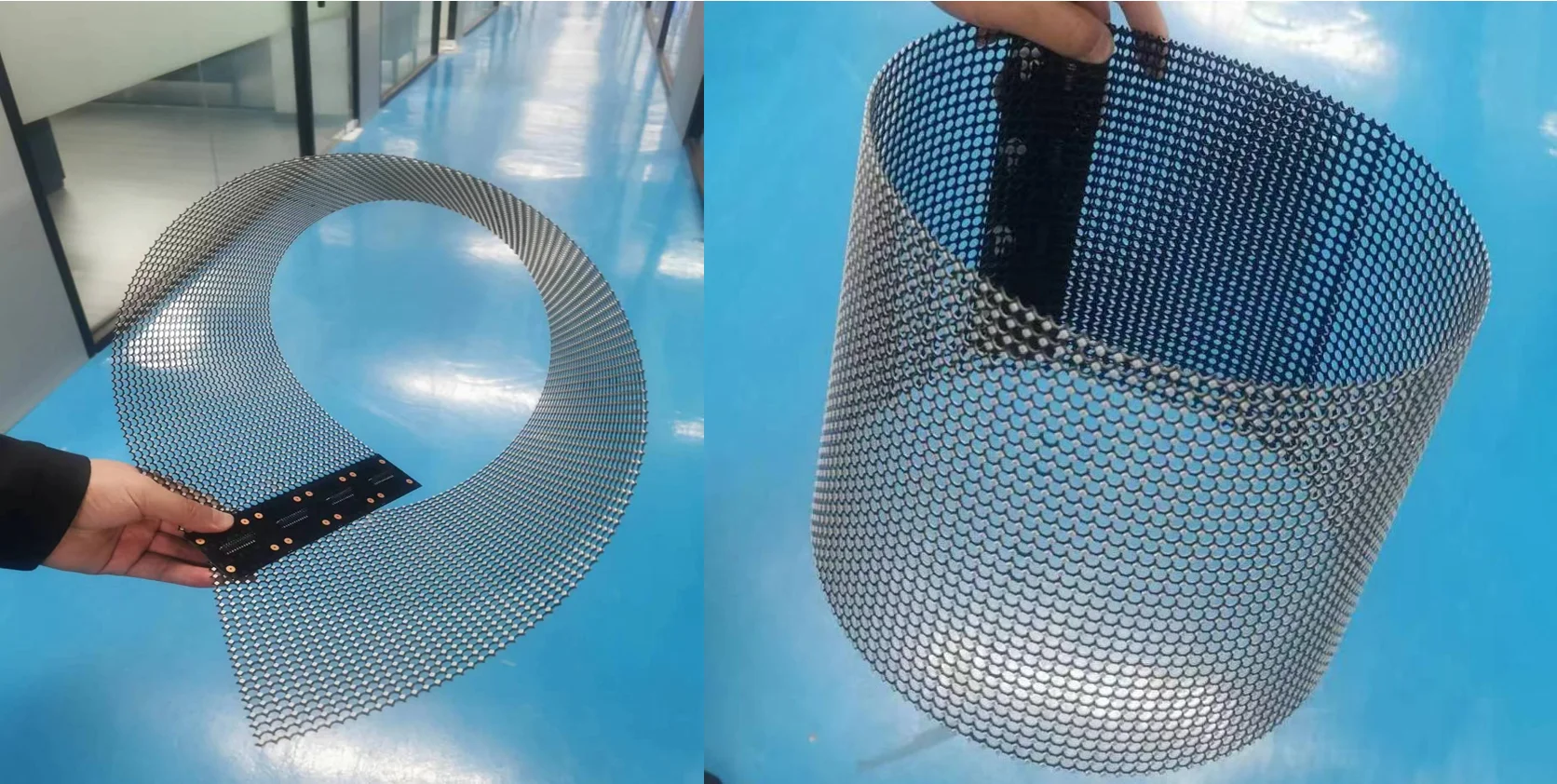

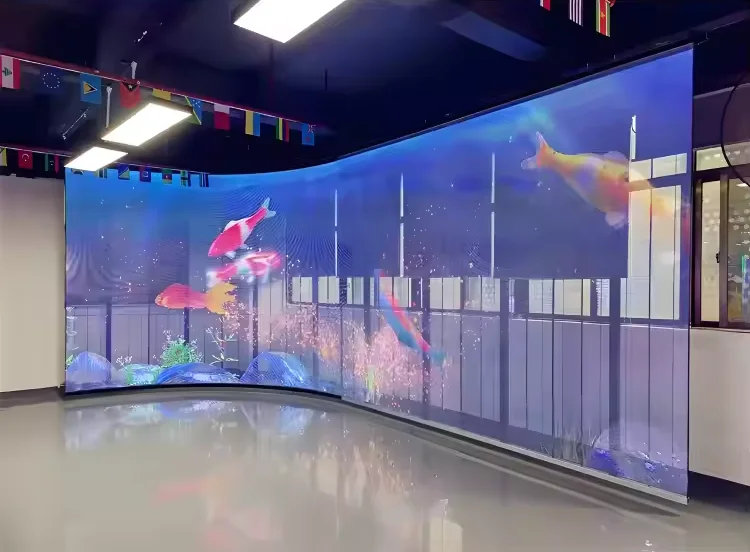

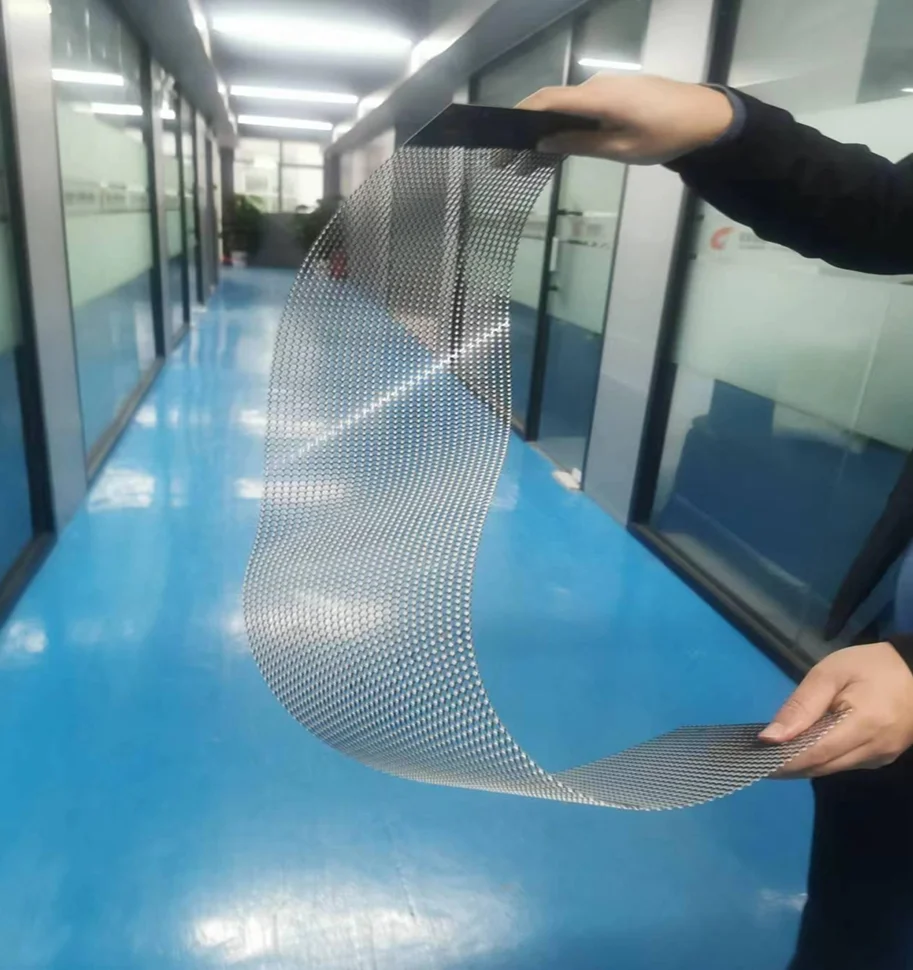

FLEXIBLE SHAPES, VARIOUS INSTALLATION OPTIONS

The modules support bending, cutting and splicing to offer flexibility, adaptability, and creativity. Various installation options such as surface mounting, hanging and floor standing are available to suit your installation needs.

Resume from break-point

The light-emitting chip uses a micron-level light source and adopts a four-in-one packaging method. There are no other electronic components except LED lamp beads. Using the solution of breakpoint resume transmission, if a single point is broken, it will not affect the normal display of other lamp beads.

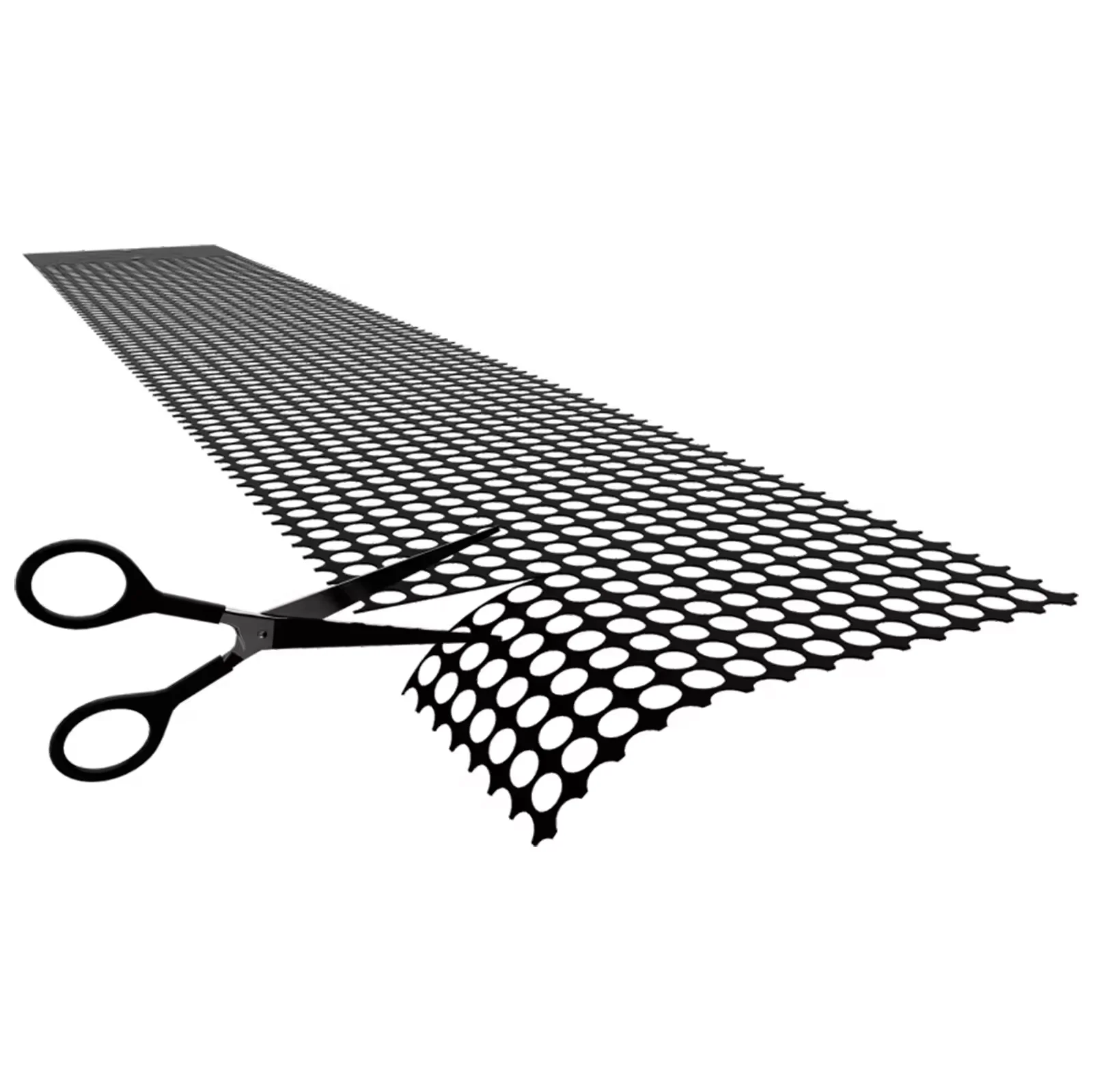

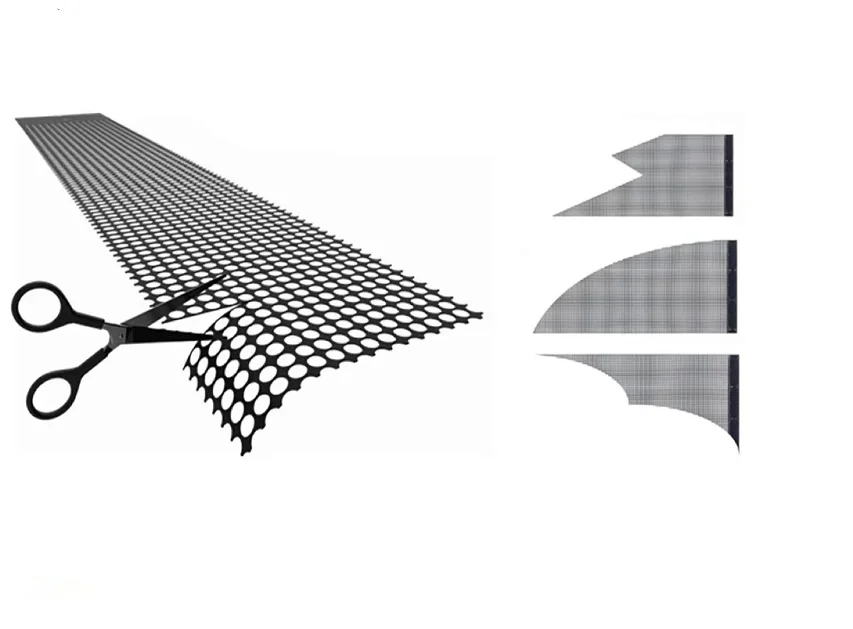

Arbitrary cutting
Seamless spiced display the screen size can be arbitrarily cropped, the closer the distance between the screen beads of the seamless splicing screen, the clearer the pixel density.
And the seamless cropped screen is more flexible to match the installation and regional carrier.

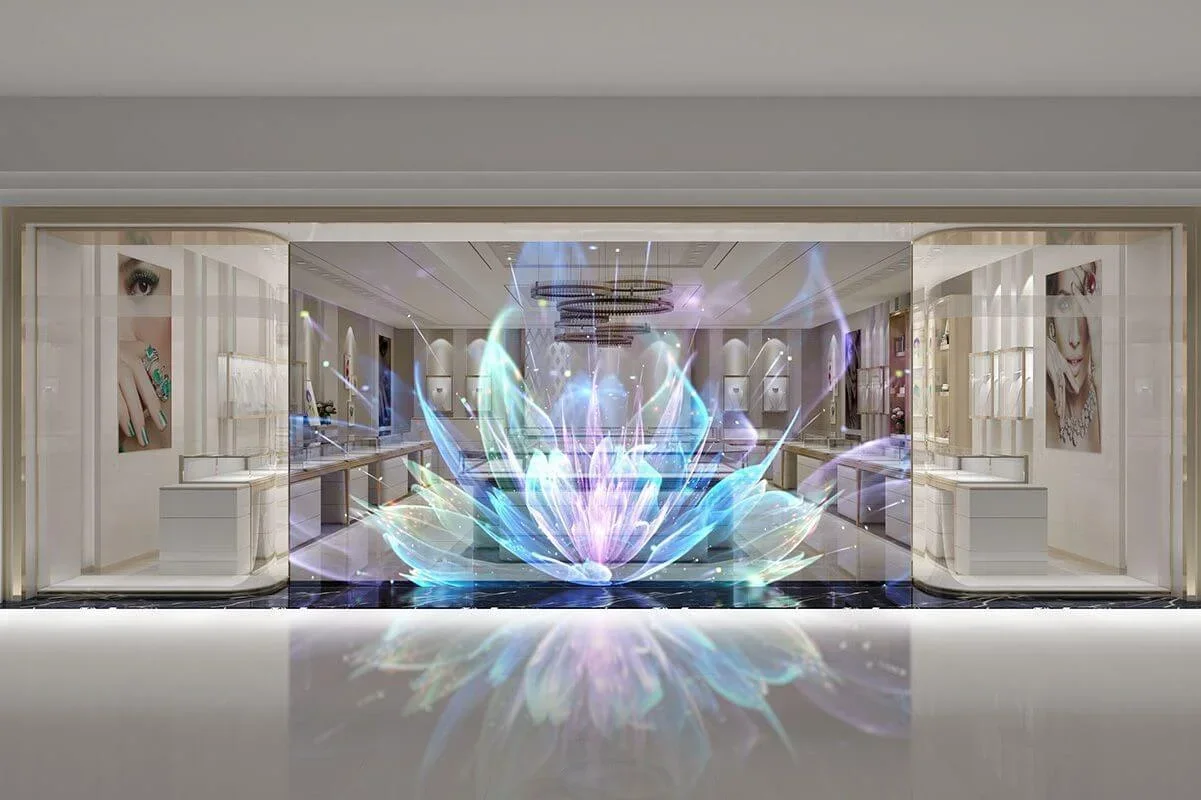

3D holographic effect

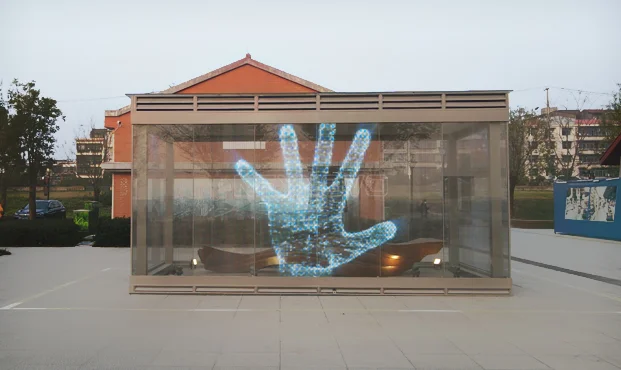

These innovative displays use a specialized semi-transparent LED mesh to project crisp, vibrant 3D-like holographic images that seem to float in mid-air.

Parameters

PH2.5- LED holographic film screen
Pixel pitch
L(2.5mm) W(2.5mm)
Pixel density
160000points/㎡
Display thickness
1-3mm
LED light tube
SMD1515(four-in-one led light)
Module size
1200mm*225mm
Electrical properties
Average: 240W/㎡, Maximum: 800W/㎡
Screen weight
Less than 3kg/㎡
Switching power supply
Yuan Chi
Visual transparency
>50%
IP rating
Better than IP45
Average life expectancy
More than 100,000 hours of use
Power supply requirements
220V±10%; AC50HZ, three-phase five-wire
Screen brightness
White balance brightness 800-2000cd/m2; automatic adjustment and manual adjustment according to the ambient brightness
Visible distance
The image is clearly visible when viewed from a distance of 3m to 150m
Perspective
160 horizontally, 140 vertically
Gray scale
≥16(bit)
white point color temperature
5500K-15000K(adjustable)
Drive mode
static
Decay rate
Less than 0.05% for 2 years
Refresh rate
Greater than 3840HZ
Frame rate
Greater than 60HZ
MTBF
More than 10000 hours
Lamp bead defective pixel rate
Less than one ten thousandth, and distributed discretely
Control System
Colorlight/ Nova Synchronous Asynchronous
Use environment
Working environment:-10~+65C/ 10~90%RH
Storage environment:-40~+85C/10~90 %RH
Installation method
SMT, hoisting, fixed installation, support any size cutting, bending.
PH3.91-LED holographic film screen
Pixel pitch
L(3.91mm) W(3.91mm)
Pixel density
65536 points/㎡
Display thickness
1-3mm
LED light tube
SMD2020 (four-in-one led light)
Module size
1500mm*250mm/1200mm*250mm/1000mm*250mm
Electrical properties
Average: 240W/㎡, Maximum:800W/㎡
Screen weight
Less than 3g/㎡
Switching power supply
Yuan Chi
Visual transparency
>80%
IP rating
Better than IP45
Average life expectancy
More than 100,000 hours of use
Power supply requirements
220V±10%;AC50HZ, three-phase five-wire
Screen brightness
White balance brightness 800-2000cd/m2; automatic adjustment and manual adjustment according to the ambient brightness
Visible distance
The image is clearly visible when viewed from a distance of 4m to 150m
Perspective
160 horizontally, 140 vertically
Gray scale
≥16(bit)
white point color temperature
5500K-15000K (adjustable)
Drive mode
static
Decay rate
Less than 0.05% for 2 years
Refresh rate
Greater than 3840HZ
Frame rate
Greater than 60HZ
MTBF
More than 10000 hours
Lamp bead defective pixel rate
Less than one ten thousandth, and distributed discretely
Control System
Colorlight/ Nova Synchronous Asynchronous
Use environment
Working environment:-10~+65 C/10~90%RH
Storage environment:-40~+85 C/ 10~90 %RH
Installation method
SMT, hoisting, fixed installation, support any size cutting, bending.
PH6.25-LED holographic film screen
Pixel pitch
L(6.25mm) W(6.25mm)
Pixel density
25600 points/㎡
Display thickness
1-3mm
LED light tube
SMD2020 (four-in-one led light)
Module size
1500mm*250mm/1200mm*250mm/1000mm*250mm
Electrical properties
Average: 240W/㎡, Maximum: 800W/㎡
Screen weight
Less than 3kg/㎡
Switching power supply
Yuan Chi
Visual transparency
>90%
IP rating
Better than IP45
Average life expectancy
More than 100,000 hours of use
Power supply requirements
220V±10%; AC50HZ, three-phase five-wire
Screen brightness
White balance brightness 800-4500cd/m2; automatic adjustment and manual adjustment according to ambient brightness
Visible distance
The image is clearly visible when viewed from a distance of 8m~250m
Perspective
160 horizontally, 140 vertically
Gray scale
≥16(bit)
white point color temperature
5500K-15000K (adjustable)
Drive mode
static
Decay rate
Less than 0.05% for 2 years
Refresh rate
Greater than 3840HZ
Frame rate
Greater than 60HZ
MTBF
More than 10000 hours
Lamp bead defective pixel rate
Less than one ten thousandth, and distributed discretely
Control System
Colorlight/ Nova Synchronous Asynchronous
Use environment
Working environment: -10~+65 C/ 10~90 %RH
Storage environment: -40~+85 C/ 10~90 %RH
Installation method
SMT, hoisting, fixed installation, support any size cutting, bending .
PH10.4-LED holographic film screen
Pixel pitch
L(10.4mm) W(10.4mm)
Pixel density
9216points/㎡
Display thickness
1-3mm
LED light tube
SMD2020 (four-in-one led light)
Module size
1500mm*250mm/1200mm*250mm/1000mm*250mm
Electrical properties
Average: 240W/㎡, Maximum: 800W/㎡
Screen weight
Less than 3kg/㎡
Switching power supply
Yuan Chi
Visual transparency
>92%
IP rating
Better than IP45
Average life expectancy
More than 100,000 hours of use
Power supply requirements
220V±10%;AC50HZ, three-phase five-wire
Screen brightness
White balance brightness 1500-5000cd/m2; automatic adjustment and manual adjustment according to ambient brightness
Visible distance
The image is clearly visible when viewed from a distance of 10m~250m
Perspective
160 horizontally, 140 vertically
Gray scale
≥16(bit)
white point color temperature
5500K-15000K(adjustable)
Drive mode
static
Decay rate
Less than 0.05% for 2 years
Refresh rate
Greater than 3840HZ
Frame rate
Greater than 60HZ
MTBF
More than 10000 hours
Lamp bead defective pixel rate
Less than one ten thousandth, and distributed discretely
Control System
Colorlight/ Nova Synchronous Asynchronous
Use environment
Working environment: -10~+65 C/10~90%RH
Storage environment:-40~+85 C/10~90%RH
Installation method
SMT, hoisting, fixed installation, support any size cutting, bending.
PH10.4-LED holographic film screen
Pixel pitch
L(10.4mm) W(10.4mm)
Pixel density
9216points/㎡
Display thickness
1-3mm
LED light tube
SMD2020 (four-in-one led light)
Module size
1500mm*250mm/1200mm*250mm/1000mm*250mm
Electrical properties
Average: 240W/㎡, Maximum: 800W/㎡
Screen weight
Less than 3kg/㎡
Switching power supply
Yuan Chi
Visual transparency
>92%
IP rating
Better than IP45
Average life expectancy
More than 100,000 hours of use
Power supply requirements
220V±10%;AC50HZ, three-phase five-wire
Screen brightness
White balance brightness 1500-5000cd/m2; automatic adjustment and manual adjustment according to ambient brightness
Visible distance
The image is clearly visible when viewed from a distance of 10m~250m
Perspective
160 horizontally, 140 vertically
Gray scale
≥16(bit)
white point color temperature
5500K-15000K(adjustable)
Drive mode
static
Decay rate
Less than 0.05% for 2 years
Refresh rate
Greater than 3840HZ
Frame rate
Greater than 60HZ
MTBF
More than 10000 hours
Lamp bead defective pixel rate
Less than one ten thousandth, and distributed discretely
Control System
Colorlight/ Nova Synchronous Asynchronous
Use environment
Working environment: -10~+65 C/10~90%RH
Storage environment:-40~+85 C/10~90%RH
Installation method
SMT, hoisting, fixed installation, support any size cutting, bending.
PH15.6-LED holographic film screen
Pixel pitch
L(15.6mm) W(15.6mm)
Pixel density
4096 points/㎡
Display thickness
1-3mm
LED light tube
SMD2020 (four-in-one led light)
Module size
1500mm*250mm/1200mm*250mm/1000mm*250mm
Electrical properties
Average: 240W/㎡, Maximum: 800W/㎡
Screen weight
Less than 3kg/㎡
Switching power supply
Yuan Chi
Visual transparency
>93%
IP rating
Better than IP45
Average life expectancy
More than 100,000 hours of use
Power supply requirements
220V±10%; AC50HZ, three-phase five-wire
Screen brightness
White balance brightness 1500-4500cd/m2; automatic adjustment and manual adjustment according to ambient brightness
Visible distance
The image is clearly visible when viewed from a distance of 16m~250m
Perspective
160 horizontally, 140 vertically
Gray scale
≥16(bit)
white point color temperature
5500K-15000K(adjustable)
Drive mode
static
Decay rate
Less than 0.05% for 2 years
Refresh rate
Greater than 3840HZ
Frame rate
Greater than 60HZ
MTBF
More than 10000 hours
Lamp bead defective pixel rate
Less than one ten thousandth, and distributed discretely
Control System
Colorlight/ Nova Synchronous Asynchronous
Use environment
Working environment: -10~+65 C/ 10~90 %RH
Storage environment: -40~+85 C/ 10~90 %RH
Installation method
SMT, hoisting, fixed installation, support any size cutting, bending.


PH20-LED holographic film screen
Pixel pitch
L(20mm) W(20mm)
Pixel density
2500 points/㎡
Display thickness
1-3mm
LED light tube
SMD2020 (four-in-one led light)
Module size
1500mm*250mm/1200mm*250mm/1000mm*250mm
Electrical properties
Average: 240W/㎡, Maximum: 600W/㎡
Screen weight
Less than 3kg/㎡
Switching power supply
Yuan Chi
Visual transparency
>95%
IP rating
Better than IP45
Average life expectancy
More than 100,000 hours of use
Power supply requirements
220V±10%; AC50HZ, three-phase five-wire
Screen brightness
White balance brightness 1500-3500cd/m2; automatic adjustment and manual adjustment according to ambient brightness
Visible distance
The image is clearly visible when viewed from a distance of 20m~250m
Perspective
160 horizontally, 140 vertically
Gray scale
≥16(bit)
white point color temperature
5500K-15000K(adjustable)
Drive mode
static
Decay rate
Less than 0.05% for 2 years
Refresh rate
Greater than 3840HZ
Frame rate
Greater than 60HZ
MTBF
More than 10000 hours
Lamp bead defective pixel rate
Less than one ten thousandth, and distributed discretely
Control System
Colorlight/ Nova Synchronous Asynchronous
Use environment
Working environment:-10~+65 °C/ 10~90 %RH
Storage environment:-40~+85 C/ 10~90 %RH
Installation method
SMT, hoisting, fixed installation, support any size cutting, bending.

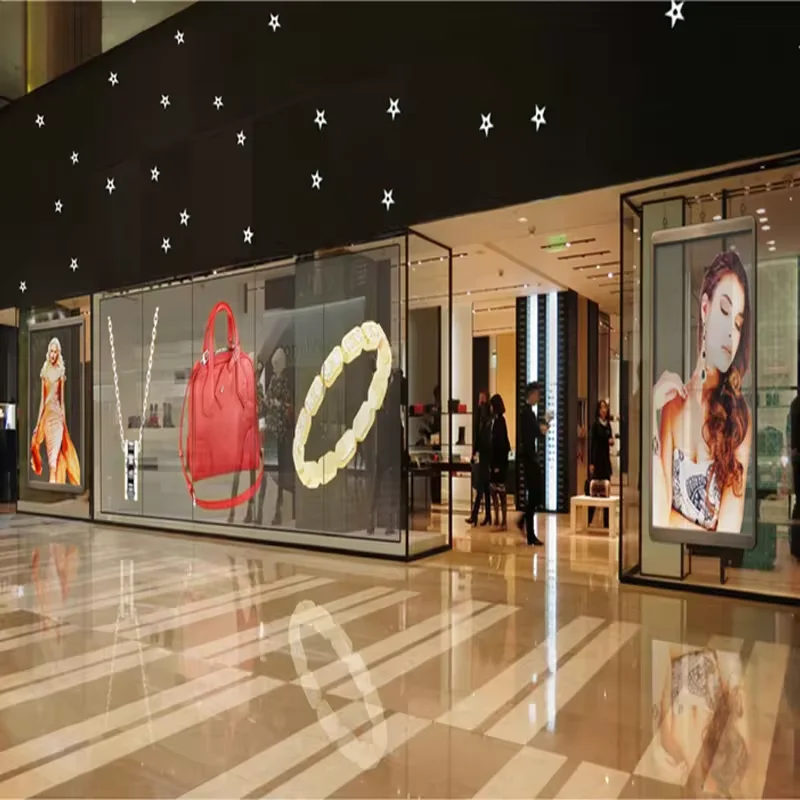

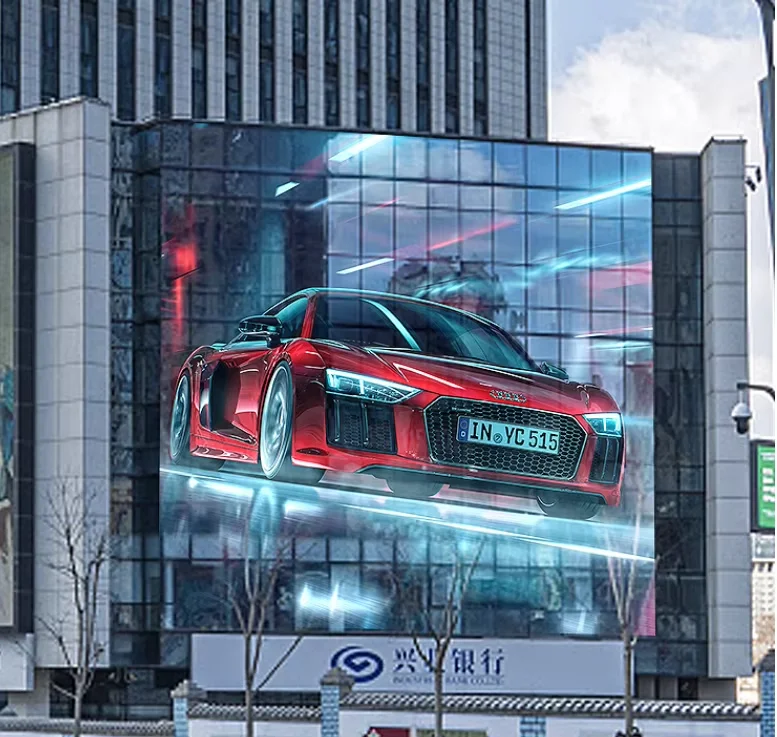

Application scenario

FAQ
1. How can I place an order?
Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time. For designing or further discussion, it is better to contact us with Skype/email /phone, in case of any delays.

2. What kind of display do we provide?
We have indoor/outdoor/mobile LED /rental LED display /LED stage/ Advertising LED display for
you choose.

purchasing

RealName：
*
Telephone：
*
Email：
*
Purchasing intention：
*
Please fill inPurchaseThe quantity and description of the products are convenient for us to make a unified stock。
Verify code：
* Can't see clearly? Click to change the picture Change it
Submit
reviews
Launch more reviews
I want to comment

Comment content：
*
Verify code：
* Can't see clearly? Click to change the picture Change it
Submit
More similar>>
Similar

About us

Product

News Center

Contact us

Shenzhen RGX Electronics Co., Ltd.
Contact:ledrgx
Phone: 0755-23714515
Mobile: 13699777670
Whatsapp/wechat: +86 180 380 69578
Skype: levin-led
Q     Q: 1006759127
After sale service: ledrgx@163.com
bottomLogo
Shenzhen RGX ELECTRONICS TECHNOLOGY CO.,LTD
CopyRight © 2017 www.rgxled.com All Rights Reserved.
网站ICP备案号：粤ICP备2023115230号
Support：Website | zk71  | Manage
