RGX P1.25 Monitor Room Full Color LED Panel Synchronous Asynchronous Display Screen Slim Lightweight
name:

RGX P1.25 Monitor Room Full Color LED Panel Synchronous Asynchronous Display Screen Slim Lightweight

classification:COB P0.7mm P0.9mm P1.25mm P1.56mm LED DISPLAY -> P1.25mm
market price:$0.00
Local price:$0.00
material:Die-cast Aluminum
color:RGB
Release date:2025-8-29 10:25:6
COB LED display screen is an LED display product adopting Chip on Board packaging technology, where LED chips are directly packaged on the PCB board. Compared with traditional SMD LED screens, it features higher pixel density, more uniform display effect, better dustproof, moisture-proof and anti-collision performance, with delicate and clear images. It is suitable for high-end display scenarios requiring close viewing, such as conference rooms, command centers and high-end retail.
    Hotline:86 13699777670
consulting
Contact us
Contact us

Shenzhen RGX Electronics Co., Ltd.
Contact:ledrgx
Phone: 0755-23714515
Mobile: +86 18038069578
Whatsapp/wechat: +86 180 380 69578
Skype: levin-led
Q     Q: 1006759127

After sale service: ledrgx@163.com

http://www.rgxled.com

description
Specification
Usage
Indoor
Pixel Pitch
P0.93mm
P1.25mm
P1.56mm
Cabinet Size
600*337.5mm (27inch)
Cabinet Resolution
645*362
480*270
384*216
Module Size
150*168.75mm
Module Resolution
161*181
120*135
96*108
Physical Density
1156200dots/㎡
691200dots/㎡
641025dots/㎡
LED Type
0808
1010
1212
Cabinet Material
Die cast aluminum
Mantainance Way
Front
Refresh Rate
3840HZ
Brightness
800CD/㎡
Grey Level
256



A team of PGX experts that have 16 years experience will guide you so that the purchase of your LED screen is a success.
Product Description

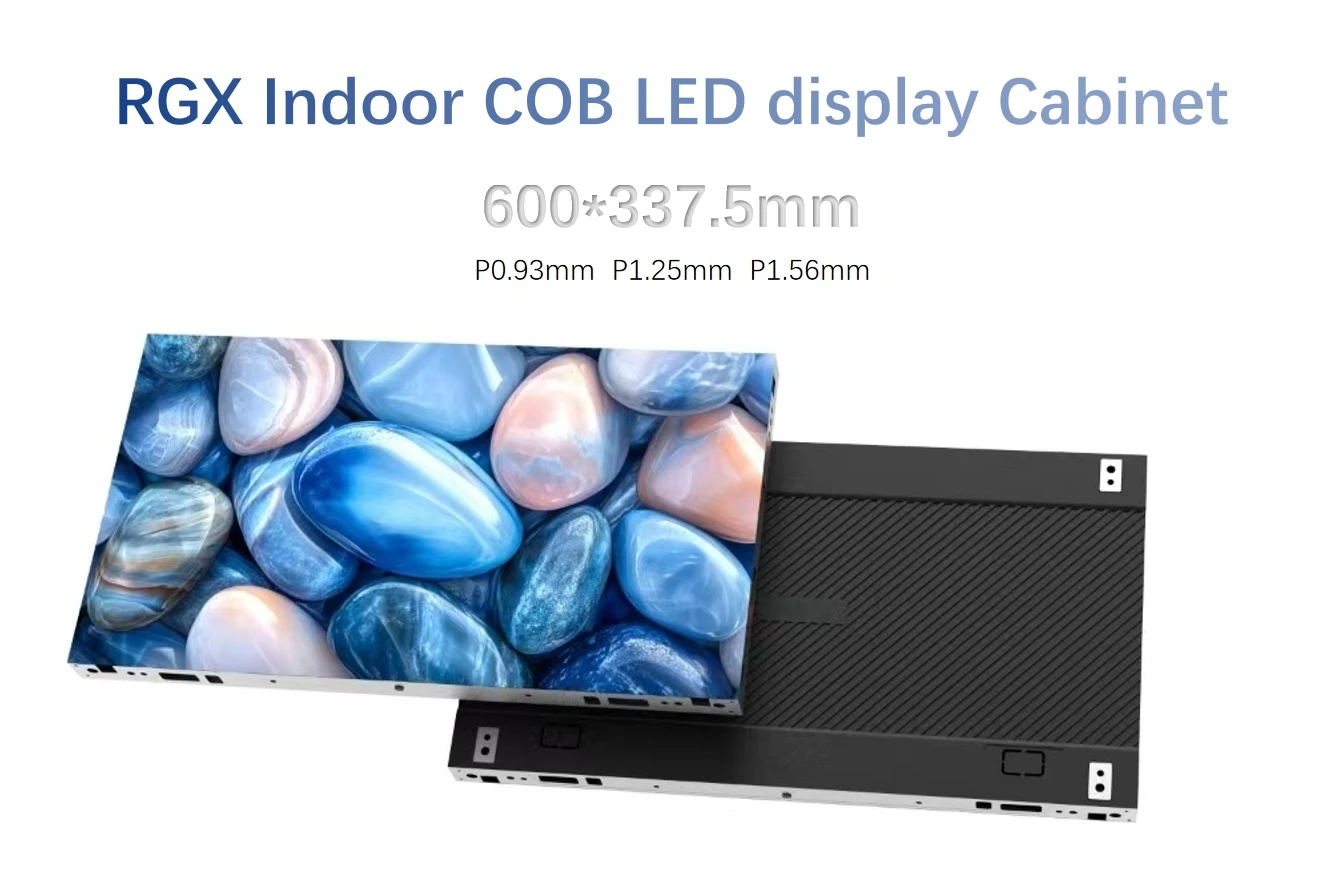

Indoor Fine Pitch COB LED Display Cabinet

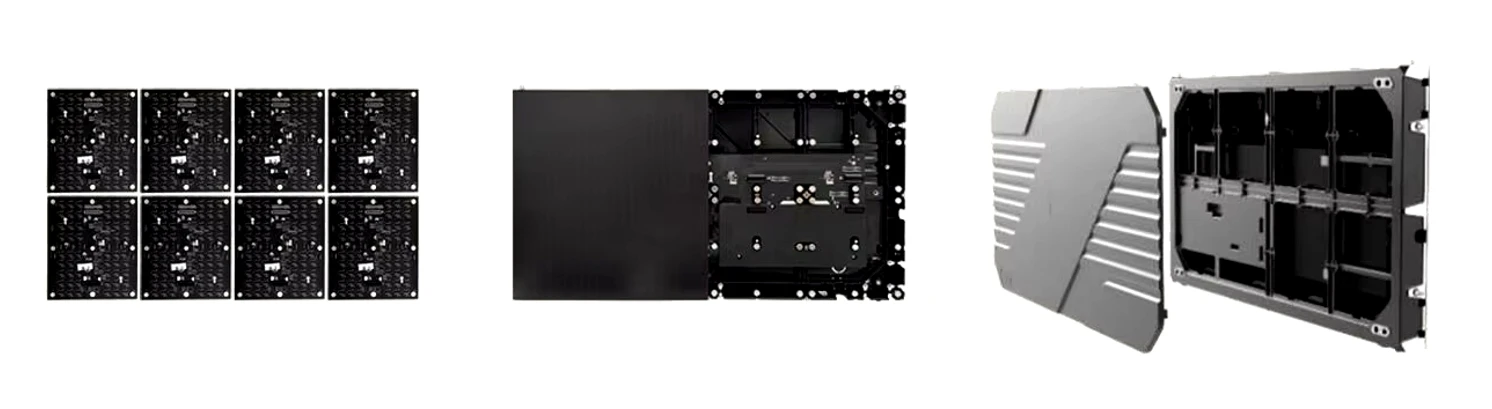

P0.93mm/ P1.25mm/ P1.56mm 600*337.5mm COB Cabinet is composed of 8pcs 150*168.75mm small LED modules that comes with a pixel pitch of P0.93mm/ P1.25mm/ P1.56mm. Pixel pitch is a metric that describes how far the centers of two adjacent pixels are on an LED display.The smaller it is, the sharper the display resolution tends to be. The ratio of each cabinet is 16:9. Different numbers of cabinets can be seamlessly spliced into screens of different lengths and widths you want.

Fine Pitch COB LED displays cabinets are commonly used in indoor applications where high resolution and close viewing distances are required, such as in conference rooms, control rooms, retail environments, advertising displays and so on.
Product Features
Latest Technology - Upgraded Version of Traditional LED Screens
COB
1.Good heat dissipation, low surface temperature, and low power consumption
2.Sealed and moisture-proof, with no migration or leakage of electrodes 3.Wide electrode GAP value and strong reliability



SMD
1.Easy to solder joints, wire breakage, leakage, and metal migration 2.High thermal resistance 3.Easy to knock off lights and requires frequent maintenance

Three-in-one Design, Efficient And More Stable

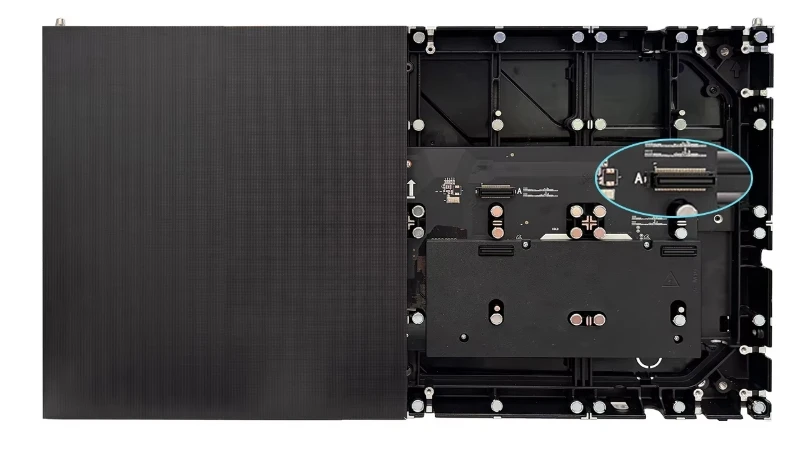

Three-in-one innovation design of modules, power supply, Hub card, which is highly integrated and operates more stably.

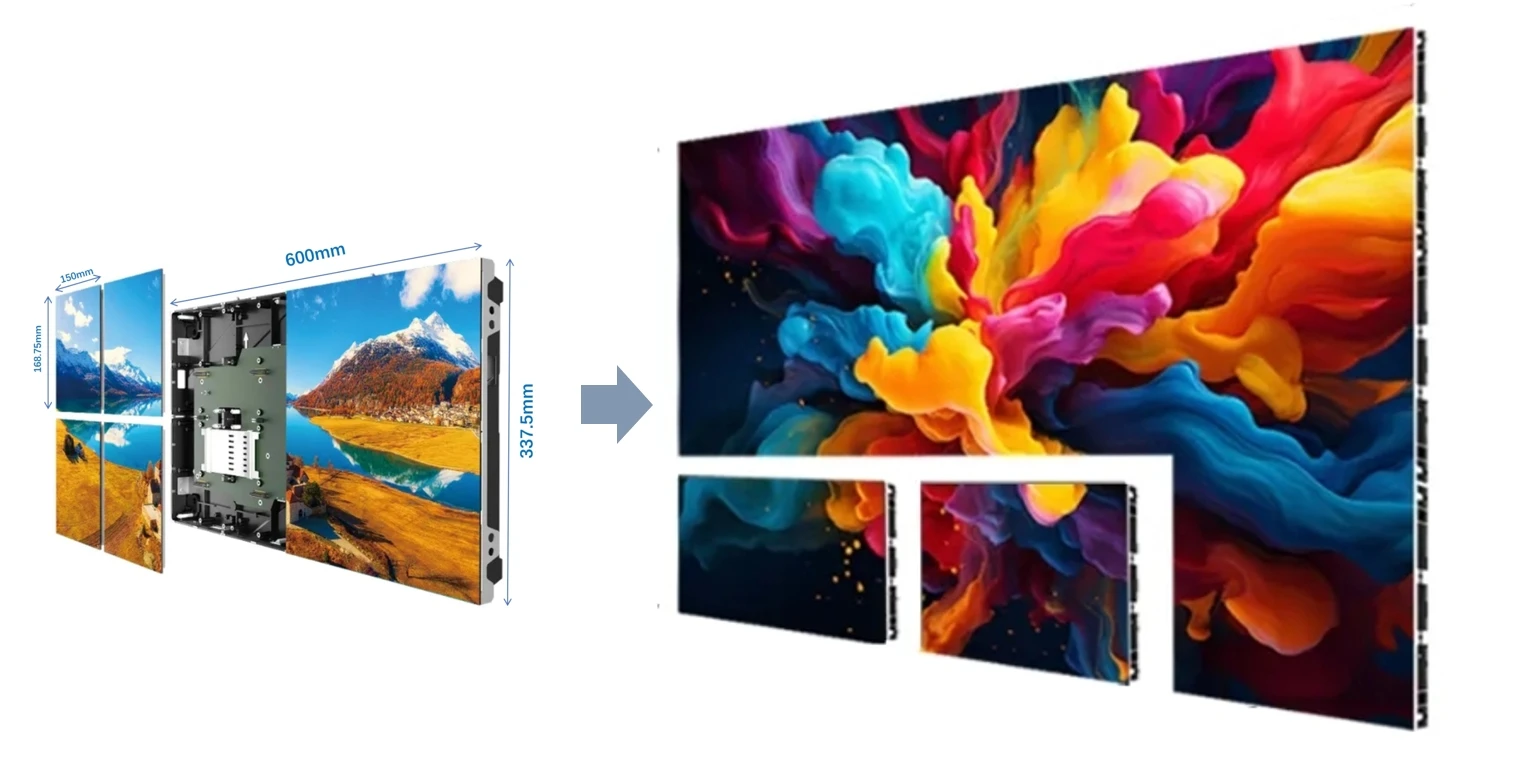

16:9 Ratio & Seamless splicing
The ratio of each cabinet is 16:9. Different numbers of cabinets can be seamlessly spliced into screens of different lengths and widths you want.

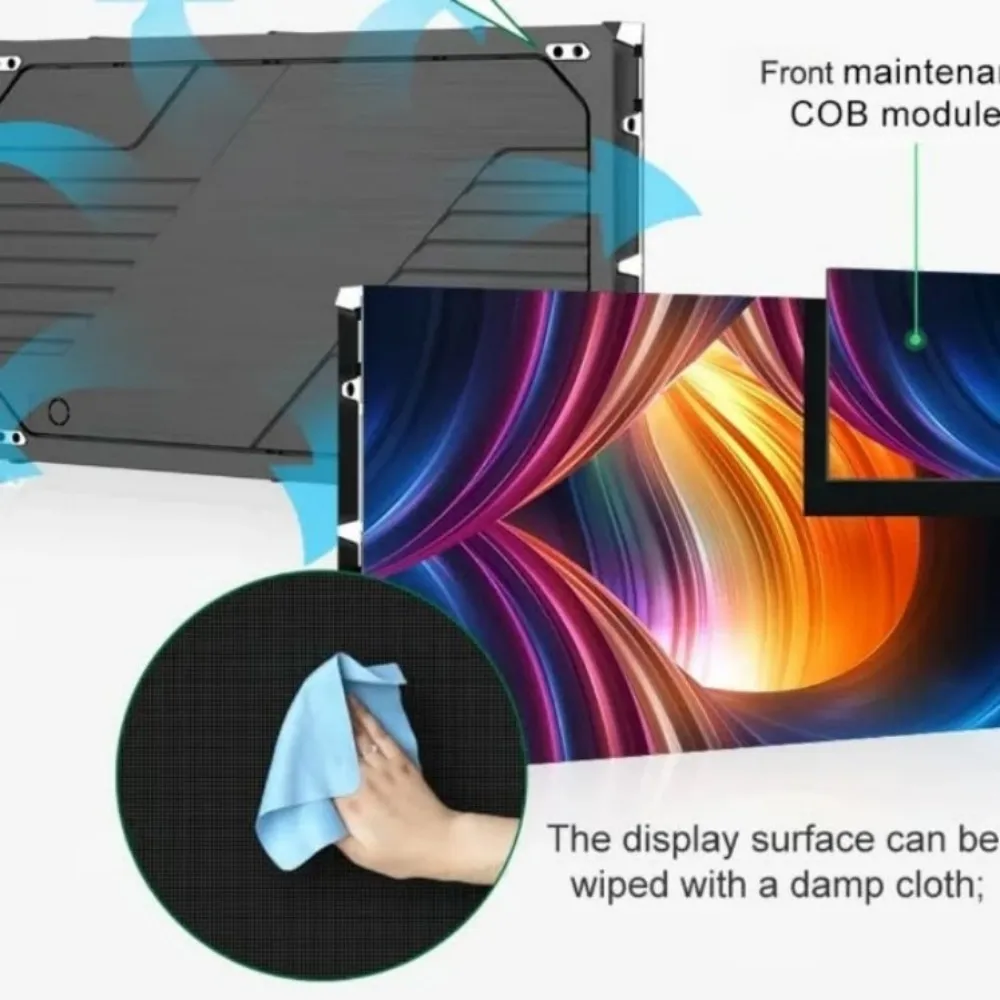

Cable-less splicing & Front installation and maintenance
Cableless connection between module and cabinets, support front maintenance and cableless installation. Change modules by 3 seconds.




Exellent protection





Diversified Installation Methods

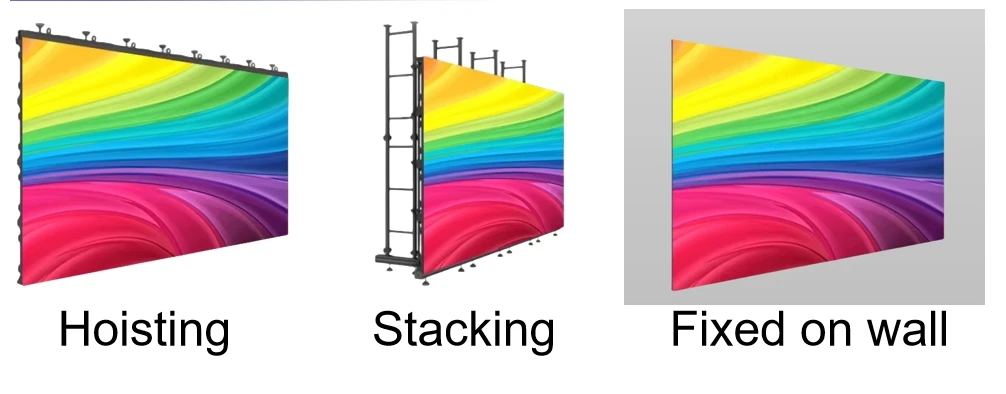

The screen comes in different installation ways. It can be wall-mounted, ceiling-mounted, hanging or floor-standing



Excellent Visual Display& Wide view angle
Horizontal /vertical view angle : 175° Ensure that multi angle can present the most perfect picture quality

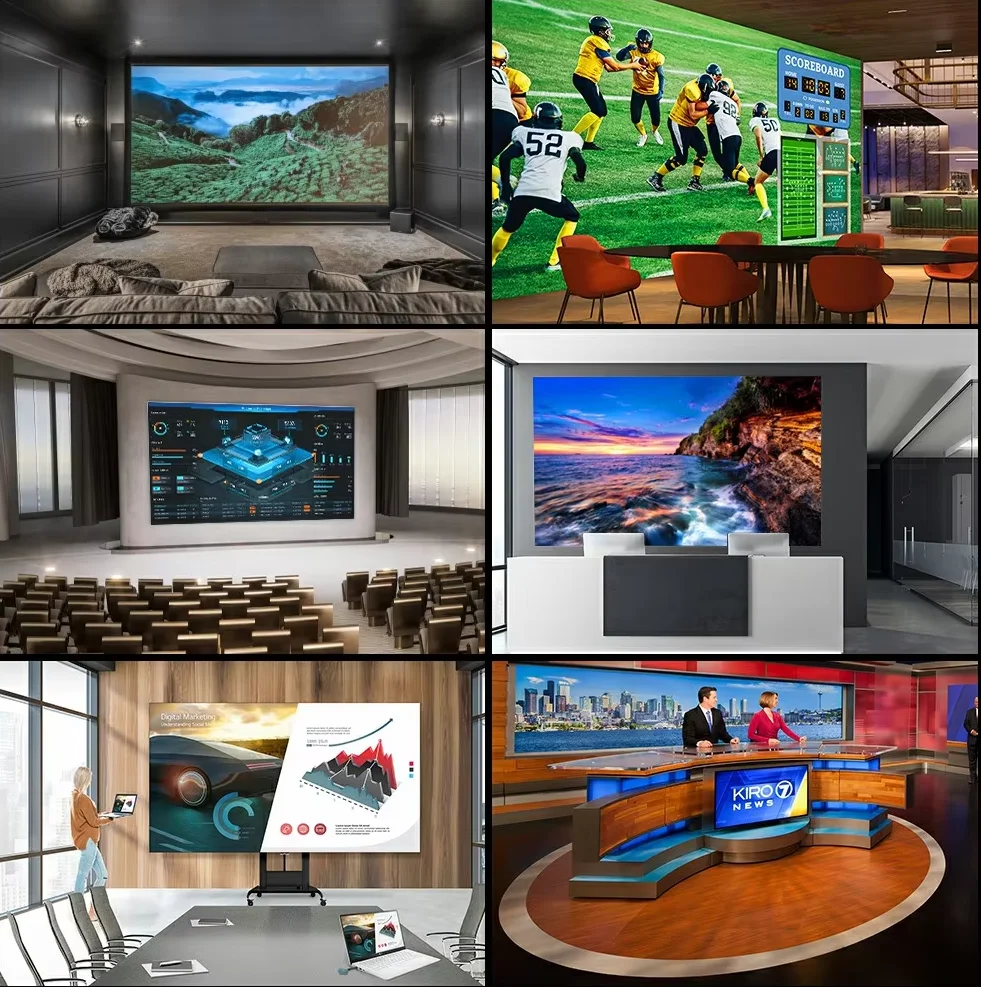

Application scenario
Fine Pitch COB LED displays cabinets are commonly used in indoor applications where high resolution and close viewing distances are required, such as in conference rooms, control rooms, retail environments, advertising displays and so on.
Packing & Delivery
Company Profile
FAQ
1. How can i place an order? Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time. For designing or further discussion, it is better to contact us with Skype/email /phone, in case of any delays. 2. What kind of display do we provide? We have indoor/outdoor/mobile LED /rental LED display /LED stage/ Advertising LED display for you choose. 3. What about the lead time for an order? Always: 10-17 days, as your order quantity, sometimes we have stock, can delivery within 7 days 4. What about the warranty? We have Three years quality guaranteed, spare parts such as led module, receiving card, control card, power supply are damaged not cause of artificial damaged, then it’s free maintenance and ship back new ones for replacement. 5.How about the quality? Our led products must be testing of at least 72hours before shipping, from purchase raw materials to ship ,Each step has strict quality control systems to ensure led display with good quality 6. Can you offer a technical support? Since it's my first time.... We provide free training for our customer, teach the client how to set up screens, make configuration of parameters, broadcast the videos through Nova star or Linsn control systems, our engineer can directly teach you how to control, or help you to done if you are really don't know how to control(Our Engineer can text English, we can saving more time ) Any question please add my wechat/ whatsapp +86180 2231 3037 for quick response or send your detailed inquiries in the belows for free samples, click"send"Now.
