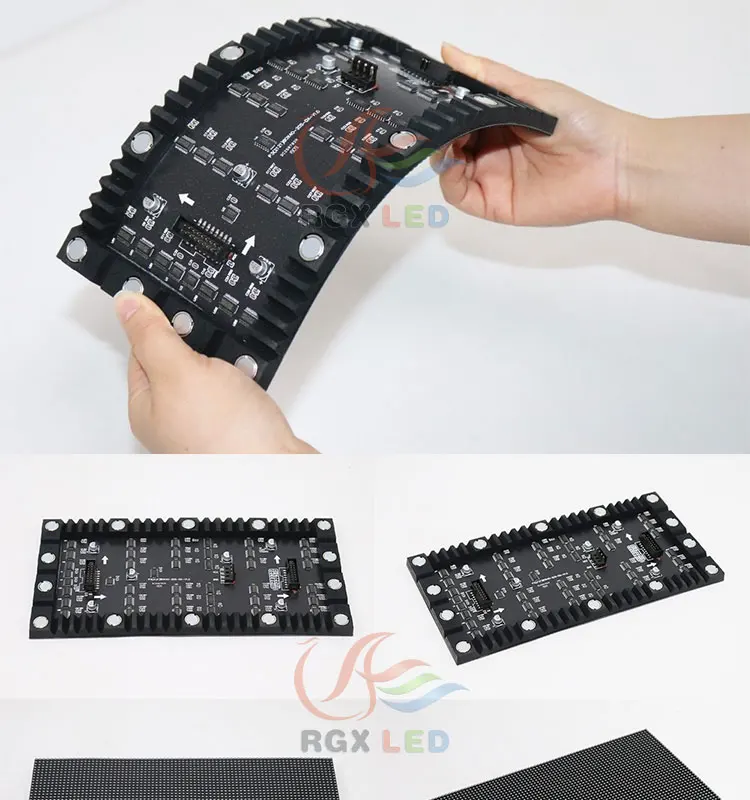

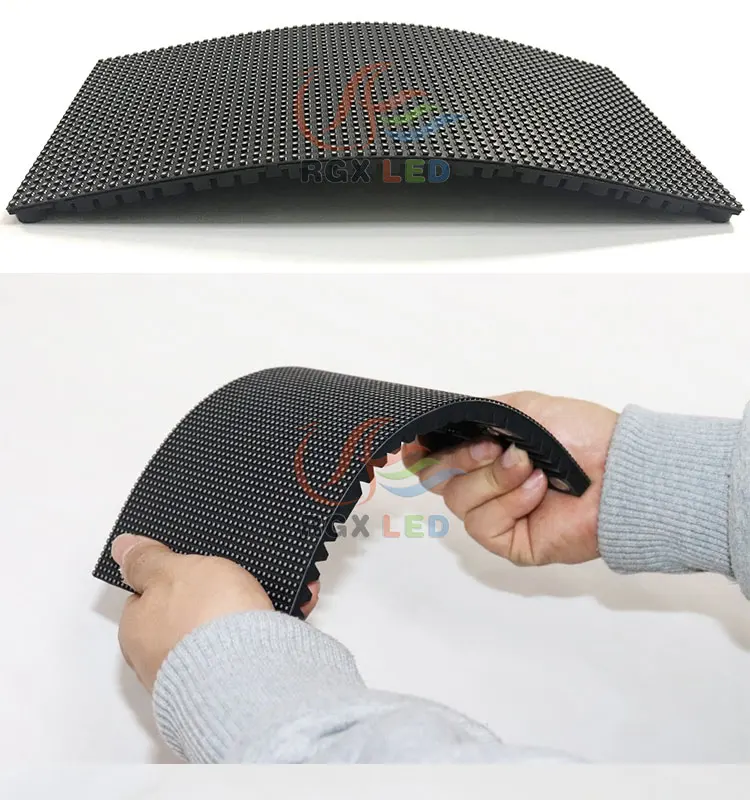

Indoor Soft Mini Size P3 240x120mm Full Color Led Matrix Module 80x40 Dots Directly Supplied By RGX Manufacturer

Specification

Description
♥ Pixel Pitch:3mm

♥ Module Size: 240*120mm

♥ Module Resolution: 80*40

♥ Module Pixles:3200dots

♥ Scan: 1/20

♥ Pixel Density : 111111dots/m²

♥ Viewing Distance: >3m

♥ LED: SMD2121

♥ Pixel Configuration: 1R 1G 1B

♥ Brightness: 0~1800 Nits

♥ Contrast Rate : 3000:1

♥ Color Depth: 16bit

♥ Grey Level: 16384

♥ Refresh Frequency: >1920HZ

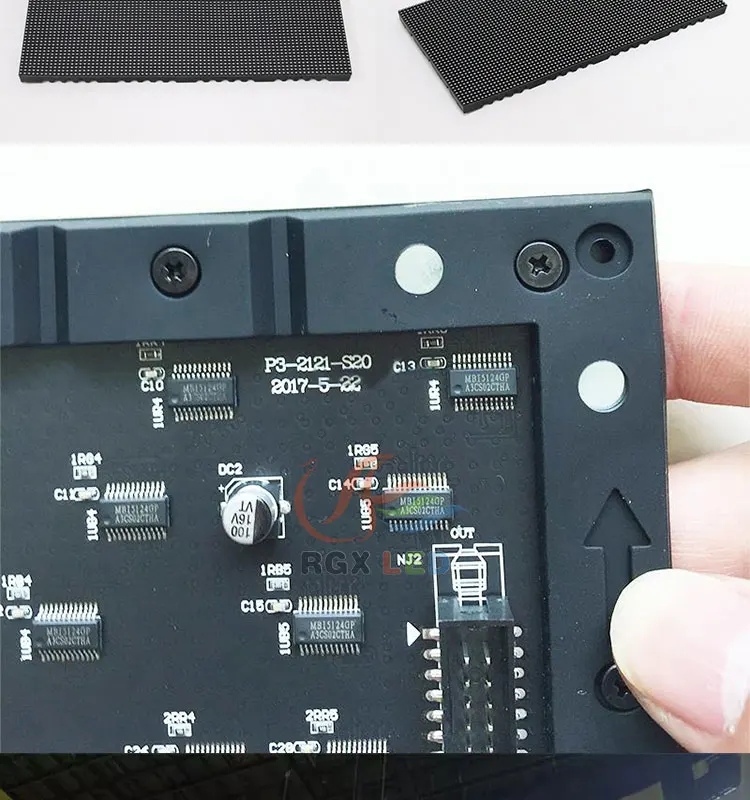

♥ Driving IC: MBI/ICN

♥ Color Uniformity : ≥97%

♥ Protection Rating: IP30

♥ Life span: ≥100,000 hours

♥ Operating Temperature: -20°C ~ 60°C(-4°F ~ 140°F)

♥ Operating Humidity: 10% ~ 90%

♥ Voltage: 5V

♥ Viewing Angle: H:160deg. V:160deg.

♥ Power Consumption(w) : Max. 20W

♥ Blind Spot Rate: ≤0.0003

Package include

♥1x LED Matrix Module

♥1x 1 to 2 Power Cord

♥1x 16pin cables (about 10cm)

Kindly Note

If you need a large quantity of these items,

please contact us for wholesale price directly.

Note: Each LED module comes with a 16PIN LED modules flat signal cable and a DC5V LED modules power cable.

Online Service

    You'd better buy all LED modules at a time for one LED display, in this way, we can make sure that all of them are of the same batch.

    For different batch of LED modules have a few differences in RGB rank, color, frame, brightness etc.

    We recommend that you purchase the LED display cabinet as the smallest unit for assembly.

    Need to be personalized, Please leave a message to our sales staff for the LED display system solution.

Company Information

FAQ

Q1: How to choose the LED screen suitable for my needs?

A1: When you choose a led screen, you only need to consider three simple questions.

      1. Will you use it indoors or outdoors?

      2. Is it for rental purpose (need to move from one place to another often) or for fixed installation (to be installed in one place forever)?

      3. What is the length and width of the LED screen you want to buy?

Q2: Which pixel pitch should I choose?

A2: There are many differences from 1.25--16mm pixel pitch, in principle it is so-usually indoor LED screens use smaller pixels (1.25mm-10mm), outdoor LED use larger pixels (2.5mm-16mm) screens ( For example, huge highway ads).

Q3: Which control system should I choose?

A3: There are synchronous and asynchronous control systems on the market. For large-size LED screens (usually more than 20 square meters), you need to use a synchronous control system; when it is less than 20 square meters, you can use synchronous or asynchronous. For asynchronous control systems, you can choose to use wifi, 3G, 4G and other wireless control.

Q4: How to order from your factory?

A4: You can place an order with RGX through Alibaba online or offline transactions, please contact us to confirm before placing an order.

Q5: How to pay?

A5: We accept payment online via Alibaba, or offline to our company account via T / T, Paypal or Westerunion.

Q6: How to ship?

A6: This is optional, and we respect our customers choices. You can choose to ship by air, DHL (FedEx, UPS, TNT, EMS, etc.) international express company, or by sea according to the weight, volume and required delivery time of the goods.

Q7: How to install after receiving?

A7: We will provide you with drawings to guide you through the installation. We can also provide drawings of steel structures, software settings drawings or photos, or send our engineers to help you when needed.
