⚫ Faroudja® Real Color®true color processing，10+ Bit Faroudja® DCDI de-interlacing

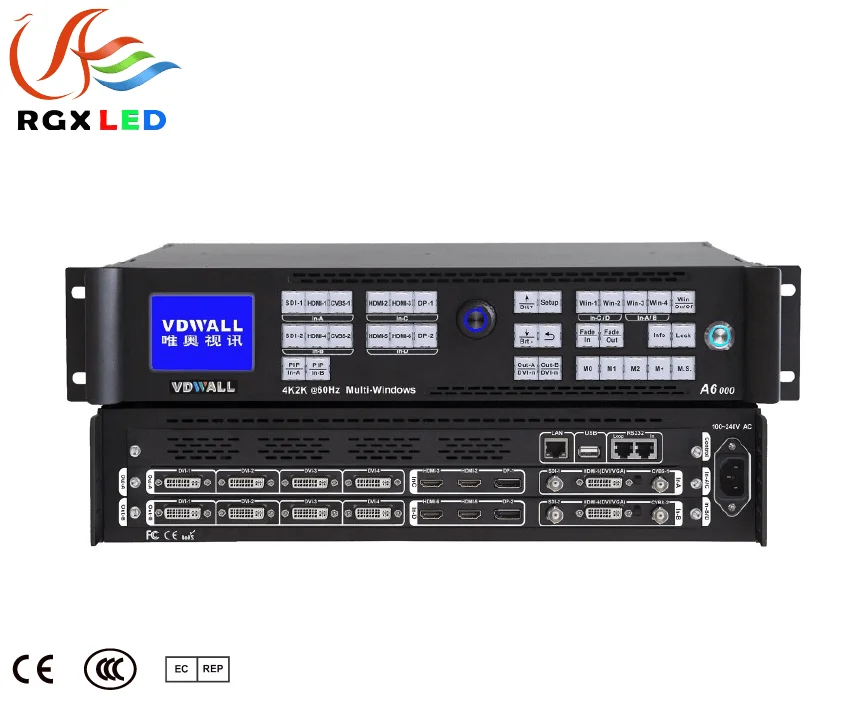

6 HD+SD、analog+digital input，including 2 HDMI1.3(compatible with DVI、VGA input ）
⚫ Seamless switching and Fade in/Fade out switching between different input signal;
⚫ Support 4K 4 windows 6 images display、4K arbitrary scaling、open window、overlay. 4
windows include 2*4K and 2*2K，freely scale、overlap、roam among 8 unit screen. 2 *2K

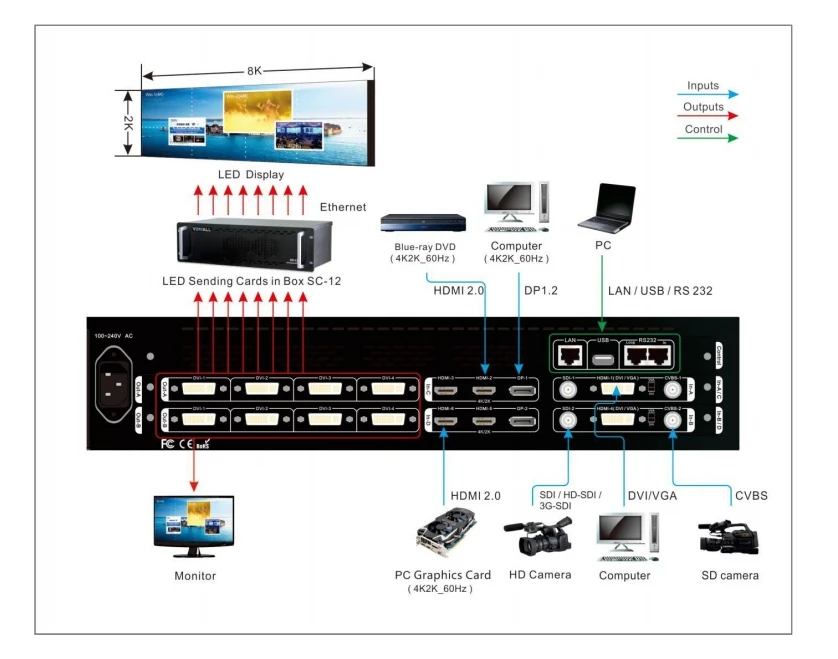

⚫ 8 DVI output，driving capability up to 18 million pixels. Support output resolution 1920×
1080P@60Hz and 8 DVI outputs synchronized splicing，support 7680×2160 screen driving；
Support user defined output resolution, maximum 2160 pixels in height or width，8 DVI can drive 17280 pixels in horizon or vertical；
⚫ Each DVI output support any in any out cropping, random size and position setup on LED
screen, realize perfect mosaic of irregular screen；
⚫ Each DVI output support colour、gray level、brightness adjustment in independent RGB
channel with 256 level, achieve uniform colour of different screen batches；
⚫ Auto calculation aided splicing, user just set the total screen size and unit screen
size&position, the device will automatically calculate and complete the splicing, intuitive and
convenient；
⚫ Multi-Window support vertical cropping, the cropped image remain the same aspect ratio
with the source image, avoid image deformation;
⚫ Support 4 windows overlay, layer sequence can be adjusted freely, optional seamless or Fade
in/Fade out switching effect;
⚫ 4 windows support image frame function,frame on/off、thickness、colour is adjustable;
⚫ 4 windows support input image quality adjustment, including colour、gray level、brightness in
independent RGB channel with 256 level；
⚫ Support output image hot backup，Out A and out B can output same image , greatly enhance
output stability；
⚫ Support synchronized monitoring, one 1080P LCD monitor can have a synchronized view of
LED screen image；
⚫ 16 preset multi-window display modes, support mode duplication and backup. No black screen or blurred screen during mode
switching;
⚫ 16 preset splicing mode of 8 DVI output, mode duplication and mode backup provided;
⚫ Flexible and convenient front panel control，support remote PC control via RS232/USB/LAN

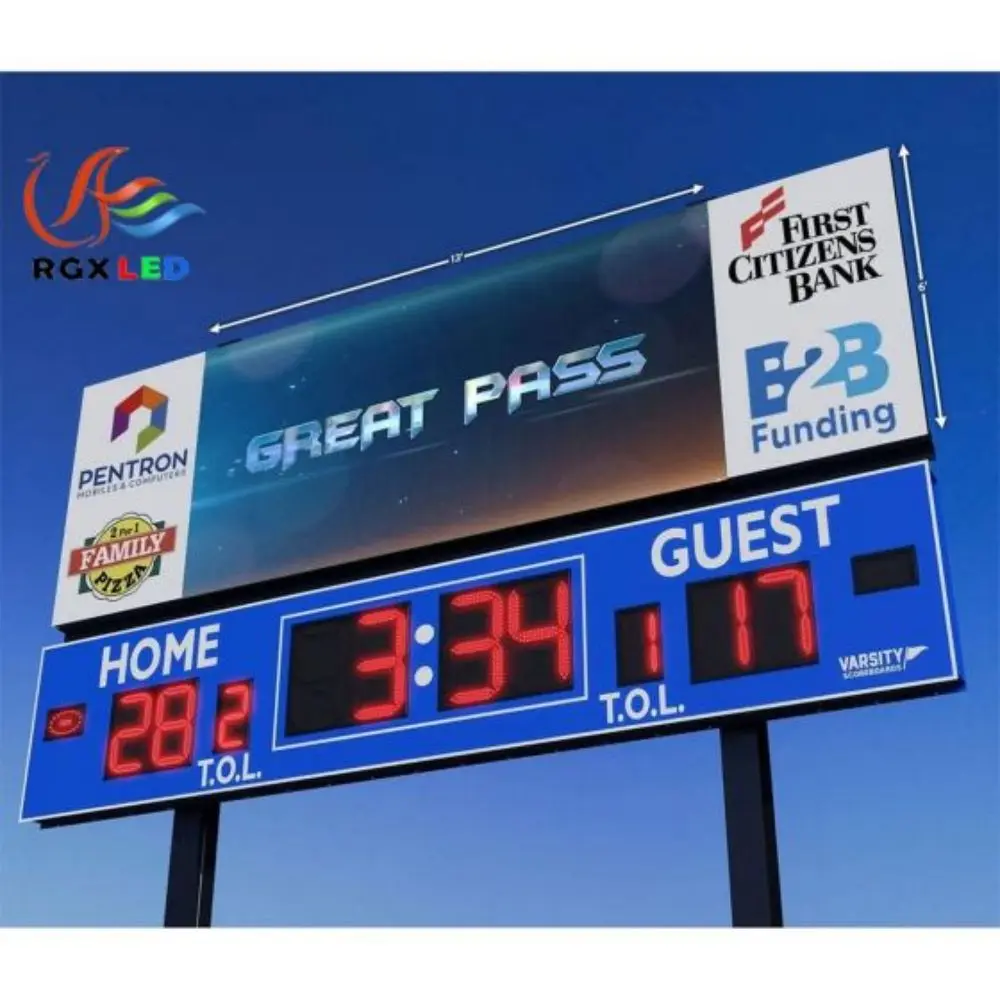

⚫ Designed for small pitches LED screen，widely applied in exhibition、station advertisement、
stage performance、restaurant、lecture hall、conference room、school auditorium、church、
company promotion etc，；
