Vdwall Lvp919 Led Video Processor for Led Panels and Video Wall Outdoor
Parameters
LVP919 Series LED HD Video Processor
The LVP 919 is the new design and is a modified version of the LVP909. The main function is 4 output stitching and the picture-in-picture (PIP) function that can be realized at the same time. This is currently our LED Video Splicer that can do the lowest price of 4 screen stitching with PIP. Audio Synchronization processing is also added to this model.
*The LVP 919S compared to the regular LVP919 model has SDI input.
Key features
1.Faroudja® Real Color®Picture Processing, Faroudja® DCDI Cinema Processing,Faroudja® TureLife™Video Image Enhancement
2. 4*DVI output, Single output has the resolution up to 1920 x 1200_60Hz
3.Zoom in synchronously mosaic, single unit maximum mosaic level up to 7680 pixels or vertical 4800 pixels, or 3840x2400 pixels

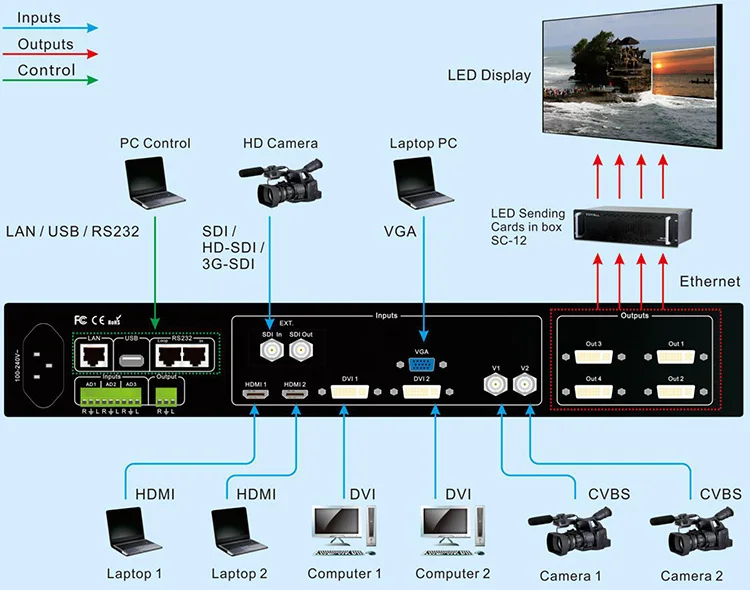

4.Multiple analog and digital mixed signals input:2xCVBS,1xVGA,2xHDMI,2xDVI,1xExt
5. Seamless Switching, Fade In Fade Out Switching
6.PIP(Picture In Picture), Any PIP display; AIAO(Any In Any Out), any input crop and any output
7. Multiple output resolutions can be set, flexibly adapting to the size of the LED screen
8.Can preset multiple user-defined display modes, one button switching between modes
9.Control modes: panel button, software by RS232/USB/LAN, flexible and convenient
10. Add 4 channels of HDMI audio (only when DVI, HDMI interface is connected to HDMI signal) and 1 channel of SDI audio, up to 8 channels of audio synchronously switching
11. 24/7 Application, stable and reliable
Key parameters
|
Inputs |
|
Number / type |
2×CVBS
1×VGA(RGBHV)
2×DVI(VESA / CEA-861)
2×HDMI(VESA / CEA-861)
1×SDI(HD-SDI / 3G-SDI)(optional) |
|
Video system |
PAL / NTSC |
Composite Video
Amplitude Impedance |
1V(p_p)/ 75Ω |
|
VGA format |
PC(VESA standard) ≤1920×1200_60Hz |
VGA Amplitude
Impedance |
R,G,B = 0.7 V(p_p)/ 75Ω |
|
DVI format |
PC(VESA standard) ≤1920×1200_60Hz
HDMI1.3(CEA-861) ≤1080p_60Hz |
|
HDMI format |
PC(VESA standard) ≤1920×1200_60Hz
HDMI1.3(CEA-861) ≤1080p_60Hz |
|
SDI format |
SMPTE259M-C
480i_60Hz
SMPTE 292M
576i_50Hz
SMPTE 274M / 296M 720p,1080i,1080p
SMPTE 424M / 425M
|
|
Input connectors |
CVBS:VGA P4
VGA:15pin D_Sub ( female )
DVI:24+1 DVI_D
HDMI:HDMI A type
SDI:BNC / 75Ω
|
|
Audio input type number |
Analog stereox3+(HDMI embedded audio) |
|
Audio amplitude impedance |
2.0V /10 |
|
Outputs |
|
Number / type |
4 x DVI |
|
DVI format |
1024 x 768_60Hz
1280 x 1024_60Hz
1440 x 1440_60Hz
1920 x 1080_50Hz
1920 x 1080_60Hz
1920 x 1200_60Hz |
|
Output connectors |
DVI OUT:24+1 DVI_D |
|
Audio output type number |
Analog stereox1 |
|
Audio output load impedance |
70mW/32Ω or 105mW/16Ω |
