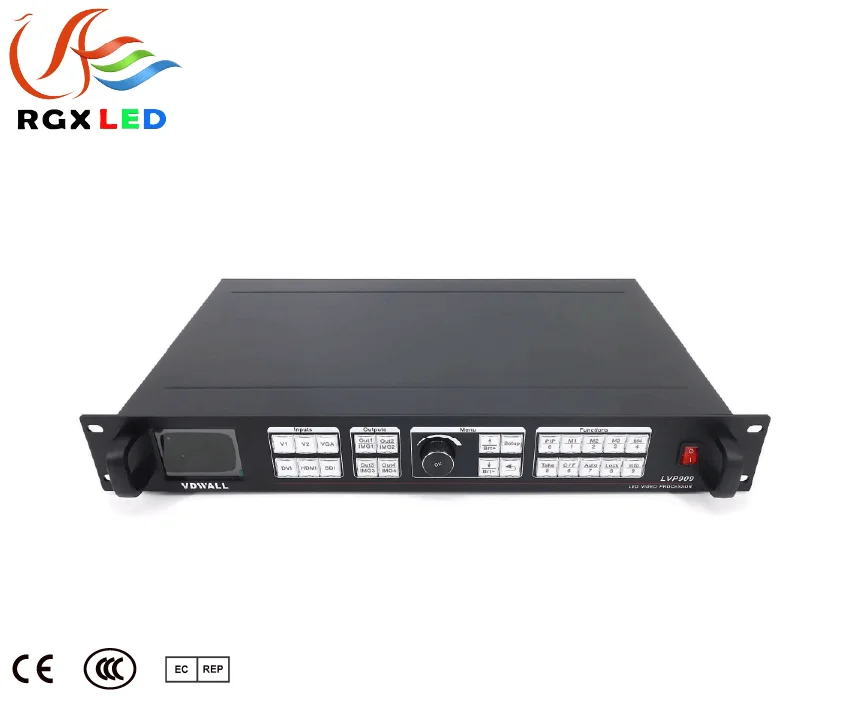

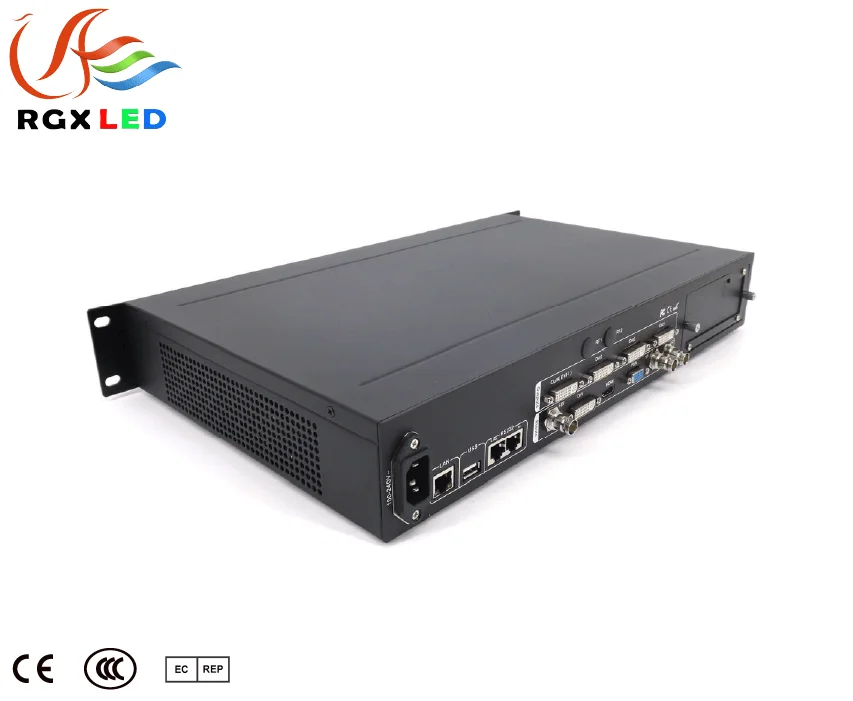

VDWall LVP909 Series LED Video Splicer Processor LVP 909 LED Display Controller

classification：LED Display Video Processor -> VDWALL

market price：$0.00

Local price：$0.00

material：

color：

Release date：2025-8-29 10:25:39

The VDWALL LVP 909 is a high-definition LED video processor equipped with advanced interlaced motion image adaptive processing technology, which can eliminate motion trailing and aliasing in video images. It supports multi-channel analog and digital mixed inputs, including 2 channels of Video, 1 channel of VGA, 1 channel of HDMI, 1 channel of DVI, and 1 channel of SDI/HD-SDI/3G-SDI. It features 4 channels of DVI and 1 channel of VGA outputs, with each port supporting a maximum output resolution of 1920×1200@60Hz or 1440×1440@60Hz. The processor supports functions such as synchronous splicing, various effect switching, and preview output, allowing for convenient operation and setup. It is suitable for scenarios such as large indoor/outdoor and irregular-shaped LED screens.

Hotline：86 13699777670

Share to：QQ Zone Sina micro-blog Tencent micro-blog WeChat

Best-selling

P3.91 LED Display
classification：STAGE ALL KINDS LE..
P1.875 LED Display
classification：Small Pixel..
RGX P3 Rental Indoor LE...
classification：LED Display module..
RGX Indoor Mirror/Post ...
classification：COMMERCIAL DISPLAY..

Shenzhen RGX Electronics Co., Ltd.
Contact:ledrgx
Phone: 0755-23714515
Mobile: +86 18038069578
Whatsapp/wechat: +86 180 380 69578
Skype: levin-led
Q Q: 1006759127

After sale service: ledrgx@163.com

description

introduction to products

VDWALL-LVP909

VDWALL is most reputed video processor manufacturer which obtains unparalleled technical advantage. After more than 20 years oftechnical accumulation and continuous innovation, it has secured unique technological advantages in LED 4K/8K video processing, video switching, multi-window splicing, LED controlling and LED 4k/8K all in one solution. Meanwhile, it has acquired more than 60 invent patents and nearly 100 software copy right, developed several edge-cutting 2K/4K/8K video processor, switcher and multi-window splicer, which is widely applied in rental performances, TV studios, exhibitions, stage entertainment, advertising and command monitoring center.

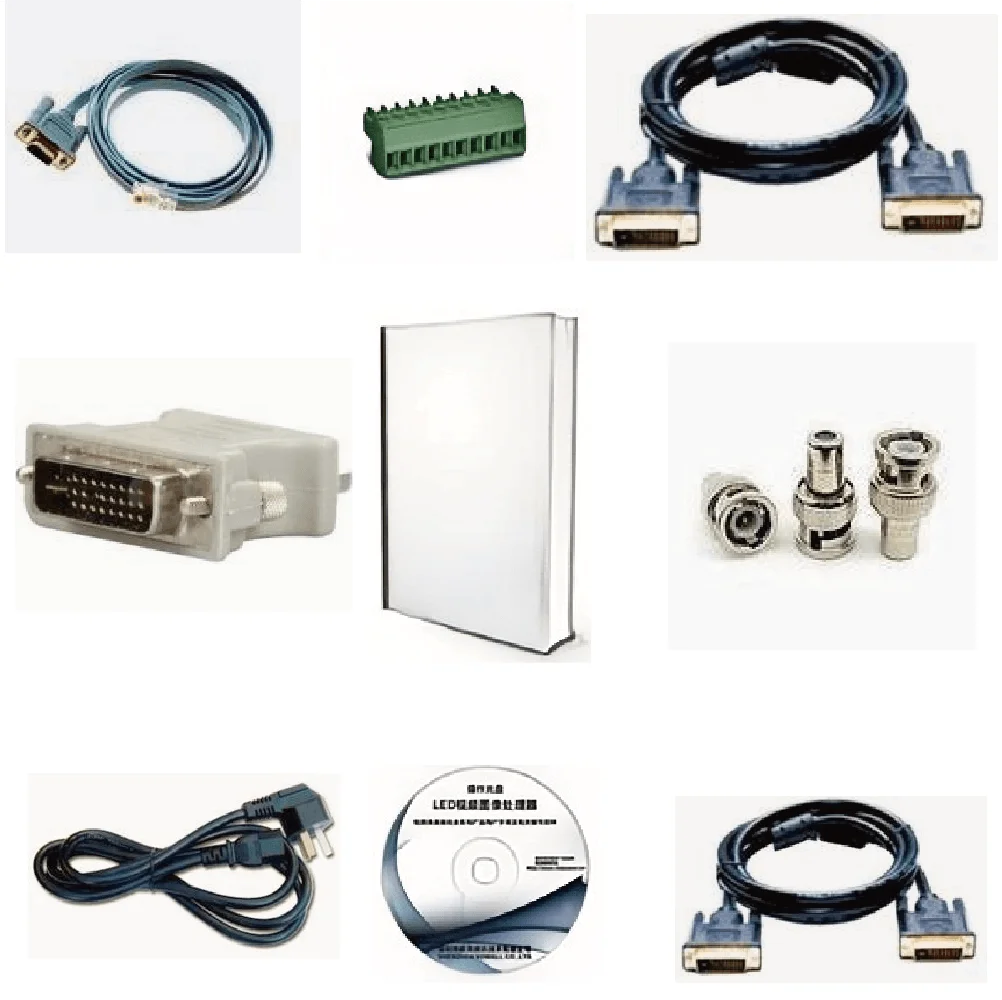

List of Accessories

1.5mpowercord*1	1.5mRS232-RJ45 Adaptercable*1	DVI-ItoVGAadapter*1
1.5mDVIcable*1	OperationCD*1	PCBaudioadapter*1
0.5mDVIcable*4	BNC-RCAadapter*3	Usermanual*1

Product Paramenters

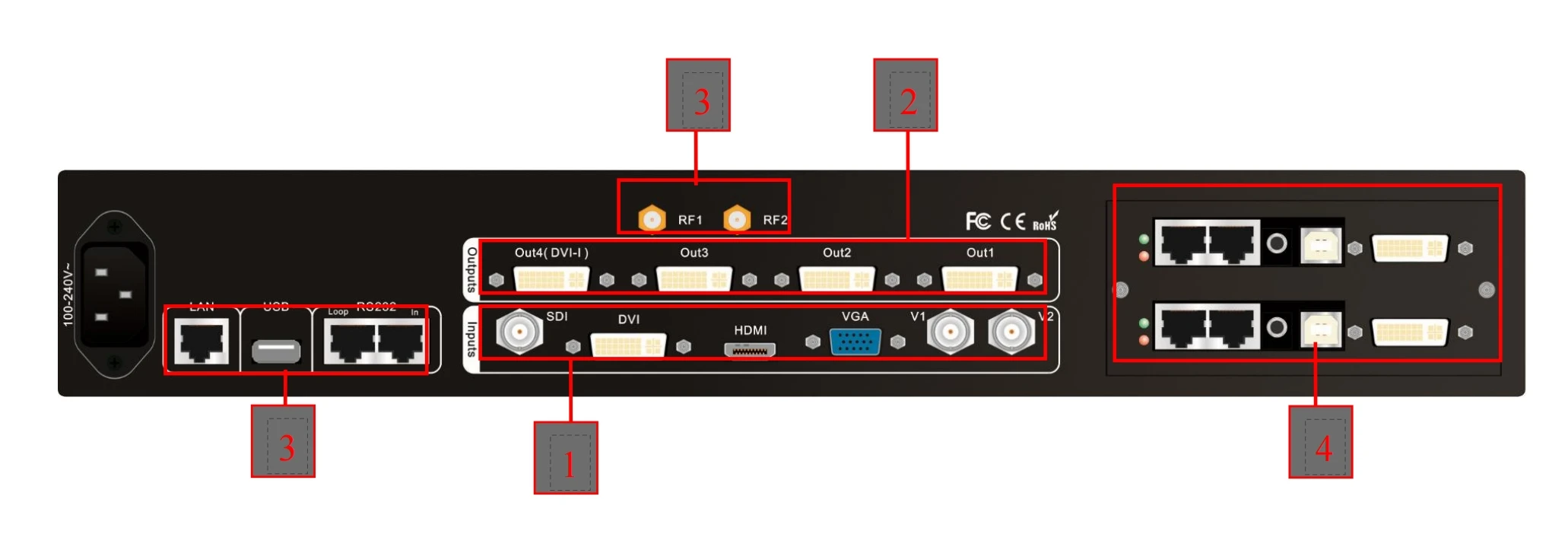

Hardware connection

VideoSignalInputs（Inputs）
ports	description
V1、V2	2channels Composite video(PAL/NTSC)
VGA	32GB (25GB program available)
HDMI Output	1080P HD output
Maximum carrying area	The maximum band load is 650,000 points, the widest is 4096 pixels, and the highest is 3840 pixels
VideoSignalOutputs（Outputs）
ports	description
Out1~Out4	4 channels DVl output ports to connect LED sending cards monitor. And Out 4 is Dvl-l port including VGA output port.
CommunicationPorts
Ports	description
LAN	TC/IP local area network control interface
USB	USB communication port
RS232 IN	Serial communication interface, used to connect the RS232 port of PC to realize PC software control.
RS232 LOOP	Serial communication cascading outputfor connecting the RS232 lN of next unit.through single PC can control all units,
RF1、RF2	Antenna interface of WlFl control andimage return function.

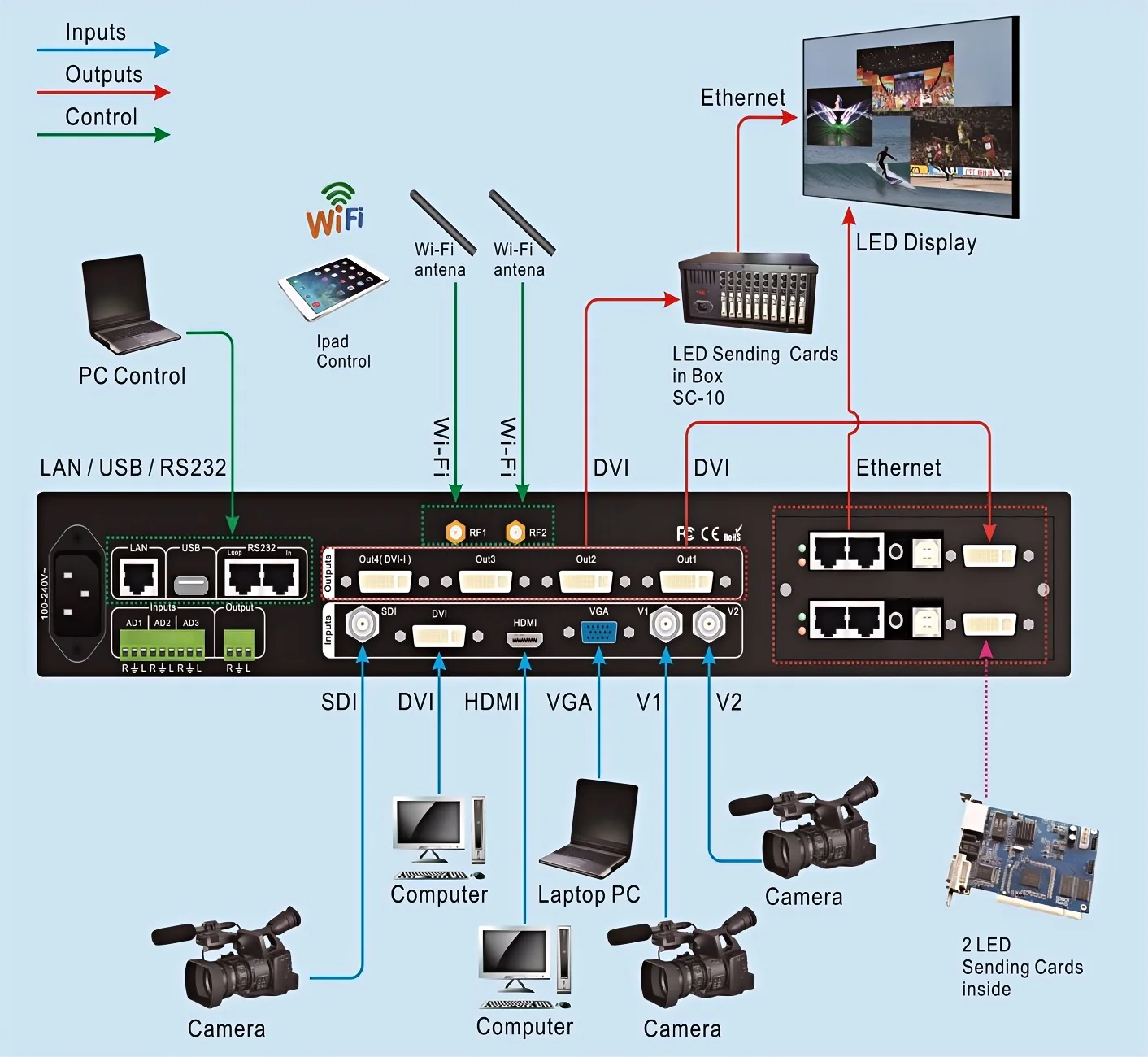

Hardware Connection Diagram

Application scenario

VDWALL-LVP909 products can be widely used in the field of LED commercial display, such as lamp pole screen, chain store screen, advertising machine, mirror screen, retail store screen, door screen, car Loading screen, no PC screen, etc.

Classification	Description
Market type	Advertising media: To be used for advertising and informationpromotion including bar screen and advertising machine. Digital signage: To be used for signage display in retail storesincluding retail store screens and door head screens. Commercial display: To display commercial information ofhotel, cinema and shopping mall, such as chain store screens.

Picture display

Product use

Name	Inputs
number/ type	2×Video 1×VGA（RGBHV） 1×DVI（VESA/CEA-861） 1×HDMI（VESA/CEA-861） 1×SDI
Video system	PAL/NTSC
Composite Video Amplitude Impedance	1V（p_p）/75Ω
VGA format	PC（VESAstandard） ≤2048×115260Hz
DVI format	PC（VESAstandard）	≤1920×120060Hz
	HDMI1.3（CEA-861）
VGA Amplitude Impedance	R、G、B=0.7V（p_p）/75Ω
HDMIforma	PC（VESAstandard）	≤1920×120060Hz
	HDMI1.3（CEA-861）
SDIformat	SMPTE259M-C SMPTE292M SMPTE274M/296M SMPTE424M/425M	480i 60Hz 576i_ 50Hz; 720p、 1080i、1080p
Input connectors	Video : BNC IVGA : 15pin D_Sub( female) DVI :24+1 DV._D SDI : BNC/ 75Q HDMI : HDMl port A type
Outputs
Number / type	4xDM,1xVGA(RGBHV)( Out4 )
VG ADVl format	1024x768 60Hz 1280x1024_60Hz 1440x1440 60HZ 1920x1080p 50Hz/60Hz 1920x1200 60Hz
Output connectors!	DVI OUT : 24+5 DVI
others
Control port	RS232/USB/LANNVIFI
input voltage	100-240VAC 50160Hz
Power consumption!	≤45W
Environment. Temperature	0-45 ℃
Environment Humidity	15-85%!
size	483(L)x 274() x 66.6(H)mm
weighti	G.W :5.5Kg, N.W.:4.2Kg

Certificate

Packing&Shipping

We adopt the order - pick - delivery integration principle, that is, buy and send, customers place orders directly after the factory hair, so that products are protected.

In terms of packaging, we use air cases and cartons as one main packing body

Company Introduction

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
