VDWall LVP615N Series LED Multi-Image Processor Controller for 615N LED Displayprice-Shenzhen RGXLED Electronics Co., Ltd.

Your location：Home>>Product>>LED Display Video Processor>>VDWALL

name：

VDWall LVP615N Series LED Multi-Image Processor Controller for 615N LED Display

classification：LED Display Video Processor -> VDWALL

market price：$0.00

Local price：$0.00

material：

color：RGB

Release date：2025-8-29 10:25:10

The VDWALL LVP 615N is a flagship LED video processor focused on network integration. It supports multi-channel 4K and higher-spec ultra-high-definition signal input (including HDMI 2.1, DP 1.4, and network streaming media) and is equipped with an upgraded image processing engine. Capable of enabling ultra-large-scale multi-screen network collaborative layout, microsecond-level synchronization, and imperceptible switching, it is suitable for ultra-high-definition, ultra-large-scale complex LED splicing systems. Supporting 8K and above output as well as intelligent image quality optimization, it enhances network remote control and centralized management functions, and supports central control integration and multi-system linkage. With built-in high-performance sending cards, it emphasizes the stability of network signal transmission and system compatibility, meeting the core needs for network collaboration and efficient management in high-end venues, remote operation and maintenance, and similar scenarios.

Hotline：86 13699777670

Share to：QQ Zone Sina micro-blog Tencent micro-blog WeChat

Best-selling

P3.91 LED Display
classification：STAGE ALL KINDS LE..
P1.875 LED Display
classification：Small Pixel..
RGX P3 Rental Indoor LE...
classification：LED Display module..
RGX Indoor Mirror/Post ...
classification：COMMERCIAL DISPLAY..

Shenzhen RGX Electronics Co., Ltd.
Contact:ledrgx
Phone: 0755-23714515
Mobile: +86 18038069578
Whatsapp/wechat: +86 180 380 69578
Skype: levin-led
Q Q: 1006759127

After sale service: ledrgx@163.com

description

introduction to products

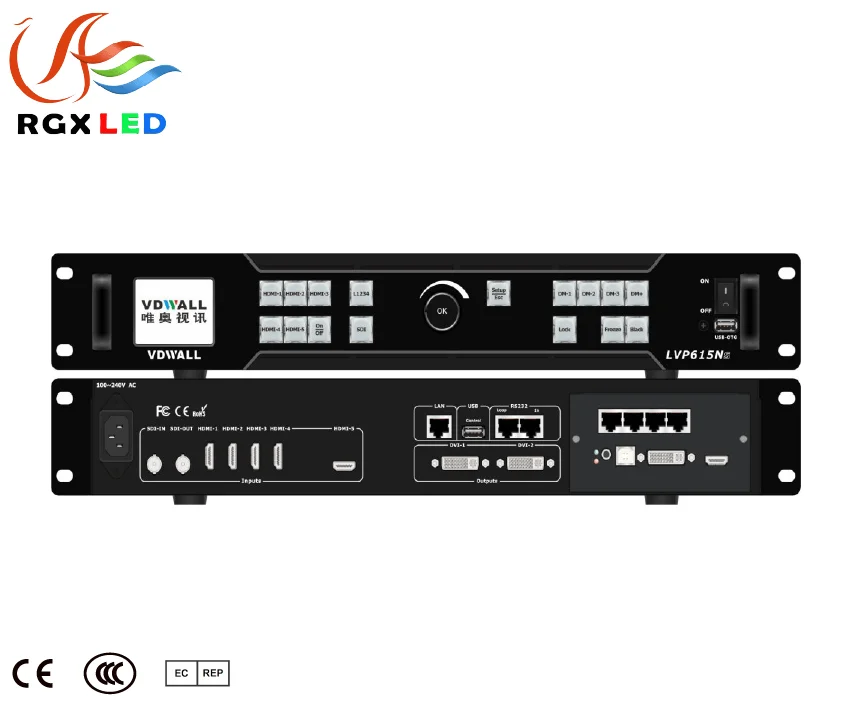

VDWALL-LVP615N

VDWALL is most reputed video processor manufacturer which obtains unparalleled technical advantage. After more than 20 years oftechnical accumulation and continuous innovation, it has secured unique technological advantages in LED 4K/8K video processing, video switching, multi-window splicing, LED controlling and LED 4k/8K all in one solution. Meanwhile, it has acquired more than 60 invent patents and nearly 100 software copy right, developed several edge-cutting 2K/4K/8K video processor, switcher and multi-window splicer, which is widely applied in rental performances, TV studios, exhibitions, stage entertainment, advertising and command monitoring center.

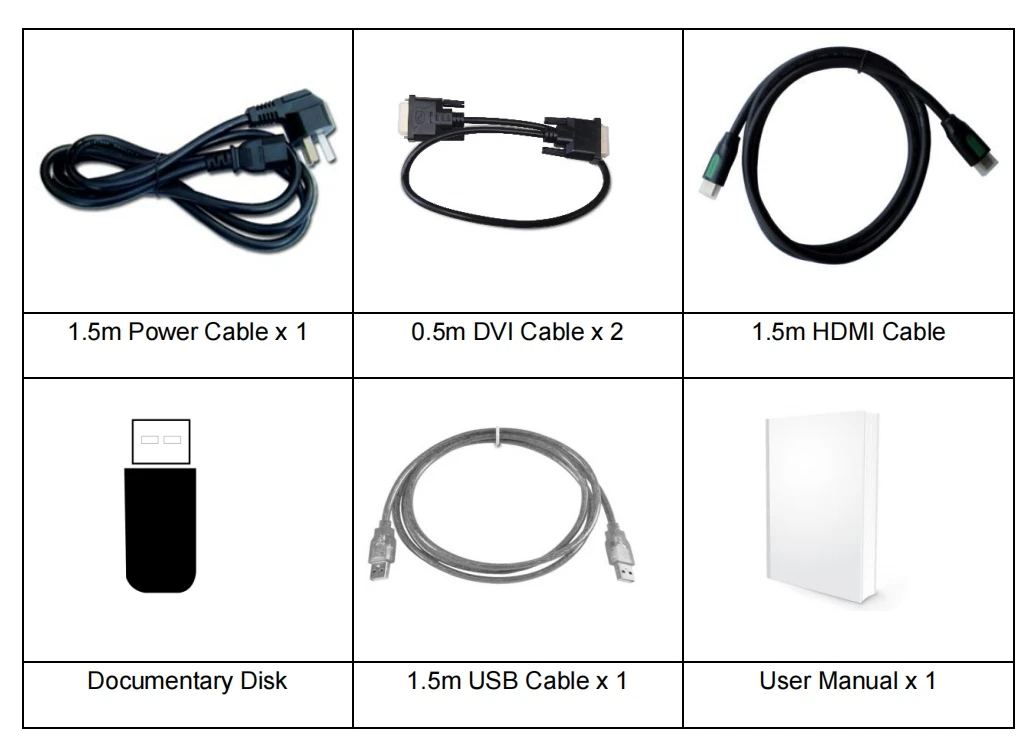

List of Accessories

Product Paramenters

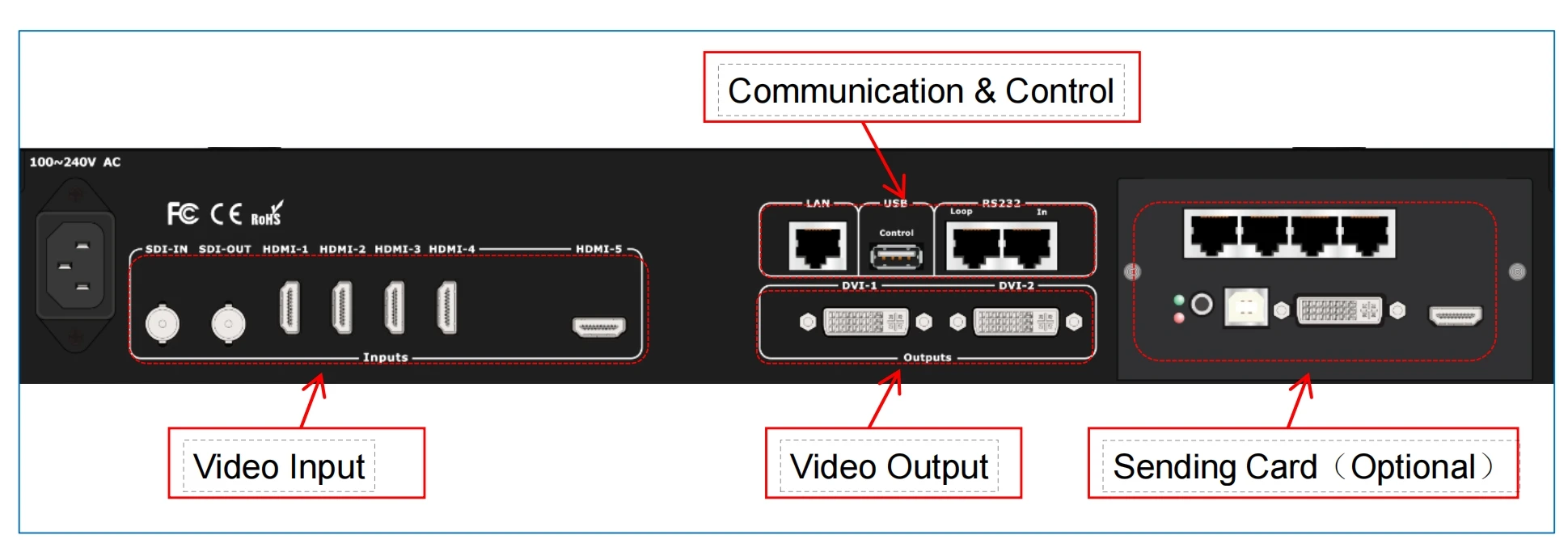

Hardware connection

Video input Port
ports	description
HDMI1,HDM1-2 HDMI-3,HDMI-4 HDMI-5	HDMI1.4b digital video input（compatible with 2K 60Hz and lower signal）
SDI	Optional input module，supports HD-SDI/3G-SDIsigna
DVI-1, DVI-2	DVI digital video output
Location	Port	Description
Front Panel	USB-OTG	8Ethernetoutputs

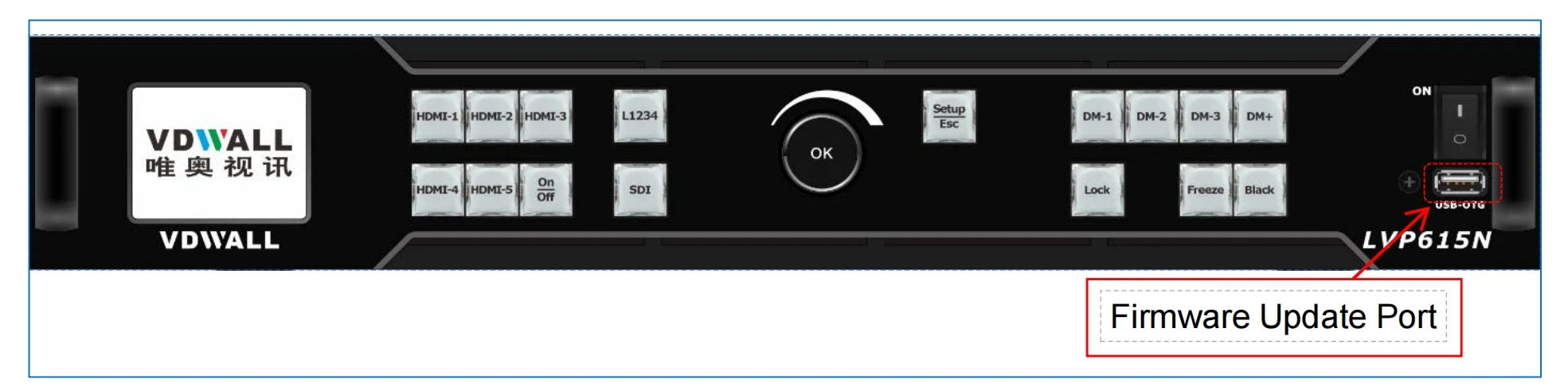

CommunicationAnd Firmware Update Port
Positioni	Port		Description
Front Panel	USB-OTG		Plug the USB flash disk with LVP615Nfirmware，power on processor，LVP615Nwill automatically start firmware update
Rear Pane	LAN		Ethernet TCP/IPnetwork port control
	RS232 In		Serial communication port，RS232electrical level， connect to PC RS232port
	RS232 Ou		Serial command cascading output，RS232electrical level， enable multiple processors centralized control with one PC
	USB-Control		USBcontrol port. Establish communication between LVP615N and control software

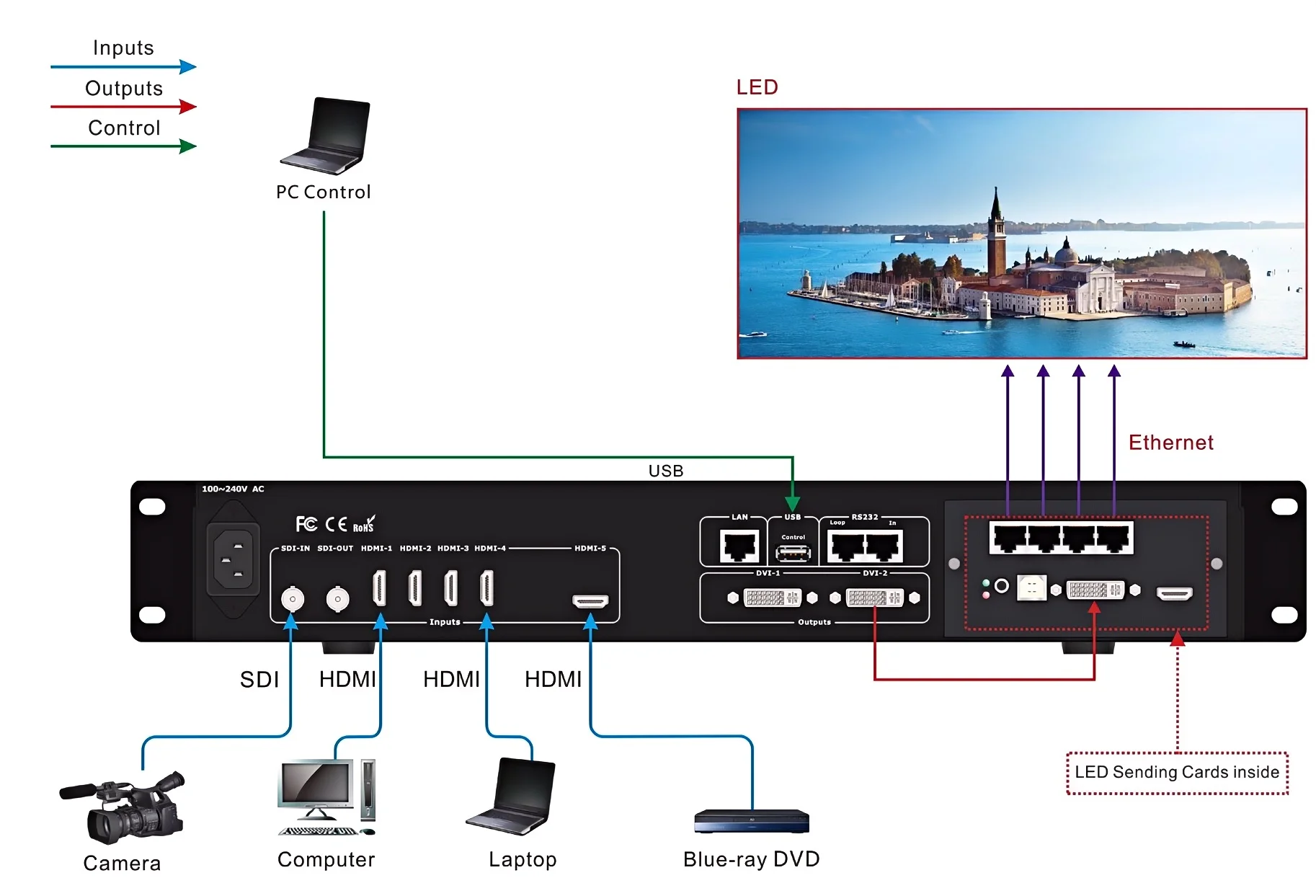

Hardware Connection Diagram

Application scenario

VDWALL-LVP615N products can be widely used in the field of LED commercial display, such as lamp pole screen, chain store screen, advertising machine, mirror screen, retail store screen, door screen, car Loading screen, no PC screen, etc.

Classification	Description
Market type	Advertising media: To be used for advertising and informationpromotion including bar screen and advertising machine. Digital signage: To be used for signage display in retail storesincluding retail store screens and door head screens. Commercial display: To display commercial information ofhotel, cinema and shopping mall, such as chain store screens.

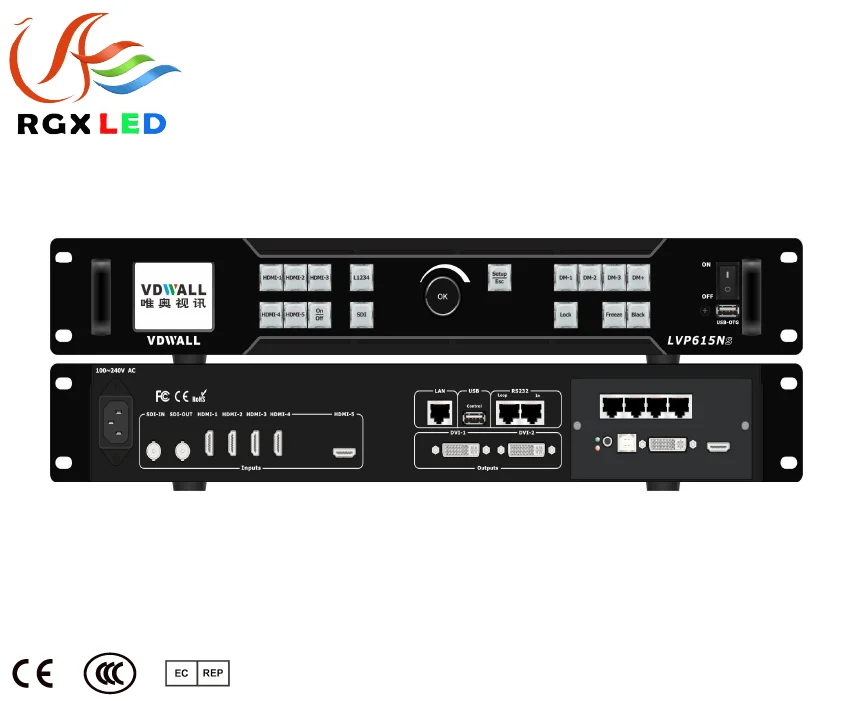

Picture display

Product use

others
InputVoltage	100-240VAC50/60Hz
Power Consumption	10W
Ambient Temperature	0-50℃
Ambient Humidity	15-90%
Dimension	482.6(L)x244(W)x44(H)mm
Packing Dimension	535（L）x315（W）x125（H）mm
weighti	G.W：5.2Kg,N.W：3.7Kg

Certificate

Packing&Shipping

We adopt the order - pick - delivery integration principle, that is, buy and send, customers place orders directly after the factory hair, so that products are protected.

In terms of packaging, we use air cases and cartons as one main packing body
