VDWALL LVP615U LED Video Processor and LED Display Controller
Parameters
Key features
LVP615 series product model description
*LVP615: Extend interface optional 1×CVBS
*LVP615S:Extend interface optional 1×SDI/HD-SDI/3G-SDI
*LVP615D:Extend interface optional 1×VGA/DVI/HDMI

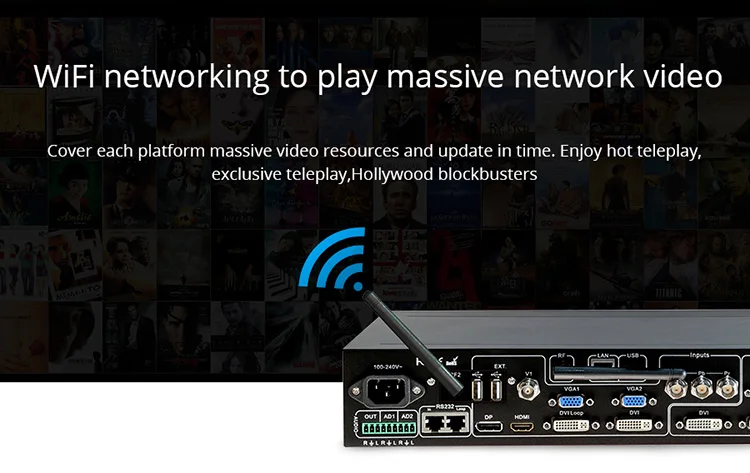

*LVP615U:Extend interface optional 1×Wi-Fi+2×USB
Key Parameters
|
Inputs |
|
Number/type
|
2×Video
1×YPbPr
2×VGA(VESA)
1×DP(VESA)
1×DVI(VESA)
1×HDMI(VESA/CEA-861)
1×EXT.(extended Video/DVI-I/SDI)
|
|
Video system |
PAL/NTSC |
|
Composite video scope/ Impedance |
1V(p_p)/ 75Ω |
|
YPbPr format |
SD/HD(CEA -861) |
|
YPbPr
Amplitude/Impedance
|
Y= 1.0V(p_p)/ 75Ω
Pb= 0.35V(p_p)/ 75Ω
Pr= 0.35V(p_p)/ 75Ω
|
|
VGA format |
PC(VESA) ≤2048x1152 _60Hz
|
|
VGA Amplitude/Impedance |
R,G,B = 0.7 V(p_p)/ 75Ω
|
|
DP format |
DisplayPort1.1(VESA) |
|
DVI format |
PC(VESA)
≤2304x1152_60Hz
HDMI1.3(CEA -861)
Custom output format width≤3840 height≤1920
|
|
HDMI format
(HDCP1.3)
|
PC(VESA) ≤2304x1152_60Hz
HDMI1.3(CEA -861) ≤1920x1080p_60Hz
|
|
SDI format
|
SMPTE259M-C SMPTE 292M 480i_60Hz
SMPTE 274M/296M 576i_50Hz
SMPTE 424M/425M 720p,1080i,1080p
|
|
Audio |
2.0Vp-p/10KΩ |
|
Input connectors |
Video:BNC
YPbPr:BNC×3
VGA:15pin D_Sub(female)
DP:DisplayPort SMT female 20pin
DVI:24+1 DVI_D
HDMI:HDMI port A type
SDI :BNC
|
|
Outputs |
|
Number /Type |
1×VGA(RGBHV)
2×DVI
|
|
VGA/DVI resolution |
1024×768_60Hz/75Hz
1080×1920_60 Hz
1200×1600_60 Hz
1280×1024_60Hz/75Hz
1366×768_60Hz
1440×900_60Hz
1536×1536_60 Hz
1600×1200_60Hz
1920×1080p_50Hz/60Hz
1920×1200_60 Hz
2048×1152_60Hz
2304×1152_60Hz
2560×816_60Hz
Custom output format(maximum output horizontal 3840 pixels or vertical 1920 pixels.)
|
|
VGA Amplitude/Impedance |
R,G,B = 0.7 V(p_p)/ 75Ω
|
|
Output ports |
VGA OUT:15pin D_Sub( female)
DVI OUT1:24+1 DVI_D
DVI OUT2:24+1 DVI_D
|
|
Others |
|
Control methods |

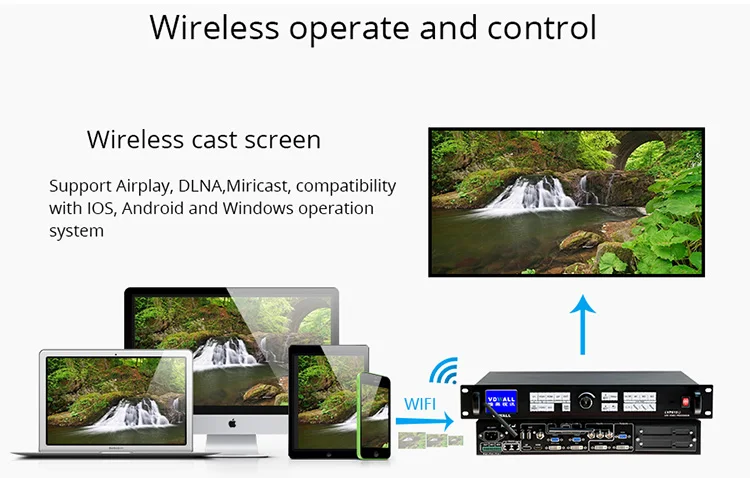

Wireless wifi,IP/LAN,front panel button,infrared remote control, PC software,Ipad, mobile phone terminal and etc..
|
